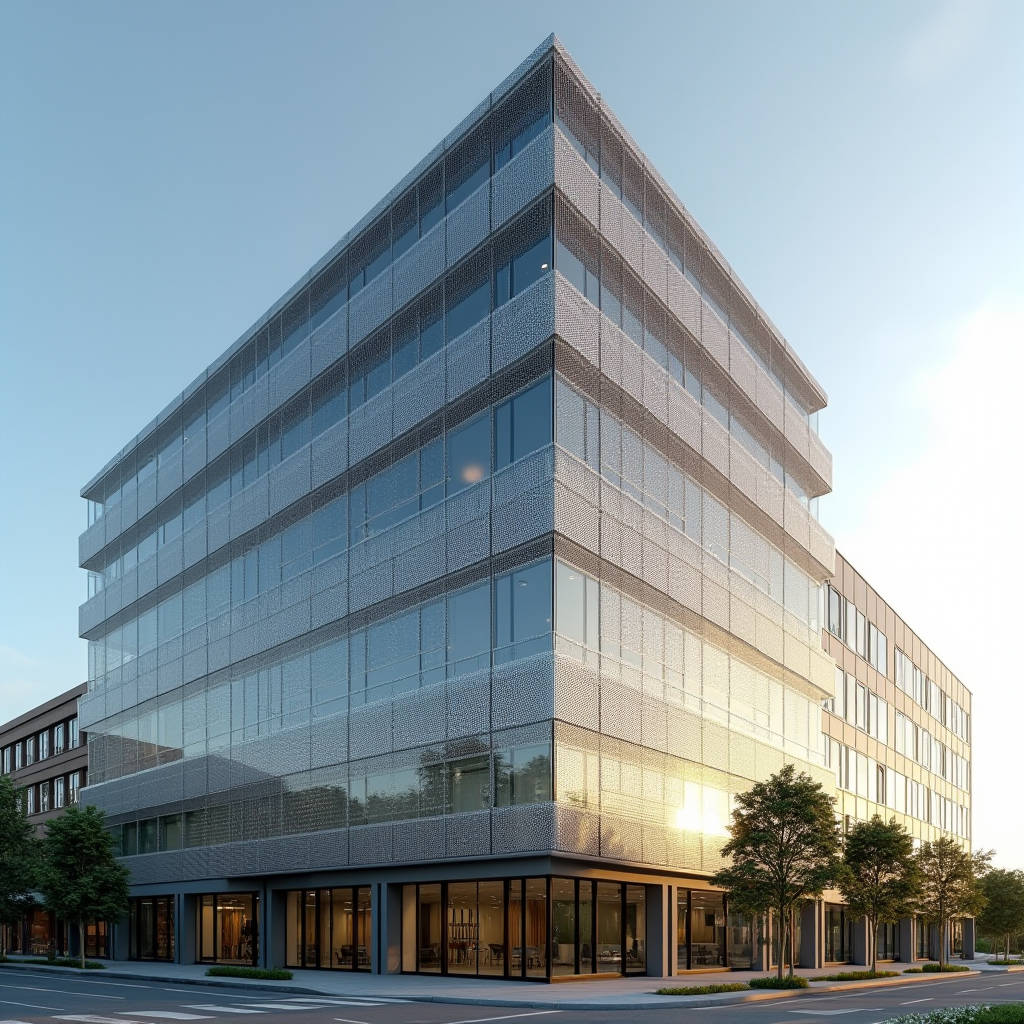

Perforated Aluminium Plate Facade Engineering Alloy Coating and Wind Load Specification

When a curtain wall spec calls for a perforated aluminium plate, most buyers assume the only variables are hole diameter and open area. In practice, the difference between a facade that survives a decade of coastal exposure and one that fails its first warranty inspection comes down to alloy selection, coating system, and the interaction between perforation pattern and structural stiffness. A perforated aluminium plate is not a decorative accessory bolted onto a rainscreen; it is a load-bearing, weather-exposed component that must be engineered to the same tolerances as the solid panels around it. For global contractors, facade installers, and procurement teams, the practical question is not whether perforated aluminium works, but how to specify it so that fabrication, finishing, and installation remain predictable across a project schedule.

Why the Perforation Pattern Changes the Engineering Rules

Solid aluminium cladding panels are relatively forgiving in structural terms because the full sheet carries load continuously. Once you introduce holes, the effective section modulus drops, stress concentrates around each aperture, and the panel's resistance to wind suction and thermal movement changes. The open area ratio, which is the percentage of the sheet surface removed by punching, is the single most important geometry for both ventilation performance and structural capacity. A 40 percent open area panel with 3 mm holes behaves very differently from a 40 percent panel with 12 mm holes, because the ligament width between holes, the narrowest strip of metal connecting adjacent apertures, shrinks as hole size grows.

For a typical 2.0 mm or 2.5 mm plate, the practical rule is to keep the ligament width at least equal to the plate thickness. If the ligament falls below that, the punching process can distort the sheet, and the panel becomes prone to micro-cracking at the hole edges during forming. This is why experienced fabricators reject drawings that specify a 10 mm hole on a 12 mm staggered pitch in 2.0 mm material; the resulting ligament is too thin to guarantee clean edges. The open area ratio also drives the panel's effective bending stiffness, which the structural engineer must account for when calculating deflection under wind load. A common shortcut is to treat a perforated panel as solid and apply a reduction factor, but that approach underestimates stress concentration at the hole rims and can lead to premature fatigue in high-cycle wind zones.

Alloy Selection: 3003, 5052, or 6061

The alloy choice determines how the plate behaves during punching, how it responds to welding and forming, and how long it survives in a given environment. Three alloys dominate architectural perforated work, and each has a specific role.

• 3003-H14: The workhorse for interior screens, ceilings, and decorative baffles. It forms cleanly, punches without cracking, and offers good corrosion resistance for sheltered applications. It is not the first choice for exposed coastal facades because its strength is lower than the 5xxx series.
• 5052-H32: The preferred alloy for exterior cladding and marine-adjacent projects. It combines moderate strength with excellent corrosion resistance and weldability, and it holds up well under salt-laden air. For a perforated aluminium plate used as a rainscreen or sunshade, 5052 is the default recommendation.
• 6061-T6: Chosen when the panel must carry structural load or when the fabricator needs higher yield strength. It is harder to punch cleanly and requires more careful tooling, so it is usually reserved for load-bearing screens and louvers rather than simple cladding.

For most curtain wall applications, the practical specification is 5052-H32 in 2.0 mm to 3.0 mm thickness, with the perforation pattern selected so that the open area stays between 25 and 45 percent. Pushing open area above 50 percent in 2.0 mm material is possible but forces the fabricator into tighter tolerances and higher scrap rates, which shows up in both price and lead time.

Coating Systems and the Hidden Cost of Perforation

The coating is where many facade projects go wrong, because perforation changes how a finish is applied and how it cures. A solid panel has a continuous surface that can be sprayed evenly. A perforated panel has edges, hole rims, and back surfaces that must all be covered, otherwise bare aluminium is exposed and corrosion begins at the hole edges. This is a common failure point in projects that use a single-sided coating or a thin paint film.

For exterior architectural work, the industry standard is a two-coat or three-coat PVDF system with a total film thickness of 25 to 35 microns, applied to both faces. The reverse side of a perforated panel is not hidden; it is visible through the holes from certain angles, so an uncoated back face is both a corrosion risk and a visual defect. Powder coating is a viable alternative for interior use, but on exterior perforated panels it tends to be more brittle and less UV-stable than PVDF, and the coating can bridge or clog small holes if the applicator is not careful.

The practical implication is that the hole pattern must be finalised before coating, because the coating applicator needs to know the open area to set spray parameters and avoid overspray waste. A pattern with very small holes, below 3 mm, is difficult to coat evenly on the hole walls, which is why many architects who want a fine mesh effect end up with a different product altogether. The table below summarises the coating options relevant to perforated exterior panels.

For procurement teams, the film thickness and the two-face application requirement should be written into the specification, not left to the fabricator's discretion. A perforated aluminium plate that meets AAMA 2605 for exterior coatings will carry a documented film thickness and a UV exposure test result, and that documentation is worth requesting before approving a sample.

Structural Design and Wind Load Considerations

Perforated panels are often treated as non-structural by architects, but on a high-rise facade they are part of the wind envelope. The panel must resist suction on the leeward side, and the perforation creates a pressure-equalisation effect that can actually reduce net wind load compared to a solid panel, because air passes through and balances pressure across the panel. That is a genuine advantage: a perforated rainscreen experiences lower differential pressure than a sealed solid panel of the same area. However, the local stress around each hole is still a concern, and the panel must be stiffened at its edges and at intermediate support points to control deflection.

For a 2.5 mm 5052 panel spanning 1200 mm between supports, a reasonable deflection limit is L/60 for a rainscreen, which allows for the flexibility inherent in perforated material. The structural engineer should model the panel with the actual open area and hole pattern, not with a blanket reduction factor, because the stress concentration factor varies with the hole geometry. Round holes in a staggered pattern are the most efficient for minimising stress concentration; square and slotted holes create higher stress at the corners and should be used only where the visual effect justifies the added structural cost.

Thermal movement is another factor that perforation does not eliminate. Aluminium expands roughly 23 microns per metre per degree Celsius, and a dark-coated perforated panel on a south-facing facade can see surface temperatures above 70°C. The panel must be allowed to move within its framing, and the perforation does not change that requirement. Joints and fixings must accommodate the same thermal expansion as a solid panel of the same alloy.

Acoustic and Ventilation Performance

Beyond structure, the perforation is specified for acoustic absorption or natural ventilation, and the open area ratio directly controls both. For acoustic panels, the perforation is typically paired with a backing layer of acoustic fleece or mineral wool, and the absorption coefficient depends on the hole size, open area, and the air cavity behind the panel. A 20 to 30 percent open area with holes between 2 and 5 mm gives a broad absorption band in the mid-frequency range, which is why this configuration appears so often in auditorium and station ceilings.

For ventilation, the open area ratio determines airflow, but the pressure drop across the panel is what actually matters for the building's mechanical design. A 40 percent open area panel allows good airflow with low pressure drop, while a 15 percent panel creates meaningful resistance that the HVAC engineer must account for. The perforation pattern should be specified in the mechanical drawings, not left to the architect's aesthetic choice, because the two disciplines need to agree on the same open area number.

Fabrication Tolerances and Quality Control

Perforation is a punching operation, and the tolerances are different from solid sheet. Hole diameter can typically be held to ±0.1 mm, and the pattern pitch to ±0.3 mm over a panel, but the edge condition of each hole matters more than the nominal dimensions. A clean, burr-free hole edge is essential for coating adhesion and for avoiding stress raisers. Burrs on the reverse side are a common defect that shows up only after coating, when the finish peels at the hole rims.

For a project with several thousand panels, the quality control should include a first-article inspection that checks hole diameter, pitch, open area, burr height, and coating film thickness on the hole walls. A reputable fabricator will hold these tolerances, but the spec should state them explicitly so that the acceptance criteria are clear. This is where a supplier with established fabrication and finishing capacity, such as Futeng®, can reduce risk, because the punching, coating, and cutting are managed under one quality system rather than across multiple subcontractors.

Procurement and Lead Time Realities

Perforated panels carry a longer lead time than solid panels because the punching operation is an additional step and because the coating of perforated material is slower than coating a solid sheet. For a typical curtain wall package, buyers should plan for four to six weeks of fabrication lead time after approval of the sample, plus coating time. The open area and hole pattern affect punching speed, so an unusual pattern with very small holes or a very high open area will increase both cost and lead time.

Ordering should also account for the fact that perforated panels are cut to size after punching, and the hole pattern must be aligned with the panel edges so that the pattern does not run off the edge or leave an unsightly partial row. This alignment is a drawing detail that must be resolved before fabrication, and it is a common source of rework. Providing a clear fabrication drawing with the hole pattern anchored to a datum edge is the single most effective way to avoid delays.

Practical Specification Guidance

For a facade project, the specification for a perforated aluminium plate should fix the following parameters before any sample is approved: alloy and temper, plate thickness, hole shape and diameter, hole pitch and stagger, open area percentage, coating system and film thickness on both faces, edge condition requirements, and deflection limits under the design wind load. Writing these into the specification protects the contractor, the architect, and the owner, because it removes the ambiguity that leads to claims and rework.

It is also worth requesting a physical sample that shows the actual hole edge condition and the coating coverage on the hole walls, because a photograph or a CAD rendering cannot reveal a burr or a thin film at the hole rim. The sample should be cut from the same production run and coated with the same system as the final panels, not a hand-finished prototype. For coastal projects, the sample should also be reviewed against the expected salt exposure, and the coating documentation should be checked against the AAMA 2605 specification.

The decision to use a perforated aluminium plate is rarely a purely aesthetic one. It is a structural, acoustic, and ventilation decision that affects the whole facade system. When the alloy, the hole pattern, the coating, and the structural detailing are specified together, the perforated panel performs reliably for decades. When each of those is left to a different party without coordination, the panel becomes the weakest link in the envelope. The engineering effort spent on the perforation detail is small compared to the cost of a premature failure, and it is the difference between a facade that works and one that does not.
