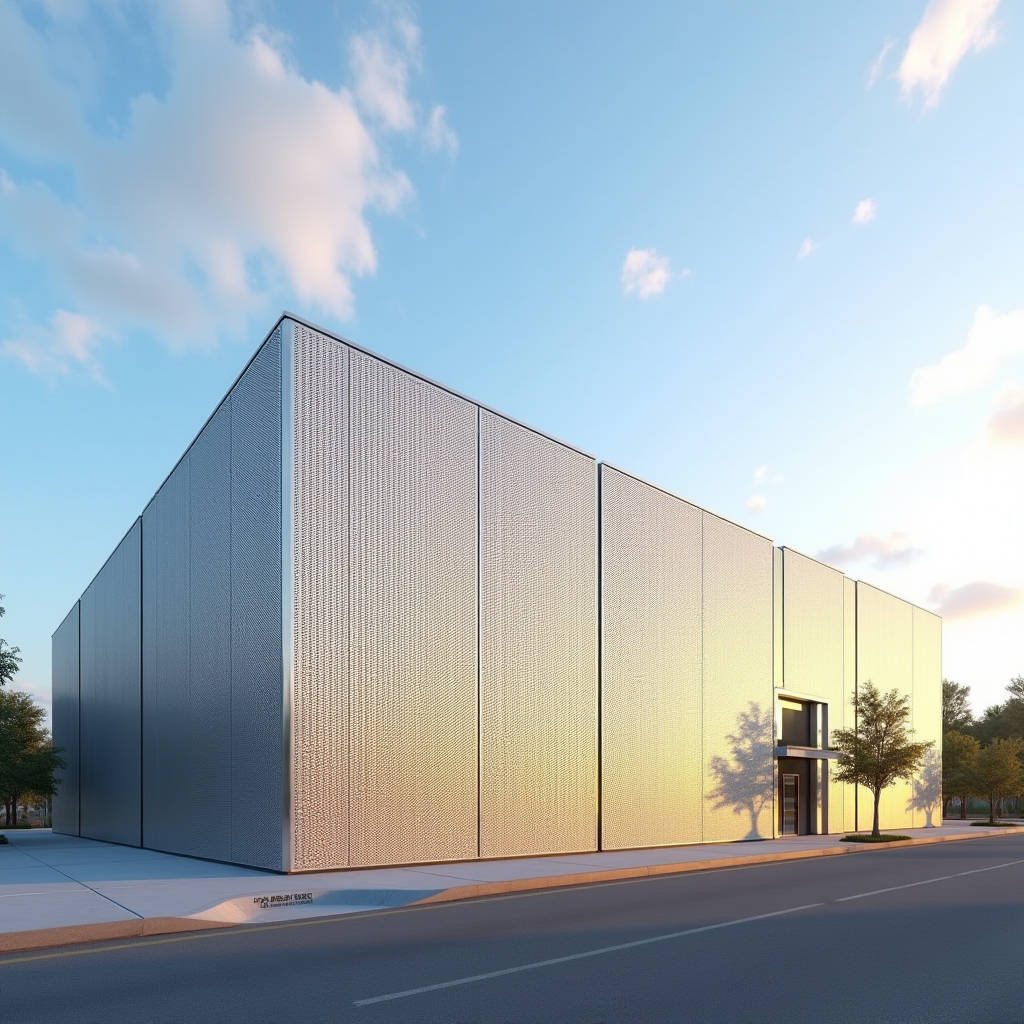

1 4 Perforated Aluminum Sheet Engineering for Facade Rainscreens and Wind Load Design

When a curtain wall spec calls for a 1 4 perforated aluminum sheet, the conversation usually stops at open area percentage and hole pattern. What gets overlooked is how the perforation geometry interacts with the structural behavior of a solid aluminium cladding panel once it is fixed to a rainscreen system. A 1/4 inch hole on a 3/8 inch staggered pitch is a common stock pattern, but the same nominal sheet can behave very differently depending on alloy, temper, thickness, and the edge treatment specified. This article walks through the engineering decisions that separate a perforated screen that performs for twenty years from one that fatigues, corrodes at the cut edges, or fails a wind-load check during shop drawing review.

Defining the 1 4 perforated aluminum sheet

The term 1 4 perforated aluminum sheet refers to a flat aluminium product punched with a 0.250 inch hole diameter, most often arranged on a staggered (60 degree) center pattern. The most frequently specified configuration in architectural work is 0.063 inch (1.6 mm) material with 1/4 inch holes on 3/8 inch staggered centers, which yields an open area of roughly 40 percent. That open area is the first number a facade engineer checks, because it drives solar transmittance, natural ventilation, acoustic absorption, and the effective wind load on the supporting structure.

For a solid aluminium cladding panel, the alloy is almost always 3003-H14 or 5052-H32. The 3003 series offers good formability and corrosion resistance at a lower cost, while 5052 carries higher strength and better fatigue performance, which matters on tall towers where the perforated screen is exposed to repeated wind cycles. Thickness ranges from 1.0 mm for interior screens to 2.0 mm or 2.5 mm for exterior rainscreens where the panel spans between vertical supports. A 1 4 perforated aluminum sheet is not a single product; it is a family of combinations, and the specification must pin down all four variables: hole diameter, center distance, sheet thickness, and alloy/temper.

Structural behavior of perforated panels

Perforating a solid sheet removes material and changes its stiffness and strength. The open area does more than reduce weight; it lowers the effective section modulus and creates stress concentrations around each hole. For a 1 4 perforated aluminum sheet at 40 percent open area, the bending stiffness of the panel drops to roughly 60 percent of the equivalent solid sheet of the same thickness. That reduction is not linear and depends heavily on the ligament width, the strip of material between adjacent holes.

On a 3/8 inch staggered pitch, the ligament between holes is only 0.125 inch, which is thin relative to the hole diameter. This narrow ligament concentrates stress and makes the panel more sensitive to edge conditions and to the quality of the punched edge. A poorly deburred hole leaves a sharp, work-hardened rim that can initiate cracking under cyclic loading. For exterior rainscreens, the practical result is that a 1 4 perforated aluminum sheet in 1.6 mm 3003 will span shorter distances than a solid panel of the same gauge, and the fixing pattern must be tightened accordingly.

Engineers should run a finite element check on the actual perforation pattern rather than relying on solid-sheet properties. The effective elastic modulus of a perforated sheet can be estimated using standard open-area correction factors published in the ASTM literature on perforated materials, but those factors assume idealized geometry. Real panels carry tolerances on hole position and diameter that change the local stress field, so a safety factor of at least 1.5 on the allowable bending stress is prudent for exterior applications.

Wind load and open area interaction

One of the most misunderstood points on a 1 4 perforated aluminum sheet is how it behaves under wind. A perforated screen is not a solid barrier; air passes through the holes, so the net pressure on the panel is lower than on a solid cladding element. However, the panel still carries a drag load, and the supporting structure must be designed for the full tributary wind area, not the open area. The perforation reduces the pressure coefficient but does not eliminate it.

For a typical high-rise facade, the design wind pressure on a perforated screen can be estimated at 60 to 80 percent of the solid panel value, depending on the open area and the permeability of the backing wall. The wind load provisions in ASCE 7 give guidance on partially permeable cladding, and the effective pressure should be calculated with the perforation ratio factored into the net pressure coefficient. Getting this wrong on the conservative side inflates the steel subframe cost; getting it wrong on the non-conservative side risks panel pull-out or fastener fatigue.

Fastener selection is equally important. A 1 4 perforated aluminum sheet with 40 percent open area has less material to grip around each fixing point, so the edge distance from the hole to the fastener must be checked. A common failure is specifying a fastener that lands too close to a perforation, leaving a thin sliver of aluminium that tears under suction. The minimum edge distance from a hole edge to the center of a fastener should be at least two hole diameters, which on a 1/4 inch hole means a 0.5 inch clear zone around each fixing point.

Edge treatment and corrosion control

The punched edge of a 1 4 perforated aluminum sheet is a metallurgical weak point. The punching process shears the material, leaving a burr on one face and a work-hardened zone around the cut. On an exterior facade, that exposed edge is the first place corrosion begins, particularly in coastal environments where chlorides accelerate attack. The alloy choice matters: 5052 resists salt-water pitting far better than 3003, and for marine-grade screens a 5052-H32 1 4 perforated aluminum sheet is the safer specification.

Surface protection is the second line of defense. For exterior architectural panels, a two-coat or three-coat PVDF (polyvinylidene fluoride) system applied to a properly pretreated surface gives the best long-term durability. The coating must cover the cut edges, which means the panels should be coated after perforation, not before. Pre-coated stock that is perforated afterwards leaves raw aluminium exposed at every hole, and that edge will oxidize and streak within a few years. The AAMA 2605 specification is the benchmark for high-performance PVDF coatings on architectural aluminium, and it should be written into the project specification for any exterior perforated screen.

Anodizing is a viable alternative for interior screens or for a matte architectural finish, but it offers less protection than PVDF on a punched edge. The anodic film is thinner on sharp edges and can be damaged during handling. For a 1 4 perforated aluminum sheet that will be seen up close, anodizing delivers a consistent color, but for a rainscreen that must survive twenty years of weather, a PVDF system per AAMA 2605 is the more defensible choice.

Acoustic and ventilation performance

Beyond structure, the 40 percent open area of a standard 1 4 perforated aluminum sheet makes it a practical tool for acoustic and ventilation control. When the screen is backed by an acoustic insulation layer, the perforation lets sound energy reach the absorber while the panel protects the insulation from weather and impact. The perforation ratio and the hole diameter influence the acoustic absorption curve; a 1/4 inch hole with 40 percent open area gives a broad mid-frequency absorption band, which suits many facade and plant-room applications.

For natural ventilation, the same open area allows air movement through the cavity behind the screen, which can reduce solar heat gain on the facade and ease the load on mechanical cooling. The pressure drop across a 1 4 perforated aluminum sheet is modest at typical facade air velocities, so the screen does not meaningfully restrict the ventilation path. Engineers can use the open area to estimate free airflow and size the cavity depth accordingly, but the screen should not be treated as a primary ventilation element; it is a protective and aesthetic layer.

Specification comparison table

The table below compares the common configurations of a 1 4 perforated aluminum sheet for architectural use, with the engineering parameters that matter most to a facade contractor.

The lower open area on the last row comes from widening the center distance to 1/2 inch, which increases the ligament width and restores much of the panel stiffness. When a 1 4 perforated aluminum sheet must span a longer distance or carry a higher wind load, widening the pitch is often a better fix than increasing thickness alone, because it keeps weight and cost down while improving structural performance.

Fabrication and tolerance control

Fabrication quality determines whether a 1 4 perforated aluminum sheet performs as designed. The critical tolerances are hole diameter, center distance, and burr height. A reputable supplier holds hole diameter to plus or minus 0.005 inch and center distance to plus or minus 0.010 inch, with burr height kept below 0.004 inch on the visible face. Tighter tolerances matter on large panels where a cumulative pitch error would show up as a visible misalignment across the facade.

For a solid aluminium cladding panel supplier such as Futeng®, the perforation and the PVDF coating are both done in-house, which keeps the cut edges coated and the tolerances controlled. Sourcing a 1 4 perforated aluminum sheet from a fabricator that punches and coats in one line avoids the common problem of coated-then-punched stock that leaves raw edges. When you evaluate a supplier, ask for the burr height certificate and the coating thickness report, and verify that the coating was applied after perforation.

Installation and maintenance

Installation of a 1 4 perforated aluminum sheet follows the same rainscreen principles as a solid panel, but with more attention to the fixings. Because the panel is lighter and more flexible, it is easier to rack out of plane during installation, so the subframe must be set up square and the panels pulled flat at each fixing point. The perforation also means the panel has no solid surface for a suction cup, so handling requires edge grips or a vacuum frame designed for open material.

Maintenance is straightforward. The open area lets rain wash most of the surface, but in sheltered zones dust can collect in the holes and on the panel face. A periodic rinse with clean water and a soft brush is enough for most environments. In coastal or industrial areas, the PVDF coating should be inspected annually for any damage at the hole edges, and any nicks that expose bare aluminium should be touched up promptly to prevent corrosion from spreading under the coating.

Final engineering guidance

Specifying a 1 4 perforated aluminum sheet is a balancing act between open area, structural capacity, and coating durability. For a typical exterior rainscreen, a 1.6 mm 3003 sheet with 1/4 inch holes on 3/8 inch staggered centers, coated in PVDF per AAMA 2605, is a sound starting point. For a coastal high-rise or a long-span screen, move to 2.0 mm 5052 and widen the center distance to restore stiffness. Confirm the wind load calculation with the perforation ratio factored into the pressure coefficient, keep the edge distance around every fastener at least two hole diameters, and verify that the coating covers the punched edges. With those checks in place, a perforated screen delivers the ventilation, shading, and aesthetic value of a 1 4 perforated aluminum sheet without compromising the structural integrity of the facade.
