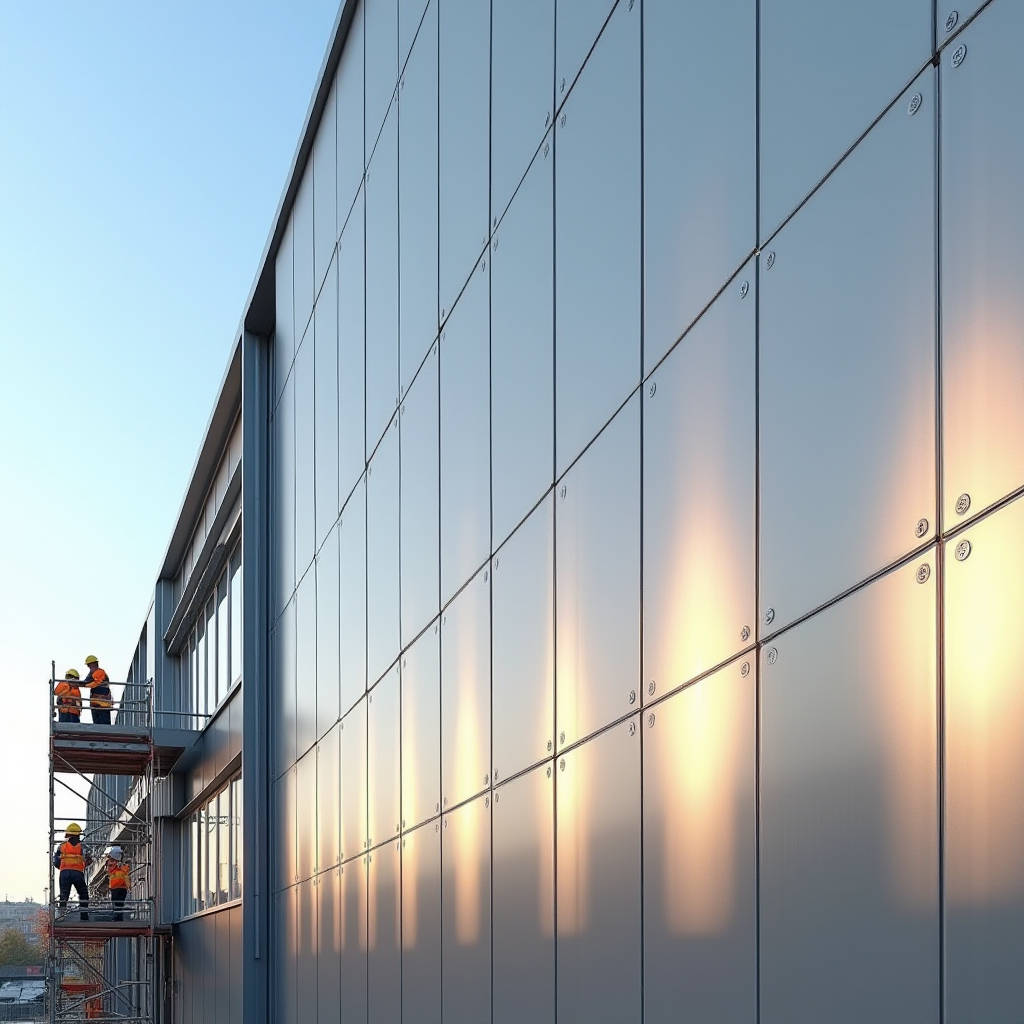

Backer Rod Aluminum Joint Sizing and Installation for Solid Aluminium Cladding Facades

Backer Rod Aluminum Joint detailing is where most solid aluminium cladding panel curtain walls either perform for decades or fail within the first few seasons. The backer rod is the quiet component sitting behind the sealant, yet it controls joint depth, prevents three-sided adhesion, and dictates how much movement the sealant can actually absorb. For any façade contractor installing solid aluminium sheets, getting the rod size, material, and installation sequence right is not optional. This article walks through the engineering logic behind the Backer Rod Aluminum Joint, gives you the sizing tables and installation rules that hold up on site, and explains why PE versus PU rod selection changes the weathertightness outcome of an entire panelised facade.

Why the Backer Rod Aluminum Joint Fails More Often Than the Panel

Solid aluminium cladding panels are dimensionally stable, but the aluminium frame, the sub-structure, and the building itself all move. Thermal cycling, wind load, and seismic drift transfer that movement to the joints between panels. The sealant is the only flexible membrane in that assembly. If the sealant bonds to the back of the joint as well as to both panel edges, it forms a three-sided bond. Under movement, that bond tears the sealant at the root, and the crack propagates upward through the entire joint. The backer rod exists to break that bond and to control the sealant depth so the sealant can stretch rather than tear.

In a Backer Rod Aluminum Joint, the rod is not a filler. It is a bond breaker and a depth control device. Install it too deep and the sealant becomes a thick, stiff block that cannot flex. Install it too shallow and you waste sealant and risk a shallow bond that pulls away from the panel edge. The industry rule of thumb, reflected in the Hammer & Hand joint design guidance, is that the sealant should be hourglass-shaped with a width-to-depth ratio of roughly 2:1, and the backer rod diameter should be about 25% larger than the joint width so it compresses and seats firmly without rolling out.

Closed-Cell vs Open-Cell Rod: A Decision That Changes the Joint

Two families of backer rod dominate the market: closed-cell polyethylene (PE) and open-cell polyurethane (PU). They are not interchangeable, and choosing the wrong one for a Backer Rod Aluminum Joint is a common source of site defects.

Closed-cell PE rod has a sealed outer skin and a foam core. It does not absorb sealant, so it works with most solvent-based and moisture-curing sealants without starving the bond. It is the default choice for most aluminium panel joints because it is cheap, easy to compress, and does not wick moisture. The catch is that PE rod must never be punctured or compressed with a sharp tool. A damaged PE rod can release trapped propellant gas, and if that gas is locked between the rod and the sealant, direct sunlight can cause blistering inside the sealant joint. This is a documented failure mode in PE rod applications exposed to water or mechanical stress.

Open-cell PU rod absorbs moisture and sealant into its surface. That absorption creates a mechanical grip, which makes PU rod better for joints that will see water immersion or where the sealant must bond to the rod itself. PU rod is more forgiving to slight over-compression and is often preferred in wet, marine, or below-grade environments. The trade-off is cost and moisture management: if a PU rod is left wet before sealing, it can push moisture into the sealant bond line and cause adhesion loss on the aluminium edge.

Sizing the Backer Rod for an Aluminium Panel Joint

Correct sizing starts with the joint width, not the rod you have in stock. Measure the joint width at the panel edge, then select a rod that is 25% to 30% wider so it compresses and stays seated. A rod that is too small will rattle loose or sink, leaving the sealant with no depth control. A rod that is too large will sit proud of the joint face and force the sealant into a thin, weak skin.

For most solid aluminium cladding applications, the joint width sits between 1/4 inch and 1/2 inch. The minimum practical sealant depth is 1/4 inch and the maximum is 1/2 inch, per the 2:1 width-to-depth rule. If the joint is deeper than that, the rod does the depth work and the sealant stays thin. If the joint is shallower than 1/4 inch, the rod cannot seat properly and the joint geometry should be redesigned.

Installation Sequence That Holds on Site

Installation discipline matters more than rod quality in a Backer Rod Aluminum Joint. The sequence below is the one that survives real site conditions on aluminium panel curtain walls.

1. Clean the joint faces. Remove dust, oil, and any release agent left from the aluminium extrusion or panel edge. The sealant bond is only as good as the substrate it grips.
2. Push the rod in with a blunt tool. Never use a screwdriver or a sharp blade. A sharp tool punctures the closed-cell skin and triggers the gas-release blistering failure described earlier.
3. Compress the rod to about 75% of its original diameter so it seats firmly without rolling. It should sit below the joint face by the planned sealant depth.
4. Verify the rod is continuous. Butted ends are acceptable, but overlapping or twisted sections create voids that let moisture sit behind the sealant.
5. Apply the sealant with a gun, tooling it into a concave, hourglass profile. Tool immediately so the sealant wets both aluminium edges fully.
6. Mask the panel edges before sealing so the tooling does not smear sealant onto the PVDF coating. Clean-up after cure is far more damaging than masking.

One site error that shows up repeatedly is over-compressing the rod to force a too-large rod into a narrow joint. That pushes the rod to the back of the joint, leaves no depth control, and lets the sealant sag into the void. The rod diameter must match the joint, not the other way around.

Watertightness and the PE Rod Gas Risk

PE rod is the workhorse for most aluminium panel joints, but its weakness is exposure to water and mechanical damage. The Sika and Tremco technical guidance both flag that damage to PE rods during application can release propellant, and if air is locked between the rod and the sealant, direct sunlight can cause blisters. In a rainscreen or a fully sealed aluminium panel system, that blister is a hidden defect that only surfaces after a few thermal cycles, when the blister cracks and lets water into the joint cavity.

For joints that sit in a wet zone or that will see standing water, switch to PU rod. PU rod absorbs and manages moisture better and does not carry the same trapped-gas risk. The cost difference is small relative to the cost of a failed joint and a water ingress claim on a commercial facade.

Movement Capacity and Joint Design Ratios

The movement capacity of the sealant is the ceiling on how much the Backer Rod Aluminum Joint can absorb. A low-modulus, high-elongation sealant rated for 25% or 50% movement needs a joint width that is roughly four times the expected movement. If the building moves 1/8 inch at the joint, the joint should be about 1/2 inch wide. If you undersize the joint, the sealant reaches its elongation limit and tears, regardless of how good the rod is.

This is where the rod and the joint geometry work together. The rod sets the sealant depth, and the depth sets the elongation behaviour. A 1/2 inch wide joint with a 1/4 inch deep sealant can stretch far more than a 1/2 inch wide joint with a 3/8 inch deep sealant, because the deeper sealant has less free surface to distribute the strain. Keeping the depth at the low end of the 1/4 to 1/2 inch range maximises the movement capacity of the joint.

Standards and References That Govern the Joint

Engineering a Backer Rod Aluminum Joint is not guesswork. The relevant references give you the acceptance criteria and the test methods. The American Architectural Manufacturers Association (AAMA) publishes the sealant and joint performance standards that most North American curtain wall specs reference, and the American Society for Testing and Materials (ASTM) covers backer rod and sealant testing. The International Organization for Standardization (ISO) provides the global framework for joint sealant testing. Pull the relevant clauses before you approve a rod or a sealant for a project.

• AAMA — sealant joint performance and curtain wall standards.
• ASTM — backer rod and joint sealant test methods.
• ISO — international joint sealant testing framework.

These standards do not tell you which rod to buy; they tell you how to prove the rod and sealant will perform. A responsible spec writes the rod type, the compression ratio, and the sealant depth into the submittal, then verifies them with a mock-up joint before the production run starts.

Cost and Waste Implications of Rod Selection

Rod selection has a direct line to the sealant bill of materials. A correctly sized rod cuts sealant consumption because the sealant is applied at a controlled depth rather than filling the whole joint. On a large aluminium panel facade with thousands of linear metres of joint, that saving is real. Conversely, a rod that is too small forces the crew to over-apply sealant to compensate, which raises material cost and slows the tooling pass.

For a typical 500 mm joint pitch on a solid aluminium panel system, a 1/2 inch wide joint with a 1/4 inch deep sealant uses roughly 0.3 litres of sealant per linear metre. If the rod is undersized and the crew fills to 3/8 inch depth, consumption rises by about 50% for the same joint. On a 10,000 linear metre facade, that is a meaningful six-figure material variance in some currencies. The rod is the cheapest component in the joint, but it controls the most expensive one.

Futeng® as a Supply Reference

When a project moves from design into procurement, the rod and sealant supply chain has to be as reliable as the panel supply. For solid aluminium cladding panels, a supplier like Futeng® is a reference point for consistent panel geometry and coating quality, which in turn makes the joint detailing predictable. If the panel edges are square and the coating is uniform, the joint width stays within tolerance and the rod seats correctly. A panel supplier that cannot hold edge tolerance will make every joint a fight, no matter how good the rod is.

Practical Recommendations for the Contractor and Specifier

Bring the Backer Rod Aluminum Joint into the design review before the shop drawings are locked. Specify the rod type, diameter, and compression ratio in the submittal, and require a field mock-up that is tested for water penetration. On site, train the crew to use blunt tools, to mask the PVDF finish, and to verify the rod depth before every sealant pass. If the joint is in a wet zone, use PU rod. If it is a standard dry rainscreen joint, closed-cell PE rod at the correct size is the economical and reliable choice.

The panels get the attention, but the joint is where the building leaks. A disciplined Backer Rod Aluminum Joint, sized and installed to the ratios above, is the difference between a facade that performs for thirty years and one that needs a warranty claim in the first three. Get the rod right, and the sealant does its job quietly behind the aluminium.
