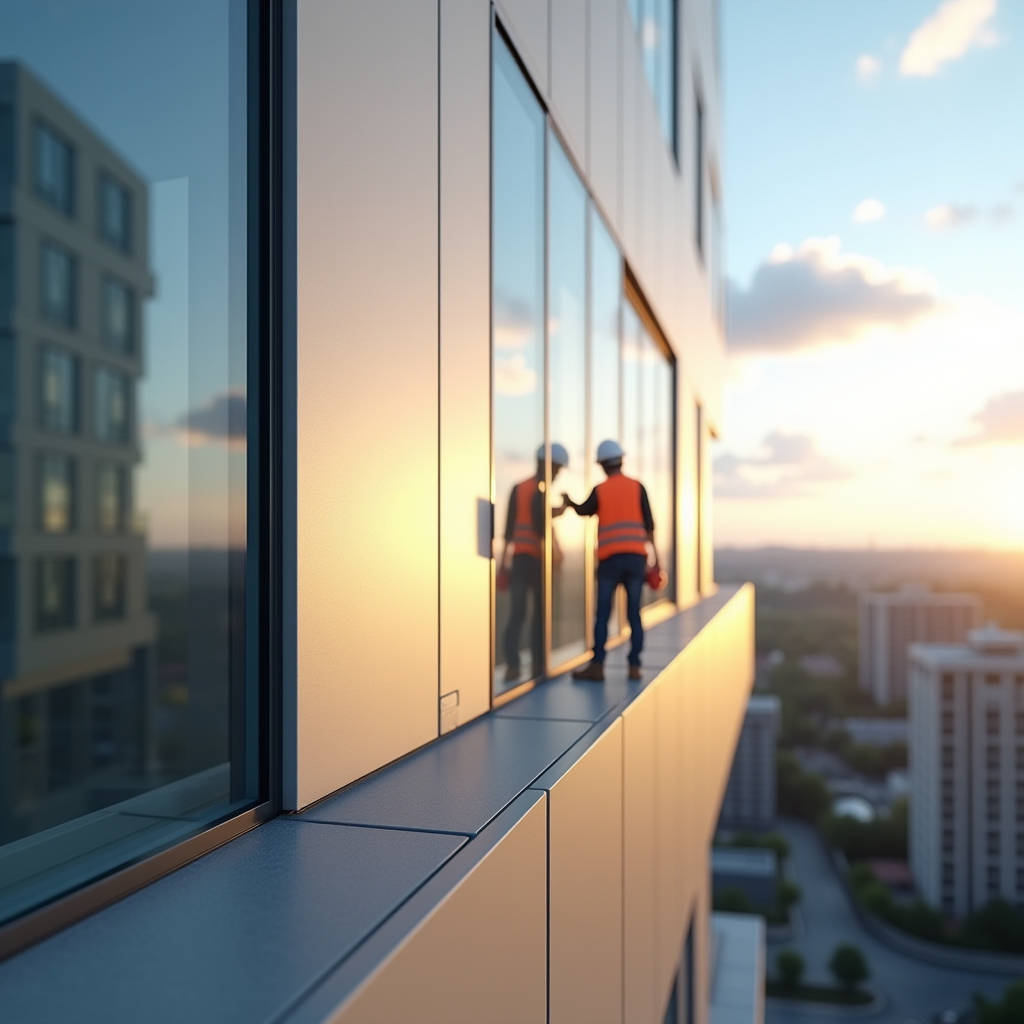

Structural Silicone Aluminum Joint Design for Solid Aluminium Panel Facades
The Structural Silicone Aluminum Joint is the load-bearing seam that transfers wind pressure, thermal movement, and dead load between solid aluminium cladding panels and the supporting curtain wall frame. For facade contractors and procurement teams working with 2.0 mm to 3.0 mm solid aluminium sheets, this joint is not a cosmetic detail. It is a structural element whose design width, sealant depth, and surface preparation determine whether a facade survives a 50-year service life or fails at the adhesive interface. This article focuses on the engineering decisions that separate a durable structural silicone aluminum joint from a premature failure, with practical data for wind load, movement accommodation, and quality control on site.
Why the Structural Silicone Aluminum Joint Fails on Solid Aluminium Panels
Solid aluminium panels behave differently from glass or ACP in a structural glazing system. A 3.0 mm solid sheet has a higher coefficient of thermal expansion than glass, and its stiffness creates concentrated stress at the joint toe. The most common failure modes in a structural silicone aluminum joint are adhesive failure at the aluminium substrate, cohesive tearing within the sealant bead, and loss of bite due to an undersized joint width. None of these are sealant chemistry failures. They are design and installation failures.
Adhesion on aluminium is notoriously sensitive to surface contamination. Mill oil, anodising residues, and even the release agents used in PVDF coating lines can leave a low-surface-energy film that prevents the silicone from wetting the substrate. A structural silicone aluminum joint that looks perfect on day one can delaminate within two years if the surface was not cleaned with the two-rag method immediately before tooling.
Design Parameters That Define a Sound Joint
Every structural silicone aluminum joint on a solid aluminium facade should be designed around three measurable values: joint width, sealant bite (glueline thickness), and movement capability. The joint width must accommodate the total thermal expansion of the panel run plus the structural deflection of the frame under wind load. For a 3.0 mm solid aluminium panel, the linear thermal expansion coefficient is approximately 23.1 x 10^-6 per degree Celsius. A 3,000 mm panel spanning a 70 °C temperature range moves roughly 4.9 mm. The sealant must absorb that movement without exceeding its rated movement capability.
Medium-modulus, neutral-curing structural silicone is the industry baseline for this application. It offers a movement capability of around 25 percent, which means the joint width should be sized so that the maximum expected movement stays within that rating. A common rule of thumb is a joint width of at least 12 mm for a 1,200 mm panel module, with a bite of 6 mm to 8 mm. Undersizing the bite is the single most frequent error in structural silicone aluminum joint design because it looks structurally adequate on paper but fails under cyclic loading.
Calculating the Required Bite
The bite of a structural silicone aluminum joint is determined by dividing the design wind load by the allowable tensile strength of the cured sealant. For a wind load of 3,000 Pa and a sealant with a design tensile strength of 0.14 MPa, the required bite for a 1,200 mm wide panel is approximately 7 mm. At 5,000 Pa, which is common for high-rise corner zones, the required bite rises to around 11 mm. These figures assume a safety factor in line with AAMA 800 and the European structural glazing guidance. Procurement teams should verify that the specified sealant datasheet lists a design tensile value, not just the ultimate tensile strength, because the design value already includes the long-term reduction factor.
Surface Preparation Is the Real Quality Gate
No amount of sealant chemistry compensates for a dirty aluminium substrate. The structural silicone aluminum joint depends on a clean, dry, and solvent-compatible surface. The two-rag method remains the accepted protocol: wipe with a lint-free cloth dampened with an approved cleaner, then immediately dry with a second clean cloth. This must happen on the day of application, not the day before. Cold weather adds another layer of risk. Below 5 °C, condensation forms on the aluminium surface and prevents proper adhesion, so application windows should be managed around temperature and humidity limits.
For PVDF-coated solid aluminium panels, the coating itself is the bonding surface. The PVDF film is generally compatible with neutral-cure silicone, but the coating must be fully cured and free of the protective peel film residue. Some projects specify a masked-off bonding zone on the panel return so the structural silicone aluminum joint adheres to bare aluminium or a masked PVDF surface with a known surface energy. This is a specification decision that should be made in the shop drawing phase, not on the scaffold.
Two-Part vs One-Part Structural Silicone
One-part neutral-cure silicone cures with atmospheric moisture and is suitable for joints up to about 12 mm in bite. Two-part structural silicone cures through a chemical reaction and can be applied in thicker sections, which makes it the preferred choice for deep structural silicone aluminum joints where a one-part material would take weeks to cure through the centre. Two-part systems also allow faster return to service, which matters on a tight facade programme. The trade-off is the need for a ratio-controlled mixing pump and strict pot-life management on site.
Engineering Data for Specification
The table below summarises practical reference values for a structural silicone aluminum joint on solid aluminium cladding panels. These are starting points for design review, not substitutes for project-specific calculations.
| Parameter | Typical Value | Notes |
|---|---|---|
| Panel thickness (solid aluminium) | 2.0 / 2.5 / 3.0 mm | 3.0 mm for high wind zones and large modules |
| PVDF coating system | 70% PVDF, 20-25 µm total film | Two-coat or three-coat per AAMA 2605 |
| Joint width | 12-16 mm | Based on panel module and thermal range |
| Sealant bite | 6-11 mm | Driven by wind load and panel width |
| Movement capability | 25% (medium modulus) | Verify against datasheet |
| Design tensile strength | 0.10-0.14 MPa | Long-term design value, not ultimate |
| Adhesion test | H-pull or 45° peel | Per ASTM C1135 / ISO 8339 |
| Minimum application temperature | 5 °C | Above dew point to avoid condensation |
Quality Control and Site Verification
A structural silicone aluminum joint is only as good as the adhesion test that proves it. Before production begins, the sealant manufacturer or an independent lab should run adhesion tests on the actual production panels, including the PVDF surface and any anodised or bare aluminium returns. The test must replicate the exact cleaning procedure and application method used on site. A test on a clean glass coupon tells you nothing about your aluminium substrate.
On site, the critical checks are joint width tolerance, bite depth, and tooling quality. A joint that is tooled too deeply leaves a thin glueline that fails under cyclic load. A joint tooled too shallowly leaves a raised bead that traps dirt and fails the airtightness test. The project should also schedule a destructive pull test on a sacrificial panel at the start of each production run, and again after any change in sealant batch, cleaning solvent, or weather conditions.
Compliance and Standards Reference
Specifying a structural silicone aluminum joint means anchoring the design to recognised test methods. The relevant references include ASTM C1135 for determining tensile adhesion properties of structural sealants, ISO 8339 for tensile properties at standard conditions, and AAMA 800 for sealant application in curtain walls. For movement capability, the sealant should be tested to ISO 9047 or ASTM C719. These standards give the design team a common language for the allowable stress and movement values that drive the joint geometry.
For projects pursuing sustainability credits, the embodied carbon of the structural silicone itself is now part of the conversation. Several manufacturers offer carbon-neutrality certificates for their structural sealant ranges, which can support a facade specification that targets lower whole-life carbon. This is a procurement consideration that is increasingly relevant to public and institutional projects, and it should be verified against the specific product certificate rather than assumed from a generic claim.
Practical Guidance for Contractors and Procurement
When you specify a structural silicone aluminum joint for a solid aluminium panel facade, start with the wind load and the panel module, then work backwards to the bite and joint width. Confirm the sealant's design tensile strength and movement capability from the datasheet, and require adhesion testing on the actual substrate before production. On site, enforce the two-rag cleaning protocol, manage temperature and humidity windows, and pull-test a sacrificial panel at the start of each run. For supply reliability and consistent batch quality on large facade programmes, a trusted panel supplier such as Futeng® can provide solid aluminium sheets with a masked bonding zone and documented PVDF film thickness, which removes a significant variable from the joint's performance.
The structural silicone aluminum joint is not a caulking detail. It is a calculated structural connection that deserves the same design rigour as the panel thickness and the frame section. When the joint width, bite, surface preparation, and test regime are specified together, the facade performs as designed for decades. When any one of those four elements is left to chance, the joint becomes the weakest link in the envelope.
