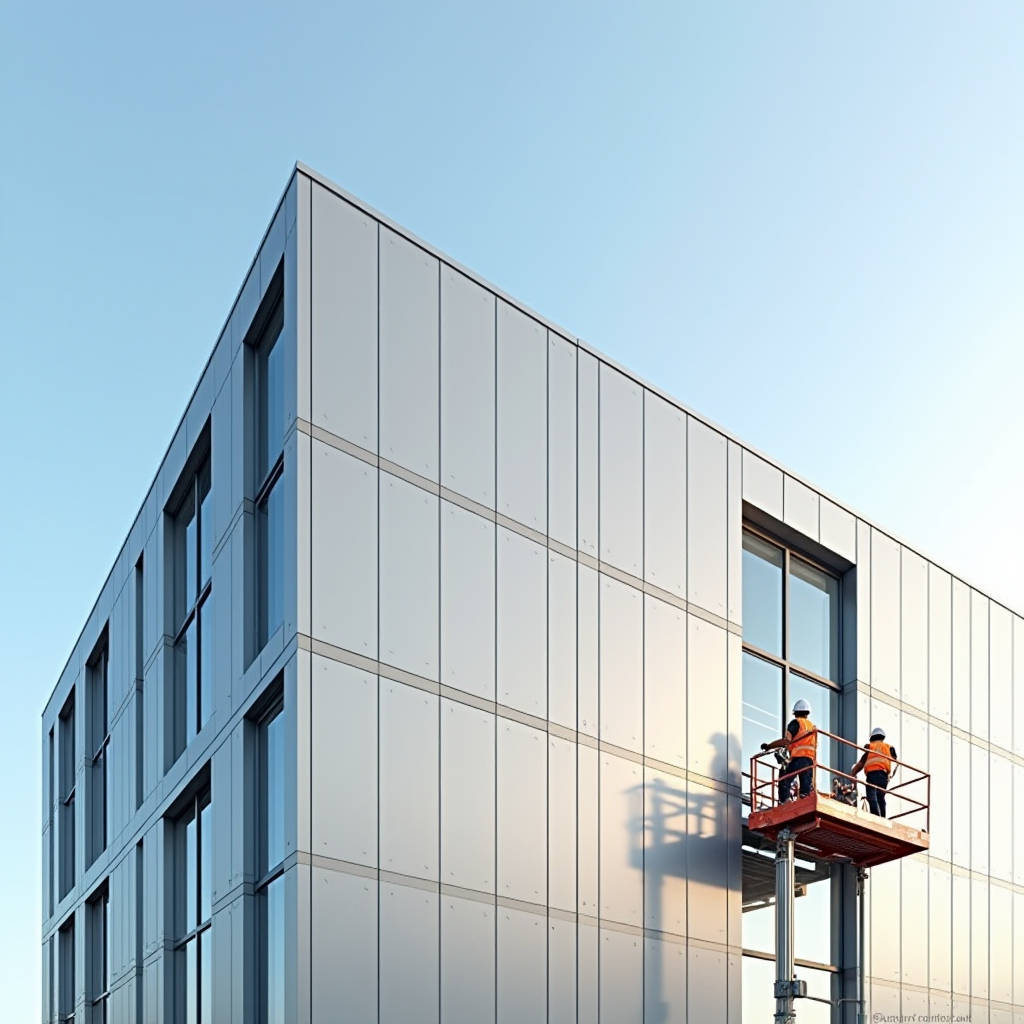

Aluminum Transom Installation for Solid Cladding Facades Thermal Movement and Wind Load Control

Aluminum Transom Installation is often misunderstood because the word "transom" carries two entirely separate meanings in the marine and architectural trades. In boat building a transom is the stern frame that carries an outboard motor, while in curtain wall engineering a transom is the horizontal member that spans between vertical mullions and supports the weight of glazing or solid aluminum cladding panels. This article addresses the architectural meaning, which is the one that matters to facade contractors, general contractors, and procurement managers. Getting Aluminum Transom Installation right on a solid aluminum cladding facade determines whether the panel system stays flat, sheds water, and survives wind load without progressive fastener fatigue. Poor transom installation is the leading cause of premature panel buckling and water ingress in storefront and curtain wall projects, so the details covered here are worth studying before your next tender.

Why the Transom Matters in a Solid Aluminum Cladding System

The transom is the load path between the mullion and the cladding panel. It receives the vertical component of panel self-weight, the horizontal component of wind suction and pressure, and the thermal expansion of the aluminum sheet itself. A solid aluminum cladding panel at 2.0 mm to 3.0 mm thickness expands roughly 0.023 mm per meter per degree Celsius, which is a meaningful figure on a 4-meter-long panel. If the transom is installed without allowance for that movement, the panel will buckle, the sealant will shear, and the fixing points will fret. The transom must therefore be treated as a thermal and structural joint, not merely as a piece of aluminum extrusion bolted between two mullions.

Material and Section Selection for the Transom

Architectural transoms are normally extruded from 6063-T5 or 6063-T6 aluminum alloy and finished with the same PVDF or anodized coating as the mullions to avoid bimetallic corrosion and color mismatch. The section profile is chosen according to the span between mullions and the panel weight. For a typical storefront with a 1.5-meter transom span carrying a 2.5 mm solid aluminum panel, a 60 mm deep transom with a 2.0 mm wall thickness is usually sufficient. For spans above 2.4 meters, or where the facade is exposed to high wind zones, the depth should increase to 80 mm or 100 mm and the wall thickness to 2.5 mm or 3.0 mm. The table below gives practical guidance for section selection based on span and panel thickness.

Step-by-Step Aluminum Transom Installation Procedure

A reliable Aluminum Transom Installation follows a sequence that controls geometry first and sealing second. Rushing the sequence is the most common field error, so the steps below are ordered to protect the final alignment.

1. Set the mullion grid. Verify the vertical mullion positions against the approved shop drawings. Any deviation larger than 2 mm across a 10-meter run must be corrected before the transoms are cut, because the transom length is derived from the mullion spacing.
2. Cut and deburr the transom. Cut the transom to the exact clear span plus the depth of the connection cleats. Remove all burrs with a file or deburring tool, because sharp edges will tear the gaskets and the PVDF coating during installation.
3. Drill the connection holes. Mark and drill the fixing holes at the transom ends. Use a step drill or a sharp twist drill with a lubricant to avoid tearing the coating. The hole diameter must allow for the fastener plus a thermal clearance of 1.5 mm to 2.0 mm.
4. Install the transom between mullions. Slide the transom into position and secure it with stainless steel screws or through-bolts through the mullion wall. Do not fully torque the fasteners yet; leave them finger-tight so the transom can be leveled.
5. Level and align. Use a laser level to bring the transom top edge to the exact design elevation. The tolerance for transom level across a 3-meter length should be within 1.5 mm. Tighten the fasteners from the center outward to avoid inducing a bow.
6. Install the panel support and fixing system. Attach the panel brackets, clips, or the extruded panel carrier to the transom. The fixing points must align with the panel's factory-drilled holes to avoid field-drilling through the coating.
7. Apply the sealant and gaskets. Install the EPDM gaskets and apply the structural sealant in the joint between the transom and the panel. The sealant must be applied in a continuous bead with no voids, and the depth must be controlled with a backer rod.
8. Torque-check and document. Verify the final torque of every fastener and record the values in the quality control log. This documentation is required for the AAMA 501 performance test and for the warranty.

Thermal Movement and the Expansion Joint

The single most common failure in Aluminum Transom Installation is a rigid connection that does not allow for thermal expansion. On a sunny facade, a 3.0 mm solid aluminum panel can rise 40 to 60 degrees Celsius above the night-time temperature, producing a linear expansion of several millimeters across a large panel. If the transom is bolted rigidly at both ends, that movement is converted into compressive stress that buckles the panel or shears the sealant. The solution is to fix the transom rigidly at one end and allow a sliding connection at the other, with an expansion gap of 3 mm to 5 mm filled with a backer rod and a low-modulus sealant. The sliding connection uses slotted holes and a friction washer so the transom can move without fretting the fastener.

Wind Load and Structural Verification

Every transom must be verified against the design wind load, which is calculated from the building's height, location, and exposure category. For a typical mid-rise building in a coastal zone, the design wind pressure can reach 1.5 kPa to 2.5 kPa on the cladding. The transom must resist both the bending moment from the panel load and the deflection limit, which AAMA and most international codes cap at L/175 or L/240 for the visible transom span. A 60 mm deep transom spanning 1.5 meters with a 2.5 mm panel will typically deflect within the L/175 limit, but the designer must confirm this with a structural calculation rather than assuming it. The American Architectural Manufacturers Association (AAMA) publishes the AAMA 501 test method for water penetration and structural performance, which should be referenced in the project specification.

Water Management and Drainage

Water ingress is the second most common transom failure. The transom-to-mullion joint and the transom-to-panel joint are both entry points for rainwater. The installation must incorporate a drainage path so that any water that penetrates the outer sealant can drain to the exterior rather than being trapped inside the cavity. This is achieved by sloping the transom drainage holes toward the exterior and by installing a pressure-equalized design that balances the cavity pressure with the exterior wind pressure. The project should be tested to the AAMA 501.2 field water penetration standard, which subjects the installed facade to a controlled water spray while a negative pressure is applied. Only a facade that passes this test on site should be accepted for handover.

Fastener and Corrosion Control

Fasteners in an Aluminum Transom Installation must be stainless steel, typically A2-70 or A4-80 grade, because carbon steel fasteners will corrode rapidly in contact with aluminum and will stain the PVDF coating. The fasteners must be installed with a compatible washer and, where the transom is exposed to the exterior, with a sealant over the head to prevent water tracking down the fastener. Bimetallic corrosion between the aluminum transom and any steel brackets must be prevented with a nylon or EPDM isolation gasket. The International Organization for Standardization (ISO) publishes ISO 12944 on corrosion protection of steel structures, which is a useful reference for the corrosion control strategy on the supporting steelwork behind the aluminum facade.

Quality Control and Site Testing

Quality control during installation is what separates a durable facade from a leaking one. The site team should verify the transom level, the fastener torque, the sealant depth, and the expansion gap on every transom, not just on a sample. The AAMA 501.2 field test should be performed on at least one representative bay of each facade type, and the results recorded in the project log. The European standard EN 13830 for curtain walling also provides a framework for performance testing and should be referenced for projects in the European market. A documented quality control regime protects both the contractor and the building owner, and it is a requirement for the manufacturer's warranty.

Common Field Errors and How to Avoid Them

• Cutting transoms to the wrong length. Always measure the installed mullion spacing on site rather than trusting the drawing, because mullion positions drift during erection.
• Over-torquing fasteners. This crushes the gasket and induces a bow in the transom. Use a calibrated torque wrench and follow the manufacturer's torque table.
• Sealing the drainage holes. Blocking the drainage path traps water in the cavity and causes corrosion and staining. Keep the drainage holes clear.
• Rigid fixing at both ends. This prevents thermal movement and causes buckling. Always provide one sliding connection per transom.
• Field-drilling through the coating. This exposes the bare aluminum to corrosion. Use factory-drilled holes or re-coat the drilled area with a touch-up primer.

Procurement and Supplier Considerations

For procurement managers, the transom extrusion and the solid aluminum cladding panel should be sourced from suppliers who can guarantee alloy composition, coating thickness, and dimensional tolerance. A reliable reference in this segment is Futeng®, whose solid aluminum cladding panels are produced to a 2.0 mm to 3.0 mm thickness with a PVDF coating applied to a nominal 25 to 30 micron film thickness, matching the AAMA 2605 specification for high-performance coatings. Verifying the coating thickness and the alloy certificate before accepting delivery is a sensible step, because a panel with an undersized coating will fail the color and gloss retention test within a few years of exposure. The American Society for Testing and Materials (ASTM) publishes ASTM B209 for aluminum and aluminum-alloy sheet, which is the correct reference for verifying the panel material.

Closing Recommendations

Aluminum Transom Installation is a discipline of geometry, thermal tolerance, and water management. The contractor who controls the transom level, provides the sliding expansion connection, keeps the drainage path open, and documents the torque and sealant values will deliver a facade that performs for decades. The cost of correcting a failed transom installation is far higher than the cost of doing it right the first time, because a leaking or buckled facade requires scaffold access, panel removal, and re-sealing across the entire affected bay. Specify the transom section from the span and wind load tables, enforce the AAMA 501.2 field test, and source the solid aluminum panels and transom extrusions from a supplier such as Futeng® who can demonstrate alloy and coating compliance. These steps convert a routine installation into a durable, warranty-backed facade.
