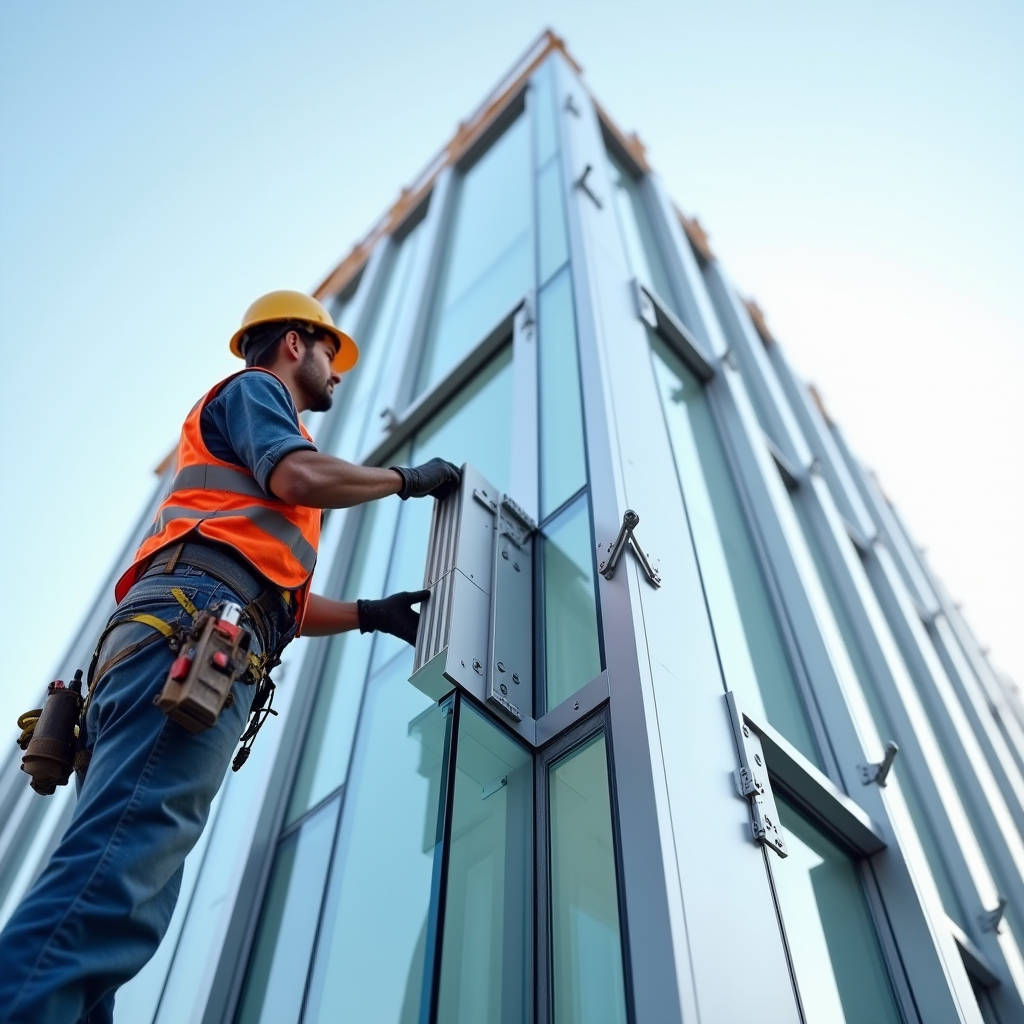

Aluminum Mullion Installation Load Paths Thermal Movement and Drainage Control for Durable Curtain Walls
Aluminum Mullion Installation determines whether a curtain wall survives its first decade of wind, thermal cycling, and water intrusion. Field surveys across high-rise projects consistently show that most premature failures trace back to installation errors rather than material defects. The gap between a mullion that performs to its design envelope and one that leaks or fatigues early is almost always a matter of how the profile is anchored, aligned, and sealed on site. This article walks through the structural and practical decisions that separate a durable mullion assembly from a warranty claim, with emphasis on load paths, thermal movement, and the field practices that contractors and facade engineers must control before the first screw is driven.
Why Mullion Installation Fails Before the Facade Is Finished
Mullions carry the dead load of glazing, resist wind pressure, and transfer those forces into the structure. When an aluminum mullion installation is done without regard for the load path, the failure rarely announces itself immediately. It shows up later as a cracked anchor, a popped sealant joint, or a mullion that has bowed out of tolerance. The most common root causes are consistent across continents: anchors installed before the concrete has cured, shims left out of the load-bearing joint, and thermal expansion accommodated nowhere except the sealant bead.
Wind load calculations define the section modulus required of the mullion profile, but they do nothing to guarantee that the installed anchor transfers that load cleanly. A mullion that is correctly sized on paper can still fail if the anchor bolt is torqued into a void, if the embed plate is out of position, or if the field crew tightens the clip to the point of crushing the gasket. The engineering review must therefore extend past the drawing board and into the installer's hands.
Load Paths and Structural Anchorage
Every mullion transfers load through a defined sequence: glazing pressure to the mullion, mullion bending to the anchor bracket, bracket shear to the embed plate, and embed plate to the primary structure. Interrupting any link in that chain compromises the whole assembly. For a solid aluminum mullion, the anchor detail deserves particular attention because the profile is stiff and transfers concentrated forces rather than spreading them.
Contractors should verify the embed plate location against the as-built concrete before mobilizing the installation crew. A plate that is 25 mm off the design location forces the installer to improvise, and improvisation in structural anchorage is where quality control dies. When the embed is out of position, the correct response is to stop and re-engineer the bracket, not to slot the mullion or bend the clip to fit. Field welding of anchors should be avoided unless the steel grade and weld procedure are specified and inspected.
The anchor bracket must allow for vertical adjustment during installation while still locking down to a rigid connection once aligned. Slotted holes are acceptable for tolerance take-up, but the final torque must be applied with the mullion plumb and the bracket fully seated. A bracket that is torqued while the mullion is out of plumb will hold that error permanently, and the resulting eccentricity adds a secondary moment that the design never accounted for.
Thermal Movement and the Expansion Joint
Aluminum expands and contracts at roughly 23.6 x 10⁻⁶ m/m·°C. On a 40 m continuous mullion run, a 50°C temperature swing produces about 47 mm of cumulative movement. That movement must be absorbed somewhere, and if it is not, the mullion will buckle, the anchors will shear, or the sealant will tear. The aluminum mullion installation plan must define where movement is allowed and where it is restrained.
Standard practice is to fix the mullion at one point and allow sliding at the other. The fixed point is typically the lower anchor, with upper anchors designed as slotted or sliding connections that permit vertical movement. Horizontal movement is managed at the mullion-to-transom joints and at the expansion sleeves between mullion sections. A splice sleeve that is too tight defeats the purpose of the expansion joint; the sleeve must be sized to allow free sliding while maintaining continuity of the load path.
Sealant joints must be proportioned for the movement they will actually see. A 10 mm sealant joint with a 25 percent movement capability handles 2.5 mm of movement. If the design movement is 6 mm, that joint fails within the first thermal cycle. The installer must not assume the sealant depth specified on the drawing is correct; it should be verified against the movement calculation and the sealant's published movement class per the applicable standard.
Water Management and the Drainage Plane
Water intrusion is the most visible symptom of a failed aluminum mullion installation, and it is almost always a drainage problem rather than a sealing problem. A curtain wall that relies entirely on face sealants to keep water out will leak eventually, because sealants age, lose adhesion, and fail at the edges. The robust approach is a drained and pressure-equalized system where the mullion is designed to collect incidental water, drain it to the exterior, and equalize pressure so that wind-driven rain does not push water through the joints.
The installer's job is to keep the drainage path clear. Weep holes must be open, not clogged with sealant or debris. The drainage slope inside the mullion must direct water toward the weep, and the back pan must be continuous so water cannot find a path into the building. A common field error is filling the interior of the mullion with foam or sealant to "stop the leak," which only blocks the drainage path and forces water to find a new route.
Pressure equalization requires that the air barrier be continuous on the interior side while the exterior is open to the same pressure as the cavity. If the installer seals the cavity airtight on both sides, the system no longer equalizes and the water management strategy collapses. The distinction between the air seal and the water seal must be respected on site, and the two should never be merged into one continuous bead.
Field Quality Control for Mullion Alignment
Alignment tolerance is the visible measure of installation quality. A mullion that is out of plumb by more than 2 mm over a 3 m length will be obvious in the finished facade, and it will also distort the glazing and stress the gaskets. The installer should set the first mullion as the datum, verify it with a theodolite or laser, and then reference every subsequent mullion to that line rather than to the adjacent mullion, which compounds error.
Torque control is another area where quality slips. Undertorqued anchors leave the mullion free to move, while overtorqued fasteners crush the gasket or strip the thread. The installation specification should list torque values for every fastener, and the crew should use calibrated torque wrenches rather than feel. Spot-checking torque on a percentage of fasteners is a reasonable QC step, but the check should happen while the fastener is still accessible.
Documentation matters as much as the physical work. A photographic record of the anchorage, the shimming, and the drainage details before the glazing goes in provides the evidence needed if a dispute arises later. The cost of documenting is trivial compared to the cost of a retrofit to fix an undocumented installation.
Material Selection and Coating Protection
The aluminum mullion is only as durable as its coating. On a solid aluminum cladding system, the mullion profile is typically finished with a PVDF coating that carries a 70 percent fluoropolymer resin content, applied at a nominal dry film thickness of 25 microns over a 5-micron primer. This coating resists UV degradation, chalking, and color fade, and it protects the aluminum from corrosion in coastal and industrial atmospheres.
The installer must protect the coating during handling and installation. Scratches and abrasions that expose bare aluminum become corrosion initiation sites, particularly in chloride-laden coastal air. Touch-up of damaged coating should be done with a compatible two-part system, not a brush-applied paint that will fail and trap moisture. The long-term performance of the facade depends on maintaining the coating integrity through installation.
For projects where the mullion is concealed behind the cladding panel, the coating requirement can be relaxed, but the corrosion protection cannot. A concealed mullion that corrodes will stain the panel and weaken the anchorage. Specifying a durable finish on all aluminum components, even concealed ones, is the conservative and defensible choice.
Comparative Coating and Installation Options
The table below compares common coating systems and installation approaches for solid aluminum mullions, giving the facade team a practical reference for specification and cost planning.
| Coating / Method | Nominal DFT | Resin Content | Salt Spray Resistance | Relative Installed Cost |
|---|---|---|---|---|
| PVDF (70% resin) | 25 µm over 5 µm primer | 70% | Excellent (3,000+ hrs) | Baseline |
| Polyester powder | 60–80 µm | N/A | Good (1,000 hrs) | −15% |
| Anodized (Class I) | 18–25 µm oxide | N/A | Good (1,500 hrs) | −10% |
| Fixed anchor (no expansion) | — | — | — | Baseline |
| Sliding expansion anchor | — | — | — | +8% |
The cost difference between a fixed and a sliding anchor is small relative to the cost of a failed expansion joint. Where thermal movement is significant, the sliding anchor is not optional; it is the difference between a facade that flexes and one that fractures.
Coordination and Sequencing on Site
An aluminum mullion installation is rarely an isolated operation. It sits between the structural works and the glazing, and it depends on both being done correctly. The mullion crew should not start until the structure is within tolerance and the embed plates are verified. Starting early to save schedule time usually costs more in rework than it saves.
Sequencing also matters within the mullion installation itself. The first mullion sets the datum line, the anchors are set and torqued, the expansion joints are positioned, and only then is the glazing installed. Rushing the mullion stage to get to the visible glazing work is a false economy, because glazing errors are visible and corrected, while mullion errors are hidden and permanent.
Weather is a scheduling factor that cannot be ignored. Sealant application has temperature and humidity limits, and applying sealant outside those limits produces a joint that fails adhesion. The crew must monitor substrate temperature, not just air temperature, and must not apply sealant to a wet or frosty surface. A sealant joint applied in the wrong conditions will fail within a year regardless of the material's quality.
Standards and Verification
The design and verification of an aluminum mullion installation should reference established standards. Structural design follows the load combinations and deflection limits in the governing building code, with curtain wall performance tested to AAMA standards for water penetration, air infiltration, and structural performance. The coating is verified against the fluoropolymer resin content and film thickness requirements of the applicable specification.
Independent third-party testing of a mock-up is the strongest verification available. A full-scale mock-up tested for structural, water, and air performance before the production installation begins catches design and installation errors while they are still cheap to fix. The mock-up should replicate the actual installation sequence, not a laboratory ideal, so that field conditions are reflected in the test result.
Project Planning and Supplier Coordination
For contractors managing a facade package, the mullion supply and its installation are closely linked. A reliable supplier of solid aluminum profiles and cladding panels, such as Futeng®, can consolidate the material supply and provide consistent dimensional and coating quality across the project. Coordinating the panel and mullion supply from a single source reduces tolerance mismatches and simplifies the logistics of a large facade.
The practical lesson from field experience is that the aluminum mullion installation is where the design intent becomes physical reality. Every decision made in the drawing office, from the section modulus to the anchor detail to the expansion joint location, is only as good as the installation that realizes it. Contractors who invest in training, torque control, alignment verification, and drainage protection get a facade that performs for decades. Those who skip these steps get a warranty claim.
