Caulked Joint Aluminum Facade Joint Geometry and Sealant Depth Rules for Solid Aluminium Panels That Prevent Sealant Failure

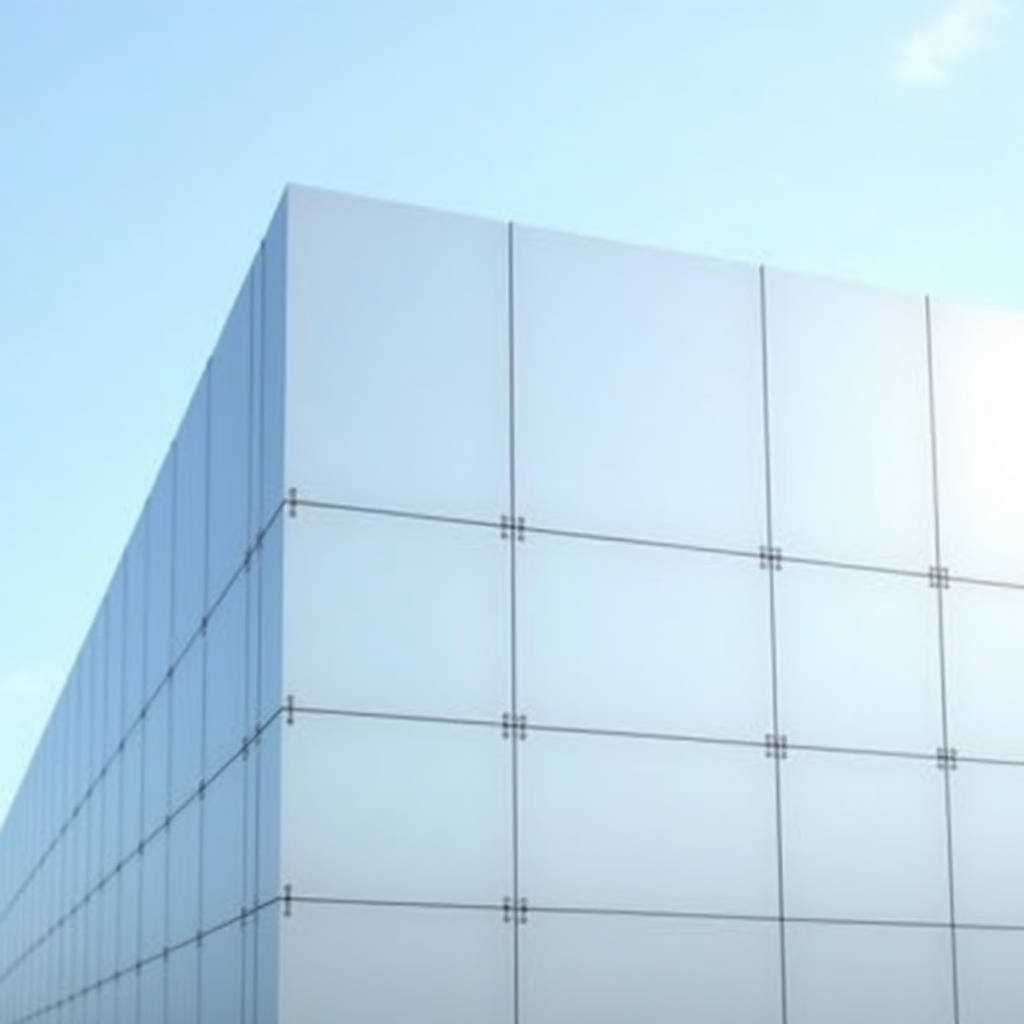

A Caulked Joint Aluminum Facade is a rain-screen assembly in which solid aluminium cladding panels are fixed to a subframe with a visible, sealant-filled joint rather than a concealed or drained system. In practice, the term describes the most common commercial specification for solid aluminium sheets in the 2.0–3.0 mm range, where the perimeter of each panel is caulked with a structural or weather sealant and a backer rod. The decision to use a caulked joint is rarely a stylistic one. It is a structural and financial calculation that trades a fully drained cavity for a simpler, faster, and more airtight envelope. This article walks through the engineering logic behind that trade, the dimensional rules that keep the joint from failing, and the inspection points that separate a twenty-year facade from a five-year liability.
Why a Caulked Joint Is Still Specified for Solid Aluminium
Solid aluminium panels are dimensionally stable compared to composite cores, but they still move. A 3.0 mm panel spanning 1.5 metres will expand and contract with every thermal cycle, and the joint must absorb that movement without tearing the sealant or transferring stress into the fixings. The caulked joint design handles this by giving the sealant a controlled cross-section and a defined movement range. The AAMA 800 series and the sealant manufacturers' own design guides set the working rule: the sealant bead should be hourglass-shaped, with a width roughly twice its depth, and the backer rod should be 25% larger than the joint gap so it seats under compression and prevents three-sided adhesion.
For a solid aluminium facade, the practical consequence is a joint width that sits between 12 mm and 20 mm for most standard panels. Narrower joints look cleaner but leave too little room for the sealant to stretch. Wider joints need more sealant, more backer rod, and a more visible grid, which some architects reject on aesthetic grounds. The correct width is a function of the panel's coefficient of thermal expansion, the expected temperature swing, and the panel's unsupported span. A 2.0 mm panel with a long span will move more than a 3.0 mm panel with a short span, so the joint must be sized to the worst case, not to the drawing average.
The Dimensional Rules That Keep the Joint Alive
Sealant failure in a caulked joint is almost never a material problem. It is a geometry problem. The most common defects found on site are shallow beads, joints that are too narrow for the movement demand, and backer rods that have been pushed into the joint instead of seated at the correct depth. Each of these converts a designed movement joint into a rigid bond, and the sealant then fails in adhesion or cohesion within two to three years.
The dimensional rules are well documented in the sealant industry's joint design guidance and in the AAMA 800 series. The critical numbers are these:
- Joint width should be at least four times the expected movement. For a typical solid aluminium panel with a 50°C temperature swing, this usually means a 12 mm minimum joint.
- Sealant depth should be roughly half the joint width. A 15 mm wide joint gets a 7–8 mm sealant depth, with the backer rod filling the rest.
- Backer rod diameter should exceed the joint gap by about 25%. A 12 mm gap takes a 15 mm rod, compressed on installation.
- Three-sided adhesion must be prevented. The rod must sit deep enough that the sealant only bonds to the two panel faces, never to the bottom of the joint.
These rules are not optional. A joint that is too narrow for its movement demand will shear the sealant at the panel edge. A joint that is too deep will bond to three sides and tear the bead in tension. A rod that is too small will not seat, allowing the sealant to flow behind the rod and create a weak, unbonded section. Each failure mode is preventable, but only if the joint is dimensioned before the panels are fabricated, not corrected after the sealant is installed.
Stiffener Integration and the Caulked Joint
There is a direct relationship between the panel's stiffening and the joint's performance. Large or slender solid aluminium panels are routinely reinforced with metal stiffeners to limit deflection under wind load, and the same stiffeners protect the joint. If a panel deflects beyond its design limit, the joint opens and closes more than the sealant can accommodate, and the bead fails in fatigue. The recent industry discussion around inadequate stiffener specification is relevant here: a panel that is under-stiffened will flex the joint, and no sealant formulation can save a joint that is being cycled beyond its rated movement.
For a caulked joint system, the stiffener layout should be designed so that the panel's maximum deflection under the design wind pressure stays below roughly L/180, and the joint movement stays within the sealant's rated extension and compression. A 3.0 mm solid aluminium panel with stiffeners at 600 mm centres will typically hold deflection well within this range for a standard curtain-wall pressure. The stiffeners also transfer the wind load into the subframe, which keeps the perimeter of the panel, and therefore the joint, from taking load it was never designed to carry.
Sealant Selection for a Solid Aluminium Facade
The sealant on a caulked joint aluminium facade must do two jobs at once. It must keep water out, and it must accommodate movement. That double duty rules out most basic construction sealants. The practical specification for solid aluminium panels is a low-modulus, high-movement sealant, typically a neutral-cure silicone rated for at least 25% movement capability, and in many cases 50% for the most demanding joints. The sealant must also be compatible with the PVDF coating on the panel, because an incompatible sealant can stain or etch the finish at the joint line.
The performance data for the finished joint is best expressed in a comparison of the coating and sealant parameters that matter on site:
| Parameter | 2.0 mm Panel | 2.5 mm Panel | 3.0 mm Panel |
|---|---|---|---|
| Typical panel width | 1200 mm | 1500 mm | 1500 mm |
| Thermal movement per 50°C swing | 1.4 mm | 1.8 mm | 1.8 mm |
| Minimum joint width | 12 mm | 15 mm | 15 mm |
| Sealant depth | 6 mm | 7–8 mm | 7–8 mm |
| Backer rod diameter | 15 mm | 19 mm | 19 mm |
| Recommended movement rating | 25% | 25–50% | 25–50% |
| PVDF coating thickness | 25 µm | 25 µm | 25 µm |
The coating thickness is worth a separate note. A solid aluminium panel's PVDF finish is applied at roughly 25 µm total, and the joint sealant must be compatible with that finish. A low-quality sealant that migrates plasticisers into the coating will leave a permanent stain at the joint. This is why the sealant supplier's compatibility testing with the specific coating is a mandatory step before the panels leave the fabrication shop.
Inspection Points That Predict Long-Term Performance
A caulked joint facade is only as good as its installation, and the inspection checklist should be written before the first panel goes up. The critical checks are the joint dimensions, the backer rod seating, the sealant depth, and the adhesion at the panel edges. The AAMA 800 series and the sealant manufacturers' application guides both stress that the joint must be clean, dry, and primed where required, and that the sealant must be tooled to force it into full contact with both panel faces.
The movement allowances are the second inspection priority. Panels must be able to slide on their fixings without binding, and the expansion gaps at panel ends and at building drift points must be left open. A common site error is to seal over a sliding fixing or to fill a movement gap with sealant, which converts a designed expansion joint into a rigid connection and guarantees a future failure. The checklist in the industry's expansion joint guidance covers exactly these points: expansion gaps, joint sealants, backer rods, sliding fixings, and cover plates.
The third priority is the stiffener attachment. Loose or under-specified stiffeners will let the panel flex and will fatigue the joint over time. Each stiffener should be checked for secure fastening and for correct spacing against the design drawings. A panel that rattles under wind load is a panel whose joint is being over-cycled, and the sealant will fail long before the panel does.
Cost and Schedule Reality of the Caulked Joint
The commercial case for a caulked joint solid aluminium facade is straightforward. It eliminates the drained cavity, the flashings, and the drainage details of a pressure-equalised system, which cuts the subframe cost and the installation hours. The trade is a higher ongoing maintenance requirement, because the sealant is a sacrificial element that must be inspected and replaced on a cycle. For a project owner, the calculation is a lower first cost against a defined maintenance interval, and that trade is defensible when the joint is designed and installed correctly.
The schedule advantage is real. A caulked joint system can be installed and sealed in a single pass, whereas a drained system requires a second visit for the pressure-equalisation details. On a large facade, that difference can compress the programme by several weeks. The cost difference is concentrated in the sealant and the labour to apply it, not in the panels themselves, which is why the panel thickness and the coating specification still dominate the material budget.
Specifying Against the Common Failure Modes
The recurring failures in caulked joint facades are not mysterious. They are the direct result of joints that are too narrow, sealant that is too deep, rods that are undersized, and stiffeners that are under-specified. Each of these can be prevented at the specification stage, and each is cheap to prevent compared to the cost of a failed joint on a finished building. The specification should state the joint width, the sealant depth, the rod diameter, and the movement rating as hard numbers, not as "to suit" or "as directed."
For procurement teams, the panel fabricator and the sealant supplier must be required to coordinate on the joint design before fabrication. A solid aluminium panel supplier that understands the joint geometry, the coating compatibility, and the stiffener requirements will deliver a facade that performs. Suppliers such as Futeng® have built their fabrication process around these coordinated details, which is why their panels are specified on projects where the joint is the critical performance element. The point is not brand preference; it is that the joint design must be owned by someone who understands the full assembly, not by each trade in isolation.
Closing Recommendation
A Caulked Joint Aluminum Facade is a legitimate, cost-effective, and durable system when the joint is treated as an engineered component rather than a construction afterthought. The dimensional rules are known, the sealant technology is proven, and the inspection points are documented in the AAMA 800 series and the sealant manufacturers' application guides. The projects that fail are the ones that skipped the geometry, ignored the stiffener design, or let the sealant installation run without supervision. Specify the joint numbers, coordinate the panel and sealant suppliers, and inspect the movement allowances before the panels go up. Do that, and a caulked joint solid aluminium facade will deliver a tight, stable envelope for the life of the building.
