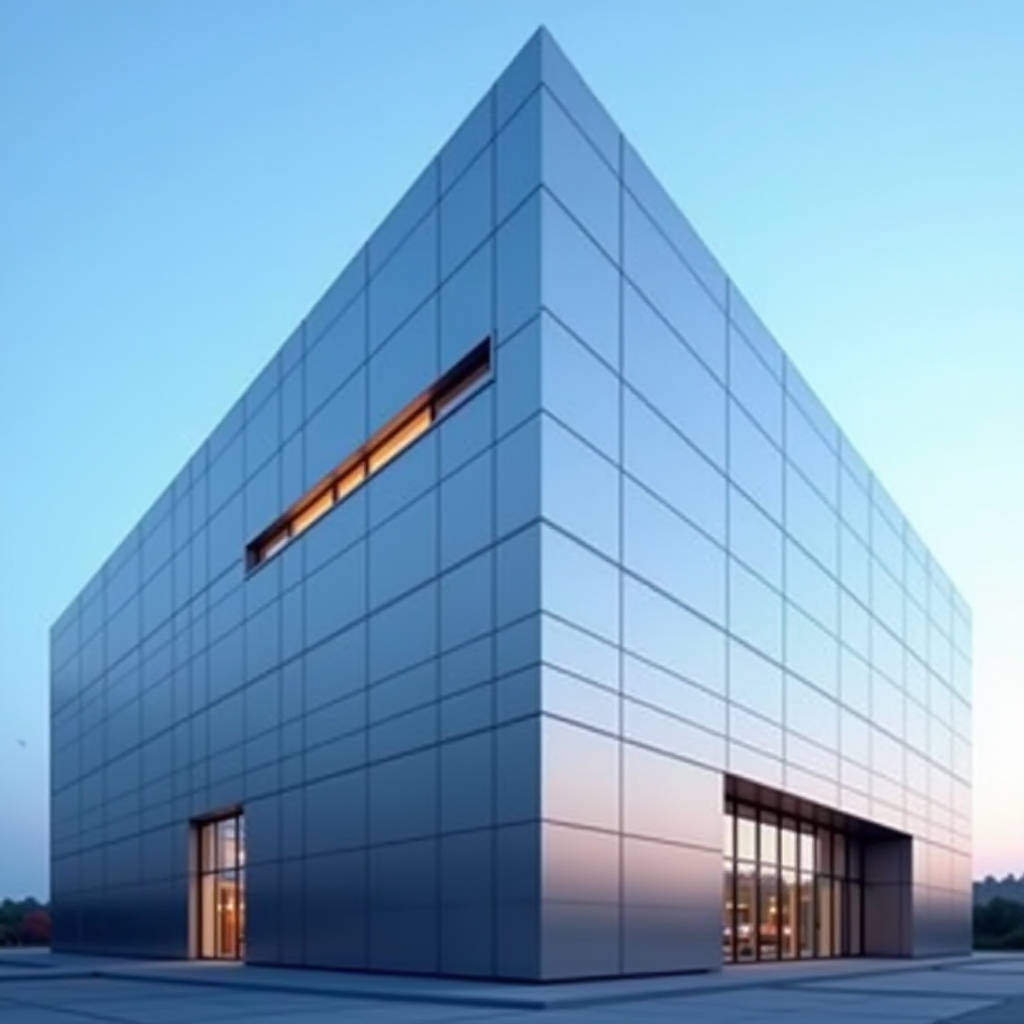

RF Shielding Aluminum Facade Engineering for Joint Continuity Grounding and Testing

RF Shielding Aluminum Facade systems are moving out of the laboratory and onto the building envelope, driven by a hard commercial reality: sensitive data, medical imaging, and defense communications no longer tolerate stray electromagnetic interference. A solid aluminium cladding panel, specified correctly, becomes a continuous conductive plane that reflects and redirects radio frequency signals before they reach interior equipment. The engineering question is no longer whether solid aluminium can shield, but how thick the panel must be, how the joints are bonded, and how the facade integrates with grounding and fenestration. This article walks through the practical specification of an RF Shielding Aluminum Facade, from material selection and joint continuity to cost and testing, so that contractors and procurement teams can budget and build with confidence.

Why Solid Aluminium Beats Film and Paint for Facade Shielding

The market is flooded with RF shielding foils, paints, and tapes. Those products have a place inside a room, on a floor, or behind a wall. They fail on an exterior facade for a simple reason: the building envelope is exposed to weather, thermal cycling, and mechanical abuse. A 20 mil foil panel, useful for a SCIF floor, will not survive a decade of wind-driven rain and UV exposure. A solid aluminium panel, by contrast, is a structural element that carries its own shielding function.

Shielding effectiveness depends on three mechanisms: reflection, absorption, and re-reflection. Solid aluminium is an excellent conductor, so it reflects most incident RF energy at the surface. The remaining energy is absorbed across the panel thickness and attenuated before it re-emits on the interior side. Thicker panels add absorption margin, which matters at lower frequencies where penetration depth is greater. For a 2.0 mm to 3.0 mm solid panel, the absorption contribution is modest but real, and the primary gain is mechanical integrity and seam quality rather than raw thickness.

Material Selection and Coating Constraints

Pure aluminium (alloy 3003 or 5005) is the standard for solid cladding. The coating is where most RF facade projects go wrong. A PVDF finish in the 25 to 35 micron range is standard for weather resistance, but the coating is an insulator. On a shielded facade, every panel face that carries the coating must still make electrical contact with its neighbour through an uncoated edge or a dedicated bonding strip.

Futeng® supplies solid panels with machined or milled edges that expose bare aluminium at the joint, so the conductive path is preserved without compromising the PVDF finish on the weather face. This is a detail that procurement teams should confirm in writing before ordering, because a fully coated panel that relies on gasket compression alone will show disappointing shielding numbers in the field.

Joint Continuity Is the Real Battleground

An RF Shielding Aluminum Facade is only as good as its weakest seam. A single unsealed gap acts as a slot antenna, radiating energy into the building at specific frequencies. The practical rule is to keep every joint gap well below one twentieth of the wavelength of the highest frequency of concern. For a facility protecting against 2.4 GHz Wi-Fi and 5G bands, that means gaps in the low millimetre range, which is achievable with a well-engineered interlocking panel system.

Three joint strategies dominate in practice:

• Continuous seam welding — the highest performance, used for SCIF and TEMPEST enclosures, but expensive and hard to maintain on a ventilated facade.
• Interlocking panels with conductive gaskets — a practical compromise that passes most commercial shielding tests while allowing thermal movement.
• Overlapping panels with compression bonding strips — the most cost-effective, suitable for lower-frequency protection where sub-millimetre gaps are less critical.

Whatever the method, every panel must terminate in a low-impedance bond to the building's grounding grid. The American Institute of Steel Construction and the IEEE 1100 recommended practice both stress that a shielded enclosure is meaningless without a single-point or mesh grounding strategy that drains induced currents safely.

Grounding and Penetration Management

Grounding is the detail that separates a working shield from a decorative one. Each facade panel should be bonded to the structural steel or a dedicated copper mesh with a resistance of less than 0.1 ohm measured to ground. Braided copper straps, not steel wire, are preferred because they handle the flexing that thermal cycling creates.

Penetrations are the second killer. Windows, doors, vents, and cable entries all break the conductive plane. For a true RF Shielding Aluminum Facade, glazing must use a conductive frame or a window film with a known attenuation rating, and every cable entry needs a shielded penetration panel or a waveguide below the cutoff frequency. The ICD 705 technical specification for SCIF construction is the most rigorous public reference for these requirements, and it is worth reading even for commercial projects that do not need that level of security.

Cost and Installation Realities

Budgeting for a shielded facade is different from budgeting for a standard rainscreen. The premium comes from three sources: the bare-edge machining, the conductive gaskets and bonding strips, and the testing regime. A standard solid aluminium rainscreen might cost $60 to $90 per square metre installed. Adding RF shielding features pushes that to roughly $110 to $160 per square metre, depending on frequency targets and joint complexity.

Labour is the hidden variable. A standard panel crew installs roughly 120 square metres per day. A shielded facade with gasket seating and torque-controlled fasteners drops that to 60 to 80 square metres per day, because every seam must be checked. Budget for a dedicated QC step where each joint is continuity-tested with a low-resistance meter before the scaffold moves on.

Testing and Compliance Standards

Do not rely on manufacturer marketing claims for shielding effectiveness. Specify a test protocol and hold the installer to it. The relevant references are:

• ASTM E1851 — Standard test method for electromagnetic shielding effectiveness of damped and undamped vibrating screens.
• ASTM E2859 — Standard guide for measurement of electromagnetic properties of conductive materials.
• AAMA 2605 — Voluntary specification for high performance organic coatings on aluminium extrusions and panels.
• IEEE 1100 — Recommended practice for powering and grounding electronic equipment.

Field testing uses a portable shielded room or a pair of tuned antennas to measure insertion loss across the facade. A practical acceptance criterion for a commercial shielded facade is 40 to 60 dB attenuation across the 100 MHz to 6 GHz band. Anything above 60 dB is approaching TEMPEST territory and demands welded seams and rigorous penetration control.

Practical Specification Checklist

1. Confirm the highest frequency of concern and set the maximum joint gap accordingly.
2. Specify solid 3003 or 5005 aluminium, 2.0 to 3.0 mm thick, with bare edges at every joint.
3. Require a PVDF finish to AAMA 2605 on the weather face only, leaving contact surfaces uncoated.
4. Use conductive gaskets or compression bonding strips rated for the target frequency band.
5. Bond every panel to the grounding grid with braided copper, resistance under 0.1 ohm.
6. Manage every penetration with a shielded entry or waveguide below cutoff.
7. Run a field attenuation test and document results before handover.

An RF Shielding Aluminum Facade is not an off-the-shelf product; it is a system that rewards careful specification and disciplined installation. The panels themselves are a proven material, and suppliers such as Futeng® can deliver solid aluminium panels with the edge machining and coating control that shielding demands. The performance, however, is decided in the joints, the grounding, and the testing. Get those three right and the facade will protect the building's electronics for decades. Get them wrong and no amount of panel thickness will save the project.
