Engineering an EMI Shielding Aluminum Facade From Continuity Chain to Field Test Verification

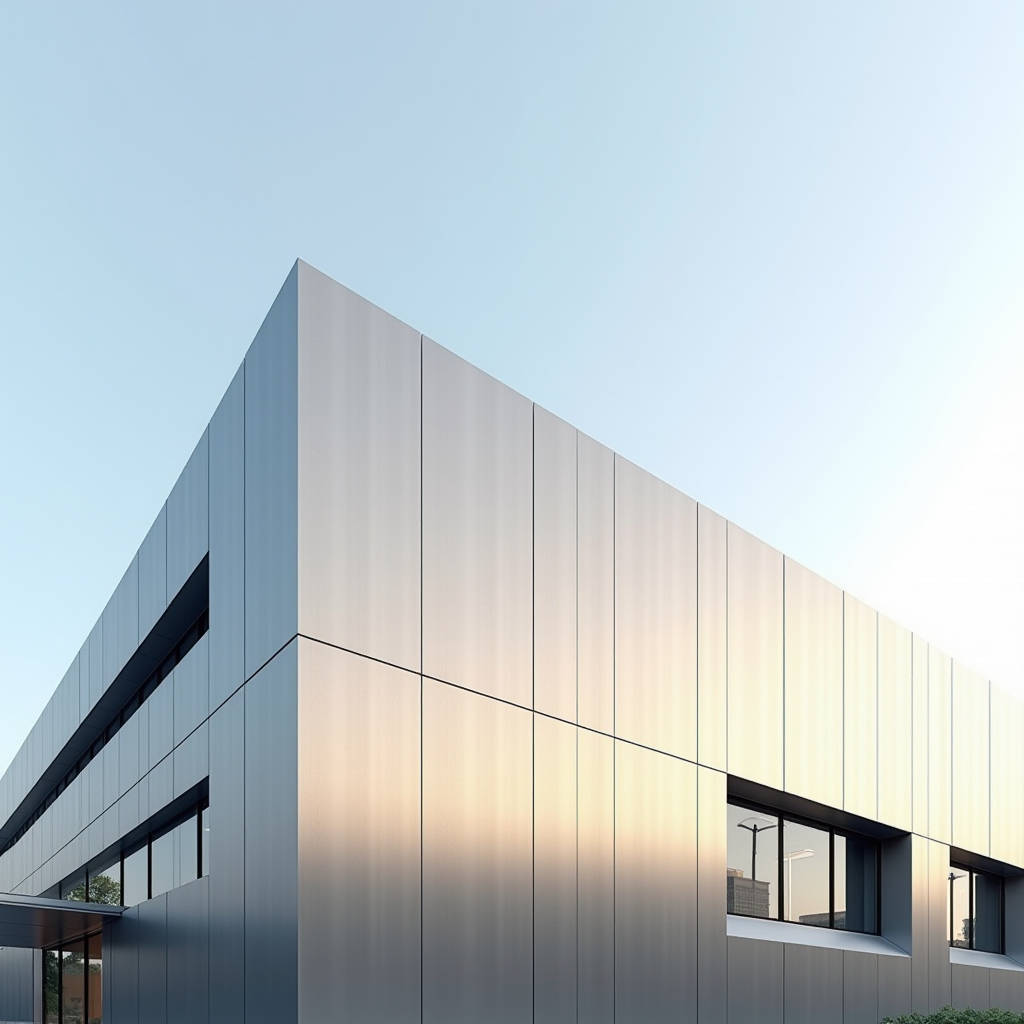

An EMI Shielding Aluminum Facade is no longer a niche concept reserved for defense bunkers or TEMPEST-rated facilities. As hospitals, data centers, research laboratories, and even high-rise commercial towers pack more sensitive electronics into every floor, architects and contractors are being asked to make the building envelope do double duty: keep weather out and keep electromagnetic interference under control. A solid aluminium cladding panel, properly specified and grounded, can deliver 40 to 70 dB of shielding effectiveness across the 10 kHz to 40 GHz range that most modern systems care about. That performance does not come from the panel alone. It comes from a coordinated system of panel thickness, joint design, gasket selection, and earthing strategy. This article walks through the engineering choices that separate a decorative metal skin from a genuine Faraday enclosure, and it gives procurement teams the numbers they need to compare bids without guesswork.

Why a Solid Aluminium Panel Beats Thin Foil for Facade Duty

Most of the EMI shielding literature, including the aluminum foil products referenced in recent supplier guides, focuses on thin foils and adhesive-backed tapes for interior retrofit work. Those materials are excellent for sealing seams inside a shielded room, but they cannot carry wind load, resist UV degradation, or survive a 25-year facade warranty. A facade must be a structural member first and a shield second. Solid aluminium cladding panels in 2.0 mm, 2.5 mm, or 3.0 mm thickness provide the stiffness required for large panel spans while maintaining a continuous conductive surface across the building face.

Thickness matters for shielding in a way that surprises many specifiers. At low frequencies, shielding effectiveness is dominated by reflection losses that depend on surface conductivity, not thickness. Above roughly 1 MHz, absorption losses begin to contribute, and those scale directly with material thickness. A 3.0 mm solid panel offers measurable absorption advantages over a 0.127 mm foil at frequencies above 100 MHz, which is exactly where 5G small cells, Wi-Fi 6E, and medical imaging equipment operate. For a procurement manager comparing a solid panel against a foil-backed composite, the difference in through-thickness conductivity is the deciding factor.

Designing the Shielding Continuity Chain

A facade is only as good as its weakest joint. Electromagnetic energy leaks through every gap, every fastener hole, and every unsealed penetration. The continuity chain for an EMI Shielding Aluminum Facade has five links, and each one must be specified in the tender documents.

1. Panel-to-Panel Joints

Butt joints between adjacent panels are the most common leak path. For shielding duty, the joint must be backed by a continuous conductive gasket, typically a beryllium copper finger strip or a silver-loaded silicone gasket, compressed to a defined closing force. The alternative is a lapped joint with a minimum 20 mm overlap and a conductive sealant bead. Both approaches work, but they have different cost and maintenance profiles.

2. Fastener and Bracket Continuity

Every aluminium bracket, cleat, and rivet must be electrically bonded to the panel. Using stainless steel fasteners without a conductive interface creates a galvanic pair and breaks the conductive path. The standard fix is to specify aluminium or zinc-plated fasteners with a star washer that bites through the anodized or PVDF coating to establish metal-to-metal contact.

3. Window and Door Penetrations

Glazing units are the hardest part of any shielded facade. A window frame must be manufactured from conductive aluminium extrusion, and the glass-to-frame seal must use a conductive gasket rather than a plain EPDM bulb. For high-security rooms, specifiers often reduce glazing area or use a fine copper mesh laminated into the glass unit.

4. Earthing and Bonding

Shielding effectiveness is meaningless without a low-impedance path to ground. The facade system must be bonded to the building's structural steel or a dedicated earthing grid at intervals no greater than 3 metres, using tinned copper braid with a cross-section of at least 25 mm². Joint resistance across any bonded connection should measure below 2.5 milliohms with a micro-ohmmeter.

5. Coating Strategy

PVDF coatings are the industry standard for exterior durability, but they are electrical insulators. For shielding duty, the coating must be applied selectively, leaving bare aluminium at all contact and bonding points, or the coating must be a conductive grade. Some suppliers offer a masked coating schedule that keeps the visible face finished while preserving bare metal on the concealed returns.

Specifying the Numbers: A Practical Data Table

The table below compares the shielding-critical parameters for three common solid aluminium facade specifications. These figures are engineering estimates based on standard solid sheet material properties and typical installation practice, and they should be verified against project-specific test data.

Note that the shielding effectiveness values assume a fully bonded, gasketed installation. A panel with the same material but open joints and no bonding will deliver less than 10 dB of shielding, which is effectively useless for any sensitive application. The cost index reflects material, gasket, and labour differences, not the earthing work, which is common to all three.

Verification and Testing on Site

Specifying a shielding facade on paper is not enough. The performance must be verified after installation, and the verification method matters as much as the design. The accepted practice follows the guidance in IEEE 299 for shielded enclosures, adapted for a building envelope. A portable field test kit with a calibrated transmitter and receiver is used to measure attenuation at representative frequencies across the facade.

Field testing should be written into the contract as a mandatory acceptance step, not an optional extra. A common failure mode is that the facade passes the design review but fails on site because a contractor substituted a non-conductive gasket or skipped the bonding straps to save time. The remedy is a clear inspection hold point: no handover until the field attenuation report meets the specified minimum at every test frequency. For projects that cannot tolerate any doubt, a full-scale mock-up panel should be tested in a certified anechoic chamber before production begins.

Cost Reality and Payback

An EMI Shielding Aluminum Facade carries a real premium over a decorative cladding system. Based on the cost indices in the table, a shielding-grade specification adds roughly 40 percent to the cladding package, and a high-security specification nearly doubles it. For a 5,000 m² facade, that premium can run into seven figures. The justification has to come from the value of the protected assets. A single MRI suite in a hospital, or one server hall in a data center, can be worth far more than the entire facade premium.

Procurement teams should also weigh the maintenance cost. Conductive gaskets degrade with UV exposure and compression set, and they need periodic replacement. The specification should include a maintenance schedule and a documented replacement part list. Choosing a reputable fabricator with a proven track record on shielded projects reduces the risk of field failures. Futeng®, with its solid aluminium panel production lines and experience in precision-finished architectural metalwork, is one supplier that can deliver the tight tolerances and masked coating schedules this application demands, and it is worth shortlisting for projects where continuity and finish both matter.

Standards and Reference Documents

Every shielding facade specification should cite the controlling standards so that the contractor, the testing agency, and the owner all work to the same yardstick. The most relevant references are the IEC 61000-4 series for electromagnetic compatibility test methods, IEEE 299 for measuring shielding effectiveness of enclosures, and the AAMA 2605 specification for the performance of PVDF coatings on aluminium extrusions and panels. For the structural side, the aluminium alloy and temper designations follow the EN 573 and EN 485 standards, and the facade design should comply with the relevant parts of the Eurocode or the local building code governing wind load and thermal movement.

Field experience across shielded hospital and data center projects shows that the single most common cause of shielding failure is not the panel material but the joint and bonding details. Budget for the gaskets, the bonding straps, and the field test, and the panel itself will do its job.

Practical Recommendations for the Tender Package

To close, the engineering advice for any team preparing to bid or specify an EMI Shielding Aluminum Facade is straightforward. First, define the required shielding effectiveness at the frequencies that matter for the building's actual occupants, not a generic spec copied from another project. Second, require a full continuity chain in the drawings, including gasket type, fastening torque, and bonding interval, and make those details part of the contract. Third, budget for a field attenuation test with a defined pass criterion and a hold point before handover. Fourth, choose a solid aluminium panel thickness and alloy that satisfies both the structural wind load and the shielding absorption requirement, and confirm the coating schedule leaves conductive contact zones exposed. Finally, shortlist fabricators with demonstrable shielded-facade experience, and verify their tolerance control and coating masking capability before awarding the contract. A facade that keeps the weather out and the electromagnetic noise out is an engineering achievement, and it is one that pays for itself the first time a sensitive system stays online through a storm of interference.
