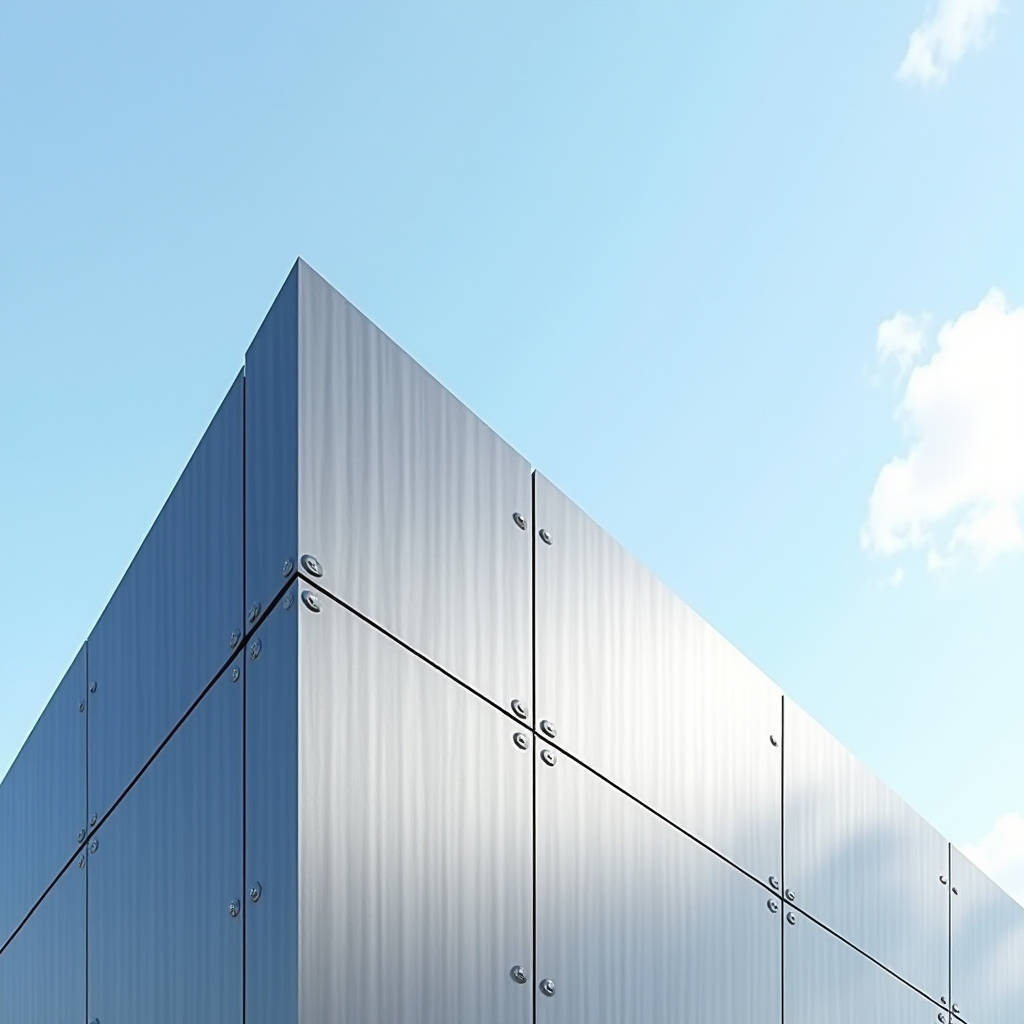

Structural Wind Resistance Aluminum Cladding Depends on Pullout Capacity Thickness and Panel Width
Structural Wind Resistance Aluminum is not a single material property but a system-level engineering outcome that ties panel thickness, alloy temper, edge detailing, and anchorage geometry into one load path. For solid aluminium cladding panels, the weakest link is rarely the sheet itself; it is the pullout capacity of the fasteners and the flexural stiffness of the supporting framework. Recent research on aluminum alloy high-strength systems shows wind-resistant capacity is far more sensitive to panel thickness and width than to purlin spacing, with measured failure capacities ranging from −10.20 kPa down to −2.07 kPa depending on those variables. That spread tells a procurement team exactly where to focus during design review. This article walks through the calculation logic, the failure modes that actually matter, and the specification decisions that separate a panel system that survives a typhoon from one that sheds its skin.
Why Pullout Failure Drives the Real Design Limit
Most specifiers assume wind load design ends once the panel bending stress passes. That assumption is dangerous. For Structural Wind Resistance Aluminum cladding, the governing check is frequently the resistance of the screw or rivet connection to being pulled out of the supporting rail or the panel edge. The pullout mechanism is a combined action: the fastener shank resists shear, the embedded thread resists withdrawal, and the surrounding aluminium edge resists local tearing. When a negative wind pressure (suction) acts on a panel, the load transfers through the fixings into the subframe. If the fixing spacing is too generous or the edge return is too shallow, the first symptom is not a cracked panel but a fastener that pulls free, allowing the panel to lift and flutter.
Engineering studies of aluminum alloy high-strength systems confirm that the pullout-based wind-resistant capacity responds more strongly to changes in panel thickness and panel width than to changes in purlin spacing. In practical terms, widening a panel from 600 mm to 900 mm can reduce its pullout capacity by a factor greater than the increase in area, because the tributary load on each fixing grows while the edge return geometry stays constant. The same logic applies to thickness: a 2.0 mm sheet offers measurably lower pullout resistance than a 3.0 mm sheet at identical fixing geometry, because the local edge stiffness and the thread engagement depth both shrink.
Reading the Load Numbers: From Wind Speed to kPa
Wind load on a cladding panel is calculated from the basic wind speed, the exposure category, the height above ground, and the pressure coefficients that account for the building shape and the panel position. The standard route follows the velocity pressure formula and the gust factor method, then applies the external and internal pressure coefficients. The result is a design pressure in kilopascals that the panel and its fixings must resist with an acceptable safety factor.
For a mid-rise building in a coastal zone with a basic wind speed of 45 m/s, a corner panel at the top floor can see a design suction pressure in the range of 2.5 to 4.0 kPa. For a high-rise tower above 100 m in a typhoon-prone region where the basic wind speed reaches 55 m/s, corner pressures can climb to 6.0 kPa or higher. The research cited earlier shows that high-strength aluminum systems can be engineered to resist up to −10.20 kPa, but only when the thickness and width parameters are tuned correctly. That ceiling is not automatic; it is earned through geometry.
Panel Thickness and Alloy Temper: The Two Levers That Matter
Solid aluminium cladding panels used in structural wind applications are typically supplied in 2.0 mm, 2.5 mm, and 3.0 mm thicknesses. The alloy is almost always 3003 or 5005 series with an H14 or H24 temper, giving a yield strength in the range of 145 to 180 MPa. Thickness serves two roles in the wind resistance calculation. First, it increases the section modulus of the panel, which reduces bending deflection under positive pressure. Second, and less obviously, it increases the local stiffness at the edge return, which improves the pullout resistance of the fixings and reduces edge tearing under suction.
The width of the panel is the second lever. A narrower panel reduces the tributary area on each fixing, which directly lowers the pullout demand. The interaction between thickness and width is not linear, which is why a simple "use thicker aluminium" rule fails. A 3.0 mm panel that is 1200 mm wide can perform worse than a 2.5 mm panel that is 600 mm wide, because the fixing demand scales with width faster than the edge stiffness scales with thickness. Designers should therefore specify both dimensions together, not thickness in isolation.
Fixing Geometry and Edge Return Detailing
The hidden engineering in Structural Wind Resistance Aluminum cladding sits at the edge return. A solid panel is brake-formed with a return flange, typically 20 to 30 mm deep, that stiffens the perimeter and provides a landing surface for the fixings. The return depth, the corner radius, and the number of fixing points per metre all feed into the pullout calculation. A deeper return increases the lever arm and the local stiffness, but it also adds material cost and complicates the brake-forming process.
Fixing spacing is the most controllable variable on site. The research shows that purlin spacing has a weaker influence on pullout capacity than thickness and width, but that does not make it irrelevant. The recommended spacing for a 2.5 mm panel in a high wind zone is typically 300 to 400 mm along the horizontal edges and 500 to 600 mm along the vertical supports. Tighter spacing at the corners and at the top of the building, where suction is highest, is a low-cost way to gain capacity without changing the panel specification.
Standards and the Calculation Chain
Every wind resistance calculation should trace back to a recognized standard so that the numbers are defensible in a tender review. The international reference points are the ISO wind load provisions, the AAMA curtain wall performance standards, and the ASTM structural testing methods. A typical design chain looks like this:
- Establish the basic wind speed from the local code or from ISO 4354 wind actions.
- Convert to a velocity pressure using the exposure and gust factors.
- Apply pressure coefficients from the building shape and panel position.
- Combine with the internal pressure coefficient to get the net design pressure.
- Check the panel bending stress and deflection against the alloy yield strength.
- Check the fixing pullout capacity against the tributary load.
- Verify the edge return and the subframe connection against local tearing.
For the pullout check, the withdrawal capacity of a screw in an aluminium rail depends on the thread diameter, the engagement length, and the shear strength of the aluminium. A common rule of thumb is that a 4.8 mm self-tapping screw with 10 mm of engagement in a 3.0 mm rail provides roughly 1.5 to 2.0 kN of withdrawal resistance. Multiply that by the number of fixings on a panel and compare it to the design suction force. If the margin is thin, tighten the spacing rather than guessing at a thicker panel.
Practical Capacity Comparison Table
The table below shows how the governing parameters interact for a typical solid aluminium cladding panel in a high wind zone. Values are engineering estimates for comparison and should be verified with a full calculation for each project.
| Panel Thickness (mm) | Panel Width (mm) | Return Depth (mm) | Fixing Spacing (mm) | Estimated Design Suction Capacity (kPa) |
|---|---|---|---|---|
| 2.0 | 600 | 20 | 300 | 3.2 |
| 2.0 | 900 | 20 | 300 | 2.1 |
| 2.5 | 600 | 25 | 300 | 4.6 |
| 2.5 | 900 | 25 | 300 | 3.0 |
| 3.0 | 600 | 30 | 300 | 6.1 |
| 3.0 | 900 | 30 | 300 | 4.0 |
| 3.0 | 1200 | 30 | 300 | 2.8 |
The pattern is clear: thickness raises capacity, but width erodes it faster than thickness can compensate. A 3.0 mm panel at 1200 mm width performs worse than a 2.5 mm panel at 600 mm width. Specifiers who chase thickness alone will pay for material they do not need while missing the width problem.
Coating and Surface Performance Under Wind-Driven Stress
Wind resistance is not only a structural question. A panel that survives the load but loses its coating to erosion or micro-cracking has failed its service function. The PVDF coating system, applied at a total dry film thickness of 25 to 30 microns over a properly pretreated substrate, provides the flexibility needed to follow the panel through minor elastic deformation without cracking. A brittle coating will fail first at the edge return, where the bending strain is highest, even when the aluminium itself is well within its elastic limit.
The coating choice also affects the long-term performance of the fixings. A galvanic or corrosion issue at the fastener hole can reduce the effective thickness of the aluminium edge over time, silently lowering the pullout capacity years after installation. Sealing the fixing holes and using compatible fastener materials is therefore part of the wind resistance strategy, not an afterthought.
Installation Sequence and Site Quality Control
The best panel specification fails if the installation does not respect the fixing pattern. Site crews must follow the approved fixing layout, use the correct drill torque to avoid stripping the threads, and verify that the edge returns are not damaged during handling. A common site error is to increase the fixing spacing to save labour, which directly reduces the pullout capacity below the design value. The project engineer should witness the first panel installation and spot-check the torque and spacing on a sample of panels.
Quality control also covers the incoming material. Panel thickness should be verified with a micrometer at the edge return, and the alloy temper should be confirmed against the mill certificate. A panel that is delivered at 2.2 mm when specified at 2.5 mm has lost roughly 12 percent of its section modulus and a similar share of its pullout capacity, which can push a marginal design over the line.
Procurement Considerations for the Supply Chain
For a procurement manager, the wind resistance requirement translates into a specification that must be enforceable at the factory gate. The key documents are the mill certificate for the alloy and temper, the coating test report for the PVDF system, and the dimensional check for thickness and flatness. A reliable supplier holds these tolerances consistently across production runs. Futeng® has supplied solid aluminium cladding panels with controlled thickness and temper for high-wind projects, and their documentation trail supports the design verification that a structural engineer needs before signing off.
When comparing suppliers, ask for the actual tolerances they hold on thickness and flatness, not just the nominal values. A supplier that holds 2.5 mm within ±0.05 mm is giving you a design margin that a supplier at ±0.15 mm is not. That margin is real wind resistance capacity, and it is worth paying for in a high-exposure location.
Practical Specification Guidance
For a project in a wind zone where the design suction exceeds 3.0 kPa, start with a 2.5 mm panel at a 600 mm width and a 25 mm return, then tighten the fixing spacing to 300 mm at the corners and top. If the corner pressure exceeds 5.0 kPa, step up to 3.0 mm but keep the width at or below 600 to 750 mm. Do not widen the panel to reduce the number of joints unless the fixing pattern is recalculated, because the width penalty in pullout capacity is steep.
Run the pullout check as a separate line item in the design, not as an afterthought to the bending check. The research data is unambiguous: pullout capacity is the sensitive variable, and it responds to thickness and width more than to purlin spacing. A design that optimizes those two parameters, with a fixing pattern to match, will carry the wind load with a comfortable margin.
Finally, verify every number against the governing standard for the project location. The velocity pressure, the pressure coefficients, and the safety factors all depend on the local code, and a value that is safe in one region may be marginal in another. With the geometry right and the fixing pattern respected, Structural Wind Resistance Aluminum cladding is a dependable, predictable building skin that performs as calculated.
