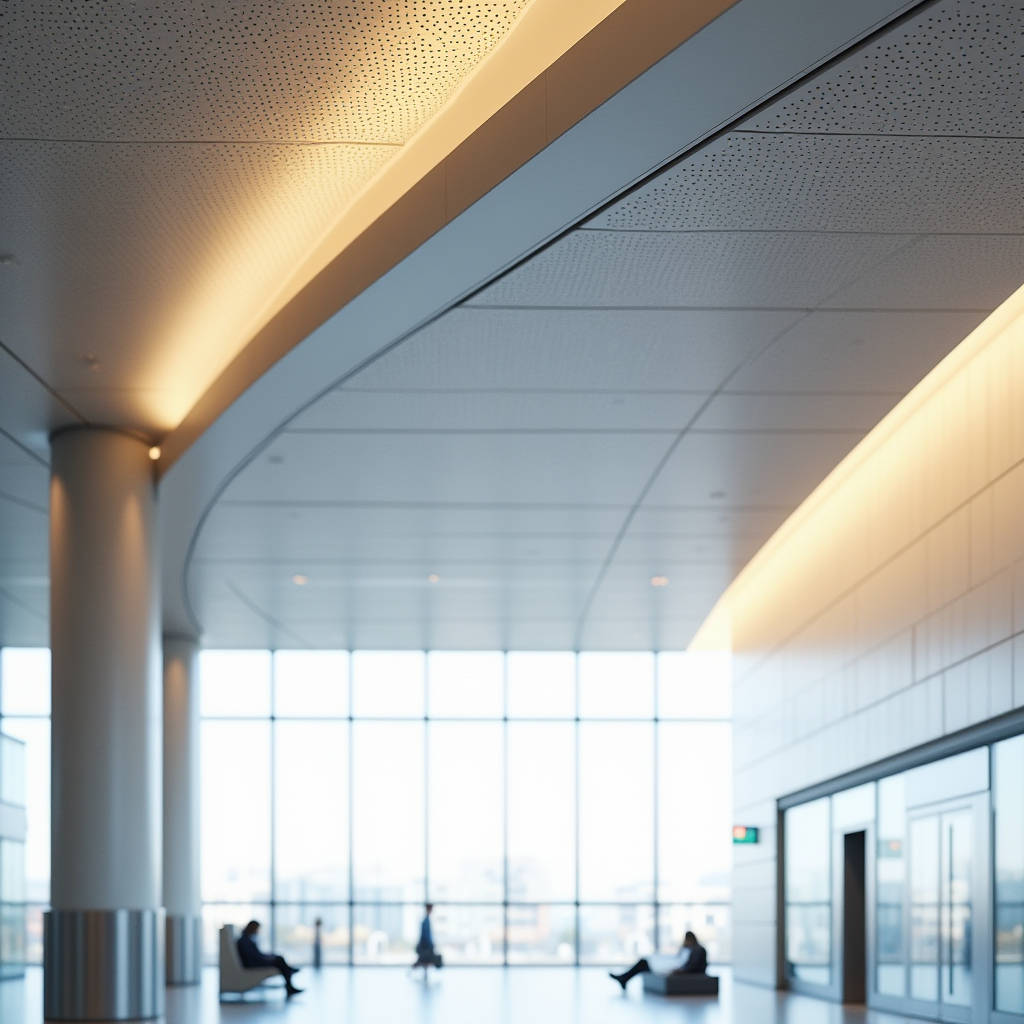

Engineering an Acoustic Aluminum Panel for NRC Performance, Fire Safety, and Long-Term Durability in Public Spaces
An Acoustic Aluminum Panel is not a decorative afterthought. In demanding public environments—railway concourses, airport terminals, auditoriums, and industrial halls—it is a structural and acoustic component that must be engineered, not merely specified. The perforated face sheet, the acoustic infill, the backing layer, and the mounting system all interact to determine the Noise Reduction Coefficient (NRC) and the panel's long-term performance. Too often, procurement teams choose a perforated panel based on aesthetics alone, only to discover that reverberation times remain unacceptable or that the panel's acoustic core degrades within a few years. This article examines the engineering decisions that actually drive acoustic performance in solid aluminium cladding, with an emphasis on measurable parameters, fire safety, and life-cycle cost.
The Physics Behind a Perforated Aluminium Face
Sound absorption in a perforated panel follows the Helmholtz resonator principle. The perforated aluminium face acts as a series of small orifices, while the air cavity behind it—and the porous infill material—provides the damping. The key variables are the perforation ratio (open area), the hole diameter, the panel thickness, and the depth of the air gap. Each of these must be tuned to the dominant frequency range of the space.
For a 2.0 mm or 2.5 mm solid aluminium sheet, the perforation ratio typically ranges from 8% to 23%. A lower ratio shifts absorption toward lower frequencies; a higher ratio improves mid- and high-frequency absorption but weakens the panel's structural stiffness. This trade-off is why the backing layer and the core matter as much as the face sheet. A specifier who treats the acoustic panel as a single product rather than a tuned assembly will struggle to meet the acoustic brief.
Reading the Data Sheet Correctly
Three figures dominate any acoustic specification: the NRC (a single-number average of absorption across 250–2000 Hz), the Sabin rating for a given area, and the Rw value for sound insulation. NRC is useful for reverberation control, but it hides frequency-specific weaknesses. A panel with an NRC of 0.85 could still perform poorly at 125 Hz, which is exactly where mechanical noise and HVAC rumble live. Always request the full absorption coefficient curve by octave band, not just the headline NRC.
Fire classification is equally non-negotiable in public buildings. Because the acoustic core sits inside a metal cassette, the infill material determines the assembly's reaction to fire. Mineral wool with a black protective facing is the standard choice, and it must meet the relevant local classification—for example, EN 13501-1 Class A2 or ASTM E84 Class A. The protective facing prevents fibre shed and moisture ingress, both of which are common failure modes in cheap assemblies.
Acoustic Core, Backing Sheet, and the Cassette Build
The internal construction of a quality Acoustic Aluminum Panel follows a predictable sequence. The perforated face sheet is bonded to an aluminium honeycomb or a rigid mineral-wool core, and a smooth backing sheet closes the cassette. The honeycomb option delivers superior flatness and stiffness, which matters when panels span large module sizes without visible oil-canning. The mineral-wool option delivers higher low-frequency absorption but requires a stiff perimeter frame to hold its shape.
For exterior or semi-exterior applications, the backing sheet must be a fully sealed aluminium skin. A perforated face with an open back will allow moisture to saturate the core, collapsing its acoustic performance and promoting corrosion at the cut edges. Specifiers should require a sealed back panel with a factory-applied PVDF or polyester coating on both faces, not just the visible one.
Coating and Corrosion Protection
| Coating System | Film Thickness | Typical Salt-Spray Resistance | UV Fade Resistance | Best Use Case |
|---|---|---|---|---|
| Polyester (PE) | 20–25 µm | Moderate | Moderate | Interior ceilings, low-abrasion walls |
| PVDF (70/30) | 25–30 µm | High | Excellent | Exterior facades, coastal zones |
| Anodized (natural) | 15–25 µm oxide | High | Excellent | High-humidity interiors, transit stations |
| Powder coat | 60–80 µm | Moderate-High | Good | Custom colours, impact-prone walls |
The table above is worth reading carefully. A perforated panel in a railway underpass will face salt, grime, and constant vibration. A PVDF finish at 25–30 µm, applied over a properly pretreated aluminium substrate, will outlast a polyester finish by a wide margin in that environment. The AAMA 2605 specification is the benchmark for high-performance exterior coatings and should be referenced in any exterior acoustic panel specification.
Mounting Systems and the Air Gap
The air gap behind the panel is not a construction tolerance—it is a tuned acoustic element. A deeper cavity shifts the absorption peak downward in frequency. For speech intelligibility in a concourse, a 50–100 mm cavity with a mineral-wool infill is a common starting point. For low-frequency industrial noise, the cavity may need to reach 200 mm or more, which changes the bracket design and the load on the supporting structure.
Concealed fixing systems keep the visible face clean but complicate acoustic sealing. Every bracket and fixing point is a potential acoustic leak and a thermal bridge. Where panels are mounted on a rainscreen system, the acoustic cassette must sit on a continuous gasket or a vibration-isolating clip to prevent structure-borne noise transmission. This is a detail that is frequently missed in shop drawings and is a leading cause of acoustic complaints after handover.
Estimating the Weight and Structural Load
A 2.5 mm solid aluminium panel weighs roughly 6.75 kg per square metre before perforation and coating. Perforation removes some material, but the acoustic core and backing sheet add it back. A complete acoustic cassette with a mineral-wool core typically lands between 12 and 18 kg/m² depending on the core density and cavity depth. Structural engineers must account for this in the sub-frame design, and the wind-load calculations for exterior installations must follow the relevant local standard, such as ASCE 7 in North America or EN 1991-1-4 in Europe.
Perforation reduces the effective stiffness of the face sheet. A panel with a 20% open area is measurably less rigid than a solid sheet of the same thickness, so the maximum unsupported span must be reduced accordingly. This is why many acoustic cassettes are built with a honeycomb core even when the acoustic performance alone would not require it—the core restores the flatness and stiffness that the perforations remove.
Appearance, Pattern, and the Risk of Visual Noise
Perforation patterns are a design decision as much as a technical one. Round holes, square perforations, slotted openings, and custom laser-cut patterns all change the open area and the visual texture. A pattern that looks elegant at a 1:50 drawing can read as busy or dirty at full scale, especially in a bright concourse where the perforations catch dust and shadows.
Specifiers should request a full-scale mock-up of the perforation pattern before committing. The mock-up also reveals how the pattern interacts with the lighting, how the panel edges are finished, and whether the perforations align cleanly across module joints. Alignment across joints is a common source of dissatisfaction; a pattern that does not continue across a seam looks like a manufacturing error even when it is technically acceptable.
Cleaning and Maintenance in Service
Perforated panels collect dust inside the holes and on the core facing. In a clean interior, this is a slow process, but in a transport hub or an industrial hall, dust and grime will accumulate visibly. The core facing must therefore be cleanable or at least sealed against staining. A black protective facing hides dust better than a light-coloured one, which is why it is the industry default. For exterior installations, the perforations must drain freely so that water does not pool inside the cassette and promote corrosion.
Access for cleaning and inspection should be planned at the design stage. Panels that are mechanically fixed with concealed clips can be demounted for service, but this requires planning the sequence and the tooling. A cassette that is permanently bonded or welded in place will be difficult to service, and the cost of replacement will be far higher than the cost of a demountable system.
Life-Cycle Cost Versus First Cost
The cheapest acoustic panel on paper is rarely the cheapest over a 25-year service life. Core degradation, coating failure, and moisture damage all drive premature replacement. A well-built cassette with a mineral-wool core, a sealed backing sheet, and a PVDF finish will hold its acoustic and visual performance for decades, while a low-cost assembly may need replacement within a decade.
When evaluating suppliers, ask for the full construction specification, the fire classification certificate, and the acoustic test report from an accredited laboratory. A manufacturer that cannot produce an independent acoustic report should be treated with caution. Suppliers such as Futeng® have built a reputation on supplying solid aluminium acoustic cassettes with documented performance data, which is a useful reference point when benchmarking bids.
A Practical Specification Checklist
- Confirm the required NRC and the full absorption curve by octave band, not just the single number.
- Specify the perforation ratio, hole diameter, and pattern, and verify them against a full-scale mock-up.
- Require a sealed aluminium backing sheet for exterior or semi-exterior installations.
- Specify the acoustic core material and its fire classification (EN 13501-1 A2 or ASTM E84 Class A).
- Define the coating system and film thickness, referencing AAMA 2605 for exterior work.
- Calculate the complete cassette weight and include it in the structural and wind-load design.
- Plan the air gap depth to match the target frequency range, and specify vibration-isolating fixings.
- Design for demountability and access for cleaning and future service.
Following this checklist will not guarantee a perfect acoustic outcome, but it will eliminate the most common specification errors. The acoustic performance of an Acoustic Aluminum Panel is the product of a tuned assembly, and every layer—face, core, backing, coating, and mounting—contributes to the final result. Skimping on any one of them compromises the whole system.
Final Engineering Recommendations
For most large public spaces, specify a 2.0 mm or 2.5 mm solid aluminium face with a perforation ratio matched to the dominant noise source, a mineral-wool or honeycomb core selected for the target frequency range, and a sealed backing sheet. Use a PVDF coating at 25–30 µm for exterior work and reference AAMA 2605. Confirm the fire classification and the independent acoustic test report before award. Plan the air gap and the mounting system as tuned acoustic elements, and design for service access. The panels that perform best in service are the ones whose entire assembly was specified with the same rigour as the structural frame that supports them.
