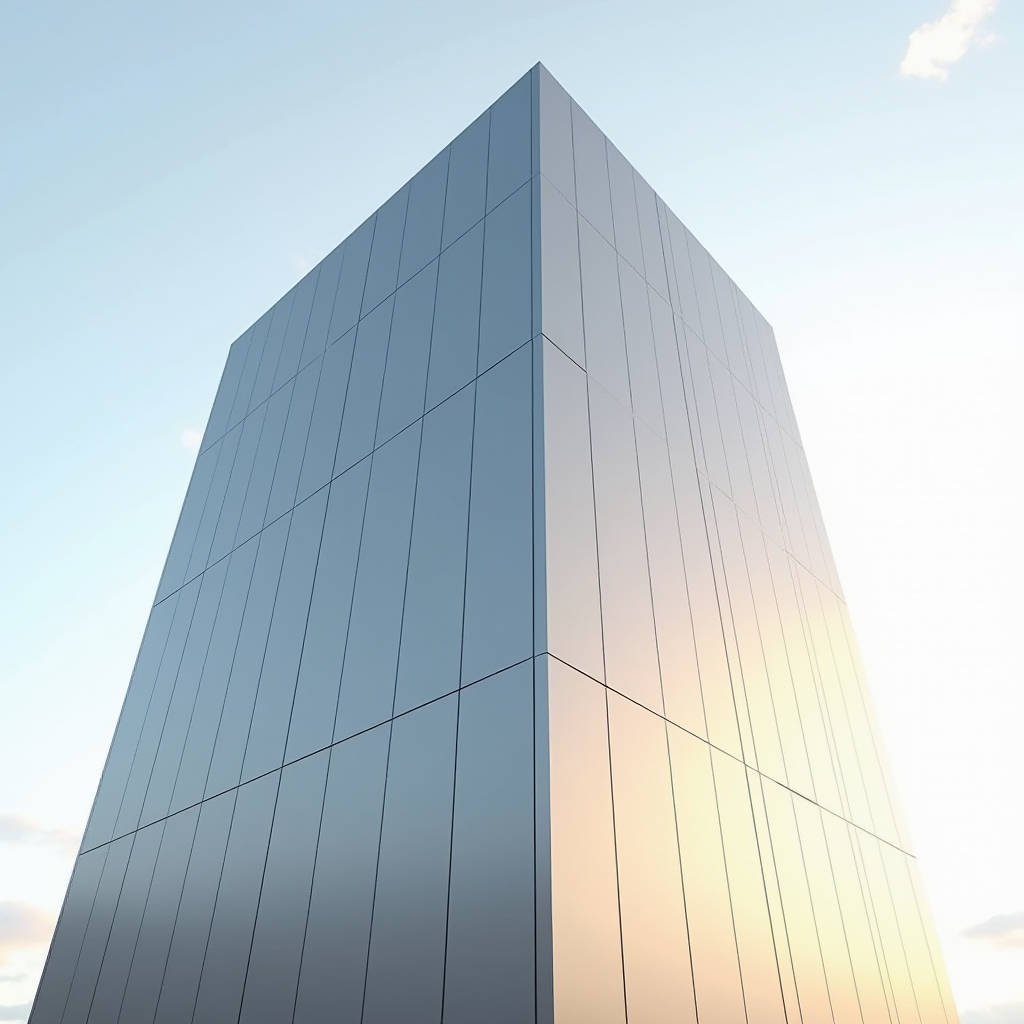

Fireproof Aluminum Facade Engineering Standards Cavity Barriers and Assembly Cost Planning

When a facade specification crosses your desk, the phrase "Fireproof Aluminum Facade" usually arrives with a budget number and a deadline, but rarely with the engineering context that decides whether that facade actually performs. The gap between a non-combustible panel and a fire-safe wall assembly is wider than most procurement teams expect. A solid aluminum veneer panel carries an A2 classification under EN 13501-1, yet the finished cladding system only earns its fire rating when every component — insulation, cavity barriers, brackets, and joints — works as one. This article walks through the specific technical decisions that separate a compliant Fireproof Aluminum Facade from one that fails an inspection or, worse, fails in a real event.

Why Solid Aluminum Veneer Beats Composite for Fire Performance

The core material difference is straightforward. A solid aluminum panel is a single homogeneous sheet of alloy, typically 5052 or 3003, with no polymer core. A composite panel sandwiches a polyethylene or mineral-filled core between two thin aluminum skins. Under intense heat, the polyethylene core in standard ACP melts, drips, and contributes fuel to a fire. Solid aluminum does not. It may lose structural strength above roughly 350°C, but it does not propagate flame or release the kind of burning droplets that drive vertical fire spread on high-rise towers.

That distinction matters most in the cavity behind the panel. Building codes in many jurisdictions now require cavity barriers at every floor line and at openings. A solid panel system, because it has no combustible core, gives the fire engineer one less variable to manage. The practical result is a simpler, more defensible fire strategy for the whole envelope.

Reading the Ratings: EN 13501-1, NFPA 285, and EI Classifications

Three sets of standards dominate the conversation, and each answers a different question. EN 13501-1 classifies the reaction to fire of a material or product. A2 is the second-highest classification, indicating limited contribution to fire. NFPA 285 is a full-scale assembly test used in the United States that evaluates the exterior wall system as a whole, including the insulation, the cavity, and the attachment method. EI ratings (EI30, EI60, EI90, EI120) measure fire resistance — how long a construction keeps its integrity and insulation properties under a standard fire curve.

Procurement teams often conflate these. A panel with an A2 rating does not automatically satisfy NFPA 285, because NFPA 285 tests the assembly, not the panel. And an EI rating on a glazing or door system has no direct bearing on a rainscreen panel's reaction-to-fire class. When you specify a Fireproof Aluminum Facade, confirm which standard your local authority requires and which test report your supplier can actually produce.

What Actually Decides Whether a Facade Is Fire-Safe

Fire safety in a solid aluminum rainscreen is decided by the assembly, not the panel alone. The insulation behind the panel is the first thing to check. Mineral wool with a non-combustible classification is the safe default. Polyisocyanurate or extruded polystyrene foam, even with a fire-retardant additive, introduces combustible mass into the cavity and complicates the NFPA 285 story. Specify mineral wool and verify the density and the foil facing.

The cavity itself needs attention. A ventilated rainscreen cavity is a chimney when a fire starts. Cavity barriers, typically horizontal steel or mineral wool strips at every floor line and at spandrel locations, break that chimney into manageable segments. The attachment brackets also matter. Steel brackets rated for the fire scenario, with intumescent pads where needed, keep the panel in place long enough for the assembly to perform. Finally, the joints and the gaskets should be non-combustible or limited-combustible; a cheap EPDM gasket can be the weak link in an otherwise sound system.

Coating Chemistry and Weathering Under Fire Exposure

Fire performance and coating durability are separate questions, but they meet at the panel surface. A PVDF (polyvinylidene fluoride) coating, typically 70/30 resin, applied at a dry film thickness of 25 to 30 microns, delivers the two-coat or three-coat system that most architects specify. The coating's primary job is weathering — UV resistance, color retention, and chalk resistance over a 20-year horizon. It does not meaningfully change the panel's reaction-to-fire class, because the substrate is what carries the A2 rating.

Still, the coating matters for a different reason. A facade that degrades and needs replacement earlier than planned creates a second fire-safety review, new penetrations, and new attachment points. Specifying a coating with a verified AAMA 2605 performance level (the most demanding of the AAMA facade coating specs) reduces the chance of premature replacement and keeps the original fire engineering intact for the building's life.

Panel Thickness and the Structural Side of Fire Safety

Fire safety is not only about combustion. A panel that detaches from its framing during a fire creates falling debris hazards and opens the cavity to flame. Panel thickness drives the structural stiffness that keeps the panel attached. For a standard rainscreen module, 2.0mm solid aluminum is the common baseline. Where wind loads are severe or panel sizes are large, 2.5mm or 3.0mm panels reduce deflection and reduce the stress on the concealed or exposed fasteners. The calculation follows the same wind-load methodology as any facade, but the fire scenario adds a requirement that the attachment survive elevated temperatures long enough for safe evacuation.

Futeng® supplies solid aluminum veneer panels in 2.0mm, 2.5mm, and 3.0mm thicknesses with PVDF coatings, and their technical team routinely provides the deflection and fastener-load calculations that a facade engineer needs to close out the structural review. A reliable supplier is one that can hand over the coating certificate, the EN 13501-1 report, and the dimensional tolerances in one package, because each document feeds a different part of the approval chain.

Installation Details That Make or Break the Assembly

The best panel specification fails on site if the installation does not match the tested assembly. Three details deserve explicit attention in the shop drawings and the installation method statement. First, the cavity barrier must be continuous and mechanically fixed, not just friction-fit, because a fire will push against it. Second, the panel joints should be detailed so that a fire cannot bypass the barrier through an open joint at the floor line. Third, the sealant specified for the joints must carry a non-combustible or limited-combustible classification, and the site team must use the specified product rather than a generic gun-grade sealant.

These details are exactly where the difference between a compliant Fireproof Aluminum Facade and a non-compliant one emerges. The panel is the visible part, but the barriers, the brackets, and the sealants are the parts that a fire engineer reviews line by line.

Budget Reality: Where the Money Goes in a Fire-Rated Facade

Cost conversations in facade procurement usually start with the panel price per square meter, but the fire-rated assembly spreads cost across several line items. A useful planning estimate for a solid aluminum rainscreen with a fire-safe specification, delivered and installed in a developed market, runs roughly as follows. The panel itself, at 2.0mm with a PVDF coating, lands around 60 to 90 USD per square meter depending on finish and order volume. The steel subframe and brackets add 40 to 60 USD per square meter. Mineral wool insulation behind the panel adds 15 to 25 USD per square meter. Cavity barriers, sealants, and the labor to install them correctly add another 20 to 35 USD per square meter. The total installed cost typically lands between 135 and 210 USD per square meter, with the fire-specific components — mineral wool, barriers, and rated sealants — representing roughly a quarter of that total.

That quarter is the part that gets value-engineered out when budgets tighten. Replacing mineral wool with foam saves money on paper and creates a compliance problem in practice. The engineering advice is to protect that quarter of the budget, because it is the difference between a facade that passes the fire review and one that does not.

Closing the Specification

Writing a Fireproof Aluminum Facade specification that survives review means documenting four things: the panel's reaction-to-fire class with a matching test report, the full assembly's compliance with the applicable system-level standard, the non-combustible insulation and cavity barrier details, and the structural attachment calculation for the chosen panel thickness. Verify each document against the exact product you are buying — a certificate for a different thickness or a different coating does not transfer. Engage the supplier early for the assembly-level documentation, because that is the document that takes the longest to produce and the one that most often delays a project. With the panel, the assembly, and the site details aligned, a solid aluminum veneer facade delivers the fire safety that the building code demands and the durability that the owner expects.
