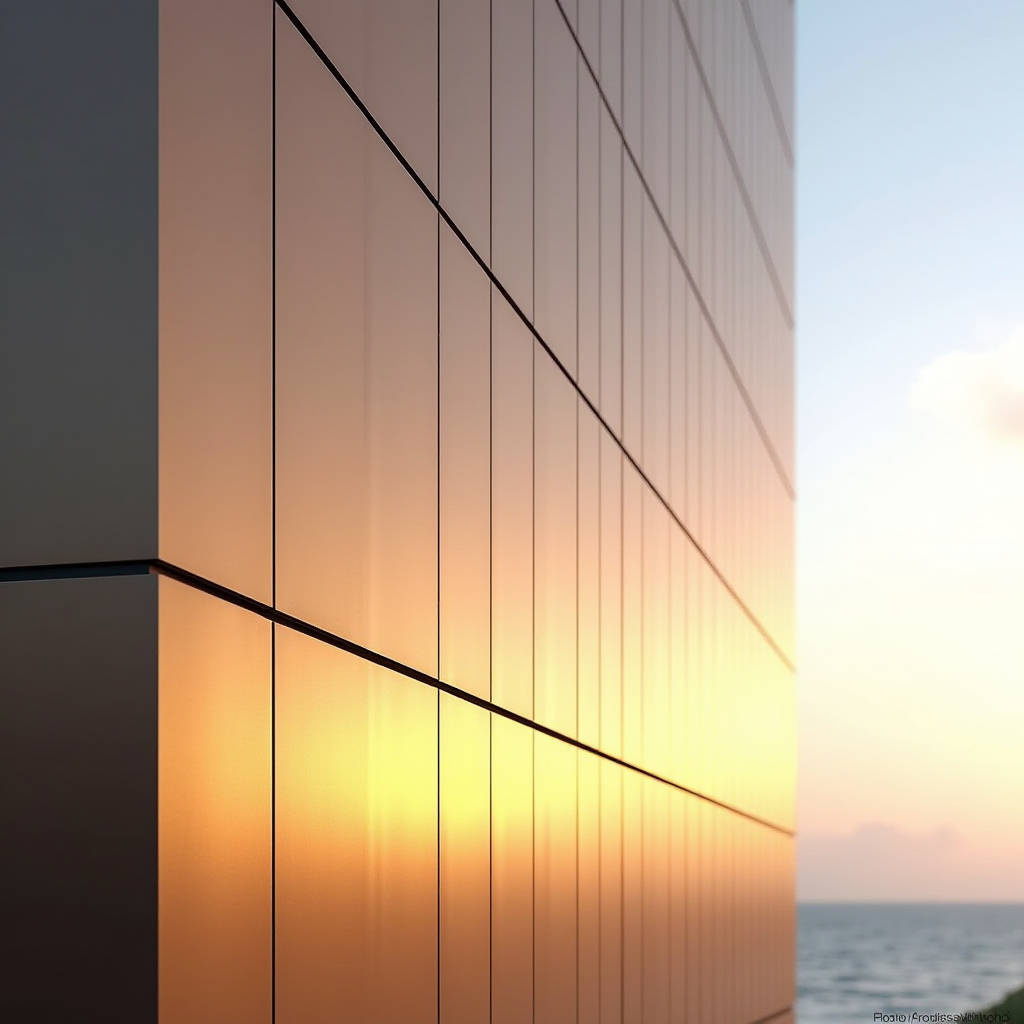

Aluminum Coil 5005 for Solid Cladding Panels Temper Coating and Corrosion Control

When a facade specification calls for a solid aluminium cladding panel that must survive coastal salt spray, aggressive industrial atmospheres, or a 20-year warranty cycle, the substrate choice often decides the project outcome. Aluminum Coil 5005, an Al-Mg alloy with roughly 0.8–1.2% magnesium, has become the default substrate for anodised and PVDF-coated solid panels precisely because it balances moderate strength with superior corrosion resistance and formability. This article walks through the metallurgical reasons behind that reputation, the practical limits of the coil in flat-sheet and roll-formed cladding, and the coating and finishing decisions that separate a 10-year facade from a 25-year one. We also cover the often-overlooked areas: temper selection, surface preparation before anodising, and how to verify that the coil you receive actually matches the mill certificate.

Why 5005 Sits Above the 1000-Series for Cladding

Pure aluminium (1000 series) offers excellent corrosion resistance but lacks the stiffness and dent resistance that a 2.0mm or 3.0mm solid panel needs once it spans a large module. Adding magnesium in the 0.8–1.2% range lifts the tensile strength of Aluminum Coil 5005 to roughly 110–145 MPa in the H14 temper, roughly double that of 1050 in the same temper. That strength gain is not cosmetic: it directly reduces the number of stiffening ribs required behind a flat panel, which cuts fabrication time and freight weight. The magnesium also improves the alloy's response to anodising, producing a denser, more uniform oxide layer that resists fingerprints and micro-etching better than a 1000-series surface.

For the facade contractor, the practical result is a substrate that can be brake-formed, roll-formed, and punched without cracking at the bend radius, yet still holds a flat plane after installation. The 5005 alloy also welds acceptably, which matters when fabricators assemble corner boxes or custom reveals. The trade-off is that 5005 is not a high-strength structural alloy; if your design relies on the panel itself to carry wind load across a large unsupported span, you should move to 5052 or 5083. For conventional rainscreen and unitised curtain wall systems where the panel is a weather barrier and aesthetic skin, 5005 is the sweet spot.

Reading the Spec: Temper, Thickness, and Flatness

Most cladding coils are specified in H14, H24, or H32 tempers. H14 is a work-hardened temper with good flatness and moderate formability; H24 is a partially annealed version that allows tighter bends; H32 is a strain-hardened then stabilised temper often preferred where the coil will be roll-formed into standing-seam profiles. The choice is not trivial. A 3.0mm panel in H14 will hold a sharp brake bend at a 90-degree corner, but if you try to roll-form the same temper into a tight radius profile, the outer fibre may micro-crack. For roll-formed profiles, specify H24 or H32 and confirm the minimum bend radius with the mill.

Thickness tolerance is another frequent source of dispute. A nominal 3.0mm coil can arrive at 2.85mm at the edges and 3.05mm in the centre, which changes both panel weight and the fit of interlocking joints. For anodised work, where the coating is transparent and any surface variation is visible, insist on a half-standard thickness tolerance and a flatness specification of 3 I-units or better. The mill certificate should state the alloy, temper, and actual measured thickness at several points across the width. If your supplier cannot provide that data, treat the coil as suspect.

Surface Preparation: The Step That Decides Anodising Quality

Anodised 5005 is prized for its even, architectural-grade finish, but the oxide layer only looks uniform if the surface is properly prepared. The coil arrives with rolling oil, oxides, and, in some cases, a light intermetallic particle layer that can produce streaks after anodising. A caustic etch followed by a desmut step removes these layers and exposes a clean, uniform surface. The etch depth and bath temperature must be controlled; over-etching removes the fine surface texture and can reveal grain structure, which shows up as a mottled pattern under a clear anodised finish.

For PVDF-coated panels, surface preparation is equally critical but less visible. The conversion coating applied before the primer must bond to a clean, oil-free surface. If the coil has been stored for months and developed a light oxide film, the adhesion of the entire PVDF system is compromised. A simple water-break test on a sample from the coil tells you whether degreasing is adequate. This is the kind of quality check that is cheap to run and expensive to skip, because a delaminated coating on a 20-storey tower is a catastrophic and costly rework.

Coating Systems: PVDF versus Anodising for 5005

The two dominant finishes for solid 5005 panels are 70% PVDF (polyvinylidene fluoride) and architectural anodising. Each has a distinct failure mode and a distinct cost profile, and the choice should follow the project environment rather than habit.

PVDF, applied at a total dry film thickness of 25–30 microns (roughly 1.0–1.2 mils, with a 5-micron primer), delivers excellent colour retention and chalk resistance in strong UV climates. It is the standard for coastal and high-sun projects because the pigment is locked in a fluoropolymer matrix that resists fading. The downside is that PVDF is a polymer film; it can be scratched, and if the coating is damaged, the exposed aluminium will corrode locally unless the damage is repaired.

Anodising, by contrast, creates an oxide layer that is part of the metal itself. At 18–25 microns, the anodic film is hard, scratch-resistant, and does not peel. The colour range is limited to natural, bronze, and black tones, but the metallic depth of the finish is something PVDF cannot replicate. Anodised 5005 is the preferred choice for prestige projects where the architect wants a true metal look. The main risk is that anodising reveals every surface defect, so the coil quality and preparation standards must be higher.

Corrosion Behaviour in Coastal and Industrial Air

The magnesium in Aluminum Coil 5005 forms a protective oxide that is more robust than that of pure aluminium, which is why the alloy performs well in marine atmospheres. However, "well" is not "immune." In a coastal environment with heavy salt deposition, an uncoated or poorly coated 5005 panel will develop pitting, especially in crevices where salt and moisture accumulate. The correct mitigation is a full coating system on all faces, including the rear, and attention to drainage so that water does not sit in horizontal joints. For industrial atmospheres with sulphur dioxide or chlorides, the same logic applies; the coating system carries the corrosion burden, and the substrate provides the structural integrity.

Galvanic corrosion is a separate risk that is frequently overlooked. If 5005 panels are fastened with steel or copper fixings, the dissimilar metal couple accelerates corrosion of the aluminium at the contact point. Use stainless steel or aluminium fixings, and isolate any unavoidable dissimilar metal contact with a non-conductive washer. This is standard practice, but it is worth restating because it is the most common cause of premature failure in otherwise well-specified cladding.

Specifying and Verifying the Coil

A responsible procurement process for Aluminum Coil 5005 should verify three documents before the coil leaves the mill. First, the mill certificate must confirm the alloy composition, with magnesium in the 0.8–1.2% range and aluminium at or above 97.0%. Second, the mechanical test results must show the tensile strength, yield strength, and elongation for the specified temper. Third, the dimensional data must confirm thickness tolerance and flatness. If the supplier cannot produce a mill certificate that matches the coil, that is a red flag regardless of price.

For international projects, the governing standards are worth citing in the specification. The alloy is covered by EN AW-5005 under EN 573 and EN 485, and by AA 5005 under the ASTM B209 standard for aluminium sheet and plate. The coating performance should be tested against AAMA 2605 for PVDF systems, which is the highest performance class for architectural coatings. Anodising quality is typically verified against AAMA 611 or the relevant national standard. Reference these standards in your specification so that the mill, the fabricator, and the inspector all work to the same yardstick.

Fabrication and Installation Considerations

Solid 5005 panels are typically fabricated as flat sheets with brake-formed returns, or as roll-formed profiles for standing-seam or cassette systems. The minimum bend radius for 5005 in the H14 temper is roughly 1.5 to 2 times the sheet thickness for a 90-degree bend; for H24 it drops to about 1 to 1.5 times the thickness. If your design calls for a sharp corner with a very tight radius, either specify a softer temper or accept that the outer surface may show a slight orange-peel texture. Punching and notching are straightforward, but the tooling should be sharp; a dull punch leaves a burr that can initiate corrosion at the edge.

On site, the panels should be handled with gloves and stored off the ground, tilted to allow drainage, and protected from direct contact with concrete or soil, which can cause staining. The protective film on the coated face should stay on until the panel is installed, and it should be removed within the time window specified by the coating supplier, because UV exposure can make the adhesive residue difficult to remove. For a unitised system, the panels arrive pre-fabricated and the site work is mostly alignment and sealing, which reduces the risk of on-site damage.

Sourcing Reliable Supply

Because 5005 is a workhorse alloy, the global market is crowded, and price competition is intense. The risk is that a low-priced coil is a re-rolled or off-spec product with hidden defects. For a project with a 20-year warranty, the cost of a failed batch is many times the saving on the coil price. A reliable supplier will provide a mill certificate, a consistent temper and thickness, and a stable coating line. When evaluating suppliers, ask for a sample coil to run through your own forming and coating tests, and ask how they handle thickness tolerance and flatness. Futeng® has built a reputation for dependable supply of 5005 coil for solid cladding applications, with documented mill certificates and consistent mechanical properties, which is the kind of verification that de-risks a large facade order.

Practical Recommendations

For a coastal or industrial facade project using solid panels, the following guidance will reduce risk. Specify 5005 in H14 for flat brake-formed panels and H24 or H32 for roll-formed profiles. Insist on a half-standard thickness tolerance and a flatness of 3 I-units or better. Use a 70% PVDF system tested to AAMA 2605 for maximum colour retention, or architectural anodising to AAMA 611 where a true metal finish is required. Coat all faces, including the rear, and design drainage so that joints do not hold water. Use stainless steel or aluminium fixings and isolate dissimilar metals. Finally, verify the mill certificate against the alloy, temper, and dimensional requirements before accepting delivery. Following these steps keeps the substrate, the coating, and the installation working together so that the facade performs as designed for its full intended service life.
