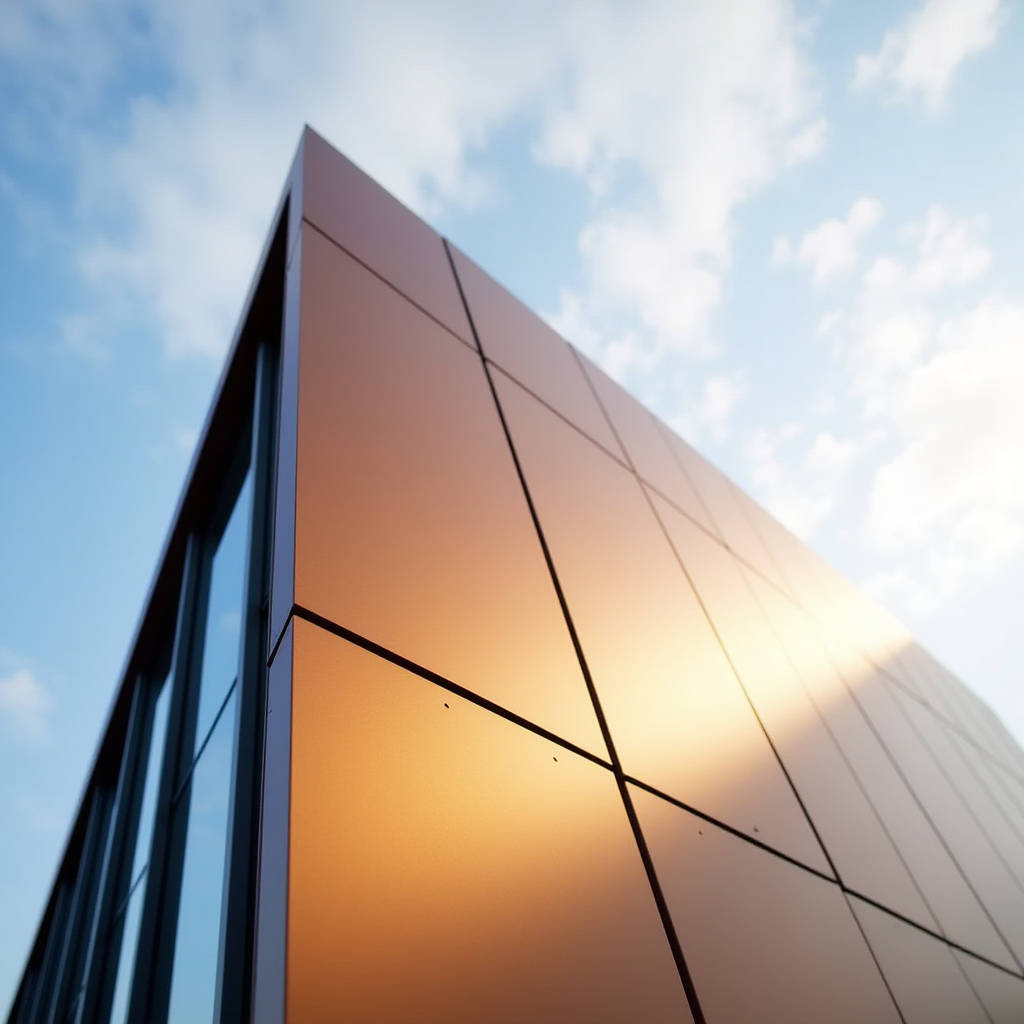

Rolled Aluminum Plate Specification for Facades Alloy Selection Flatness and Coating Performance

When a facade consultant specifies Rolled Aluminum Plate for a high-rise curtain wall, the decision rarely hinges on raw material cost alone. What drives the specification is a calculation balancing yield strength, flatness tolerance, and the long-term performance of the PVDF coating under sustained UV exposure and thermal cycling. A Rolled Aluminum Plate in 2.5mm or 3.0mm thickness, produced through a controlled hot-rolling and cold-rolling sequence, delivers a grain structure that directly affects how the panel behaves when brake-formed into complex cassette profiles. This article examines the engineering logic behind alloy selection, the measurable differences between rolling processes, and how coating chemistry interacts with the substrate across decades of service life.

How the Rolling Process Determines Facade Panel Performance

The term "rolled" carries specific metallurgical weight. When an aluminum ingot passes through a reversing hot mill at temperatures above 450°C, the cast dendritic structure breaks down into a uniform, equiaxed grain pattern. This transformation is not cosmetic. For facade panels that will be routed, folded, and subjected to wind loads reaching 3.5 kPa in coastal high-rise applications, grain uniformity translates directly to predictable springback behavior during bending and consistent elongation across the sheet.

Hot rolling reduces slab thickness from roughly 600mm down to 2.5–6.0mm, the range most relevant to architectural cladding. Cold rolling follows, typically reducing thickness by an additional 10–30%, but its primary function is surface finish and dimensional precision. A cold-rolled Rolled Aluminum Plate achieves thickness tolerance within ±0.05mm across a 1500mm width, a figure that matters when panels must align across a 40-meter elevation with open joints of 12–15mm. Tolerance stacking across hundreds of panels can consume the entire joint gap if the substrate is inconsistent.

The intermediate anneal step between hot and cold rolling deserves attention. For 5xxx-series alloys (particularly 5052 and 5754), the anneal temperature and soak time dictate the distribution of magnesium in solid solution. Too rapid a cooling rate after annealing can leave magnesium concentrated at grain boundaries, creating preferential corrosion paths. This is precisely why marine-grade Rolled Aluminum Plate specifications often reference ASTM B209 with supplementary requirements for intergranular corrosion resistance per ASTM G67. A facade in Singapore or Dubai, where salt-laden humidity persists year-round, cannot afford this metallurgical shortcut.

Alloy Families: 3xxx, 5xxx, and 6xxx in Architectural Context

The architectural aluminum market gravitates toward three alloy families, each with distinct rolling behavior and field performance. The choice among them should be driven by the specific fabrication demands and exposure conditions of the project.

3xxx Series (3003, 3105): The Workhorse for Interior and Low-Stress Applications

Manganese is the primary alloying element in 3xxx alloys, typically at 1.0–1.5%. These grades roll easily and accept PVDF coatings with excellent adhesion. Yield strength in the H14 temper hovers around 145 MPa, sufficient for interior cladding and soffit panels where wind loads are modest. However, the lower modulus and strength limit their use in large-format exterior panels exceeding 1.2m in width without intermediate stiffening. For budget-sensitive projects where Rolled Aluminum Plate in 3003-H14 can meet the structural brief, the cost savings relative to 5xxx grades can reach 12–18%.

5xxx Series (5052, 5754): The Marine-Grade Standard

Magnesium content between 2.2% and 2.8% gives 5052 its corrosion resistance and work-hardening characteristics. Yield strength in H32 temper reaches 193 MPa, a meaningful jump over 3xxx grades. This alloy rolls with slightly higher mill loads, and the cold-rolling reduction must be controlled to avoid edge cracking. For projects within 5km of a coastline, 5052-H32 Rolled Aluminum Plate is the baseline specification. The magnesium oxide layer that forms on the surface, while invisible, provides a sacrificial barrier that chloride ions struggle to penetrate. Futeng® sources 5052-grade Rolled Aluminum Plate with mill test reports verifying magnesium content within the 2.2–2.8% band, rejecting heats that fall outside this window regardless of other mechanical properties.

6xxx Series (6061): When Structural Demands Override Formability

6061-T6 offers yield strength approaching 276 MPa, but the trade-off is formability. The minimum bend radius for 6061-T6 is roughly 2.5–3.0 times the material thickness, compared to 1.0–1.5 times for 5052-H32. This limits its use in cassette panels with tight return legs. Where 6061 Rolled Aluminum Plate finds its niche is in extruded-and-sheet hybrid systems, where the sheet serves as a flat infill between structural mullions. The T4 temper, which is solution heat-treated and naturally aged, offers a compromise: formability closer to 5052 with strength that increases over time as natural aging progresses.

Flatness, Residual Stress, and the Hidden Cost of Poor Rolling Practice

A Rolled Aluminum Plate that leaves the mill with internal stress gradients will not reveal its defects until the first routing operation. When a 3.0mm plate is routed to create a 15mm return leg, the removal of material releases locked-in stresses. The result is a panel that twists, bows, or exhibits edge ripple—defects that field installation cannot correct. The flatness tolerances in The Aluminum Association standards specify a maximum deviation of 3mm over a 1000mm span for architectural flat sheet. But on a 3-meter-tall panel with a specular PVDF finish, even 2mm of deviation creates visible distortion under raking light.

Stress-relief practices vary by mill. Stretcher-leveling, in which the rolled plate is mechanically stretched by 1–3% beyond its yield point, is the most effective method for architectural grades. This process plastically deforms the entire cross-section, equalizing residual stress patterns. Some mills substitute roller leveling, which is faster and cheaper but only addresses surface stresses. The cost difference between stretcher-leveled and roller-leveled Rolled Aluminum Plate is approximately $0.30–$0.50 per square foot, but the rejection rate on the fabrication floor can differ by an order of magnitude.

PVDF Coating Chemistry and the Substrate Interface

The coating system applied to Rolled Aluminum Plate for architectural use is almost universally a PVDF (polyvinylidene fluoride) formulation, typically 70% PVDF resin with 30% acrylic modifier, pigmented with ceramic or inorganic colorants. The specification that governs this coating is AAMA 2605, which requires a minimum total dry film thickness of 30 microns for a two-coat system and 40 microns for a three-coat system.

What is less often discussed is the pretreatment layer. Chromate conversion coating, long the industry standard, provides excellent adhesion and corrosion resistance but faces increasing regulatory pressure under REACH in Europe and similar frameworks elsewhere. Titanium-zirconium-based non-chrome pretreatments have improved significantly, with some formulations matching chromate performance in neutral salt spray testing per ASTM B117 beyond 4,000 hours. The key metric for specifiers is the dry-film adhesion after 24-hour boiling water immersion per AAMA 2605, Section 8.4.2. A properly pretreated Rolled Aluminum Plate should show no blistering and maintain adhesion ratings of 4A or 5A after this test.

The table above distills the coating options available for architectural Rolled Aluminum Plate. The cost index is normalized to the two-coat PVDF system. For projects in equatorial latitudes—Singapore, Kuala Lumpur, Lagos—the three-coat system's tighter color retention becomes economically justifiable when the alternative is facade replacement or repainting within 15 years. The 4-coat system, typically reserved for mica and metallic finishes, adds a clear coat that protects the metallic flake orientation from UV degradation.

Thermal Movement and the Engineering of Joints

Aluminum expands at approximately 23.4 × 10⁻⁶ per °C. A 3-meter Rolled Aluminum Plate panel subjected to a surface temperature swing from -10°C (winter night in northern China) to +70°C (direct summer sun on a dark-colored panel) will experience a length change of roughly 5.6mm. If the panel is rigidly fixed at both ends, this movement converts to compressive stress that can buckle the panel or shear the fasteners.

The standard solution is a combination of fixed and sliding points. A fixed point at the panel's center of gravity, typically achieved with a stainless steel rivet or bolt through a pre-punched hole, anchors the panel. Sliding points at the perimeter, using slotted holes or proprietary clip systems, allow differential movement. The slot length must accommodate the calculated movement plus a safety factor of 1.5. For the 3-meter panel described above, a slot length of 8.5mm minimum is indicated, and 10mm is common practice.

This engineering detail directly influences the specification of Rolled Aluminum Plate thickness. A 2.0mm panel may be structurally adequate for wind load but may lack the bearing strength at the fixed point to resist repeated thermal cycling without hole elongation. The bearing stress calculation per ISO 6270 or local building code should govern this decision. In practice, 2.5mm becomes the practical minimum for panels exceeding 1.5m² where thermal movement is significant.

Fabrication Sequence and Its Impact on Dimensional Accuracy

The path from Rolled Aluminum Plate to finished cassette panel involves shearing or sawing, routing, bending, and assembly. The sequence matters. Routing after bending introduces stress concentrations at the bend radius that can propagate as cracks, particularly in 6xxx alloys. The preferred sequence is: cut to blank size, route all perimeter notches and stiffener grooves, then bend. This ensures that the bend line intersects a clean, stress-free edge.

For panels with welded corners, the heat-affected zone (HAZ) in 5xxx alloys loses approximately 30–40% of the parent metal strength. The HAZ extends roughly 15–20mm from the weld centerline in 2.5mm material. If the panel's structural analysis assumes full parent-metal strength at the corner, the design is non-conservative. Some fabricators address this by specifying a local thickening—a 3.0mm panel where 2.5mm would otherwise suffice—to compensate for HAZ strength loss. This is a pragmatic solution, but it adds weight and cost.

Corrosion Mechanisms Beyond the Obvious

Galvanic corrosion is well understood: aluminum must be isolated from steel and copper with non-conductive washers or gaskets. Less obvious is crevice corrosion, which can initiate in the microscopic gap between a Rolled Aluminum Plate and a rubber gasket if the gap retains moisture and excludes oxygen. The oxygen-depleted zone within the crevice becomes anodic relative to the exposed surface, driving localized metal loss. The preventive measure is to specify closed-cell EPDM gaskets with a Shore A hardness of 60–70, and to ensure that drainage paths prevent standing water at gasket interfaces.

Filiform corrosion, a cosmetic but persistent problem, appears as thread-like filaments under the coating, typically originating at cut edges or fastener holes. It requires both high humidity (above 60% RH) and the presence of chloride ions to initiate. The pretreatment quality discussed earlier is the primary defense. A secondary defense is edge sealing: applying a brush coat of PVDF clear or a dedicated edge sealant to all cut edges after fabrication. This step adds approximately $0.15–$0.25 per linear foot of panel perimeter but can prevent warranty claims in coastal installations.

Sourcing and Supply Chain Considerations

The global supply of architectural-grade Rolled Aluminum Plate concentrates in a limited number of mills with the rolling width and quality systems to serve the facade market. Lead times for non-standard alloys or tempers can extend to 12–16 weeks. The standard architectural alloys—5052-H32, 3003-H14—are typically available from stock in thicknesses of 2.0, 2.5, and 3.0mm, with widths up to 2000mm. Widths beyond 2000mm may require mill-direct orders with minimum quantities of 5–8 metric tons per coil.

Mill test certificates (MTCs) should be reviewed for each heat. The critical values include: tensile strength, yield strength, elongation (minimum 7% for 5052-H32 per ASTM B209), and chemical composition. A Rolled Aluminum Plate that meets all mechanical requirements but shows magnesium at the low end of the specification range (2.2% for 5052) may still perform adequately but leaves less margin for corrosion resistance. Suppliers with in-house laboratory capabilities can verify MTC values through independent testing, a service that adds confidence when the project specification carries performance bonds or extended warranties.

Cost Drivers and Value Engineering Without Compromising Integrity

The cost of a finished Rolled Aluminum Plate panel breaks down approximately as follows: raw aluminum substrate (35–45%), PVDF coating (20–25%), fabrication including routing and bending (25–30%), and packaging with logistics (5–10%). The substrate cost tracks the LME aluminum price plus a conversion premium that varies by alloy and temper. When the LME aluminum price is $2,200 per metric ton, the substrate cost for 5052-H32 Rolled Aluminum Plate in 2.5mm thickness is approximately $8.50–$9.50 per square meter, before coating and fabrication.

Value engineering efforts that target the substrate thickness—reducing from 3.0mm to 2.5mm, for example—should be validated by a revised structural calculation that accounts for the reduced section modulus. The section modulus scales with the square of thickness, so a reduction from 3.0mm to 2.5mm reduces stiffness by approximately 30%. If the original design had a utilization ratio of 0.70 under the governing wind load, the 2.5mm panel may still be adequate. But if the original ratio was 0.90, the reduction is unsafe.

Coating specification is another area where value engineering can be applied responsibly. For interior applications or soffits protected from direct sun, AAMA 2604 super durable polyester can replace AAMA 2605 PVDF, saving approximately 25–30% on coating cost. The key is to ensure that the reduced specification is applied only to panels that are genuinely protected from UV exposure. A panel on a recessed balcony soffit may qualify; a panel on an exposed parapet cap does not.

Engineering Note: The Aluminum Association's Aluminum Design Manual provides allowable stress values for all architectural alloys. Always use the welded allowable stress for HAZ zones, and the unwelded allowable stress for parent metal. The difference is significant: for 5052-H32, the welded allowable tensile stress is approximately 75 MPa, compared to 125 MPa for the unwelded condition.

The specification of Rolled Aluminum Plate for architectural facades rewards a methodical approach. Start with the exposure conditions: distance from coast, design temperature range, and UV index. Select the alloy and temper that meet the corrosion and strength requirements. Specify the rolling quality—stretcher-leveled, with flatness tolerances verified against the project's aesthetic requirements. Define the coating system by AAMA standard, not by generic description. Detail the joint design to accommodate thermal movement, and verify the bearing strength at fixed points. Review mill test certificates against the specification, and reject material that falls outside the agreed parameters. These steps, executed in sequence, produce a facade that performs predictably for 30 years or more. The alternative—treating Rolled Aluminum Plate as a commodity differentiated only by price—leads to the kind of failures that facade consultants spend their careers investigating.
