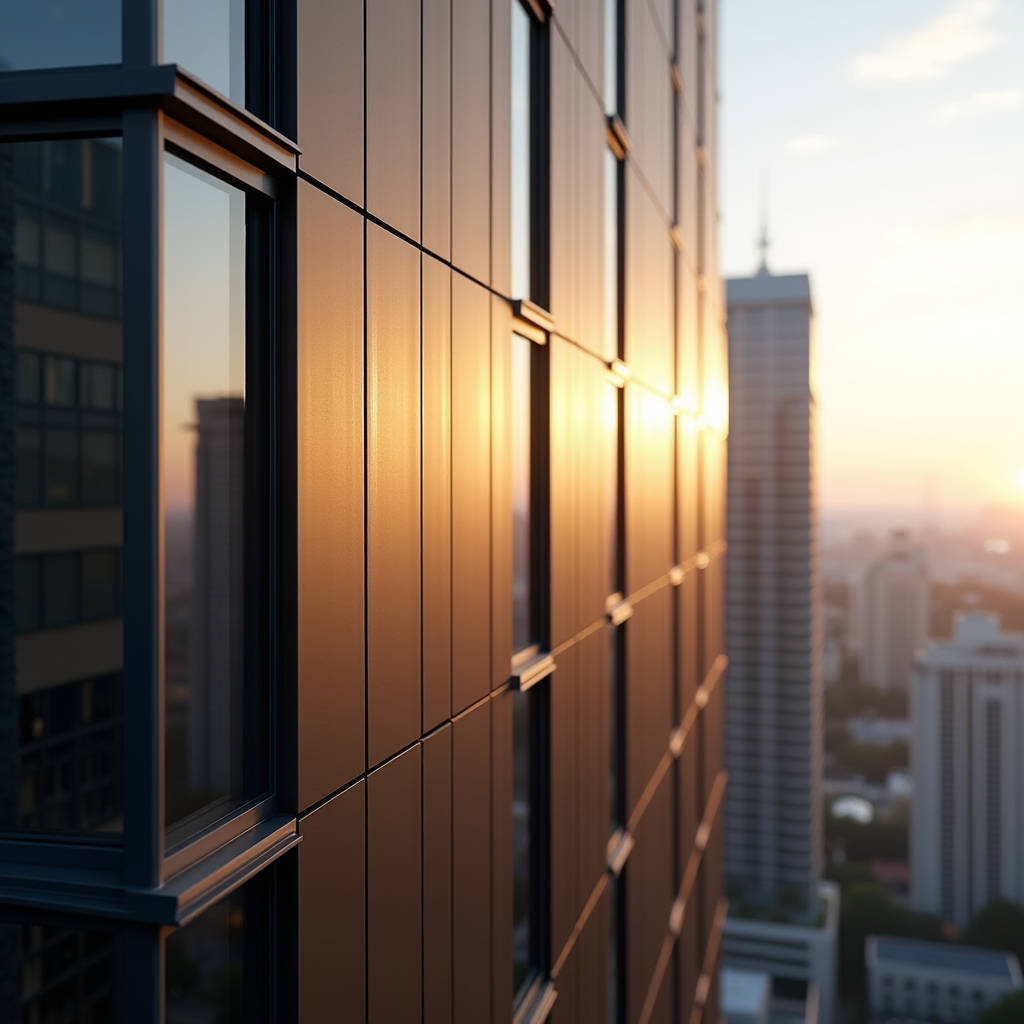

Aviation Grade Aluminum Honeycomb Core Performance in Architectural Facade Systems

The decision to specify Aviation Grade Aluminum Honeycomb core materials in a building facade is not a casual one. It represents a deliberate engineering choice where weight reduction, panel flatness, and long-term dimensional stability converge. For architects and facade consultants working on high-rise ventilated rainscreen systems, the core material inside a composite panel directly governs how the outer aluminum skin behaves under thermal cycling, wind suction, and decades of UV exposure. A 5052 aerospace-grade honeycomb core, manufactured to AMS C7438 Rev A standards, delivers a shear modulus and compressive strength profile that commercial-grade alternatives simply cannot match. This matters when a 4-meter by 1.5-meter panel must remain optically flat across a 40-story tower face with zero visible oil-canning. The conversation around Aviation Grade Aluminum Honeycomb has migrated from aerospace interiors into the architectural cladding sector because building envelopes are now subjected to performance expectations that mirror aircraft engineering: minimal weight, maximum stiffness, and zero tolerance for visual distortion.

What Separates Aerospace Grade from Commercial Grade Honeycomb

Not all aluminum honeycomb is equal. The distinction between aerospace grade and commercial grade sits at the metallurgical and process control level. Aerospace grade honeycomb, typically produced from 5052 or 5056 aluminum alloy foil, undergoes a rigorous expansion and node-bonding process governed by AMS C7438. The foil thickness, cell size, and node adhesive are controlled to tolerances measured in microns. Commercial grade honeycomb, by contrast, often uses 3003 alloy with looser dimensional tolerances and less stringent corrosion resistance requirements.

The practical implications for a facade panel are substantial. A 5052 aerospace grade core with a 1/4-inch (6.35 mm) cell size and 0.002-inch (0.05 mm) foil thickness delivers a stabilized compressive strength of approximately 2.4 MPa (350 psi) in the L-direction and 1.4 MPa (200 psi) in the W-direction. The shear modulus in the L-direction typically reaches 440 MPa (64 ksi). These numbers translate directly into panel flatness: a 3 mm solid aluminum face sheet bonded to a 20 mm aviation grade honeycomb core can maintain flatness within 0.1% of the diagonal dimension under thermal gradients of up to 55°C. Commercial grade cores with identical geometry might exhibit 30% lower shear modulus, leading to visible pillowing between bond lines when the panel heats up.

Corrosion resistance is another dividing line. Aviation Grade Aluminum Honeycomb manufactured with HexWeb CR III chromium-free treatment or equivalent passivation systems meets the 168-hour salt spray requirements of ASTM B117 without pitting. This is not a laboratory curiosity. A ventilated rainscreen cavity in a coastal environment like Singapore or Dubai exposes the panel's interior face to warm, saline air for decades. The core material must resist intergranular corrosion, especially at the foil-to-foil node bonds, where stress concentrations and moisture can initiate degradation.

Why Building Facades Are Demanding Aircraft-Level Performance

Modern architectural cladding has quietly absorbed performance requirements that were once exclusive to aerospace. A unitized curtain wall panel on a super-tall tower experiences wind suction loads that can exceed 3.5 kPa (73 psf) at corner zones. The panel must resist this load without permanent deformation, while weighing as little as possible to keep the structural frame and dead load within the building's design envelope. This is precisely the problem that sandwich panel construction with aluminum honeycomb cores solved in aircraft floor panels and bulkheads decades ago.

The thermal environment is equally punishing. A dark-colored PVDF-coated aluminum face sheet can reach 85°C under direct summer sun in the Middle East, while the cavity side remains at 40°C. This 45°C differential creates a thermal bowing moment that tries to warp the panel. A solid aluminum sheet of 3 mm thickness would require extensive stiffener ribs to resist this, adding weight and cost. A sandwich panel with Aviation Grade Aluminum Honeycomb core resists thermal bowing through its inherent flexural rigidity. The core's shear stiffness forces the two face sheets to work together: one in tension, one in compression, with the honeycomb carrying the shear load between them.

Seismic and vibration performance is another underappreciated factor. In regions like Japan, the Pacific Northwest, and New Zealand, facade panels must accommodate inter-story drift without fracturing attachment points or losing their weather seal. Honeycomb panels exhibit a higher damping capacity than solid aluminum sheets because the core's cellular structure dissipates vibrational energy through micro-deformation of the cell walls. This is one reason Showa Aircraft Industry, a major Japanese manufacturer, has successfully transferred its aerospace honeycomb expertise into the architectural market. Their chromium-free honeycomb products, originally developed for aircraft interiors, now appear in high-end building facades throughout Asia.

Material Specifications That Matter for Specification Writers

When writing a performance specification for honeycomb-cored architectural panels, several parameters must be called out explicitly. The following table summarizes the key technical distinctions between aerospace grade and commercial grade aluminum honeycomb cores as they relate to facade applications.

The choice of cell size deserves particular attention. A 1/4-inch (6.35 mm) cell is the workhorse for architectural panels, but 1/8-inch (3.2 mm) cells are increasingly specified for panels with thin face sheets (below 1.5 mm) where the risk of telegraphing — the honeycomb cell pattern becoming visible through the face sheet — is a concern. The finer cell size provides more bonding points per unit area, distributing the adhesive bond more uniformly and reducing the likelihood of the face sheet dimpling into the cell cavities under vacuum bagging pressure during fabrication.

The Manufacturing Process and Quality Control Chain

Aviation Grade Aluminum Honeycomb production follows a multi-stage process that begins with aluminum foil rolling and ends with expanded core blocks ready for panel fabrication. The foil is first cleaned and chemically treated, then passed through a corrugating roller that imparts the hexagonal cell geometry. Node lines of structural adhesive are printed at precise intervals, and multiple sheets are stacked and cured under heat and pressure in a press. The cured block, known as an unexpanded block or HOBE (honeycomb before expansion), is then stretched on an expansion machine to open the cells into their characteristic hexagonal shape.

Quality control at each stage is what separates aerospace grade from commodity product. The foil thickness is continuously monitored during rolling using laser micrometers. Node adhesive application is checked for line width consistency — typically 0.5 mm to 0.8 mm — because the node width directly determines the core's shear strength. After expansion, the core is inspected for cell regularity: any cell wall that is buckled, torn, or misaligned creates a weak point in the sandwich structure. Statistical process control data from each production batch is traceable to the final panel, a requirement that aerospace OEMs have driven and that architectural specifiers are increasingly adopting.

Panel fabrication itself — bonding the aluminum face sheets to the honeycomb core — is where many quality issues originate. The process typically uses epoxy film adhesive cured under heat and vacuum. The adhesive must form a fillet at each cell wall where it contacts the face sheet. An inadequate fillet, caused by insufficient adhesive flow or poor vacuum pressure, results in a weak bond that can delaminate under thermal cycling. The fillet formation is inspected visually and, for critical applications, verified through flatwise tensile testing per ASTM C297. A properly bonded aerospace grade panel should achieve flatwise tensile strength exceeding 2.0 MPa (290 psi), with cohesive failure occurring within the core rather than at the adhesive-to-face-sheet interface.

For project managers and procurement teams evaluating suppliers, the ability to trace core material back to its mill certificate is essential. Suppliers such as Futeng® that maintain documented supply chains for aerospace grade honeycomb core provide the transparency needed for specification compliance. The core material should be accompanied by certificates of conformance referencing AMS C7438 or the equivalent national standard, along with test reports for compressive strength, shear modulus, and corrosion resistance.

Thermal Performance and Building Physics Considerations

A honeycomb-cored aluminum panel is not a thermal insulator. The aluminum core acts as a thermal bridge between the two face sheets, and the overall U-value of the panel is dominated by the insulation layer behind it in the rainscreen cavity. However, the honeycomb core does influence the panel's thermal behavior in ways that affect condensation risk and dimensional stability.

The enclosed air cells within the honeycomb create a dead air space that slightly reduces convective heat transfer through the panel thickness. For a 20 mm thick panel with 1/4-inch cell honeycomb, the effective thermal conductivity is approximately 1.5 to 2.0 W/m·K, compared to roughly 160 W/m·K for solid aluminum. This is still orders of magnitude higher than mineral wool insulation (0.035 W/m·K), so the panel itself contributes negligibly to the wall assembly's overall R-value. The real thermal benefit is the elimination of metal stiffener ribs that would otherwise create linear thermal bridges across the cavity.

Condensation risk assessment must account for the fact that the honeycomb core's internal surfaces can reach dew point temperature. The chromium-free passivation treatments applied to Aviation Grade Aluminum Honeycomb — such as those used in HexWeb CR III products — are designed to prevent corrosion initiation even in the presence of intermittent condensation. This is a critical distinction from untreated commercial grade cores, which can develop white rust (aluminum oxide bloom) and eventually pitting corrosion when exposed to condensation cycles over multiple seasons.

Fire Performance and Code Compliance

Aluminum honeycomb core panels in exterior wall applications must satisfy the fire performance requirements of the local building code. In the United States, the International Building Code (IBC) requires exterior wall assemblies on buildings over 40 feet in height to pass NFPA 285, a multi-story fire propagation test. The aluminum honeycomb core, being non-combustible (aluminum is classified as a limited-combustible material under ASTM E136), does not contribute fuel to a fire. However, the epoxy adhesive used to bond the face sheets to the core is an organic material that will pyrolyze under fire exposure.

The fire engineering challenge is that the adhesive layer, typically 0.010 to 0.015 inch (0.25 to 0.38 mm) thick, represents a very small fuel load — approximately 0.05 to 0.10 kg/m² of panel area. When the panel is part of a properly designed rainscreen assembly with mineral wool insulation and non-combustible cavity barriers, the overall system can satisfy NFPA 285. Testing has demonstrated that the aluminum honeycomb core does not promote flame spread within the cavity, and the panel's structural integrity is maintained long enough to prevent falling debris during the early stages of a fire. Specifiers should request NFPA 285 test reports for the specific panel assembly being proposed, as small variations in adhesive chemistry or core density can affect the test outcome.

In European and Middle Eastern markets, the relevant standards are EN 13501-1 for reaction to fire classification and BS 8414 for large-scale facade fire testing. Aviation Grade Aluminum Honeycomb panels with 5052 alloy cores typically achieve an A2-s1,d0 classification when tested as part of the complete assembly, reflecting the core's non-combustible nature and the limited organic content of the adhesive.

Cost Drivers and Value Engineering Realities

Aviation Grade Aluminum Honeycomb commands a price premium over commercial grade alternatives. The cost differential, typically 30 to 50 percent at the core material level, is driven by tighter foil tolerances, more rigorous chemical treatment, and the quality control infrastructure required for aerospace traceability. When this cost is amortized over the total installed panel cost — including face sheets, fabrication, framing, and installation — the premium typically narrows to 8 to 15 percent of the total facade package.

Value engineering discussions often target the honeycomb core as a potential cost-saving opportunity. The argument is that a building facade does not fly and therefore does not need aircraft-grade materials. This reasoning misses the point: the performance requirements that drove the specification in the first place — panel flatness, corrosion resistance, long-term durability — do not change just because the application is architectural rather than aeronautical. Substituting a commercial grade core may save 12 percent on the panel cost but introduces a risk of visible oil-canning, delamination, or corrosion that could cost far more to remediate after installation.

A more productive approach to value engineering is to optimize the core density and cell size to match the actual structural demands of the project. A 50-story tower in a moderate climate may not need the same core density as a low-rise building in a hurricane zone. Finite element analysis of the panel under project-specific wind loads and thermal conditions can identify the minimum core properties required, avoiding over-specification while maintaining the aerospace grade quality baseline.

Supply Chain Dynamics and Global Sourcing

The global market for Aerospace Grade Aluminum Honeycomb Core was valued at approximately USD 1.87 billion in 2024, with projections reaching USD 2.65 billion by 2030. This growth is driven primarily by aircraft production rates, but the architectural sector represents a meaningful and growing share. The supply base is concentrated among a handful of manufacturers: Hexcel in the United States and Europe, Showa Aircraft in Japan, Plascore and Collins Aerospace in North America, and Chalco Aluminum in China.

Lead times for aerospace grade honeycomb core can extend to 12-16 weeks during periods of high aircraft production demand. Architectural projects, which typically operate on longer timelines than aerospace programs, can mitigate this by placing core material orders early in the design development phase. Alternatively, working with panel fabricators who maintain buffer stock of commonly specified core types — 1/4-inch cell, 5052 alloy, 4.5 to 6.0 pcf density — can compress lead times to 4-6 weeks.

Tariff and trade considerations also affect sourcing decisions. Aluminum honeycomb core imported into the United States may be subject to Section 232 tariffs on aluminum products, depending on the country of origin and the specific Harmonized Tariff Schedule classification. Procurement managers should verify the tariff status with their customs broker and factor any duties into the total landed cost comparison between domestic and international suppliers.

Installation and Handling: What the Contractor Needs to Know

Honeycomb-cored panels require different handling protocols than solid aluminum sheets. The panel's stiffness comes from the sandwich structure, not from material thickness, and point loads can locally crush the core if not properly managed. Panels should be stored flat on A-frames with padded supports spaced no more than 1.2 meters apart. Lifting should use vacuum lifters with multiple suction cups distributed across the panel face, or padded slings that wrap around the panel edges without concentrating force on a single point.

On-site cutting and drilling require care. The honeycomb core will crush if a standard twist drill bit is used without a backing plate. The preferred method is to use a stepped drill bit or a router with a carbide burr, and to pot the cut edge with epoxy to seal the exposed cells against moisture ingress. Edge closure is essential: any open cell at the panel perimeter is a pathway for water to enter the core and initiate corrosion from the inside out. The panel fabricator should supply panels with factory-sealed edges, and any field-cut edges must be resealed before the panel is installed.

Attachment systems for honeycomb panels differ from those for solid aluminum. The panel cannot be directly welded or drilled and tapped for threaded fasteners. Instead, the fabricator integrates threaded inserts, studs, or cleats into the panel during fabrication, with the insert bonded into a potted area of the core where the honeycomb cells have been filled with structural epoxy. The insert's pull-out strength depends on the potting compound's bond to the cell walls and the insert's embedment depth. A properly designed M8 stainless steel insert potted into a 25 mm core with a 30 mm diameter potting zone can achieve pull-out strengths exceeding 4 kN, sufficient for most rainscreen attachment loads.

Making the Specification Decision

Specifying Aviation Grade Aluminum Honeycomb for a building facade is fundamentally a risk management decision. The upfront cost premium buys predictability: predictable panel flatness across decades of thermal cycling, predictable corrosion resistance in aggressive environments, and predictable structural performance under design wind loads. For projects where the facade is a long-term asset — institutional buildings, headquarters towers, high-end residential — the incremental cost of aerospace grade core is a small insurance premium against the much larger cost of facade remediation.

The decision should be documented in the performance specification, not just the prescriptive specification. Rather than naming a specific core product, the specification should state the required performance parameters: compressive strength, shear modulus, alloy type, corrosion resistance per ASTM B117, and traceability to AMS C7438 or equivalent. This approach gives the contractor and panel fabricator flexibility to source from qualified suppliers while ensuring the installed product meets the engineering intent. The project's facade consultant should review the fabricator's core material certifications before production begins, and should witness or review the flatwise tensile test results from the first article panel to confirm bond quality.

The architectural cladding industry has been steadily absorbing technologies and standards from aerospace for two decades. Aviation Grade Aluminum Honeycomb is one of the most consequential technology transfers, because it directly addresses the fundamental challenge of modern facade design: how to make panels larger, lighter, and flatter without compromising durability. For the specifier who understands the material science behind the product, the choice is not between aerospace grade and commercial grade. It is between a known performance envelope and an unknown one.
