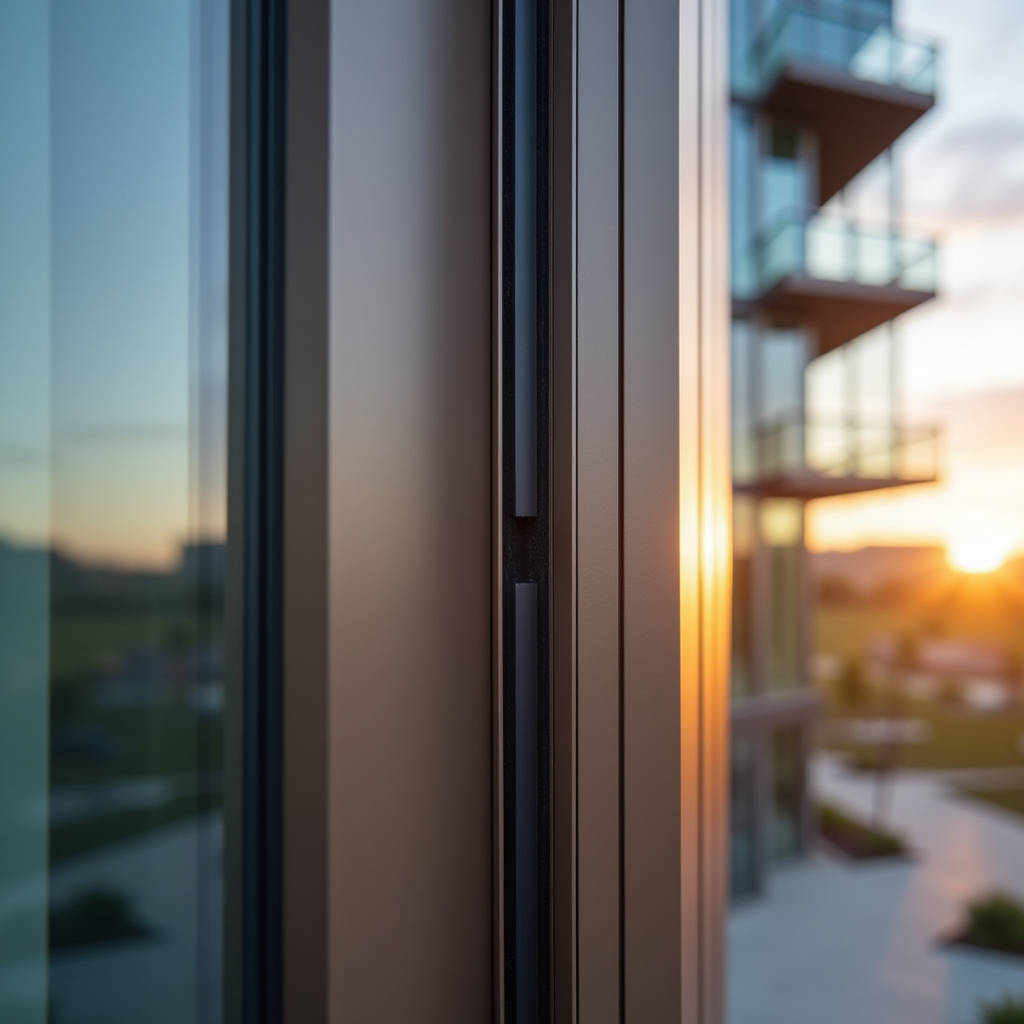

Aluminum Movement Joint Profile Thermal and Structural Engineering for Curtain Wall Facades
When a curtain wall contractor faces a 40-meter aluminum facade span with a 60°C thermal swing between summer noon and winter midnight, the conversation shifts from aesthetics to physics. An Aluminum Movement Joint Profile is the engineered interface that absorbs differential movement between adjacent cladding panels, structural substrates, or floor assemblies. It is not a trim piece. It is a controlled failure point designed to protect the larger facade system from uncontrolled cracking, buckling, or fastener shear. In rainscreen and unitized curtain wall applications, specifying the wrong movement joint profile — or omitting it entirely — leads to panel deformation, water ingress, and warranty disputes that can cost six figures to remediate. This article examines the structural logic, material selection, thermal performance thresholds, and installation sequencing that determine whether an aluminum movement joint profile performs across a 30-year building lifecycle or becomes a liability within the first three seasonal cycles.
What Separates a Structural Movement Joint from a Decorative Cover Profile
Not every aluminum extrusion sitting between two panels qualifies as a movement joint. The distinction matters because confusing the two categories creates failure modes that are expensive to fix after facade completion.
A structural Aluminum Movement Joint Profile performs three functions simultaneously: it accommodates cyclic thermal expansion and contraction, it absorbs inter-story drift and seismic micro-movement, and it maintains the integrity of the air and water barrier while doing so. The profile itself must be engineered with a defined movement capacity — typically expressed as a percentage of the joint width or an absolute value in millimeters. A profile rated for ±6 mm of movement cannot be installed in a joint that experiences ±12 mm of displacement without risking extrusion buckling or anchorage pullout.
Decorative cover profiles, by contrast, mask static gaps. They may use the same 6063-T5 aluminum alloy and the same PVDF coating, but they lack the sliding mechanism, the neoprene or EPDM expansion insert, and the slotted anchorage geometry that allows the joint to breathe. On large-scale facade projects, the specification documents must clearly separate the two. A common procurement error is when a sub-contractor substitutes a cover profile for a movement joint profile to save cost, only to have the facade crack at the joint line within 18 months.
The load path also differs. A structural movement joint profile transfers lateral loads — wind pressure, seismic shear — across the joint while permitting axial movement. The anchorage system typically uses stainless steel clips with elongated holes, allowing the profile to slide relative to the substrate. The clip material itself is critical: galvanized steel clips in contact with aluminum in a wet environment create galvanic corrosion. The correct specification is 316-grade stainless steel clips with a nylon isolation washer between dissimilar metals.
Thermal Movement Calculations Every Facade Engineer Should Run
Aluminum expands at approximately 0.024 mm per meter per degree Celsius. This number is not negotiable; it is a physical constant. On a 3-meter-long solid aluminum cladding panel (3.0 mm thickness, 6063-T5 alloy), a temperature delta of 60°C produces a linear expansion of roughly 4.3 mm. If that panel is fixed rigidly at both ends with no accommodation for movement, the resulting compressive stress can exceed the yield strength of the aluminum at the fastener points, causing permanent deformation or fastener tear-out.
The calculation is straightforward:
- Linear expansion (ΔL) = α × L × ΔT
- α for aluminum = 23.6 × 10⁻⁶ /°C (per ASTM E228)
- L = panel length in meters
- ΔT = maximum expected temperature differential at the facade surface
For a dark-colored PVDF-coated panel in direct sunlight in the Middle East, the surface temperature can reach 85°C. At night, it drops to 25°C. That 60°C swing on a 4-meter panel yields 5.7 mm of movement. The aluminum movement joint profile specified must accommodate this displacement plus a safety factor of 1.5, meaning the joint must handle at least 8.5 mm of movement without binding.
What complicates the calculation is that the aluminum substrate, the steel or concrete primary structure, and the insulation layer all have different coefficients of thermal expansion. Differential movement between the cladding and the structural frame is often larger than the absolute expansion of any single material. The movement joint profile sits at this interface, absorbing the differential rather than the absolute value. Engineers who calculate only the aluminum panel expansion and ignore the concrete frame contraction are designing for half the problem.
Alloy Selection and the 6063-T5 vs. 6061-T6 Decision
The aluminum alloy used for movement joint profiles is not an arbitrary choice. The two dominant grades in facade applications are 6063-T5 and 6061-T6, and the selection depends on the specific mechanical demands of the joint location.
| Property | 6063-T5 | 6061-T6 | Relevance to Movement Joints |
|---|---|---|---|
| Tensile Strength (MPa) | 185 min | 290 min | Higher strength resists buckling under compressive thermal loads |
| Yield Strength (MPa) | 145 min | 240 min | Determines elastic recovery after cyclic movement |
| Elongation (%) | 12 | 10 | Higher elongation allows more plastic deformation before fracture |
| Extrudability | Excellent | Good | Complex joint profiles with thin walls favor 6063 |
| Corrosion Resistance | Very Good | Good | 6063 performs better in coastal/marine exposure (per ASTM B117 salt spray) |
| Surface Finish Quality | Superior | Acceptable | 6063 anodizes more uniformly; critical for visible joint profiles |
For most vertical facade movement joints, 6063-T5 is the preferred alloy. It extrudes cleanly into complex geometries with thin web sections, it anodizes to a uniform architectural finish, and its corrosion resistance holds up in urban and light coastal environments. The 12% elongation provides enough ductility to survive the occasional over-stress event without fracturing.
6061-T6 enters the conversation when the joint profile must carry structural loads across the joint — for example, a floor-to-floor expansion joint that also supports pedestrian traffic, or a seismic joint in a high-rise where the profile must resist shear loads while accommodating ±25 mm of movement. The higher yield strength of 6061-T6 (240 MPa vs. 145 MPa) provides a larger safety margin against permanent deformation. The trade-off is reduced extrudability, which limits the geometric complexity of the profile, and slightly lower corrosion resistance, which may require additional surface treatment in aggressive environments.
Futeng®, a solid aluminum cladding manufacturer with over a decade of facade engineering experience, supplies movement joint profiles in both alloys and provides mill certification documentation traceable to the heat number, which is essential for projects requiring compliance with AAMA 2604 or 2605 finishing standards.
EPDM vs. Neoprene vs. Silicone: The Infill Material Decision
The aluminum extrusion is only half the system. The infill material — the flexible component that seals the joint while allowing movement — determines the joint's water penetration resistance, chemical durability, and service temperature range.
EPDM (ethylene propylene diene monomer) is the dominant infill material for exterior facade movement joints. It resists UV degradation, ozone, and temperature extremes from -50°C to +150°C without embrittlement. Its compression set — the percentage of permanent deformation after prolonged compression — is typically below 20% at 70°C, meaning the seal maintains contact pressure against the joint walls even after years of cyclic movement. For a curtain wall joint exposed to direct sunlight and rain, EPDM is the baseline specification.
Neoprene (polychloroprene) offers better resistance to oils and petroleum-based contaminants, which makes it the preferred choice for movement joints in parking structures, loading docks, and industrial facades where hydrocarbon exposure is possible. However, neoprene has a narrower service temperature range (-30°C to +120°C) and higher compression set than EPDM, making it less suitable for extreme climates.
Silicone infill is specified when the joint must maintain a fire rating. Silicone-based intumescent inserts expand when exposed to heat, sealing the joint against smoke and flame passage. The trade-off is lower mechanical durability — silicone has lower tear strength than EPDM and is more prone to physical damage during installation and building maintenance operations.
The infill material is not a generic commodity. The Shore A hardness, the cross-sectional geometry (bubble, ribbed, or solid profile), and the coefficient of friction against the aluminum extrusion walls all affect the joint's movement resistance and long-term sealing performance. A specification that reads "EPDM insert" without defining these parameters leaves the door open for substitutions that compromise the system.
Joint Width Engineering: Balancing Movement Capacity and Aesthetics
Architects want narrow joints. Engineers want wide joints. The aluminum movement joint profile must satisfy both parties, and the negotiation happens in the joint width calculation.
The minimum joint width is determined by the expected movement range divided by the profile's movement capacity percentage. If a joint must accommodate 10 mm of total movement and the selected profile has a movement capacity of ±50% of its nominal width, the minimum joint width is 20 mm. However, this is a theoretical minimum. Practical factors push the width larger:
- Installation tolerance: On-site joint width variation of ±3 mm is common in large-scale facade construction. The joint must function at both the narrowest and widest installed conditions.
- Seismic drift: In seismic zones, inter-story drift can add 15-25 mm of movement beyond thermal effects. The joint width must accommodate the seismic displacement without the profile disengaging from its anchorage.
- Building settlement: Concrete frames undergo long-term creep and shrinkage, adding 2-5 mm of differential movement over the first 5 years. This is permanent, non-cyclic movement that consumes part of the joint's capacity.
A practical rule: for a typical 30-meter-tall curtain wall in a temperate climate, vertical movement joints should be no narrower than 25 mm. In the Middle East, 35 mm is a more realistic minimum. In seismic zones, 50 mm or wider may be required. The aluminum movement joint profile must be selected with a width that accommodates the worst-case combination of thermal, seismic, and settlement movement, not just the thermal calculation in isolation.
Anchorage Systems: Fixed Points, Sliding Points, and the Danger of Over-Constraining
A movement joint profile that is rigidly fixed at both edges is not a movement joint — it is a bridge that will buckle. The anchorage system must create a defined sliding plane while maintaining lateral restraint against wind loads.
The standard configuration uses a fixed anchor on one side of the joint and sliding anchors on the other. The fixed side is typically secured with stainless steel screws or bolts through round holes that provide no movement allowance. The sliding side uses slotted holes oriented parallel to the direction of expected movement. The slot length determines the maximum travel before the fastener bottoms out against the slot end.
The slot length calculation must account for the total expected movement plus a safety margin. If the joint is expected to move ±8 mm, the slot should allow at least 10 mm of travel in each direction from the neutral position. The neutral position — the installation temperature — should be specified in the construction documents. Installing the profile at 20°C when the facade will experience a surface temperature range of -10°C to +70°C means the neutral position is offset from the midpoint of the temperature range, and the slot must be longer on the expansion side than the contraction side.
An often-overlooked detail is the friction between the sliding anchor and the profile. Under thermal cycling, the profile slides against the stainless steel washer. If the contact pressure is too high — from over-torqued fasteners or insufficient clearance — the sliding mechanism binds, and the movement is transferred to the panel fasteners instead. The correct installation torque is typically 2-3 N·m for M5 stainless steel screws, and the specification should include a requirement for nylon or PTFE washers at sliding anchor points to reduce friction.
Coating Systems for Exterior Aluminum Movement Joint Profiles
The coating on an aluminum movement joint profile does more than provide color match to the adjacent cladding panels. It is the first line of defense against corrosion, UV degradation, and chemical attack from atmospheric pollutants.
PVDF (polyvinylidene fluoride) coatings based on 70% PVDF resin content — conforming to AAMA 2605 — are the industry standard for exterior architectural aluminum. The coating system consists of a chrome-based conversion coating, a corrosion-inhibiting primer (5-8 microns), and a PVDF color coat (25-30 microns total dry film thickness). This system provides 20+ years of color retention and chalk resistance in exterior exposure.
For movement joint profiles, the coating must also withstand the mechanical abrasion of the sliding infill. As the EPDM or neoprene insert slides against the aluminum walls during thermal cycling, it can wear through an inadequate coating. The specification should require a minimum pencil hardness of 2H (per ASTM D3363) and a Taber abrasion resistance of at least 30 mg weight loss per 1000 cycles (per ASTM D4060).
Anodized finishes are an alternative for interior movement joints or protected exterior locations. Architectural anodizing to The Aluminum Association Class I (AA-M10C22A31) provides a 0.7 mil (18 micron) oxide layer with good abrasion resistance. However, anodized aluminum is susceptible to chemical attack from alkaline cleaning solutions and acid rain, making it less suitable for exposed exterior joints in urban environments.
Powder coating based on polyester or super-durable polyester resins is a cost-effective alternative for less demanding applications. Super-durable polyester powder coatings meeting Qualicoat Class 2 or AAMA 2604 standards provide 10-15 years of exterior durability at a lower cost than PVDF. The minimum coating thickness is 60 microns, and the specification should include a requirement for 5-year Florida exposure test data from the coating manufacturer.
Water Management at Movement Joints: The Drainage Plane Continuity Problem
A rainscreen facade works because the pressure-equalized cavity behind the cladding panels is separated from the exterior by a ventilated air gap. The aluminum movement joint profile interrupts this cavity. If the joint is not detailed correctly, it becomes a water penetration point that floods the cavity and corrodes the backup structure.
The correct detail treats the movement joint as a deliberate drainage plane interruption with a secondary water management strategy. Behind the visible aluminum movement joint profile, a flexible EPDM membrane or silicone sheet is installed as a continuous water barrier that spans the joint. This membrane is adhered to the backup wall on both sides of the joint and is formed with a drainage loop — a slack section that allows the joint to move without tearing the membrane.
At horizontal movement joints, the detail must include a metal flashing or sill that directs water out through weep holes at the joint. The weep holes must be sized to prevent capillary action from drawing water back into the cavity — a minimum diameter of 8 mm is recommended, spaced at no more than 600 mm centers. The aluminum movement joint profile itself should have a drip edge geometry at its lower edge to break the surface tension of water running down the facade.
The most common water-related failure at movement joints is not a failure of the profile itself but a failure of the sealant joint between the profile and the adjacent cladding panel. The sealant must be a low-modulus, high-movement silicone (minimum ±50% movement capability, per ASTM C920 Class 100/50) with proper primer application on both the aluminum and the panel substrate. A two-sided sealant joint with backer rod is the standard detail; three-sided adhesion — where the sealant bonds to the back of the joint — must be avoided because it restricts movement and causes cohesive failure within the sealant bead.
Seismic Performance Requirements and Testing Protocols
In seismic zones, the aluminum movement joint profile must perform under conditions that go well beyond thermal cycling. The ASTM E1399 standard governs the testing of architectural expansion joints for seismic movement, and it defines two performance classes.
Class I joints are tested for cyclic movement at ambient temperature only. Class II joints are tested for cyclic movement at both ambient and elevated temperatures (typically 70°C), simulating the combined effect of seismic and thermal movement. For curtain wall applications in seismic zones, Class II testing is the minimum acceptable standard.
The test protocol involves mounting the joint assembly in a test frame and subjecting it to 500 cycles of movement at the rated displacement. The joint must maintain its structural integrity, must not disengage from its anchorage, and must not exhibit permanent deformation greater than 10% of the initial joint width after the test. Water penetration testing per ASTM E331 is often performed before and after the cyclic movement test to verify that the joint's watertightness is maintained.
For high-rise buildings in seismic zones 3 and 4, the movement joint profile should be tested at displacements that include the calculated inter-story drift. A 40-story building with a 3.5-meter floor-to-floor height and a 2% design drift ratio experiences 70 mm of relative displacement at the facade per floor. The movement joint profile at each floor line must accommodate this displacement without losing its attachment to the structure.
Installation Sequencing and the Critical Role of the Neutral Temperature
The most precisely engineered aluminum movement joint profile will fail if it is installed at the wrong temperature. The installation temperature determines the neutral position of the joint — the width at which the profile experiences zero stress. If the joint is installed at 5°C on a winter morning and the facade reaches 75°C in summer, the joint will be compressed beyond its design range. If installed at 40°C, it will be stretched beyond its design range in winter.
The specification should define the installation temperature range, typically 10°C to 25°C for temperate climates. If installation must occur outside this range, the joint width must be adjusted: wider for cold-weather installation (to allow for summer expansion), narrower for hot-weather installation (to allow for winter contraction). The adjustment is calculated using the same thermal expansion formula applied to the joint width rather than the panel length.
On-site, the installation sequence matters. Movement joint profiles should be installed after the adjacent cladding panels are fixed, not before. This allows the installer to verify the actual joint width at multiple points along the joint line and adjust the profile position before final tightening of the sliding anchors. The fasteners on the sliding side should be left slightly loose — tightened to about 70% of final torque — until all profiles in the joint line are aligned. Final torque is applied only after the alignment is verified.
Quality control checks should include measurement of the joint width at the top, middle, and bottom of each vertical joint, and at the left, center, and right of each horizontal joint. Measurements should be recorded at the time of installation with the ambient temperature noted, creating a baseline for future facade inspections. A deviation of more than ±2 mm from the specified joint width at the neutral temperature is grounds for rework.
Specifying Aluminum Movement Joint Profiles for International Projects
International facade projects add complexity because the specification must bridge different national standards, testing protocols, and procurement practices. An aluminum movement joint profile specified for a project in the EU must comply with EN 1366-4 for fire resistance and EN 1991-1-5 for thermal actions. The same profile specified for a project in the Gulf region must comply with the local civil defense requirements and the project-specific facade performance specification, which often references a mix of ASTM, BS, and EN standards.
The practical approach is to define performance requirements rather than prescriptive product specifications. Instead of specifying a particular manufacturer's profile, the specification should define:
- Movement capacity: ±X mm at Y°C temperature range
- Alloy: 6063-T5 or 6061-T6 per EN 755 or ASTM B221
- Coating: PVDF per AAMA 2605 or Qualicoat Class 3
- Infill: EPDM, Shore A 60-70, UV-stabilized
- Anchorage: 316 stainless steel, slotted holes for sliding side
- Testing: 500 cycles at rated movement, no functional failure
This performance-based approach allows the contractor to source the profile from qualified manufacturers while ensuring that the engineering requirements are met. It also simplifies the submittal review process: the contractor provides test reports and material certifications that demonstrate compliance with the performance criteria, rather than arguing about whether a particular product is an "approved equal."
For projects where the aluminum movement joint profiles must match the color and finish of the adjacent solid aluminum cladding panels, the specification should require that the profiles and panels come from the same coating batch or that a color match sample is approved before production. Metallic and mica finishes are particularly difficult to match across different extrusion and sheet coating lines, and a delta E of less than 1.0 (per CIE LAB) should be specified as the maximum acceptable color difference.
The aluminum movement joint profile is a small component in the total facade package — typically less than 1% of the cladding material cost — but its failure can compromise the entire facade system. The engineering time invested in proper joint selection, movement calculation, and installation specification pays for itself many times over by preventing the kind of systemic failures that lead to litigation, facade replacement, and reputational damage. For contractors and specifiers who need reliable, engineered aluminum movement joint profiles with full technical documentation and international testing compliance, manufacturers like Futeng® provide the traceability and performance data that modern facade projects demand.
