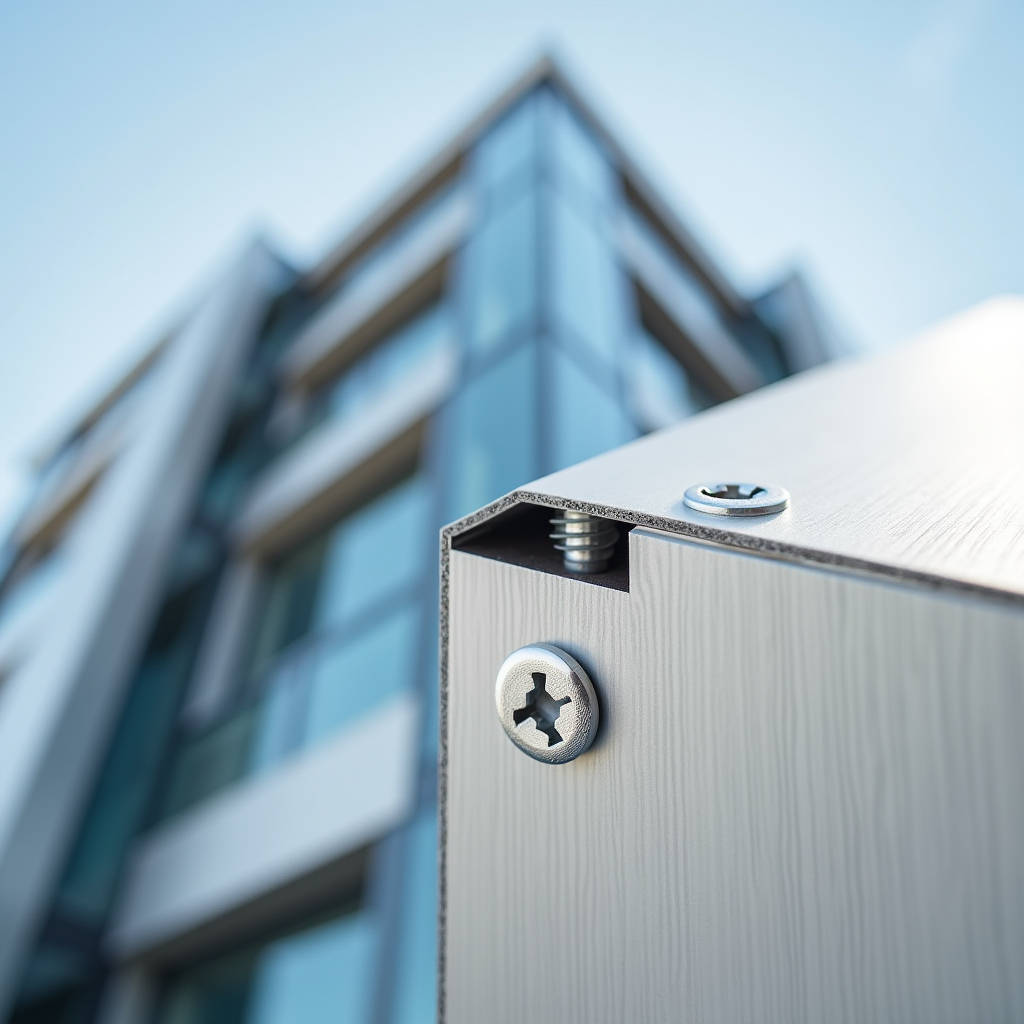

Aluminum Gusset Plate Engineering for Solid Aluminium Cladding Connections and Load Transfer

When structural engineers and facade contractors specify connection details for aluminium cladding systems, the Aluminum Gusset Plate sits at the intersection of load transfer, thermal movement accommodation, and long-term corrosion resistance. A gusset plate in cladding applications is a flat, typically triangular or rectangular piece of solid aluminium sheet—cut from the same 2.0mm to 3.0mm PVDF-coated stock as the facade panels themselves—used to reinforce corner joints, anchor panels to substructures, and distribute wind loads across multiple fastening points. Unlike extruded brackets or generic steel connectors, an Aluminum Gusset Plate fabricated from solid 5052 or 3003 alloy maintains metallurgical compatibility with the cladding system, eliminating galvanic corrosion risks that plague mixed-metal assemblies. This article examines the engineering rationale behind specifying aluminium gusset plates in rainscreen and curtain wall applications, the fabrication tolerances that separate reliable components from field-failure risks, and the procurement considerations that affect project timelines and installed costs.

What Separates a Cladding-Grade Aluminum Gusset Plate from Generic Hardware

Walking into any industrial supply catalog, you will find hundreds of aluminium gussets listed as extrusion accessories, corner brackets, and framing connectors. The majority of these products are designed for T-slot framing systems, machine guards, and light-duty enclosures. They are extruded from 6061 or 6063 alloys, supplied in mill finish or clear anodized, and dimensioned for modular assembly convenience rather than structural load paths.

A cladding-grade Aluminum Gusset Plate differs in four fundamental ways. First, the material: facade applications demand 5052-H32 or 3003-H14 sheet, the same wrought alloys used for the cladding panels, with tensile strengths in the 170–230 MPa range and elongation percentages above 12% that allow the plate to deform slightly under peak wind gusts rather than fracturing. Second, the coating: PVDF fluoropolymer finishes meeting AAMA 2605 standards, applied at 30–35 microns minimum dry film thickness, provide the same 20-year exterior durability as the visible panel faces. Third, the geometry: cladding gusset plates are engineered for specific load cases—shear, tension, and combined bending—with hole patterns calculated for edge distance and tear-out resistance per Eurocode 9 or AA ADM-1, not simply punched on a 25mm grid. Fourth, the thickness: while framing gussets are commonly 3mm to 6mm extruded sections, cladding gussets are typically cut from 2.0mm, 2.5mm, or 3.0mm solid sheet, matching the panel thickness to maintain uniform thermal expansion rates across the assembly.

Load Path Engineering: Why Gusset Plate Geometry Matters

The gusset plate in a rainscreen system performs a deceptively simple job: it connects the aluminium cladding panel to the vertical or horizontal support rail, transferring dead loads, wind loads, and thermal movement forces through a series of fasteners. The reality is that a poorly designed gusset plate concentrates stress at the first fastener row, creating a sequential failure mode where rivets or screws tear through the aluminium in a zipper pattern under cyclic loading.

Stress Distribution and Fastener Layout

Engineers specifying an Aluminum Gusset Plate for medium- to high-rise facades must account for three interacting failure mechanisms. Bearing failure occurs when the fastener shank crushes the aluminium around the hole; this is governed by the ratio of plate thickness to fastener diameter, with a minimum edge distance of 2.0× the hole diameter required by most national aluminium design codes. Net section fracture happens when the reduced cross-section between holes cannot carry the tensile component of the applied load. Block shear rupture—a combined tension-and-shear failure mode—is particularly relevant for corner gusset plates where two orthogonal load components act simultaneously.

A properly detailed gusset plate for a 2.5mm-thick solid aluminium panel will typically use a staggered hole pattern with at least three fasteners per load direction, minimum 12mm edge distance from the plate perimeter, and a hole diameter 0.5mm to 1.0mm larger than the fastener shank to accommodate installation tolerances without introducing slop that leads to fretting corrosion. For a 1.2m × 2.4m panel weighing approximately 22 kg and subjected to a design wind pressure of 1.5 kPa, the corner gusset plates must collectively resist a tension force of roughly 4.3 kN—a calculation that drives plate dimensions, hole count, and fastener selection.

Thermal Movement Accommodation

Aluminium expands at approximately 23 × 10⁻⁶ per °C. A 3-meter-long panel subjected to a 60°C temperature swing will attempt to grow or shrink by roughly 4.1mm. If the gusset plates at both ends provide rigid fixed connections, this movement converts directly into compressive or tensile stress in the panel skin, potentially causing oil-canning distortion or fastener fatigue. The solution is to designate one end of the panel with fixed gusset connections and the opposite end with slotted holes oriented parallel to the expansion direction, allowing the panel to breathe while maintaining lateral restraint. The slot length must equal or exceed the calculated thermal movement plus a safety margin for installation tolerance.

Material Selection: Alloy Grades and Their Trade-Offs

Not all aluminium is equal when it comes to gusset plate fabrication. The table below compares the three alloy grades most commonly specified for solid aluminium cladding components, including gusset plates.

For most architectural cladding projects, 5052-H32 represents the optimal balance of strength, formability, and corrosion resistance. Its magnesium content (2.2–2.8%) provides marine-grade durability that makes it the default choice for coastal installations where chloride exposure accelerates atmospheric corrosion. The 3003-H14 alloy offers a cost saving of roughly 15–20% and slightly better formability for complex gusset geometries, but its lower yield strength may require thicker material or additional fasteners to achieve the same load capacity. The 6061-T6 extruded alloy, while common in framing components, is rarely appropriate for sheet-form gusset plates because its limited elongation makes it prone to brittle fracture at stress concentrations around fastener holes.

Fabrication Tolerances and Quality Control

A gusset plate that is 1mm out of square or has a hole drilled 0.5mm off position may not look problematic on the shop floor, but when multiplied across dozens of connection points on a single panel, these small errors accumulate into installation difficulties, misaligned panels, and uneven joint widths that are visible from street level.

CNC Routing vs. Traditional Punching

Modern fabrication of Aluminum Gusset Plate components uses CNC routing centers with vacuum hold-down tables rather than mechanical punch presses. The CNC approach offers three advantages: positional accuracy of ±0.1mm across the entire plate, clean hole edges free of the burrs and micro-cracks that punching can introduce, and the ability to nest multiple gusset plate shapes on a single sheet with minimal waste. For a project requiring 2,000 gusset plates, CNC nesting can reduce material waste from 15–20% (typical for manual layout) to under 5%.

Quality control for cladding gusset plates should verify dimensional accuracy against the shop drawing, hole diameter and position, coating thickness and adhesion (tested per ASTM D3359 cross-hatch method), and the absence of edge burrs that can initiate crevice corrosion. Suppliers operating under ISO 9001-certified quality management systems, such as Futeng®, typically provide mill test certificates for the aluminium coil and batch-specific coating test reports as part of the standard documentation package.

Coating Compatibility and Edge Protection

A common oversight in gusset plate specification is the assumption that because the plate is hidden behind the panel, a PVDF coating is unnecessary. The reality is that uncoated aluminium in contact with PVDF-coated aluminium creates a galvanic couple in the presence of moisture, with the bare metal acting as the anode. Over a 5–10 year period, this manifests as white corrosion product around the fastener holes, eventually compromising the connection. The correct approach is to specify that all gusset plates receive the same PVDF coating system as the visible panels, including a chromate conversion coating pretreatment and a minimum 25-micron dry film thickness of the full three-coat system (primer, color coat, clear coat).

Procurement Strategy: Balancing Cost, Lead Time, and Inventory

For general contractors and facade subcontractors, the procurement of Aluminum Gusset Plate components presents a tension between the desire for just-in-time delivery and the reality that custom-fabricated plates require a 4–6 week production cycle. The following strategies have proven effective on projects ranging from 5,000 m² commercial towers to 50,000 m² airport terminals.

Standardization is the first lever. While each project has unique panel dimensions and wind load requirements, the gusset plate geometry can often be rationalized to a limited number of types—typically three to five—covering corner connections, mid-span stiffener attachments, and perimeter edge restraints. Reducing the number of unique plate SKUs from 20 to 5 cuts programming time on the CNC router, simplifies quality inspection, and allows the fabricator to batch-produce plates during machine downtime rather than running them as a dedicated production campaign.

Material commonality is the second lever. Specifying gusset plates in the same alloy, thickness, and coating as the cladding panels means the fabricator can nest gusset shapes in the offcut areas of the panel sheets, dramatically reducing material cost. A 2.5mm PVDF-coated 5052 sheet measuring 1.5m × 3.0m that yields one full panel plus four corner gussets and two stiffener brackets has a material utilization rate above 90%, compared to 60–70% if gussets are cut from separate dedicated sheets.

Buffer stock is the third lever. On large projects, ordering 3–5% extra gusset plates of each type provides insurance against installation damage, design changes, and the inevitable few plates that go missing on site. The incremental cost is negligible relative to the delay cost of a partial re-order, which can stall a cladding installation crew costing $2,000–$5,000 per day in labor and equipment.

Installation Best Practices: Torque, Sealant, and Inspection

Even the best-engineered Aluminum Gusset Plate performs poorly if installed incorrectly. The most frequent installation errors fall into three categories.

Over-torquing of fasteners is surprisingly common. Installers accustomed to steel connections often apply the same wrist feel to aluminium, inadvertently exceeding the bearing capacity of the material and initiating a localized crush zone around the fastener. For M6 stainless steel bolts or self-tapping screws in 2.5mm aluminium, the recommended tightening torque is 3–4 N·m—significantly lower than the 8–10 N·m typical for steel-to-steel connections. Using torque-limiting screw guns or calibrated torque wrenches eliminates this variable.

Missing isolation between dissimilar metals remains a persistent field problem. Even when the gusset plate and the panel are both aluminium, the fasteners are typically stainless steel (304 or 316 grade). In the presence of an electrolyte—rainwater, condensation, or even high humidity—the stainless steel acts as a cathode and the aluminium as an anode, driving galvanic corrosion. The solution is a nylon or EPDM isolating washer under the fastener head and, for through-bolted connections, a nylon sleeve around the shank. The AAMA 609 and 610 series standards provide detailed guidance on fastener isolation for architectural aluminium.

Inadequate sealant application around gusset plate penetrations allows water to track along the fastener shank into the building interior. A bead of neutral-cure silicone sealant applied to the mating surface before fastening, with a small fillet tooled around the plate perimeter after installation, provides a durable water barrier that accommodates the differential movement between plate and substrate.

Wind Load Performance: From Calculation to Specification

Wind load is the dominant design case for most cladding gusset plates. The design process follows a logical sequence: determine the design wind pressure from the local building code (ASCE 7 in the United States, EN 1991-1-4 in Europe, AS/NZS 1170.2 in Australia), calculate the tributary area served by each gusset plate, convert pressure to force, and then verify the plate geometry and fasteners against the governing failure modes.

For a mid-rise building in a suburban exposure category with a basic wind speed of 45 m/s (3-second gust), the design wind pressure on corner zones—where suction pressures are highest—can reach 2.5 kPa. A corner gusset plate serving a 0.6 m² tributary area must therefore resist a design tension force of 1.5 kN, to which the engineer applies a safety factor of 2.0 per the Aluminum Association ADM-1, resulting in a required capacity of 3.0 kN. A 2.5mm-thick 5052-H32 gusset plate with three M6 fasteners in a staggered pattern typically provides a tested ultimate capacity of 4.5–6.0 kN, giving a comfortable margin above the factored design load.

The ASTM E330 standard governs laboratory testing of cladding assemblies under simulated wind loads. A properly specified gusset plate connection should demonstrate no visible permanent deformation after cycling to 1.5× the design pressure and no structural failure below 2.0× the design pressure.

Corrosion in Coastal and Industrial Environments

Aluminium's natural oxide layer provides excellent corrosion resistance in most atmospheric conditions, but chloride-rich environments demand additional precautions. The ISO 12944 corrosion classification system places coastal sites within 500 meters of breaking surf in Category C5-M (very high marine corrosivity). In these environments, an Aluminum Gusset Plate fabricated from 5052-H32 with a full PVDF three-coat system and isolated stainless steel fasteners has a documented service life exceeding 25 years, based on accelerated weathering tests per ASTM G85 and real-world performance data from installations in Southeast Asia and the Middle East.

Industrial environments with sulfur dioxide or nitrogen oxide pollution present a different challenge: acidic deposition can attack the PVDF coating if the film thickness is below the 25-micron minimum. For projects in heavy industrial zones, increasing the primer coat thickness to 8–10 microns and the total dry film thickness to 35–40 microns provides an additional safety margin. The incremental cost is approximately $0.50–$1.00 per gusset plate—a trivial sum relative to the cost of accessing and replacing corroded connections on a completed facade.

Quality Documentation and Traceability

On projects governed by performance specifications or third-party facade consultancy, the documentation package for Aluminum Gusset Plate components carries contractual weight. A complete submittal includes mill test certificates for the aluminium coil showing chemical composition and mechanical properties, coating applicator certificates documenting pretreatment process and dry film thickness, dimensional inspection reports for each batch of fabricated plates, and—for critical connections—photographic records of the installed plates before panel closure.

Traceability is increasingly required by specification writers who have experienced failures traced to counterfeit or substituted materials. Each gusset plate should be laser-etched or inkjet-marked with a batch number that links back to the coil certificate and coating report. This practice, standard in aerospace and automotive supply chains, is gradually being adopted by the architectural aluminium industry as project insurance requirements tighten.

The engineering of an Aluminum Gusset Plate for solid aluminium cladding systems rewards attention to detail. The alloy grade, plate thickness, hole pattern geometry, coating specification, fastener isolation, and installation torque all interact to determine whether the connection performs silently for decades or becomes a source of water ingress, galvanic corrosion, and eventual structural degradation. For specifiers and contractors, the key takeaway is that gusset plates deserve the same rigorous engineering treatment as the visible panels they support—not because they are seen, but because their failure is eventually impossible to ignore.
