Aluminum Coil Coating Line Engineering and PVDF Quality Control for Solid Cladding Facades

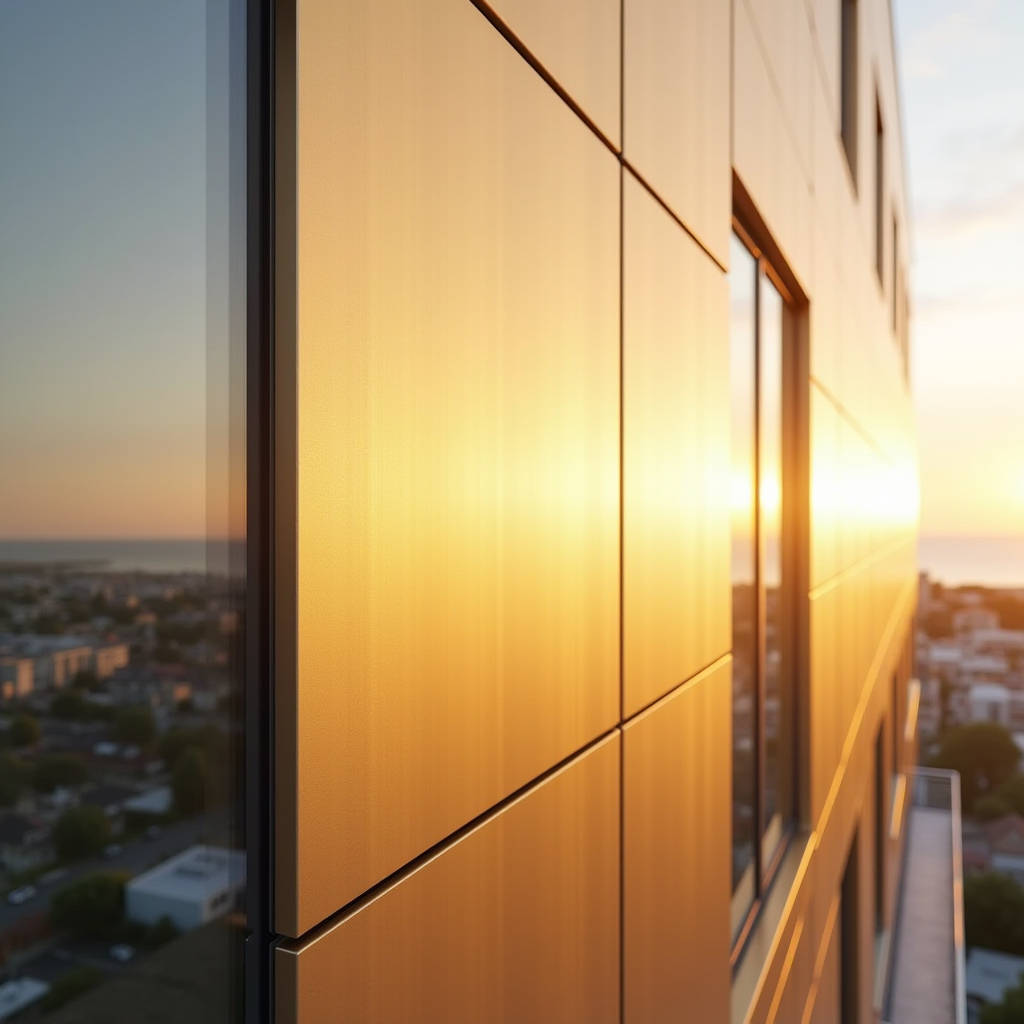

When a curtain wall consultant specifies PVDF-coated solid aluminum panels for a 40-story tower in a coastal city, the entire performance promise hinges on one industrial process that happens long before the first panel is cut: the aluminum coil coating line. This is where raw aluminum coil transforms into precision-coated metal ready for fabrication into 2.0mm, 2.5mm, or 3.0mm solid cladding sheets. The continuous coil coating line determines whether that facade will still look pristine after 20 years of salt spray and UV bombardment, or whether it will chalk, fade, and delaminate. Understanding what happens inside these lines is not merely academic for procurement managers and facade engineers. It directly affects warranty terms, color consistency across batches, and the long-term durability that building owners demand. A well-engineered aluminum coil coating line integrates degreasing, chemical pretreatment, primer application, topcoat curing, and protective film lamination into a single uninterrupted process. The quality of that integration separates architectural-grade aluminum from commodity metal that will fail prematurely.

How a Continuous Aluminum Coil Coating Line Actually Works

The continuous coil coating process starts with an unwinder that feeds raw aluminum coil into the line at speeds typically ranging from 30 to 120 meters per minute, depending on the gauge and coating specification. The aluminum substrate, usually in the 0.5mm to 3.0mm thickness range for architectural applications, passes through a tension leveler that corrects flatness deviations before any chemistry touches the surface. This mechanical step is critical because any waviness or edge wave present in the raw coil will telegraph through to the finished coated product, creating visible distortion on large facade panels. After leveling, the strip enters the pretreatment section, a multi-stage chemical bath that removes rolling oils, surface oxides, and contaminants. For architectural aluminum destined for PVDF coating, the pretreatment typically involves alkaline degreasing followed by a chrome-based or chrome-free conversion coating that creates a corrosion-resistant layer and provides the tooth for paint adhesion. The strip then passes through drying ovens before entering the coating room, where reverse-roller coaters apply primer at precisely controlled film thicknesses, usually 5 to 8 microns dry film thickness for architectural applications. The primed strip cures in a convection oven at metal temperatures reaching 204°C to 232°C before returning for the topcoat application. High-end aluminum coil coating lines employ double-coating double-drying configurations that allow both sides of the strip to receive primer and topcoat in a single pass, maximizing throughput and ensuring uniform coverage on both the exposed face and the reverse side of the panel.

Pretreatment Chemistry: The Foundation Nobody Sees

Ask any coating chemist what causes the majority of field failures in architectural aluminum, and they will point to pretreatment, not the topcoat. The aluminum coil coating line's pretreatment section looks unremarkable from the outside: a series of tanks, spray bars, and rinse stations. But the chemistry happening inside those tanks determines whether the PVDF coating will still be bonded to the metal substrate after a decade of thermal cycling. The standard architectural pretreatment sequence runs: alkaline cleaner at 60°C to 70°C, multiple rinse stages, conversion coating application, final rinse, and drying. The conversion coating, historically hexavalent chromium-based but increasingly shifting to trivalent chromium or zirconium-based systems under tightening environmental regulations, creates a nanoscale inorganic layer that passivates the aluminum surface and provides mechanical and chemical bonding sites for the primer. For solid aluminum cladding panels that will be fabricated into complex shapes through bending, routing, and perforating, the pretreatment must deliver adhesion strong enough to survive post-forming operations without micro-cracking at bend radii. This is where the difference between a commodity aluminum coil coating line and one engineered for architectural applications becomes stark. Lines designed for high-end architectural work incorporate cascade rinse systems that minimize water consumption while ensuring complete removal of chemical residues, and they maintain pretreatment bath parameters within tight tolerances through automated dosing and conductivity monitoring. The chrome-free pretreatment systems now mandated by many green building standards require even tighter process control because the operating window for successful adhesion is narrower than with traditional chromate systems.

PVDF Coating Architecture on the Aluminum Coil Coating Line

The coating section of an aluminum coil coating line designed for architectural PVDF work is fundamentally different from lines set up for polyester or epoxy coatings. PVDF (polyvinylidene fluoride) resin-based coatings, typically the Kynar 500® or Hylar 5000® resin systems specified for premium facades, require specific oven temperature profiles, precise film thickness control, and exacting cure conditions to develop their full performance properties. The standard architectural PVDF system consists of a primer coat followed by a color topcoat, with total dry film thickness typically specified at 25 to 35 microns. The primer, usually an epoxy or acrylic-based formulation, provides corrosion protection and intercoat adhesion. The topcoat, containing 70% PVDF resin by weight in the resin solids portion, delivers the UV resistance, chalk resistance, and color stability that make PVDF the default specification for high-end architectural aluminum. On a properly configured aluminum coil coating line, the reverse-roller coater applies the topcoat with a film thickness variation of less than ±2 microns across the full width of the strip. This uniformity is essential because PVDF coatings that are too thin will show premature erosion in high-UV environments, while coatings that are too thick risk solvent popping and adhesion problems. The cure oven must bring the coated strip to a peak metal temperature of 232°C to 249°C and hold it there for a dwell time sufficient to achieve complete crosslinking of the PVDF resin. Undercure leaves the coating soft and susceptible to dirt pickup and chemical attack. Overcure embrittles the coating and can cause cracking during panel forming. The best aluminum coil coating lines for architectural work use multi-zone ovens with independent temperature control in each zone, allowing operators to fine-tune the cure profile for different colors, gloss levels, and metallic effects.

Metallic and Mica Coatings: The Difficulty Multiplier

Metallic PVDF coatings, the silver, champagne, and bronze tones that dominate contemporary commercial architecture, introduce a layer of complexity that separates the capable aluminum coil coating line from the exceptional one. Metallic pigments are flat aluminum flakes that orient parallel to the substrate surface during application and curing. If the coating line's oven temperature ramp is too aggressive, the solvent flashes off too quickly, the coating surface skins over, and the metallic flakes become trapped in random orientations, creating visible clouding or mottling that is instantly apparent on large facade panels. The solution involves precise control of the solvent blend in the coating formulation, slower oven temperature ramp rates, and in some cases, infrared pre-gel zones that set the metallic orientation before the main cure oven. Mica and pearlescent coatings add yet another variable: the mica platelets are transparent and rely on precise thickness control to achieve the desired color travel effect. A variation of just 2 microns in film thickness can shift the perceived color of a mica coating from the specified shade to something noticeably different. For procurement managers sourcing solid aluminum cladding panels in metallic or mica finishes, the capability of the aluminum coil coating line to handle these coatings consistently should be a primary qualification criterion. Ask for batch-to-batch color data measured on a spectrophotometer with Delta E values. A well-run line will consistently deliver Delta E below 1.0 for solid colors and below 2.0 for metallics and micas.

Quality Control Systems That Matter on the Line

Modern aluminum coil coating lines incorporate multiple inspection and quality control stations that operate continuously while the line is running. The first inspection point is typically after pretreatment, where a surface quality monitoring system checks for residual contamination, water break-free surface condition, and conversion coating weight. The second critical inspection point sits immediately after the coating application and before the cure oven, using a wet film thickness gauge that provides real-time feedback to the coater operator. After curing, the coated strip passes through a dry film thickness measurement station, usually employing beta backscatter or X-ray fluorescence technology that can measure coating thickness on both sides simultaneously without contacting the surface. High-end lines add an automated surface inspection system: a bank of high-resolution cameras and LED lighting arrays that scan the full width of the strip at line speed, detecting pinholes, dirt inclusions, coating voids, and color variations. These systems flag defects and record their position along the coil length, allowing downstream operators to cut out defective sections before the coil reaches the panel fabrication stage. For architectural aluminum destined for visible facade applications, the acceptable defect density is typically specified as zero visible defects larger than 0.5mm in any 10-square-meter area. Achieving this consistently requires not just inspection technology but a culture of process discipline that extends from raw coil receiving through to finished product packaging. Suppliers like Futeng® who operate their own aluminum coil coating lines maintain full traceability from incoming coil certification through to final inspection reports, giving facade contractors documentation that supports warranty claims and specification compliance.

Line Speed, Productivity, and What They Mean for Project Pricing

The economics of coated aluminum coil are driven by line utilization and throughput. An aluminum coil coating line running architectural PVDF at 30 to 50 meters per minute on 1.2-meter-wide strip can produce between 2,000 and 3,500 square meters of coated aluminum per hour. At the higher end of the thickness range for solid aluminum cladding panels, 2.5mm and 3.0mm gauge, line speed typically drops to 20 to 35 meters per minute because the heavier coil requires longer dwell time in the ovens to reach cure temperature. This speed differential translates directly into cost: 3.0mm PVDF-coated aluminum coil will typically carry a 15% to 25% premium over 2.0mm material of the same coating specification, reflecting both the higher raw material cost and the reduced line throughput. For a mid-rise commercial building requiring 8,000 square meters of solid aluminum cladding, the difference between specifying 2.0mm and 3.0mm panels can add $12 to $18 per square meter to the facade cost, before factoring in the additional structural support requirements for the heavier panels. The aluminum coil coating line's changeover time between colors and coating types also affects project economics. A line changeover from one color to another typically requires 30 to 60 minutes of downtime for coater cleaning, paint line flushing, and oven stabilization. For small batch sizes, the changeover cost amortized over the square meters produced can be significant. This is why many coating lines impose minimum order quantities of 500 to 1,000 square meters per color, and why project specifications that call for multiple custom colors across a single facade will drive up the per-square-meter cost of the coated aluminum.

Energy Consumption and the Hidden Cost of Curing

The cure ovens on an aluminum coil coating line are the dominant energy consumers, typically accounting for 60% to 70% of the total energy input to the line. A typical architectural coating line running at 40 meters per minute will consume between 2,500 and 3,500 kWh per hour for oven heating, depending on oven design, insulation efficiency, and the thermal mass of the aluminum strip passing through. Modern lines incorporate heat recovery systems that capture hot exhaust from the cure ovens and use it to preheat incoming fresh air or to heat the pretreatment baths, reducing overall energy consumption by 15% to 25%. For the end customer, these energy costs are embedded in the per-square-meter price of coated aluminum coil. When natural gas prices spike, as they did across Europe in 2022, the cost of PVDF-coated aluminum for architectural applications can increase by 8% to 12% purely due to the energy component of the coating process. This is worth understanding when negotiating fixed-price contracts for large facade projects with long lead times. The aluminum coil coating line's energy source also affects the environmental profile of the finished product. Lines that run on natural gas produce a carbon footprint of approximately 0.8 to 1.2 kg CO2 equivalent per square meter of coated aluminum for the coating process alone. Lines that incorporate renewable electricity for oven heating or that use cogeneration systems can reduce this by 40% to 60%, a factor that is increasingly relevant for projects pursuing LEED or BREEAM certification.

Coil Width, Panel Yield, and Material Optimization

The width capability of the aluminum coil coating line directly determines the yield efficiency when the coated coil is cut into blanks for solid aluminum cladding panel fabrication. Standard architectural coil coating lines handle widths from 1,000mm to 1,650mm, with some specialized lines going up to 2,000mm. For a typical facade panel dimension of 1,200mm by 3,000mm, a coating line running 1,250mm-wide coil will produce significant edge trim waste because the panel blank requires a minimum coil width of 1,220mm to allow for trim and handling margins. If the same panel is sourced from a line running 1,550mm-wide coil, the fabricator can nest two panel widths across the coil, dramatically improving material yield. The difference in yield can be 8% to 15% of the total coated aluminum cost, which on a large project translates into tens of thousands of dollars. Panel fabricators who understand this relationship will specify coil widths that optimize yield for their standard panel sizes, and they will select aluminum coil coating line partners whose width capabilities align with their production requirements. The gauge range of the coating line also matters. Lines designed for thin-gauge can stock and appliance applications may not have the tension control and oven capacity to handle 2.5mm and 3.0mm architectural aluminum properly. The result is poor flatness, inconsistent coating thickness, and residual stresses in the coated coil that cause warping when the panels are cut and formed. Specifying that the coated aluminum must come from a line with demonstrated capability in the 2.0mm to 3.0mm gauge range is a simple but effective quality assurance measure.

Environmental Compliance and the Chrome-Free Transition

The aluminum coil coating line's pretreatment chemistry has been under regulatory pressure for two decades, and the transition away from hexavalent chromium is now largely complete in Europe and accelerating in North America and Asia. The European Union's REACH regulation effectively banned hexavalent chromium for coil coating applications as of 2019, and similar restrictions are emerging in other jurisdictions. The replacement technologies, primarily trivalent chromium-based and zirconium-based conversion coatings, require different application parameters and tighter process control than the chromate systems they replace. For the specifier and procurement manager, the practical implication is that chrome-free pretreated aluminum may exhibit slightly different corrosion performance in extreme environments, particularly in coastal and industrial applications where the self-healing properties of chromate conversion coatings provided an additional margin of safety. The industry has addressed this through improved primer formulations and, in some cases, slightly higher primer film thicknesses. Independent testing by organizations such as the ASTM International and the American Architectural Manufacturers Association (AAMA) has validated that properly applied chrome-free pretreatment systems can meet the 4,000-hour salt spray resistance requirements of AAMA 2605 when combined with appropriate primer systems. When sourcing PVDF-coated aluminum for solid cladding panels, request documentation confirming that the pretreatment system used on the aluminum coil coating line has been qualified to the relevant AAMA or ISO standard with the specific primer and topcoat combination being supplied.

Waste Streams and the Closed-Loop Coating Line

The environmental footprint of an aluminum coil coating line extends beyond the pretreatment chemistry. The coating application process generates waste in the form of spent solvents from equipment cleaning, overspray captured in the coating room ventilation system, and off-spec coated material that cannot be shipped. Best-in-class lines minimize these waste streams through solvent recovery systems that capture and recycle volatile organic compounds from the coating room and oven exhaust, and through paint kitchen management systems that minimize the volume of mixed coating that goes unused at the end of a production run. The VOC emissions from the cure oven are typically controlled through thermal oxidizers that destroy 95% to 99% of the solvent vapors before they reach the atmosphere. For projects pursuing green building certification, the recycled content and recyclability of the coated aluminum itself are often the primary environmental metrics of interest, but the environmental performance of the aluminum coil coating line that produced the material is an increasingly important part of the supply chain sustainability story.

Specifying Coated Aluminum for Solid Cladding: What to Ask the Supplier

When you are sourcing PVDF-coated aluminum coil for solid cladding panel fabrication, the specification should go beyond "PVDF coating to AAMA 2605." The coating performance is only as good as the aluminum coil coating line that produced it. A proper inquiry should address the following points: the line's pretreatment chemistry and whether it is chrome-free, the coater type and the film thickness control capability, the oven configuration and whether it can achieve the required peak metal temperature for the specified PVDF resin system, the line's gauge range and whether it is validated for the panel thickness you are specifying, and the quality control systems in place including in-line inspection and final coil certification. Ask for a copy of the line's quality control data for the specific color and gloss level you are ordering. A reputable supplier will provide spectrophotometer readings, dry film thickness measurements, gloss meter readings, and adhesion test results for the production run. If the supplier cannot or will not provide this data, the aluminum coil coating line they are using may not have the process control capability to deliver consistent architectural-quality coated aluminum. The relationship between the coating line operator and the panel fabricator also matters. Coil that is coated on a line that regularly produces architectural-grade material will be handled, packaged, and shipped with the care required to prevent transit damage, coil set, and edge damage that can cause yield loss during panel fabrication. The protective film applied at the end of the aluminum coil coating line, typically a 50 to 70 micron polyethylene film with UV-stable adhesive, is the final quality checkpoint. If the film is applied with bubbles, wrinkles, or inadequate adhesion, the coated surface will be compromised before the panel ever reaches the building.

The quality of the coated aluminum that goes into a solid cladding panel is determined not by the coating specification alone, but by the engineering discipline and process control of the aluminum coil coating line that applies it. Every micron of coating thickness, every degree of oven temperature, and every second of pretreatment dwell time matters.

For facade engineers and procurement managers who treat coated aluminum as a commodity, the aluminum coil coating line is an invisible detail. For those who have dealt with chalking facades, delaminating coatings, and batch-to-batch color mismatches, it is the single most important piece of equipment in the supply chain. The line's pretreatment chemistry, coating application precision, cure oven control, and quality inspection systems collectively determine whether the solid aluminum cladding on a building will perform for 30 years or start showing distress in five. The AAMA 2605 specification provides a performance benchmark, but it does not guarantee that every coil coming off every line will meet it. That guarantee comes from the combination of equipment capability, process discipline, and the technical expertise of the people running the line. When evaluating suppliers, look beyond the coating brand name and ask about the aluminum coil coating line itself. The answers will tell you more about the likely quality of the coated aluminum than any specification sheet.
