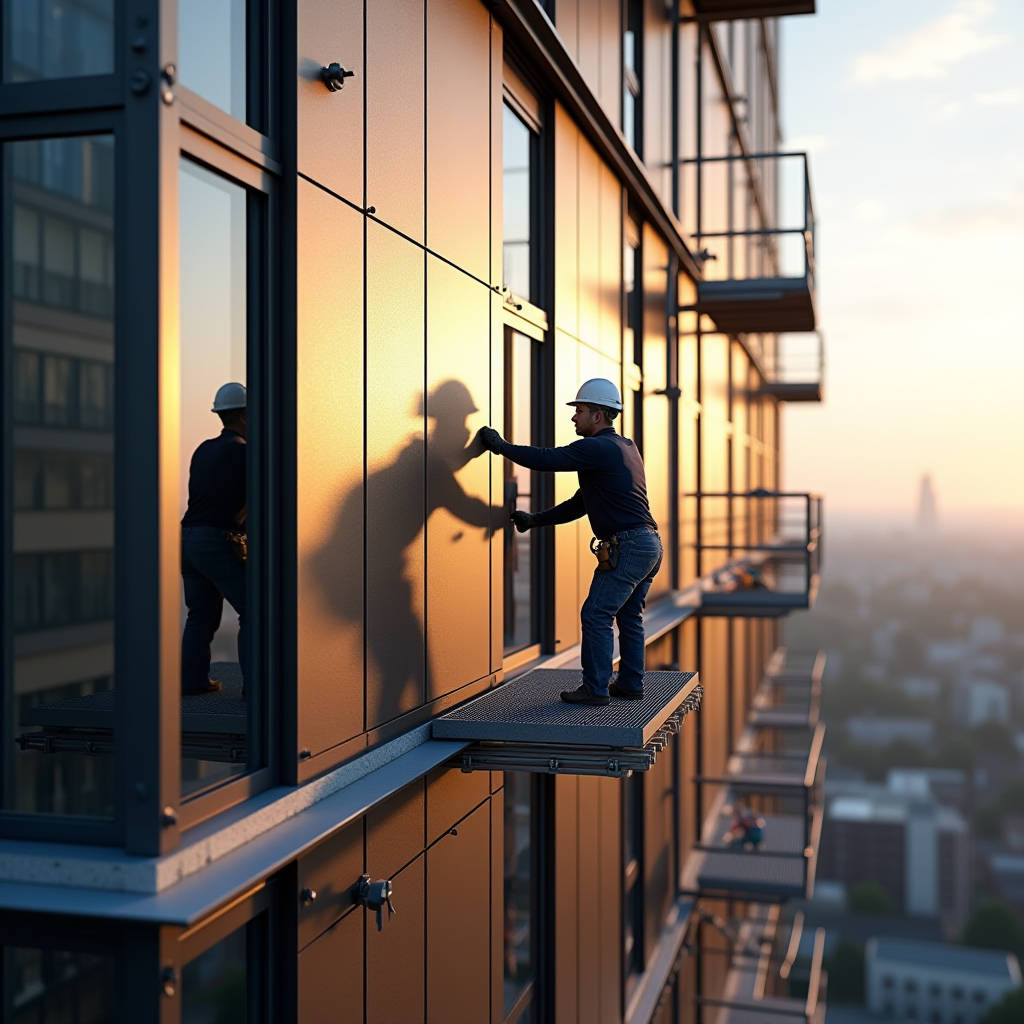

Modular Aluminum Facade Engineering Solid Panels for Wind Load and Fast Track Construction

When a project timeline shrinks and the building envelope still needs to perform across a 50-year service life, the conversation among facade contractors and project architects inevitably turns to one question: can a Modular Aluminum Facade system actually deliver the same structural integrity as a conventionally stick-built rainscreen? The short answer is yes, but only when the system is engineered around solid aluminum cladding panels rather than thin-gauge composite sheets. A genuinely robust modular approach combines factory-prefabricated solid aluminum panels, precision-engineered substructures, and a fastening logic that eliminates the variability of field cutting and on-site drilling. This article examines the structural, thermal, and logistical realities of deploying solid aluminum modular facade systems on mid-rise and high-rise commercial projects, with a focus on what procurement managers and building envelope consultants need to verify before signing off on a specification.

What Defines a Modular Aluminum Facade in Engineering Terms

The word "modular" gets thrown around loosely in facade marketing. In engineering practice, a Modular Aluminum Facade means something specific: the panel, its mounting frame, insulation layer, and sometimes even the weather barrier arrive on site as a single pre-assembled unit that locks into a pre-positioned anchor grid. This is fundamentally different from a traditional rainscreen where individual aluminum sheets get measured, cut, and fastened piece by piece on scaffolding.

For solid aluminum cladding panels, modularity hinges on three engineering decisions. First, panel thickness must be sufficient to span between attachment points without oil-canning or flutter. A 2.5mm or 3.0mm solid aluminum sheet behaves differently from thin-gauge material under wind suction; the thicker panel allows fewer intermediate stiffeners, which simplifies the module design. Second, the connection between the panel and its subframe must accommodate thermal movement without transferring stress to the visible face. Third, the interlocking geometry between adjacent modules must maintain a consistent joint width even when the building structure deflects under live load.

Contractors who have worked with both stick-built and modular systems often note that the engineering rigor shifts from the job site to the factory. That shift is the entire point: quality control moves indoors, where temperature, humidity, and inspection lighting are controlled. The trade-off is that the upfront design and shop-drawing phase becomes significantly more demanding.

Structural Performance: Solid Aluminum vs. Thin-Gauge Modular Panels

Not all modular facade products are created equal. A growing segment of the market uses thin-gauge formed aluminum cassettes, often 0.040 to 0.063 inches thick, which rely heavily on folded geometry and rear stiffeners to achieve span ratings. These can work for low-rise applications, but when wind pressures exceed 30 psf, as they commonly do on buildings above six stories or in coastal zones, the engineering calculations start to favor solid aluminum panels in the 2.0mm to 3.0mm range.

A solid 3.0mm aluminum panel (approximately 0.118 inches) with a PVDF-coated finish carries inherent flexural stiffness that reduces the number of required attachment points per module. Fewer attachments mean fewer thermal bridges, faster installation, and less room for alignment error. The panel's yield strength, typically in the range of 150-180 MPa for 3003-H14 or 5052-H32 aluminum alloys, provides a predictable stress-strain curve that structural engineers can model with confidence.

The following table compares structural and installation parameters across three common modular aluminum facade configurations, based on a typical mid-rise commercial project with a design wind pressure of 35 psf:

The weight penalty of solid aluminum is real but manageable. For a 50,000 sq.ft. facade area, the difference between 0.7 lbs/sq.ft. and 2.5 lbs/sq.ft. adds roughly 90,000 lbs to the building. Structural engineers need to account for this in the primary frame design, but the reduction in attachment points and the elimination of field-applied stiffeners often offset the added dead load through labor savings and schedule compression.

Thermal Bridging and the Modular Connection Detail

Every attachment point in a rainscreen facade is a potential thermal bridge. In a stick-built system, the sheer number of field-installed clips and rails creates a cumulative heat transfer path that can undermine the performance of even the best cavity insulation. A Modular Aluminum Facade, when properly detailed, consolidates these attachment points into a smaller number of structurally optimized connections.

The key is the thermal break at the bracket-to-subframe interface. High-performance modular systems use a combination of polyamide or fiberglass-reinforced nylon isolators between the aluminum subframe and the building structure. The solid aluminum panel itself does not need to be thermally broken because it sits outboard of the insulation layer, functioning as the rainscreen leaf in a ventilated cavity assembly.

For projects targeting Passive House or LEED v4.1 energy credits, the modular approach offers a measurable advantage: the reduced number of penetrations through the thermal control layer makes it easier to achieve continuous insulation targets. Designers should specify that the modular system's thermal performance be verified through a calibrated hot-box test per ASTM C1363, not just through desktop simulation. The difference between modeled and measured U-values can be significant when complex bracket geometries are involved.

Installation Logic: Why Factory Prefabrication Changes the Site Equation

General contractors evaluating a Modular Aluminum Facade for the first time often focus on the unit price per square foot and miss the larger cost picture. A prefabricated solid aluminum panel module might cost 15-25% more than the equivalent stick-built material package, but the site labor equation tells a different story.

Consider a typical 12-story commercial building with 40,000 sq.ft. of facade area. A stick-built solid aluminum rainscreen might require a crew of 8-10 installers working for 14-16 weeks, depending on weather and access conditions. A modular system, with panels arriving on site pre-assembled and pre-glazed if vision glass is integrated, can reduce the crew size to 4-6 installers and compress the schedule to 8-10 weeks. The math is straightforward: fewer workers on site for fewer weeks, with less scaffolding time and lower general conditions costs.

There is also a quality argument that procurement managers should weigh. Field-fabricated aluminum panels inevitably accumulate dimensional tolerance errors. A skilled installer can compensate for small discrepancies, but on a large facade, these errors compound. Factory-prefabricated modules, produced on CNC-controlled assembly jigs, hold tolerances of ±1.5mm or better. The result is a more consistent joint pattern and fewer callbacks for alignment corrections.

For large-scale international projects, suppliers like Futeng® have demonstrated the logistical capability to deliver containerized modular facade packages with panels pre-labeled by floor and grid position, enabling just-in-time site logistics that minimize on-site storage requirements and handling damage.

Coating and Finish: PVDF Performance on Factory-Finished Modules

One of the underappreciated advantages of a modular approach is that the entire finishing process happens under factory conditions. Solid aluminum panels receive their PVDF or FEVE coating in a controlled environment where temperature, humidity, and dust levels are managed to specification. This is particularly important for metallic and mica finishes, where even slight variations in spray conditions can produce visible color shifts between panels.

A properly specified PVDF coating on solid aluminum — typically a three-coat system with a primer, color coat, and clear topcoat — should achieve a total dry film thickness of 30-35 microns minimum, per AAMA 2605 requirements. When panels are coated and cured in the same batch at the factory, the color consistency across the entire facade module set is measurably better than what can be achieved when touch-up painting happens on site.

The factory environment also allows for more rigorous quality control on coating adhesion and uniformity. Cross-hatch adhesion testing per ASTM D3359, gloss measurements at multiple points per panel, and spectrophotometric color verification against the architect's approved sample all become standard QC steps rather than optional extras.

Wind Load Design: How Modular Panels Handle Suction Forces

Wind suction is the dominant structural load case for most rainscreen facades, and it is where modular system design diverges most sharply from stick-built logic. In a stick-built system, each aluminum panel is individually secured to a continuous rail grid, and wind loads are distributed across many small fasteners. In a modular system, the wind load path runs from the panel face into the module's integrated subframe, then through a smaller number of high-capacity brackets into the building structure.

This concentrated load path demands careful engineering of the bracket connections. For a 3.0mm solid aluminum panel module measuring 1.5m x 3.0m, the total wind suction force at 35 psf design pressure approaches 1,700 lbs. The four corner brackets must each resist over 400 lbs in tension, and the anchors into the building substrate must be sized accordingly. This is not a place for generic fasteners; the specification should call out anchor types tested per ASTM E488 for the specific substrate material, whether concrete, steel, or CMU.

Engineers should also verify that the modular system has been tested as a complete assembly, not just as individual components. A full-scale mockup tested to ASTM E330 at 1.5 times the design pressure, with deflection measurements taken at the panel center, mid-span, and bracket locations, provides the most reliable performance data. Component-level testing alone cannot capture the interaction between panel flexure and bracket rotation that occurs in a real installation.

Acoustic Considerations for Solid Aluminum Modular Facades

Acoustic performance rarely drives the initial decision to specify a modular system, but it can become a critical factor on urban sites near transportation corridors or airports. Solid aluminum panels have an inherent mass advantage over thin-gauge cassettes: a 3.0mm panel at 2.5 lbs/sq.ft. provides more sound transmission loss than a 0.050-inch formed panel at 0.7 lbs/sq.ft., simply because mass law governs airborne sound insulation in single-leaf constructions.

However, the modular joint is the acoustic weak point. Open rainscreen joints, typically 10-15mm wide, allow sound to flank around the panel edges. The sound transmission class (STC) of the overall wall assembly depends far more on the air seal behind the rainscreen cavity than on the panel material itself. For projects where exterior noise is a concern, the modular system should incorporate acoustic insulation within the cavity and a continuous air barrier behind the subframe brackets. The panel joints themselves can be fitted with acoustic gaskets or baffles that reduce sound flanking without compromising the ventilation function of the cavity.

Specifiers should request laboratory test data for the complete wall assembly, not just the panel material. An STC rating for a 3.0mm aluminum sheet alone is meaningless; what matters is the STC of the assembly consisting of the modular panel, cavity, insulation, air barrier, and interior finish.

Procurement and Logistics: What to Verify Before Ordering

Procurement managers dealing with a Modular Aluminum Facade package face a different set of risks than those buying standard aluminum sheets. The modular package is a custom-engineered product, and the supply chain is less forgiving of errors. Here are the verification points that experienced buyers insist on before releasing a purchase order:

• Shop drawing approval status: Modular systems cannot be fabricated until shop drawings are approved by the architect and structural engineer. Any delay in approval pushes the entire delivery schedule to the right. Confirm that the drawing submittal schedule aligns with the fabrication lead time.
• Mockup requirements: Most specifications require a visual mockup and a performance mockup. The visual mockup establishes the aesthetic standard for color, joint width, and flatness. The performance mockup gets tested for air, water, structural, and sometimes seismic performance. Clarify who pays for the mockup and whether it is included in the unit price.
• Tolerance compatibility: The modular system's installation tolerances must be compatible with the building structure's as-built tolerances. If the concrete frame is out of plumb by 25mm, and the modular system's adjustment range is only 15mm, there will be a problem. Survey the structure before finalizing module dimensions.
• Shipping and handling: Factory-finished solid aluminum modules are damage-sensitive cargo. Verify that the supplier's packaging specification includes edge protection, interleaving, and weather-resistant wrapping. Confirm the incoterms and insurance coverage for in-transit damage.
• Spare panels: Order 3-5% spare panels in each finish and size. Custom-coated solid aluminum panels cannot be matched perfectly if replacements are needed five years later. Spares stored on site from the original production batch are the only reliable solution.

Lifecycle and Sustainability: The Cradle-to-Cradle Argument for Solid Aluminum

Aluminum is one of the few facade materials that can be recycled indefinitely without losing its mechanical properties. A solid aluminum panel, unlike a composite panel with a polyethylene core, is a single-material product that can be remelted at end of life with minimal processing. The recycling energy is roughly 5% of the energy required for primary aluminum production, which makes the long-term carbon equation compelling.

Some modular facade systems now incorporate design-for-disassembly principles, where the panel modules can be unclipped from the subframe without destructive demolition. This allows the aluminum to be separated cleanly from the insulation and weather barrier layers, maximizing the recovery value and minimizing landfill waste. For projects pursuing green building certifications, this end-of-life pathway can contribute to materials and resources credits under LEED v4.1 and BREEAM.

The embodied carbon of the aluminum itself depends heavily on the energy source used in smelting. Hydro-powered aluminum, with a carbon footprint below 4 kg CO₂e per kg of aluminum, is increasingly available and should be specified when project carbon budgets are tight. The modular approach amplifies this benefit because the factory fabrication process generates less waste than field cutting; aluminum offcuts are captured and recycled directly at the factory rather than ending up in a construction dumpster.

Making the Engineering Decision

Choosing a Modular Aluminum Facade over a conventional stick-built approach is not a decision about aesthetics, though the cleaner joint lines of factory-fabricated modules certainly look sharper. It is a decision about where the project carries its risk: on the scaffolding, subject to weather, labor availability, and the skill of individual installers, or in the factory, where processes are repeatable and quality is verifiable before the panels ever leave the loading dock.

For solid aluminum cladding panels in the 2.5mm to 3.0mm range, the modular approach makes the most engineering sense on projects where wind loads are high, the facade area exceeds 20,000 sq.ft., or the construction schedule is compressed. The structural efficiency of thicker panels translates directly into fewer attachment points and simpler module geometry. The factory finishing process delivers color consistency that field touch-up cannot match. And the reduced site labor exposure lowers the risk of installation errors that compromise long-term weathertightness.

The upfront cost premium is real and must be weighed against the schedule and quality benefits on a project-by-project basis. What is increasingly clear, as more general contractors and facade consultants gain experience with modular solid aluminum systems on completed buildings, is that the total installed cost gap narrows considerably when general conditions, scaffolding duration, and defect rectification are factored into the equation. For the right project, a properly engineered modular system built around solid aluminum panels is not just a procurement alternative; it is the technically superior choice.

This article reflects general engineering principles and should not be taken as project-specific structural advice. Facade design must be verified by a licensed structural engineer familiar with the applicable building code and local wind and seismic conditions.
