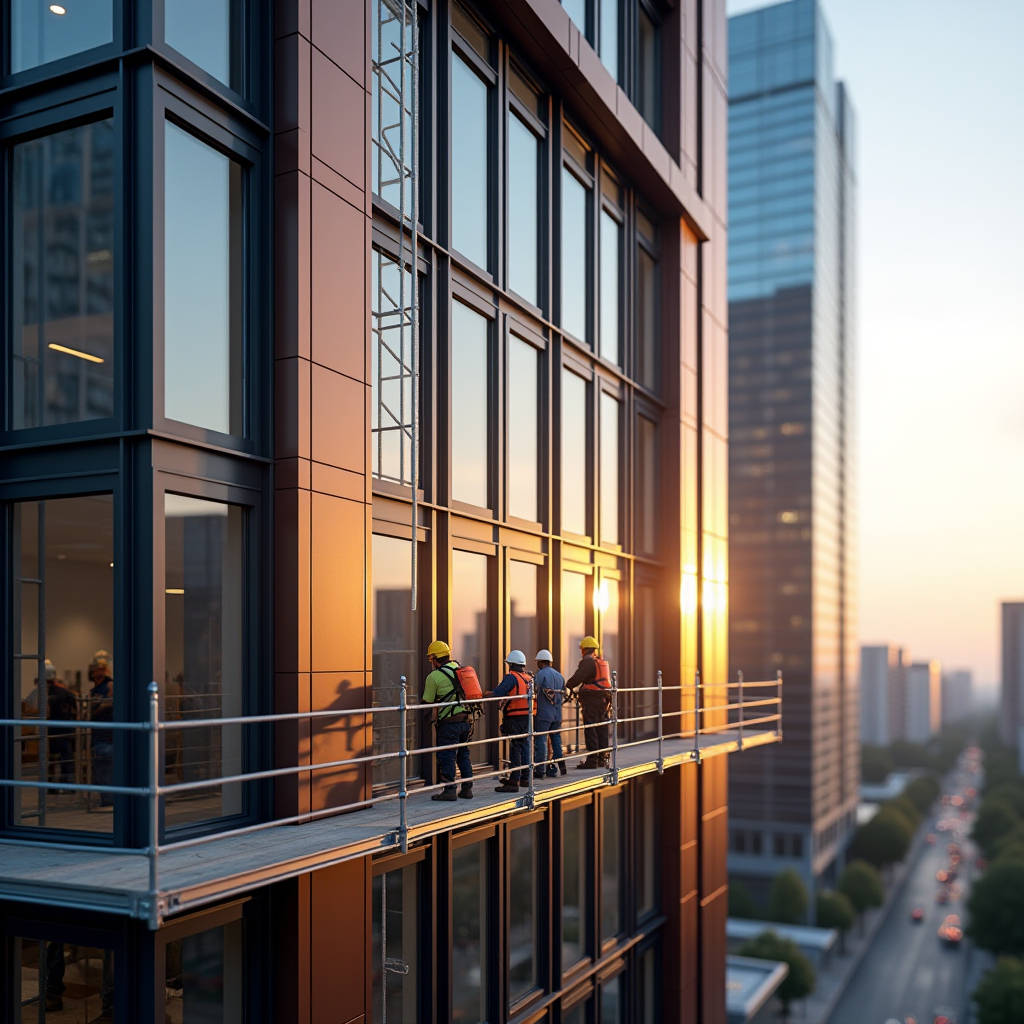

Stick Aluminium Curtain Wall Engineering Material Selection and Installation Best Practices for Mid Rise Commercial Façades

Stick Aluminium Curtain Wall systems remain the dominant choice for commercial façade construction across low- to mid-rise projects worldwide, and for good reason. The method involves assembling extruded aluminium mullions and transoms piece by piece on site, then glazing the framework in situ. This approach gives contractors and architects a level of geometric flexibility that factory-assembled unitized panels simply cannot match. When a building features stepped setbacks, curved elevations, or irregular floor-to-floor transitions, the stick-built method absorbs those deviations without the need for costly re-engineering of prefabricated modules. The trade-off is longer on-site labor time, but the savings in logistics, reduced crane dependency, and the ability to adjust tolerances in real time often tip the balance decisively in favor of stick construction. For project teams evaluating façade strategies, understanding where stick systems outperform alternatives and where they introduce risk is not a theoretical exercise. It is a budgeting and sequencing decision that echoes through every phase of the build.

How Stick Aluminium Curtain Wall Construction Actually Works

The stick method is deceptively simple in concept but demanding in execution. Extruded aluminium mullions, typically 6063-T6 alloy, arrive at the site cut to length and pre-punched for connection hardware. Vertical mullions are anchored to the building's structural slab edge using adjustable brackets that accommodate three-dimensional tolerance. Horizontal transoms then span between mullions, creating a grid that receives glass or solid aluminium cladding panels. The entire assembly is glazed from the exterior or interior, depending on whether the system uses pressure plates and caps or a structural silicone glazing approach. Because every component is handled individually, the installer can correct for slab edge deviations, column misalignment, and other field conditions that would derail a unitized system. This on-site adaptability is the defining advantage of stick construction, but it also places enormous responsibility on the installation crew. A poorly sealed splice joint or an incorrectly torqued pressure plate can produce a leak path that is expensive to trace and repair after the building is occupied.

Material Selection: Alloy Grades, Finishes, and Solid Aluminium Cladding

The performance of any Stick Aluminium Curtain Wall begins with the aluminium itself. Mullions and transoms are almost universally extruded from 6063-T6, a heat-treated alloy that balances strength, extrudability, and corrosion resistance. For projects in coastal or industrial environments, 6061-T6 may be specified for its marginally higher tensile strength, though the difference in practical deflection performance is often negligible once section depths are optimized. The real differentiator is the finishing system. Architectural anodizing to AA-M10C21A31 (Class I) provides a durable metallic appearance but is limited in color range. PVDF liquid coatings based on 70% Kynar 500 or Hylar 5000 resin systems offer far broader color options and superior resistance to chalking and fading. For high-traffic entrance areas or spandrel zones, solid aluminium cladding panels in 2.0mm, 2.5mm, or 3.0mm thicknesses are integrated into the stick grid, typically with a PVDF coating applied to a minimum dry film thickness of 30 microns for a two-coat system or 40 microns for a three-coat metallic finish. These panels are not composite products. They are monolithic aluminium sheets, brake-formed or routed to the required geometry, and they carry none of the delamination risk associated with ACP materials.

Structural Engineering: Wind Load, Deflection, and Thermal Movement

Stick curtain wall design is governed by a handful of non-negotiable structural criteria. The mullion span, typically floor-to-floor, must resist positive and negative wind pressures calculated per ASCE 7-22 or the relevant regional code. Deflection under design wind load is generally limited to L/175 of the span, though projects with brittle stone infills or large glass units may tighten this to L/240 or even L/360. Transom deflection is often held to L/175 or 3mm, whichever is less, to prevent glass edge stress. Thermal movement is another critical calculation. Aluminium expands at approximately 2.4mm per meter per 100°C temperature swing. A 4-meter mullion on a south-facing elevation in Dubai can move over 8mm between winter night and summer afternoon. Expansion joints at mullion splices, typically sleeved with internal aluminium connectors, must accommodate this movement without binding or transferring stress to the glass. Engineers who neglect thermal movement in the detailing phase will see it manifest as broken glass, buckled pressure plates, or torn gaskets within the first year of service.

Installation Sequencing: The Method Statement That Prevents Leaks

A disciplined installation sequence is the difference between a watertight façade and a litigation headache. The process begins with survey and setting out. Anchor brackets are installed on the slab edge, and a laser or total station is used to establish the mullion centerlines. Vertical mullions are hung and temporarily braced. Horizontal transoms are then installed, and the grid is squared and checked for racking. Glazing pockets are cleaned, setting blocks are placed at quarter points, and glass units are lowered into position. Pressure plates are torqued to the manufacturer's specified value, typically 8-12 Nm, using calibrated torque wrenches. Over-torquing crushes the gasket and creates a leak path; under-torquing leaves the glass loose. Silicone weather seals are applied last, and the entire elevation is flood-tested before interior finishes proceed. This sequence is not optional. Shortcuts at any stage, particularly skipping the flood test, convert a manageable installation risk into a multi-trade remediation nightmare.

Solid Aluminium Cladding Panels Within the Stick Grid

Spandrel areas, column covers, and parapet cladding within a Stick Aluminium Curtain Wall are frequently executed using solid aluminium cladding panels rather than glass. The rationale is straightforward: solid panels conceal structural steel, insulation, and ductwork at a fraction of the cost of spandrel glass, and they eliminate the risk of visual mismatch between vision glass and back-painted spandrel glass over time. A 2.5mm or 3.0mm solid aluminium sheet, brake-formed with stiffener ribs bonded to the rear face, provides a flat, drum-free appearance that holds up under raking light. PVDF coatings in custom colors allow the solid panel zones to match or contrast with the adjacent glass areas. From a procurement standpoint, specifying solid aluminium panels from a supplier like Futeng® that maintains tight gauge tolerances and consistent PVDF film thickness across production batches ensures that adjacent panels on the same elevation read as a single uniform surface rather than a patchwork of slightly different shades.

Thermal Performance: Breaking the Thermal Bridge

Energy codes are pushing stick curtain wall design toward thermally broken profiles as the default specification. A non-thermal stick system, where the aluminium mullion extends continuously from exterior to interior, creates a direct conductive path that can drop the interior frame temperature below the dew point in cold climates. The result is condensation on the mullions, staining of interior finishes, and mold growth inside the glazing pocket. Thermal break technology inserts a low-conductivity polyamide strut between the interior and exterior aluminium extrusions, typically 24mm to 34mm in depth, mechanically crimped under controlled pressure. A properly designed thermal break can improve the frame U-factor from over 5.0 W/m²K to below 2.0 W/m²K, bringing the assembly into compliance with ASHRAE 90.1 or local building energy codes. The cost premium for thermally broken profiles is real, roughly 15-25% over non-thermal equivalents, but in most regulated markets the choice is not whether to use thermal breaks but how deep they need to be to meet the specified U-value.

Cost Drivers: Where Stick Systems Save Money and Where They Don't

The cost narrative around stick construction is often oversimplified. Yes, the per-square-meter material cost of a stick system is lower than a unitized system. Mullions, transoms, gaskets, and pressure plates ship in compact bundles rather than as volumetric pre-glazed panels, reducing freight costs by 30-50% on long-haul routes. No specialized lifting equipment is required beyond a basic hoist or scaffold. But the on-site labor component is substantially higher. A skilled stick curtain wall crew installs 15-25 square meters per worker per day, compared to 40-60 square meters for unitized panels. On a union-rate project in a major North American or European city, the labor differential can erase the material savings entirely. The economic sweet spot for stick systems is projects where the façade geometry is too complex for unitized panels, where the building height does not justify crane time, or where the project is in a region with competitive skilled labor rates. For a 5-story building with multiple step-backs and curved corners, stick is almost certainly cheaper overall. For a 40-story rectangular tower, unitized will win on speed and total installed cost.

Quality Control: What to Inspect Before the Glass Goes In

The window for effective quality control on a stick curtain wall installation is narrow. Once the glass is in and the pressure plates are on, the structural connections and seal continuity are hidden. Inspection must happen at the anchor bracket stage, the mullion alignment stage, and the gasket installation stage. Anchor embedment depth and edge distance must be verified against the structural engineer's calculations. Mullion plumbness should be checked with a digital inclinometer; a deviation of more than 3mm over a 4-meter length is cause for correction. Splice joint gaps must be measured with feeler gauges to confirm the expansion allowance matches the thermal movement calculation. Gasket corners must be vulcanized or use purpose-molded corner blocks, never simply mitered and butted, because a 1mm gap at a gasket corner is a guaranteed leak point under wind-driven rain. The AAMA 501.2 water penetration test, conducted with a calibrated spray rack, should be completed on a representative mockup before production installation begins. Finding a leak on a 3-meter by 3-meter mockup is a lesson learned. Finding it on a completed 2,000-square-meter elevation is a financial disaster.

Comparing Stick and Unitized: A Decision Framework for Project Teams

The choice between stick and unitized is not a matter of one being better than the other. It is a question of which system aligns with the project's constraints. Stick systems reward buildings with complex geometry, low to moderate height, and access to skilled on-site labor. Unitized systems reward tall, repetitive buildings with tight schedules and expensive crane time already budgeted. A hybrid approach is increasingly common: unitized panels for the tower floors and stick construction for the podium, entrance canopies, and any areas with irregular geometry. This hybrid strategy captures the speed advantage of unitized where the façade is repetitive and the flexibility of stick where the geometry demands it. The key is to make the decision early, ideally during schematic design, because the slab edge detailing, anchor embed locations, and tolerance expectations differ between the two systems. Changing from unitized to stick after construction documents are issued will trigger a redesign of the slab edge waterproofing, the floor-to-floor fire stopping, and the structural anchor system.

Fire Safety and Perimeter Containment

Fire safety in stick curtain wall design extends beyond the material combustibility of the components. Aluminium mullions, gaskets, and silicone seals are all non-combustible or limited-combustible materials, but the critical fire safety issue is the perimeter void between the slab edge and the curtain wall back pan. This gap, typically 50mm to 100mm wide, is a vertical smoke and flame pathway that must be sealed at every floor level. Approved fire stopping systems, typically mineral wool compression-fit with intumescent coating, are installed in this void and tested to ASTM E2307 or EN 1366-4. The fire stop must accommodate the dynamic movement of the curtain wall under wind and thermal cycling without dislodging. A stick system's piece-by-piece assembly makes it easier to install and inspect the fire stopping compared to unitized panels, where the fire stop is often pre-installed in the factory and must be verified at the joint between adjacent panels. For projects in jurisdictions with stringent fire engineering requirements, the accessibility of the slab edge in a stick system can be a genuine safety advantage.

Acoustic Performance in Urban Environments

Urban projects increasingly demand acoustic performance data as part of the curtain wall specification. A Stick Aluminium Curtain Wall with standard 6mm monolithic glass and non-thermal frames typically achieves an STC rating of 28-32, which is inadequate for buildings adjacent to highways, rail corridors, or flight paths. Upgrading to laminated glass with an acoustic PVB interlayer, combined with dual-durometer gaskets that seal the glass-to-frame interface, can push the STC rating to 38-42. The frame itself contributes to sound transmission through flanking paths, particularly at mullion splice joints and transom connections. Acoustically rated stick systems incorporate continuous gasket runs across splice joints and use heavier mullion sections that reduce resonant vibration. Specifying an STC 40 assembly adds approximately 15-20% to the glazing cost and requires careful detailing of the perimeter sealant joints, but for a hotel or residential tower in a noisy corridor, the alternative is occupant complaints and post-occupancy remediation that costs far more.

Sourcing Aluminium Extrusions and Cladding Panels: Supply Chain Realities

The global supply chain for aluminium curtain wall components has stabilized since the disruptions of recent years, but lead times remain longer than pre-pandemic norms. Extruded mullions and transoms in standard 6063-T6 alloy with a mill finish typically ship 6-8 weeks from order, while PVDF-coated extrusions add 3-4 weeks for the coating process. Solid aluminium cladding panels in custom colors require 8-12 weeks from approved shop drawings to delivery, depending on the complexity of the panel geometry and the coating batch scheduling. For projects with compressed timelines, specifying a standard RAL color from a supplier's in-stock PVDF range can cut 2-3 weeks from the lead time. Suppliers like Futeng® that maintain buffer stock of common alloy gauges and offer in-house PVDF coating lines can provide more predictable delivery schedules than operations that outsource coating to third-party applicators. The procurement lesson is to place the extrusion and panel order as soon as the shop drawings are approved, not when the site is ready to receive materials. A two-week delay in placing the order becomes a six-week delay in delivery.

Maintenance, Longevity, and the 30-Year Façade

A well-designed Stick Aluminium Curtain Wall should deliver a 30-year service life with routine maintenance, and the maintenance burden is modest. Annual inspection of perimeter sealant joints, cleaning of weep holes and drainage channels, and re-torquing of accessible pressure plate fasteners are the primary tasks. PVDF-coated aluminium surfaces should be cleaned with a mild detergent solution and soft brush every 6-12 months, depending on environmental exposure, to remove accumulated particulates that can etch the coating over time. The most common failure mode in aging stick systems is gasket degradation. EPDM gaskets typically last 20-25 years before they lose elasticity and begin to crack. Silicone gaskets can last 30 years or more. When gaskets fail, the repair involves removing the pressure plates, replacing the gaskets, and re-torquing the fasteners. It is a labor-intensive but straightforward process that does not require removing the glass. The accessibility of stick system components for maintenance and repair is a long-term cost advantage that is often overlooked in the initial procurement decision but becomes sharply relevant by year 15 of the building's life.

"A stick curtain wall is only as good as its weakest splice joint. The difference between a 30-year façade and a 5-year leak problem is usually found in the detailing of the mullion-to-transom connection and the quality of the gasket installation."

Making the Right Call for Your Next Project

The decision to specify a Stick Aluminium Curtain Wall should be driven by the specific geometry, height, schedule, and labor market of the project at hand. For buildings under 10 stories with complex elevations, stepped profiles, or curved façades, stick construction remains the most cost-effective and technically appropriate solution. The system's tolerance for field adjustment, lower logistics costs, and compatibility with both glass and solid aluminium cladding panels make it a versatile platform that adapts to architectural intent rather than forcing the architecture to adapt to the system. The trade-offs are real: longer site duration, higher on-site labor content, and weather-dependent installation. But these trade-offs are manageable with proper sequencing, a disciplined quality control regime, and early engagement with an experienced façade contractor. The projects that run into trouble are those where the stick-versus-unitized decision is postponed, the shop drawings are rushed, or the installation crew is asked to work without a proper method statement and inspection hold points. Get those fundamentals right, and the stick system will deliver a façade that performs thermally, structurally, and aesthetically for decades.
