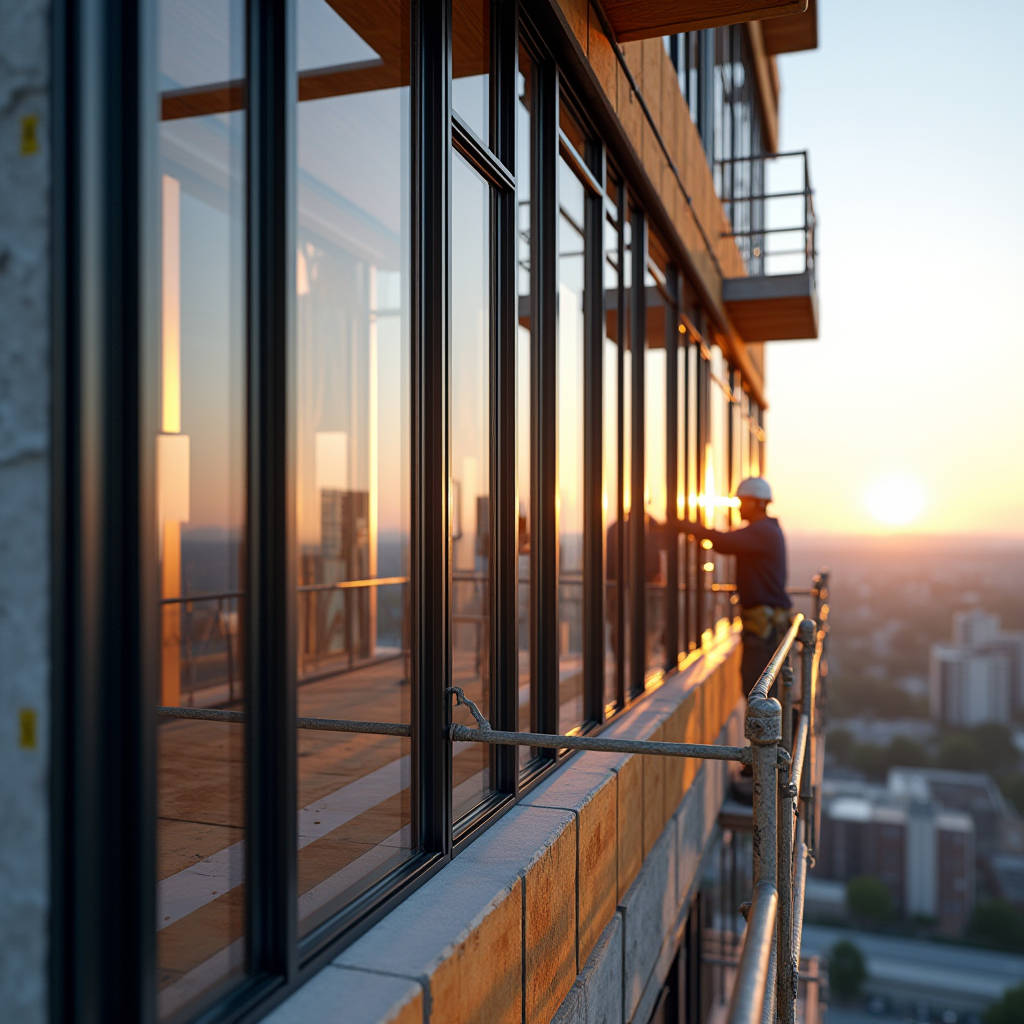

Stick Aluminum Curtain Wall Thermal Break Design and On Site Assembly Economics for Mid Rise Facades

When a project team sits down to evaluate facade options for a mid-rise commercial building, the conversation almost always lands on the same question: how do we balance cost, thermal performance, and on-site flexibility without compromising the architectural vision? The answer, in a growing number of specifications across Southeast Asia, the Middle East, and North America, is a Stick Aluminum Curtain Wall system engineered for high thermal loads and rapid field assembly. Unlike unitized panels that demand factory pre-assembly and crane-dependent installation, stick-built systems give contractors direct control over mullion spacing, bracket placement, and perimeter seal detailing — all while meeting increasingly stringent energy codes like ASHRAE 90.1 and EN 13947. What makes this approach particularly relevant right now is the convergence of three market forces: rising aluminum billet costs pushing fabricators toward leaner extrusion designs, tighter project timelines demanding just-in-time material delivery, and a sharp industry focus on thermal break technology that actually performs in hot-humid climates. This article examines the intersection of these forces through the lens of stick system engineering, focusing on thermal break selection, wind load distribution, and the real-world economics of on-site assembly.

Why Stick Systems Still Dominate Mid-Rise Facade Specifications

The construction industry has a habit of chasing the newest thing. Unitized curtain walls grabbed headlines for a decade, and now panelized systems are gaining traction in modular construction circles. But walk onto any 8-to-25-story job site in Bangkok, Dubai, or Dallas, and you are far more likely to see crates of extruded aluminum mullions and transoms waiting to be assembled piece by piece. The reason is not nostalgia — it is arithmetic.

A Stick Aluminum Curtain Wall system eliminates the freight cost of shipping assembled glazed panels across oceans. It reduces the upfront factory setup charges that unitized systems demand. And it gives the installation crew the ability to adjust for slab edge deviations, which on a typical concrete-frame building can easily reach ±15 mm across a single floor plate. When those deviations meet a rigid pre-assembled panel, the result is either a compromised air seal or an expensive last-minute bracket redesign. When they meet a stick system, the mullion anchor can be shimmed and adjusted on the spot.

This flexibility extends to design changes mid-construction — a reality that architects and developers rarely admit to but that every experienced facade contractor plans for. A stick system allows the glazing subcontractor to modify spandrel panel dimensions, change vision glass specifications, or adjust operable window locations weeks after the aluminum has been delivered to site. That kind of late-stage adaptability carries real financial value on complex projects.

Thermal Break Engineering: The Hidden Performance Differentiator

If there is one technical detail that separates a competent stick curtain wall from one that will generate callbacks for years, it is the thermal break. The concept is simple: interrupt the conductive aluminum path between exterior and interior with a low-conductivity polymer. The execution is anything but simple.

Modern thermal breaks for Stick Aluminum Curtain Wall systems fall into two broad categories: polyamide (PA66) strips reinforced with glass fiber, and polyurethane (PU) poured-and-debridged systems. The performance difference between them is not trivial. A well-designed PA66 break with a 30 mm to 42 mm strip width can achieve a Uf value (frame thermal transmittance) between 1.8 and 2.8 W/m²K, depending on mullion depth and glazing pocket geometry. PU systems, which physically separate the interior and exterior aluminum profiles after curing, can push Uf values below 1.4 W/m²K — a threshold that matters enormously for projects targeting LEED v4.1 or BREEAM certification.

What gets overlooked in specification discussions is the shear strength requirement. A thermal break does not just sit there; it must transfer structural loads between the interior and exterior aluminum halves. For a 3.5-meter mullion span carrying a 2.0 kPa wind load, the shear stress on the thermal break can exceed 6 MPa. PA66 strips with 25% glass fiber reinforcement typically handle 24-30 MPa in shear, giving a comfortable safety factor. But cheap, unreinforced polymer strips — sometimes found in non-certified systems — can fail at half that value. The failure mode is not dramatic; it is a slow creep that manifests as sagging glass panels and leaking joints three to five years after handover.

Futeng® has observed this pattern repeatedly in facade remediation projects across tropical climates, where the combination of high ambient temperatures and strong solar radiation accelerates polymer degradation in under-specified thermal breaks. The lesson for specifiers: demand test reports showing thermal break shear strength per AAMA 505-18, not just U-value calculations.

Wind Load Distribution and Mullion Sizing: Beyond the Rule of Thumb

Every curtain wall engineer knows the basic formula: wind pressure multiplied by tributary area equals load on the mullion. But stick systems introduce a layer of complexity that unitized systems avoid. Because mullions are installed as individual sticks and spliced on site, the splice joint becomes a moment connection that must be designed and tested — not just assumed to work.

Consider a typical 150 mm × 65 mm extruded aluminum mullion with a 3.0 mm wall thickness, spanning 4.0 meters between floor slabs. Under a design wind load of 2.5 kPa (roughly corresponding to a 160 km/h wind speed per ASCE 7-22), the maximum bending moment at mid-span approaches 5.0 kN·m. The mullion's section modulus needs to be at least 35 cm³ to keep the bending stress below the 160 MPa allowable for 6063-T6 aluminum. That math is straightforward. What is less straightforward is the splice sleeve.

The splice sleeve — typically a 250 mm to 350 mm aluminum insert that slides inside the mullion at the joint — must transfer bending moment across the joint while allowing for thermal expansion. A 4-meter mullion stick in a dark bronze anodized finish can expand by 2.4 mm between a 10°C winter night and a 70°C summer afternoon surface temperature. If the splice sleeve is too tight, thermal buckling occurs. If it is too loose, moment transfer fails. The sweet spot is a sleeve that engages at least 150 mm into each mullion segment, with a clearance gap of 3-5 mm for expansion, and a shear capacity of at least 15 kN.

For projects in coastal or typhoon-prone regions, specifiers should also verify that the stick system has been tested for cyclic wind loading per AAMA 501.1-17. Static pressure tests tell you the system can survive a single peak gust. Cyclic testing tells you it can survive 10,000 gusts over a 50-year service life. The difference matters.

On-Site Assembly Economics: Labor, Tolerances, and Hidden Costs

The financial case for a Stick Aluminum Curtain Wall hinges on a trade-off that every quantity surveyor should model explicitly: lower material handling and freight costs versus higher on-site labor hours. The numbers vary by region, but a useful benchmark from Southeast Asian projects is as follows.

These figures assume a 10,000 m² facade area on a 15-story building with relatively straightforward geometry. Complex 3D geometries, curved facades, or projects requiring extensive scaffolding will shift the labor cost upward for stick systems — but the freight advantage remains. The break-even point where unitized becomes cheaper is typically around 25-30 stories, though this varies with local labor rates.

One cost that gets buried in preliminaries is tolerance accommodation. Concrete-frame buildings in many markets are poured with slab edge tolerances of ±20 mm. A unitized panel with a 10 mm joint cannot absorb that without custom brackets. A stick system can, because the mullion anchor can be packed out or shimmed during installation. The value of that flexibility is hard to quantify on a spreadsheet, but any project manager who has dealt with a 200-panel re-order because of slab edge misalignment will tell you it is real.

Solid Aluminum Cladding Integration: Spandrel Panels and Shadow Boxes

Vision glass gets the attention, but spandrel areas — the opaque zones between floors that hide slab edges, mechanical ducts, and structural steel — are where the thermal and aesthetic performance of a curtain wall is often won or lost. This is where solid aluminum cladding panels enter the specification conversation.

In a Stick Aluminum Curtain Wall, spandrel zones are typically infilled with 2.5 mm or 3.0 mm thick solid aluminum panels, factory-finished with a PVDF coating system (minimum 70% Kynar 500® resin, 30-35 microns dry film thickness per AAMA 2605). The panels are installed into the same mullion and transom grid as the vision glass, creating a uniform exterior appearance. Behind the panel, insulation — typically mineral wool at 80-120 kg/m³ density — fills the cavity between the panel and the interior backup wall.

The thermal performance of this assembly depends heavily on the detailing. A common mistake is to treat the spandrel panel as thermally isolated simply because it is opaque. In reality, the aluminum panel is a high-conductivity element that can short-circuit the thermal break in the mullion if the panel edge is not properly isolated. The correct detail uses a thermal isolator pad between the panel edge and the aluminum pressure plate, combined with a continuous vapor barrier on the warm side of the insulation to prevent condensation within the cavity.

For projects requiring a shadow box effect — where the spandrel appears to have depth behind the glass — solid aluminum panels with a dark PVDF or anodized finish are installed 50-100 mm behind the outer glass plane, with a perforated or louvered ventilation path to prevent heat buildup. The temperature inside an unventilated shadow box on a south-facing facade can exceed 90°C, which will degrade standard silicone sealants within a few years. Ventilated shadow boxes with a minimum 500 mm² of open area per linear meter of spandrel width are strongly recommended.

Coating Specification for Coastal and Industrial Environments

Not all PVDF coatings are created equal, and the difference becomes painfully visible about seven years into a building's life. For Stick Aluminum Curtain Wall components — including extruded mullion caps, pressure plates, and solid aluminum spandrel panels — the coating specification must match the environmental exposure.

The key takeaway from this table is that coastal projects — defined as within 5 kilometers of saltwater — should not use standard anodized finishes on exposed aluminum components. Salt spray testing per ASTM B117 shows that Class I anodized aluminum (AA25) develops visible pitting within 1,000 hours of exposure, equivalent to roughly 3-5 years in a coastal environment. PVDF coatings with a proper chrome-phosphate pretreatment and epoxy primer layer routinely exceed 3,000 hours in the same test without significant degradation.

For industrial environments with elevated SO₂ levels — common near coal-fired power plants or heavy manufacturing zones — FEVE fluoropolymer coatings offer better chemical resistance than standard PVDF, though at a 15-20% cost premium. The specifier's decision should reference ISO 12944-2 corrosion categories: C3 for urban, C4 for industrial, and C5-M for marine/coastal.

Water Management: Pressure-Equalized vs. Drained-and-Vented

Water penetration is the number one source of curtain wall litigation globally. The American Architectural Manufacturers Association (AAMA) publishes test standards that are widely referenced in specifications, but the choice between a pressure-equalized (PE) and a drained-and-vented (DV) system is an engineering decision that should be made early in design development.

A pressure-equalized Stick Aluminum Curtain Wall uses compartmentalized glazing pockets with strategically sized vents that allow exterior air pressure to equalize behind the glazing gasket. When wind-driven rain hits the facade, the pressure differential across the outer seal is near zero, so water is not pushed through the joint. The system relies on a secondary internal seal and drainage paths to handle any water that does enter. PE systems require careful sizing of the equalization vents — typically 50-75 mm² per linear meter of joint — and compartmentalization at every transom to prevent vertical air movement that would defeat the equalization effect.

Drained-and-vented systems are simpler: water that penetrates the outer seal is collected in a gutter at the transom and drained to the exterior through weep holes. No attempt is made to equalize pressure. DV systems are less expensive to engineer and test, but they are more vulnerable to water ingress under high wind conditions because the pressure differential actively drives water through the outer seal.

For buildings over 30 meters in height, or in regions with design wind speeds exceeding 140 km/h, a pressure-equalized system is strongly recommended. The additional engineering cost — typically $3-5 per square meter — is cheap insurance against the alternative: a full facade remediation that can cost $200-400 per square meter.

Fire Safety and Perimeter Containment

Fire safety in curtain wall design has moved from a niche concern to a central specification requirement, driven by high-profile facade fires and the subsequent tightening of building codes worldwide. The National Fire Protection Association (NFPA 285) test standard in the United States, and similar standards such as BS 8414 in the UK and AS 5113 in Australia, now govern the fire performance of exterior wall assemblies including Stick Aluminum Curtain Wall systems.

The critical detail is the perimeter fire barrier — the horizontal seal between the curtain wall and the slab edge at each floor level. This barrier must prevent vertical fire spread through the gap between the curtain wall and the structural floor. A compliant assembly typically includes a mineral wool compression-fit firestop (minimum 100 mm thickness, 100 kg/m³ density), a smoke seal on the interior side, and a steel or aluminum support bracket anchored to the slab edge. The entire assembly must be tested as a system; individual components that carry fire ratings do not guarantee system-level performance.

For spandrel zones, the use of solid aluminum panels as the exterior skin introduces a material that is non-combustible (aluminum does not burn) but that melts at approximately 660°C. In a fully developed compartment fire, temperatures can exceed 1,000°C. The spandrel assembly must therefore include a fire-rated backing — typically two layers of 16 mm calcium silicate board or a proprietary fire-rated insulation system — behind the aluminum panel to maintain compartmentation for the required fire resistance period (typically 60-120 minutes depending on building height and occupancy).

Quality Assurance: What to Inspect Before the Mullions Go Up

The quality of a Stick Aluminum Curtain Wall installation is largely determined by what happens before the first mullion is bolted to an anchor. A rigorous incoming material inspection protocol should cover at minimum the following points:

• Extrusion dimensional tolerances: Check mullion and transom cross-sections against the approved shop drawings. Wall thickness should be measured with an ultrasonic gauge at multiple points. Tolerances per The Aluminum Association standards: ±0.15 mm for wall thickness on extrusions up to 3.0 mm nominal.
• Thermal break integrity: For PA66 strip systems, verify the mechanical interlock by checking for gaps between the strip and the aluminum profile. A 0.1 mm feeler gauge should not penetrate more than 3 mm into the joint.
• PVDF coating quality: Perform a dry film thickness (DFT) check per ASTM D7091 on a minimum of 5% of panels and extrusions. Reject any material with DFT below 28 microns (for 30-micron spec) or above 45 microns (risk of mud-cracking).
• Gasket and sealant shelf life: EPDM gaskets have a shelf life of approximately 5 years from manufacture date. Silicone sealants typically carry a 12-month shelf life. Verify date codes before installation.
• Anchor embedment testing: For post-installed anchors in concrete, perform pull-out tests on a minimum of 5 anchors per floor level, or per ASTM E488 requirements.

These inspections add perhaps two days to the project schedule and a few thousand dollars to the QA budget. They are incomparably cheaper than the alternative: discovering after glazing that the mullion wall thickness is 0.3 mm under spec, or that the thermal breaks are delaminating because the extrusion supplier ran the roll-forming line too fast.

Supply Chain Strategy: Why Lead Times Are Shrinking

The global aluminum extrusion industry has undergone significant consolidation and capacity expansion since 2022, with major production hubs in China, the Gulf Cooperation Council (GCC) countries, and Eastern Europe adding press capacity. For Stick Aluminum Curtain Wall procurement, this means that standard 6063-T6 extrusion profiles with common die designs can now be sourced with lead times of 4-6 weeks from order to FOB, down from 8-12 weeks during the supply chain disruptions of 2020-2022.

However, custom die profiles — required for architecturally distinctive mullion cap shapes or integrated LED lighting channels — still require 6-8 weeks for die fabrication plus 4-6 weeks for extrusion production. The procurement strategy should account for this: order standard profiles early to lock in pricing, and allow additional float for custom profiles.

For solid aluminum spandrel panels, the lead time is driven primarily by the PVDF coating line schedule. Most coating lines batch similar colors to minimize purge waste, so a non-standard color — anything other than RAL 9006 (white aluminum), RAL 7016 (anthracite grey), or a handful of other high-volume colors — can add 2-3 weeks to the panel delivery schedule. Specifiers who want to avoid delays should select from the coating supplier's standard color range or accept a minimum order quantity surcharge for custom colors.

Futeng® has invested in dedicated PVDF coating capacity for solid aluminum panels in the 2.0 mm to 3.0 mm thickness range, with a standard color palette of 28 RAL and custom-matched shades available. The practical implication for project planners is that panel lead times can be compressed to 3-4 weeks when the color is selected from the standard range, compared to 6-8 weeks for full custom colors.

Making the Right Call for Your Next Project

The decision to specify a Stick Aluminum Curtain Wall is not a default choice — it is an engineering and commercial decision that should be made with eyes open to both the advantages and the constraints. The system rewards projects with moderate building heights, complex or changing geometries, and sites where crane access is limited or expensive. It penalizes projects where on-site labor is extremely costly or where weather conditions make extended site work impractical.

The technical fundamentals that separate a successful stick curtain wall from a problematic one are well established: specify thermal breaks with verified shear strength, design splice sleeves for both moment transfer and thermal movement, select coatings based on environmental exposure rather than initial cost, and invest in pre-installation QA inspections. These are not theoretical concerns. They are the difference between a facade that performs quietly for 30 years and one that generates a steady stream of leakage complaints, thermal discomfort reports, and eventually, a legal claim.

For the specifier, the most important document is not the system brochure or the unit price quotation. It is the test report — the AAMA 501.1 cyclic wind test, the ASTM E283 air leakage test, the ASTM E331 water penetration test, and the NFPA 285 fire test where applicable. If the system supplier cannot produce these reports for the specific configuration being specified, the conversation should end there. A curtain wall is a building system, not a collection of extruded profiles. It performs as a system, or it fails as a system. There is no middle ground.
