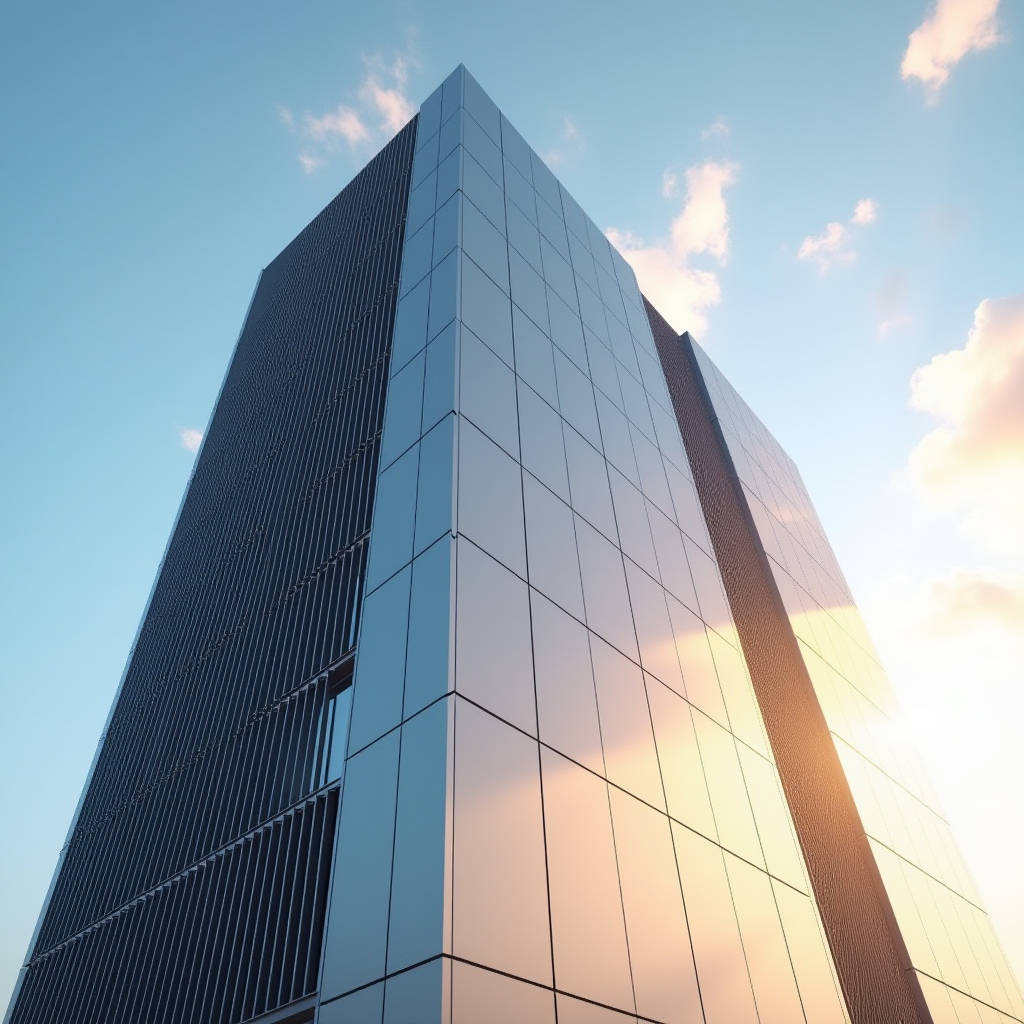

Aluminum Honeycomb Facade Engineering Parameters That Determine Long Term Performance

An Aluminum Honeycomb Facade represents one of the most significant structural shifts in modern building envelope design. The core principle is straightforward: two thin aluminum skins bonded under heat and pressure to a hexagonal aluminum honeycomb core, creating a sandwich panel that delivers the flatness of a much thicker solid sheet at a fraction of the weight. For facade engineers and procurement managers, the conversation is not about whether this material works. It is about understanding the specific mechanical limits, fire performance thresholds, and long-term durability data that determine whether a honeycomb panel survives 30 years on a high-rise or begins to delaminate in year seven. This article focuses on the engineering parameters that matter most when specifying an Aluminum Honeycomb Facade: core cell geometry, skin-to-core bond integrity, thermal expansion management, and the fabrication tolerances that separate commodity panels from systems that perform on 60-story curtain walls.

Core Cell Geometry and Why It Dictates Panel Performance

The hexagonal aluminum core is not a generic commodity. Cell size, foil thickness, and cell wall angle directly control shear strength, compressive modulus, and the panel's ability to resist oil-canning under thermal load. Most architectural-grade Aluminum Honeycomb Facade panels use cores conforming to ASTM C365 for flatwise compressive strength and ASTM C273 for shear properties. Common cell sizes range from 6mm (1/4 inch) to 19mm (3/4 inch), with foil gauges between 0.05mm and 0.1mm.

Smaller cell sizes (6mm to 9mm) provide higher compressive strength and better skin support, which translates to superior flatness on large-format panels exceeding 1500mm in width. The trade-off is weight and cost. A 6mm cell core with 0.076mm foil adds roughly 2.8 kg/m² to the panel weight compared to a 12mm cell core of the same foil thickness. For a 20,000-square-meter facade project, this difference amounts to 56 metric tons of additional aluminum hanging on the building structure. Engineers must weigh this against the flatness requirements: a panel with a 12mm cell core may exhibit 0.5mm to 0.8mm of deflection under 1.5 kPa wind load, while a 6mm cell core panel under identical conditions might deflect only 0.2mm to 0.4mm.

The cell wall angle matters too. Standard hexagonal cores are manufactured with 120-degree cell wall angles, but some suppliers offer over-expanded cores with thinner walls and wider angles, which reduce density but also reduce shear stiffness. For curtain wall applications where panels span between mullions, shear stiffness is the property that prevents the panel from buckling. Specifying a core with minimum 1.5 MPa shear modulus is a reasonable baseline for exterior facades. Anything below that threshold risks visible deformation under combined wind and thermal loading.

Skin-to-Core Bond Integrity and the Delamination Risk

The bond between the aluminum skins and the honeycomb core is the single most common failure point in Aluminum Honeycomb Facade systems. The industry uses two primary bonding technologies: thermoplastic adhesive films and thermoset epoxy films. The performance gap between them widens dramatically as panel surface temperatures rise.

Thermoplastic films, typically modified polyolefins or polyamides, soften predictably as temperature increases. A dark-colored panel on a south-facing facade in Dubai or Phoenix can reach surface temperatures of 85°C to 90°C. At these temperatures, thermoplastic bonds can lose 40% to 60% of their room-temperature peel strength. Thermoset epoxy films, by contrast, cross-link during the curing process and do not re-soften. They maintain peel strength above 4 N/mm across the full temperature range from -40°C to 120°C, which covers virtually every architectural exposure scenario.

The peel test itself deserves attention. ASTM D1781 is the standard climbing drum peel test for sandwich panels. A minimum peel strength of 3.5 N/mm at 23°C is widely accepted for architectural panels. However, procurement specifications should also require peel testing at 80°C for projects in hot climates. The difference between a panel that passes at room temperature and one that passes at 80°C is often the difference between a 10-year facade and a 30-year facade.

Surface preparation of the aluminum skins before bonding is equally critical. Chromate conversion coating per MIL-DTL-5541 Type I Class 3 provides an excellent bonding surface while also adding corrosion resistance. Some manufacturers skip this step to reduce cost, relying solely on the PVDF coating on the exterior face. This creates a risk: if the coating adhesion fails, the entire bond stack is compromised. A proper specification should require chromate or anodized surface treatment on the interior skin face that contacts the adhesive film.

Thermal Expansion Management in Large-Format Panels

Aluminum has a coefficient of thermal expansion of approximately 23.8 × 10⁻⁶ per °C. For a 4-meter-long Aluminum Honeycomb Facade panel experiencing a 60°C temperature swing from winter night to summer afternoon, the unrestrained thermal movement is about 5.7mm. If the panel is rigidly fixed at multiple points, this movement converts to compressive stress that can buckle the skins or shear the core.

The solution lies in the mounting system design. Most properly engineered Aluminum Honeycomb Facade installations use a combination of fixed points and sliding points. A single fixed point near the panel center handles dead load and provides positional reference. All other attachment points are slotted or use sliding clips that permit thermal movement in the plane of the panel. The slot length must accommodate the calculated thermal movement plus a safety factor of 1.5, meaning a 5.7mm expected movement requires at least 8.5mm of slot travel.

Edge restraint conditions also influence thermal performance. Panels with fully captured edges where the return leg is folded and bonded to the core exhibit different thermal behavior than panels with open edges. Captured-edge panels are stiffer and resist bowing, but they also concentrate thermal stress at the perimeter bond line. Open-edge panels relieve some of this stress but require edge sealant to prevent moisture ingress into the core. For most exterior applications, captured-edge construction with a minimum 20mm return leg is the preferred configuration, provided the adhesive system has been validated for thermal cycling per AAMA 620.

Fire Performance and Code Compliance Across Jurisdictions

Fire performance is where many Aluminum Honeycomb Facade specifications fall short. The aluminum itself is non-combustible, but the core bonding adhesive and any internal sealants are organic materials that contribute to fire load. The relevant test standards vary by jurisdiction: ASTM E84 in North America, EN 13501-1 in Europe, AS 1530.3 in Australia, and GB 8624 in China.

A panel with a thermoset epoxy adhesive system and no additional combustible components can achieve a Class A rating under ASTM E84 with a flame spread index of 25 or less and a smoke developed index of 450 or less. Under EN 13501-1, the same panel may achieve A2-s1,d0 classification, which is the highest rating achievable for a product containing any organic content. The distinction between A2 and B is critical: A2 materials are considered non-combustible for most regulatory purposes, while B materials face restrictions on building height, proximity to property lines, and percentage of facade area.

Procurement managers should request full-scale facade fire test data when available, not just small-scale material tests. Standards such as NFPA 285 in the United States and BS 8414 in the United Kingdom evaluate the entire wall assembly including insulation, air gaps, and the Aluminum Honeycomb Facade panels as a system. A panel that passes ASTM E84 may still fail NFPA 285 if the installation details create chimney effects that propagate flame. The cavity behind the panel, if present, must be fire-stopped at each floor level with mineral wool or intumescent barriers.

Fabrication Tolerances and Quality Control Benchmarks

Flatness is the primary selling point of an Aluminum Honeycomb Facade, but the specification must define what flatness means in measurable terms. The industry benchmark is 0.5mm maximum deviation over a 300mm straight edge placed anywhere on the panel surface. For panels larger than 2 square meters, this tolerance tightens to 0.3mm over 300mm because visual defects become more apparent on larger surfaces.

Dimensional tolerances for panel length and width should be ±1.0mm for panels up to 2000mm and ±1.5mm for panels up to 4000mm. Diagonal tolerance, which affects the ability to align panels in a grid, should be within 2.0mm for panels up to 2000mm diagonal measurement. Thickness tolerance is typically ±0.25mm for the total panel thickness, which is tighter than what solid aluminum sheets achieve because the honeycomb manufacturing process controls thickness more precisely than rolling processes.

Futeng®, as a manufacturer with extensive experience in architectural aluminum products, maintains these tolerances through automated CNC routing, consistent adhesive application, and post-production flatness inspection on granite surface plates. The key is not just measuring flatness at the factory but ensuring it remains stable after shipping and installation. Panels that meet flatness specs at 20°C may bow when exposed to 50°C if the skin-to-core bond has residual stress from uneven adhesive curing.

Coating Systems and Long-Term Aesthetic Performance

The exterior skin of an Aluminum Honeycomb Facade panel carries a coating system that must withstand UV radiation, acid rain, salt spray, and particulate abrasion without significant color shift or gloss reduction. PVDF (polyvinylidene fluoride) coatings based on 70% PVDF resin content remain the industry standard for architectural applications, typically applied at 25-35 microns dry film thickness over a primer layer.

The table below compares the key performance parameters of the three most common coating systems used on Aluminum Honeycomb Facade panels:

FEVE fluoropolymer coatings offer slightly better gloss retention and chemical resistance than PVDF, but at a higher material cost. They are often specified for coastal environments where salt spray accelerates coating degradation. Polyester powder coatings are economical but should be limited to interior applications or sheltered exterior locations where UV exposure is minimal. The AAMA 2605 standard for PVDF and FEVE coatings requires a minimum of 10 years of South Florida exposure testing, which provides the most reliable real-world durability data.

Wind Load Performance and Structural Calculations

An Aluminum Honeycomb Facade panel functions as a structural element that transfers wind loads to the building's secondary framing. The panel's bending stiffness is a function of skin thickness, core thickness, and core shear modulus. For a typical 20mm-thick panel with 0.5mm aluminum skins and a 19mm honeycomb core, the bending stiffness (EI) is approximately 1.2 × 10⁶ N-mm²/mm width, which is comparable to a 3.5mm solid aluminum sheet but at roughly 40% of the weight.

Wind load calculations should follow the local building code: ASCE 7 in the United States, EN 1991-1-4 in Europe, or AS/NZS 1170.2 in Australia. The panel's allowable deflection under design wind load is typically limited to L/175 for the span between supports, where L is the shorter span dimension. For a panel spanning 1200mm between mullions, this means a maximum deflection of 6.9mm. The panel must also resist the ultimate wind load (typically 1.5 times the design load) without permanent deformation or bond failure.

The attachment system contributes to the structural performance. Rout-and-return panels, where the edges are folded back and bonded, provide higher edge stiffness than panels with mechanically attached perimeter extrusions. However, rout-and-return fabrication requires precise CNC routing to avoid cutting into the honeycomb core, which would create a weak point. The routing depth tolerance should be ±0.1mm, and the remaining skin thickness at the rout line should be at least 0.3mm to ensure the return leg has adequate strength.

Acoustic Performance and Rain Noise Considerations

One underappreciated aspect of Aluminum Honeycomb Facade specification is acoustic performance. The sandwich construction provides some inherent damping, but the thin skins can transmit rain impact noise and exterior traffic noise if not properly detailed. The sound transmission class (STC) of a 20mm honeycomb panel is typically 28-32, which is lower than a solid 3mm aluminum sheet (STC 30-34) due to the lower mass per unit area.

For projects where acoustic performance is critical, such as hospitals or residential towers near highways, the specification should include a perforated interior skin with an acoustic fleece or non-woven fabric backing. The perforations, typically 1.5mm to 2.5mm diameter at 15-25% open area, allow sound energy to enter the panel cavity where it is absorbed by the fleece. This configuration can increase the STC to 35-40 and significantly reduce rain noise, which is a common complaint with lightweight metal facades.

Rain noise specifically is measured by the impact sound pressure level under ISO 140-18 or similar standards. A standard Aluminum Honeycomb Facade panel without acoustic treatment generates approximately 55-60 dB of impact sound under heavy rain simulation. Adding a perforated inner skin with acoustic fleece can reduce this to 45-50 dB, which is perceptually about half as loud. The cost premium for acoustic treatment is typically 15-25% of the base panel cost, which must be weighed against the cost of tenant complaints or remedial acoustic work after occupancy.

Supply Chain and Quality Assurance Documentation

Procurement of an Aluminum Honeycomb Facade involves more than selecting a panel specification. The supply chain documentation package should include mill certificates for the aluminum skins traceable to the coil number, core material certificates showing cell size and foil thickness, adhesive batch certificates with cure cycle data, and coating performance test reports from an accredited laboratory.

Third-party inspection during production is standard practice for major projects. Inspectors should verify panel flatness, dimensional accuracy, coating thickness, and bond integrity on a statistical sampling basis. The acceptable quality level is typically 2.5 for major defects (delamination, coating failure, dimensional error exceeding tolerance) and 4.0 for minor defects (cosmetic blemishes, slight color variation within the acceptable ΔE range).

Lead times for custom Aluminum Honeycomb Facade panels range from 8 to 14 weeks depending on the complexity of the panel geometry, the coating system, and the factory's production backlog. Rush orders are possible but typically incur a 15-20% surcharge. Procurement managers should factor in an additional 4-6 weeks for sea freight from manufacturing hubs in Asia to project sites in North America, Europe, or the Middle East, plus 1-2 weeks for customs clearance and inland transportation.

For projects requiring large quantities of panels with consistent quality, working with a manufacturer that has in-house coil coating, CNC routing, and panel lamination capabilities under one roof reduces coordination risk. Futeng® operates integrated production lines that handle the full process from aluminum coil to finished panel, which eliminates the quality gaps that can occur when coating, routing, and bonding are performed by separate subcontractors. The specification should require the manufacturer to provide a single-point warranty covering the complete panel system, not separate warranties for the coating, core, and fabrication.

Installation Sequencing and Site Handling Protocols

Even the best-manufactured Aluminum Honeycomb Facade panel can be ruined by poor site handling. Panels should be stored vertically on A-frame racks with protective interleaving between panels. Horizontal stacking is acceptable only for short durations and only if the stack height does not exceed 1 meter. Panels stored flat for extended periods can develop permanent set, particularly if the bottom panel in the stack bears the weight of all panels above it.

Installation should proceed from a fixed reference point, typically the building corner or a designated control line, with panels installed in a sequence that allows each panel to be adjusted before the adjacent panel is fixed. The joint width between panels is typically 10-15mm for open-joint rainscreen systems and 6-8mm for sealed systems. Joint width consistency is critical for visual appearance; a variation of ±1.5mm is the maximum acceptable deviation across the entire facade.

Lifting large panels requires suction cup lifters with a minimum of four cups per panel, rated for at least twice the panel weight. Mechanical clamps should never be used on the panel edges because they can crush the honeycomb core or damage the coating. For panels exceeding 3 meters in length, a spreader beam should be used to distribute the lifting force and prevent panel flexing during hoisting.

The final inspection after installation should check for panel flatness under ambient conditions, joint width consistency, sealant adhesion (if applicable), and the absence of visible damage such as scratches, dents, or coating blemishes. Any panel that does not meet the specified flatness tolerance after installation should be evaluated for whether the issue is a manufacturing defect or an installation-induced stress. Panels that are forced into alignment by the mounting hardware will eventually relax and may exhibit oil-canning as the internal stresses redistribute over time.

An Aluminum Honeycomb Facade is a high-performance engineered system that rewards careful specification and punishes shortcuts. The decisions made during the design phase about core geometry, adhesive chemistry, coating selection, and attachment detailing determine whether the facade performs quietly for decades or becomes a source of warranty claims and remediation costs. The data exists to make informed choices. The responsibility falls on specifiers and procurement teams to demand it.
