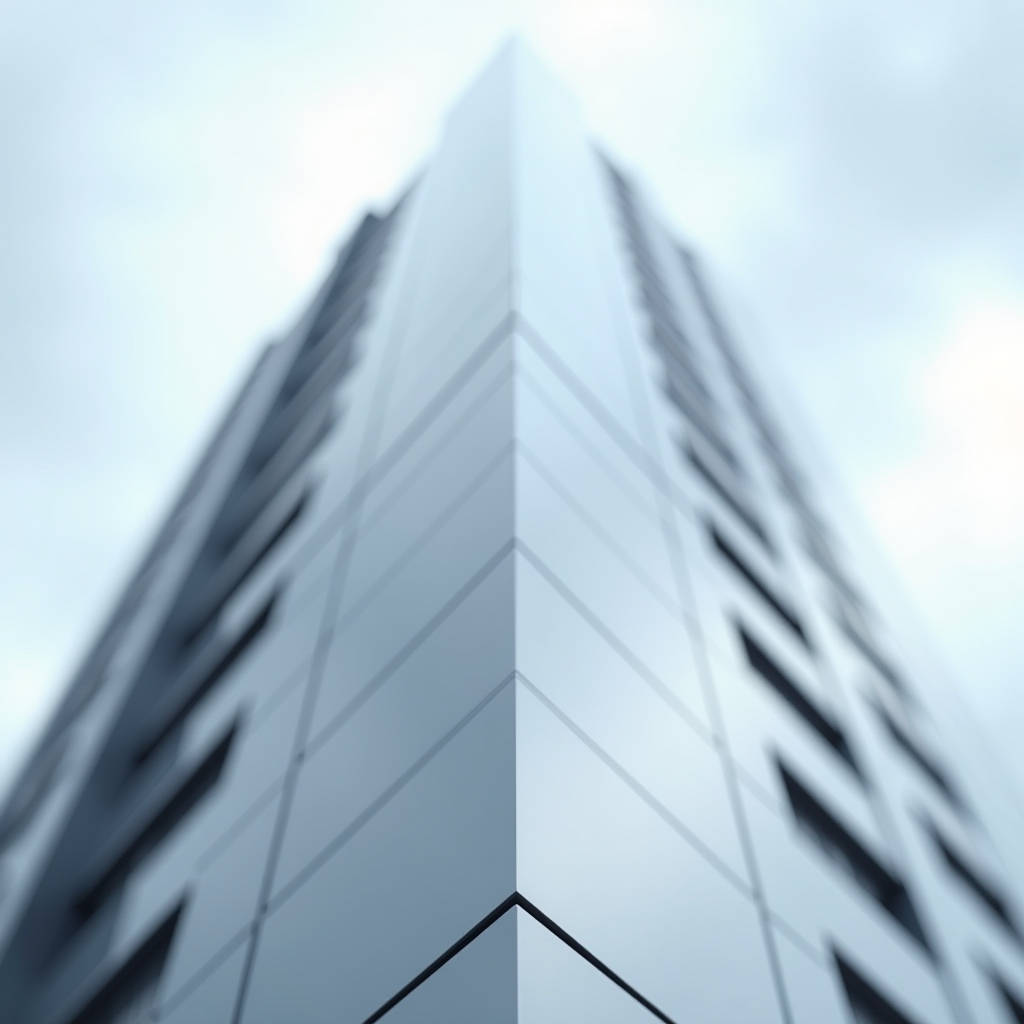

Lightweight Aluminum Cladding Wind Load Performance and Specification Guide for High Rise Facades

When a curtain wall contractor in Dubai asks whether solid aluminum panels can handle 180 km/h wind loads without adding dead weight to the structural frame, the conversation shifts from aesthetics to physics. Lightweight aluminum cladding has become the default answer for high-rise facades in wind-prone regions, but the engineering rationale behind that answer deserves a closer look. This article examines how solid aluminum cladding panels perform under wind load conditions, what calculations drive specification decisions, and where the margin of safety actually sits. The focus is on 2.0 mm to 3.0 mm thick solid aluminum sheets with PVDF or FEVE coatings, the kind that wind tunnel engineers and facade consultants spend months analyzing before a single panel reaches the job site.

Why Wind Load Drives Cladding Specification

Wind load is not a single number. It varies by building height, geographic location, terrain roughness, and local topography. A 60-meter tower in Miami faces different pressure zones than a 12-meter commercial building in Singapore. The governing standard in most international projects is ASCE 7 (Minimum Design Loads for Buildings and Other Structures), which provides the methodology for calculating design wind pressure. For projects in Europe, EN 1991-1-4 serves the same purpose. Both standards require the cladding system to resist positive and negative wind pressure. Negative pressure, or suction, is often the more dangerous of the two. It pulls panels outward, testing the connection between the cladding and the subframe.

Lightweight aluminum cladding offers a distinct advantage here. A solid 2.5 mm aluminum panel weighs approximately 6.8 kg per square meter. Compare that to 8 mm thick fiber cement board at roughly 14 kg/m² or 25 mm granite at 70 kg/m². The reduced dead load means the supporting structure needs less steel, which in turn reduces the overall building weight. That matters for seismic design as well. But the real engineering question is whether a panel that light can resist the suction forces that high winds generate.

The answer depends on three things: the bending strength of the aluminum alloy, the span between fixing points, and the fixing method itself. Most solid aluminum cladding panels use 3003-H14 or 5052-H32 alloy. 5052-H32 offers higher tensile strength (approximately 230 MPa yield strength) compared to 3003-H14 (around 145 MPa). For projects where wind loads exceed 2.0 kPa design pressure, 5052-H32 often becomes the mandatory choice. The panel thickness then follows from the span tables provided by the manufacturer, validated by finite element analysis and sometimes by physical wind uplift testing per ASTM E330.

Field Note: On a 45-story tower in Manila, the facade consultant initially specified 3.0 mm 3003-H14 panels. Wind tunnel testing revealed corner zone suction pressures reaching 3.8 kPa. The specification was revised to 2.5 mm 5052-H32 with reduced fixing centers at 400 mm instead of 600 mm. The switch saved 0.8 kg/m² in panel weight while increasing bending resistance by nearly 40%. Always request the wind tunnel report before finalizing panel gauge.

Understanding Pressure Zones on a Building Facade

Wind does not hit a building uniformly. Every facade is divided into pressure zones. The corners and edges experience significantly higher suction than the central field area. ASCE 7 defines corner zones as extending a distance equal to 10% of the building's least horizontal dimension from each corner, but not less than 1 meter. Edge zones run along the perimeter. The field zone covers the rest.

For a rectangular tower measuring 40 m by 30 m in plan, the corner zone extends 3 meters from each corner. Within that zone, the design wind pressure might be 1.5 to 2.0 times higher than the field zone. This means the same lightweight aluminum cladding panel that works perfectly in the field zone might need a thicker gauge, additional fixings, or a different alloy in the corner zone. Some projects use 2.5 mm panels in the field and 3.0 mm panels at corners. Others keep the same panel thickness but add intermediate stiffeners or reduce the fixing spacing.

The subframe design also changes. Mullion spacing, bracket type, and the connection between the panel tray and the aluminum extrusion all need verification against the zone-specific pressure. A common mistake is designing the entire facade for the field zone pressure and then discovering during shop drawing review that corner zones are under-designed. The fix at that stage is expensive. It means re-engineering, re-fabrication, and sometimes re-tendering.

Lightweight aluminum cladding systems with a tongue-and-groove or cassette profile can help distribute wind load more evenly across the panel surface. The geometry of the panel edge return, typically 20 mm to 25 mm, adds stiffness. Some manufacturers offer integrated stiffener ribs on the rear face of the panel, bonded with structural adhesive. These ribs increase the panel's moment of inertia without adding significant weight. The result is a panel that can span 600 mm to 900 mm between supports while maintaining deflection under L/175 or better, as required by most facade specifications.

ASTM E330 and the Testing Protocol

ASTM E330 is the standard test method for structural performance of exterior windows, doors, skylights, and curtain walls by uniform static air pressure difference. For cladding panels, the test involves mounting a representative sample on a test chamber and applying positive and negative pressure in increments. The test measures deflection at each pressure level. The panel must withstand 1.5 times the design wind pressure without permanent deformation exceeding 0.2% of the span.

For lightweight aluminum cladding, a typical test sequence starts at 0.5 kPa and increases in 0.5 kPa steps. At each step, deflection readings are taken at mid-span and at quarter points. The load-deflection curve should remain linear within the elastic range of the aluminum. If the curve goes non-linear, the panel has yielded and the test is effectively failed. After the maximum test pressure is held for 10 seconds, the pressure is released and residual deflection is measured.

Suppliers like Futeng® who provide solid aluminum cladding panels for international projects typically include ASTM E330 test reports as part of their technical submittal package. The report should include the panel dimensions, alloy, thickness, fixing method, and the measured deflection at each pressure step. A well-prepared report also includes the deflection calculation per classical plate theory, showing correlation between theoretical and measured values. Discrepancies larger than 10% warrant investigation.

The table below summarizes typical wind load performance data for solid aluminum cladding panels of different thicknesses and alloys, based on a 600 mm span with four-edge support:

These values are indicative. Actual performance depends on panel geometry, fixing method, and the specific test setup. Always request project-specific test data or at minimum a validated FEA report from the panel supplier.

Fixing Systems and Their Role in Wind Resistance

The panel is only as strong as its connection to the building. Lightweight aluminum cladding uses three main fixing systems: exposed fastener, concealed clip, and cassette with perimeter extrusion. Each behaves differently under wind suction.

Exposed fastener systems use screws or rivets through the face of the panel. They are the simplest and cheapest. The wind load transfers directly from the panel to the subframe at each fastener location. The failure mode is usually tear-out around the fastener hole, especially if the hole diameter is too large or the edge distance is insufficient. The Aluminum Design Manual (ADM) provides formulas for calculating bearing and tear-out strength. For a 5 mm diameter fastener in 2.5 mm thick 5052-H32, the bearing strength is approximately 2.6 kN per fastener. With four fasteners per panel, the total connection capacity is around 10.4 kN, which is more than adequate for most wind loads. But the panel itself may buckle between fasteners before the connection fails.

Concealed clip systems, also called rainscreen systems, use aluminum clips that engage a groove or slot in the panel edge. The clip is fixed to the subframe, and the panel hangs on it. Under wind suction, the clip resists pull-out. The critical check is the clip engagement depth and the bending strength of the clip itself. A well-designed clip system for lightweight aluminum cladding should have a minimum engagement of 15 mm and a pull-out resistance of at least 1.5 kN per clip, tested per AAMA 508. Two clips per panel edge, spaced at 400 mm to 600 mm, provide the primary wind load resistance.

Cassette systems with perimeter extrusions are the most rigid option. The panel is fabricated as a tray with 20 mm to 25 mm return legs on all four sides. The return legs are inserted into a perimeter aluminum extrusion that is fixed to the subframe. The extrusion provides continuous support along all four edges, which dramatically reduces panel deflection compared to point-fixed systems. For corner zones with high suction pressure, cassette systems are often the preferred choice despite the higher fabrication cost.

Pro Tip: When reviewing fixing shop drawings, check the edge distance from the fastener center to the panel edge. The ADM requires a minimum of 1.5 times the fastener diameter. For a 5 mm rivet, that means 7.5 mm minimum. But in practice, 12 mm to 15 mm is safer. Less than 10 mm and you risk tear-out during a windstorm. Also verify that the rivet material is compatible with the aluminum panel to avoid galvanic corrosion. Stainless steel rivets with a nylon isolator or aluminum rivets are standard. Never use carbon steel fasteners on aluminum cladding.

Deflection Limits and Why They Matter

Deflection is not just a structural concern. It affects the visual appearance of the facade. Under oblique lighting, a deflected panel creates a visible wave or oil-canning effect that architects find unacceptable. Most facade specifications limit deflection to L/175 or L/180 for cladding panels, where L is the span between supports. Some high-end projects tighten this to L/240.

For a 600 mm span, L/175 equals 3.4 mm of allowable deflection. The table above shows that a 2.5 mm 3003-H14 panel deflects 3.2 mm at 2.0 kPa, which is within the limit. But at 2.5 kPa, the same panel deflects approximately 4.0 mm, exceeding L/175. This is why the design pressure must be established before panel selection, not after.

Oil-canning is a separate phenomenon. It is elastic buckling of the panel surface caused by residual stresses from fabrication, thermal expansion, or wind pressure. Solid aluminum panels are more prone to oil-canning than composite panels because they lack the damping effect of a polyethylene core. The best defense is proper tension leveling of the aluminum sheet before fabrication, adequate panel thickness, and the use of stiffener ribs on larger panels. The AAMA 508 standard provides guidelines for evaluating oil-canning, though it is ultimately a visual assessment.

Thermal Movement and Wind Load Interaction

Aluminum expands and contracts with temperature changes. The coefficient of thermal expansion is approximately 23.2 × 10⁻⁶ per °C. A 3-meter-long panel subjected to a 50°C temperature swing will change length by about 3.5 mm. If the panel is rigidly fixed at multiple points, thermal stress can cause buckling. Under wind load, a thermally stressed panel may fail at a lower pressure than predicted.

The standard solution is to allow one fixing point to be fixed and the others to be sliding. In a four-clip system, the top-left clip is fixed, and the remaining three allow movement in one or both directions. The sliding clips have elongated holes or slotted connections. The elongation must accommodate the calculated thermal movement plus a safety margin. The panel supplier should provide a thermal movement calculation as part of the shop drawing submission.

Lightweight aluminum cladding panels with a cassette system handle thermal movement differently. The perimeter extrusion provides a channel that allows the panel to expand and contract freely. The panel is not rigidly fixed to the extrusion. Instead, it sits within the channel with a clearance gap. The gap is typically 5 mm to 8 mm, calculated based on the panel dimension and the expected temperature range. This detail is critical for projects in the Middle East, where surface temperatures can exceed 80°C in summer and drop to 15°C at night. The daily temperature swing alone can cause 2 mm of movement on a 2.5-meter panel.

Corrosion and Long-Term Wind Performance

Wind load performance is not static over the building's life. Corrosion can reduce the effective thickness of the panel and weaken the fixing points. Solid aluminum cladding panels with PVDF coatings are inherently corrosion-resistant. The aluminum itself forms a protective oxide layer, and the PVDF coating adds a barrier. But in coastal environments, chloride ions can attack the aluminum if the coating is damaged or if the cut edges are not properly sealed.

The PVDF coating system, typically based on Kynar 500 resin with a minimum 70% PVDF content, provides excellent resistance to UV degradation and chemical attack. The standard coating thickness is 25 μm to 35 μm for a two-coat system and 35 μm to 45 μm for a three-coat system. The three-coat system includes a primer, a color coat, and a clear topcoat. For coastal projects within 5 km of the shoreline, a three-coat system with a minimum 40 μm total dry film thickness is recommended. The ASTM B117 salt spray test, run for 3,000 hours or more, provides a benchmark for corrosion resistance.

Cut edges are the weak point. When a panel is cut to size during fabrication, the bare aluminum edge is exposed. A quality fabricator will apply a touch-up coating or edge sealant to protect the cut edge. Without this step, corrosion can start at the edge and creep under the coating, eventually causing delamination. The fixing holes also need protection. The fastener itself should be stainless steel or aluminum, and a nylon washer or gasket should isolate the fastener from the panel to prevent galvanic corrosion.

Specifying Lightweight Aluminum Cladding for Wind Load: A Practical Checklist

Based on the factors discussed, here is a practical checklist for specifying lightweight aluminum cladding on projects where wind load is the governing design criterion:

1. Obtain the wind load report. This should include the design wind pressure per ASCE 7 or EN 1991-1-4, broken down by pressure zone. Do not accept a single pressure value for the entire building.
2. Select the alloy and thickness. Use 5052-H32 for corner and edge zones where design pressure exceeds 2.0 kPa. 3003-H14 may be acceptable for field zones on low-rise buildings. Verify the thickness using the supplier's span tables or FEA reports.
3. Define the fixing system. Cassette systems with perimeter extrusion offer the best wind resistance but cost more. Concealed clip systems are a good middle ground. Exposed fastener systems are acceptable for low-rise field zones. Specify the number, type, and spacing of fixings per panel.
4. Set deflection limits. L/175 is the industry standard. Tighten to L/240 for high-visibility facades. Include the deflection limit in the performance specification, not just the structural notes.
5. Require test reports. Ask for ASTM E330 test data for the specific panel configuration. If project-specific testing is not feasible, request validated FEA reports with correlation to previous test data.
6. Address thermal movement. Specify fixed and sliding fixing points. Calculate the required slot length based on panel dimension and temperature range. Review the shop drawings for thermal movement details.
7. Specify corrosion protection. For coastal projects, require a three-coat PVDF system with minimum 40 μm DFT. Mandate edge sealant and compatible fasteners. Reference ISO 12944 for corrosion protection guidelines.
8. Review shop drawings carefully. Check edge distances, fastener compatibility, stiffener placement, and thermal movement provisions. The shop drawing review is the last line of defense before fabrication begins.

Wind load analysis for lightweight aluminum cladding is not a one-size-fits-all exercise. Each project brings its own pressure zones, span conditions, and architectural constraints. The panel thickness, alloy grade, fixing method, and coating system all interact to determine how the facade performs during a storm. Getting the specification right requires close coordination between the architect, the facade engineer, and the panel supplier. When that coordination happens early, the result is a facade that stays flat, stays attached, and stays looking as intended for decades. When it does not, the problems show up during the first strong wind. And by then, the fix is never simple.
