A2 Fire Rated Aluminum Panel Export Logistics Packaging Freight and Damage Prevention

When a project specification lands on a procurement manager's desk with "A2 fire rated aluminum panel" written into the facade section, the immediate question is rarely about the fire rating itself. The rating is non-negotiable. The real puzzle is how to get 3,000 square meters of 3.0mm solid aluminum sheets from a factory in China to a job site in Manchester or Melbourne without the panels arriving looking like they went through a war. This article unpacks the logistics, packaging engineering, and supply chain discipline required to deliver A2 fire rated aluminum panel systems internationally with zero damage and full traceability.

Why Solid Aluminum Panels Demand Better Logistics Than ACP

Solid aluminum panels differ fundamentally from composite panels in how they respond to handling stress. A 3.0mm thick solid aluminum sheet with a PVDF-coated surface weighs roughly 8.1 kg per square meter. It has no polymer core to absorb impact. Drop a corner on concrete, and you have a dented panel that cannot be repaired on site. ACP products flex and bounce. Solid aluminum does not forgive mistakes.

The stakes multiply when the panel carries an A2 fire rating. Why? Because A2-rated solid aluminum panels are typically specified for high-rise facades, hospitals, transport hubs, and other projects where fire safety compliance is mandatory and inspection regimes are unforgiving. A damaged panel means a replacement order, a 4-6 week production lead time, and a project delay that general contractors measure in liquidated damages per day. The logistics chain is not a back-office function. It is a frontline risk management exercise.

Packaging Engineering: The First Line of Defense

Standard plywood crating is not enough. For A2 fire rated aluminum panel shipments traveling 40 to 60 days by sea, packaging must account for three distinct threats: mechanical shock during container loading and unloading, condensation from temperature cycling inside the container, and abrasion between panels caused by vessel vibration.

A properly engineered export crate for solid aluminum panels starts with a steel-reinforced plywood frame rated for stacking up to four crates high. Inside, each panel is separated by a polyethylene foam interleaving sheet with a minimum thickness of 2mm. The foam density matters. Low-density foam compresses under stack weight over weeks at sea, allowing panel-to-panel contact. High-density closed-cell polyethylene at 30-35 kg/m³ maintains separation throughout the voyage.

Field Note: We have seen crates arrive at European ports where the outer plywood was soaked through from condensation, but the panels inside remained pristine. The difference was a VCI (Volatile Corrosion Inhibitor) film layer wrapped around the panel stack before crating. VCI film costs roughly $0.80 per square meter of panel surface. It is the cheapest insurance against a $15,000 rejected shipment.

Panel Orientation and Crate Geometry

Panels should always be packed face-to-face and back-to-back, with the decorative PVDF surface facing inward toward its paired panel. This protects the coated surface from any incidental contact with the crate interior. The maximum panel stack height within a single crate should not exceed 400mm regardless of panel dimensions. For 3.0mm thick panels, that translates to roughly 110-120 panels per crate depending on interleaving thickness.

Crate base runners must be spaced to allow forklift tines to enter from two directions. A standard export crate for panels up to 1,500mm wide uses three longitudinal runners in 80mm x 80mm hardwood. For panels exceeding 2,400mm in length, a center support beam inside the crate prevents sagging of the panel stack during lifting.

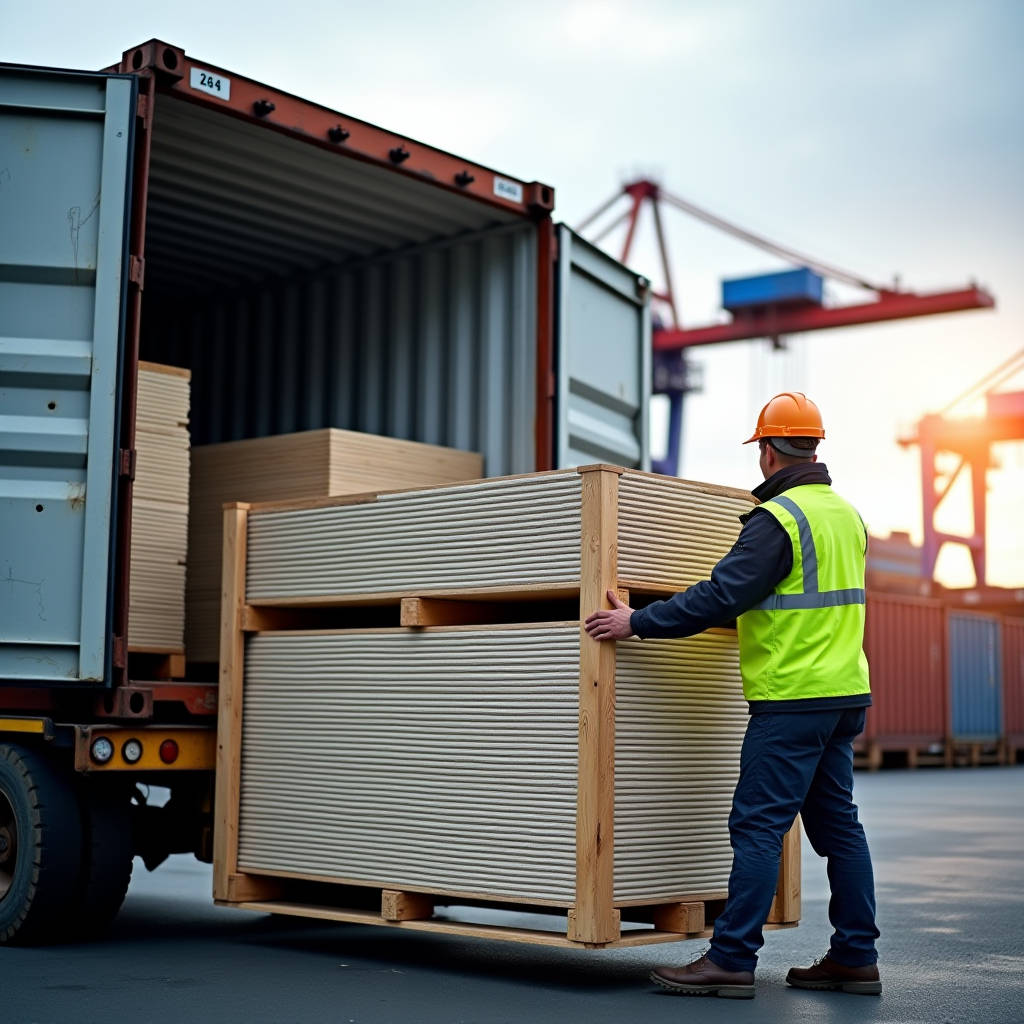

Container Loading: FCL, LCL, and the Consolidation Gamble

Full Container Load (FCL) is the only responsible choice for A2 fire rated aluminum panel shipments. Less than Container Load (LCL) consolidation puts your panels alongside unknown cargo from other shippers. A crate of ceramic tiles shifting in heavy seas can crush a crate of aluminum panels. The freight savings of LCL rarely survive the first damage claim.

For a standard 40-foot High Cube container, the internal length is approximately 12.03 meters. Panel crates typically measure 1.6m to 3.2m in length depending on the project's panel dimensions. A well-planned load map places the longest crates along the container floor first, with shorter crates stacked above. The goal is to fill the container width completely to prevent lateral shifting. Any void space exceeding 150mm must be filled with dunnage air bags inflated to the manufacturer's specified pressure.

Open top containers deserve special mention. When a project includes panels exceeding 2.4m in width, side-loading into a standard container becomes impossible. Open top containers allow crane loading from above. The trade-off is exposure. The container roof is a tarpaulin, not steel. Additional waterproof wrapping of each crate becomes mandatory, and the container must be positioned below deck on the vessel to avoid direct salt spray exposure.

Incoterms and Where Responsibility Actually Shifts

The choice of Incoterms determines who pays for damage that occurs at each stage of transit. FOB (Free on Board) means the supplier's responsibility ends when the crates cross the ship's rail at the port of loading. CIF (Cost, Insurance, Freight) means the supplier arranges and pays for freight and insurance to the destination port, but risk still transfers at the loading port. Many buyers misunderstand this. CIF does not mean the supplier guarantees arrival condition.

For A2 fire rated aluminum panel shipments, CIP (Carriage and Insurance Paid To) under Incoterms 2020 provides stronger buyer protection. Under CIP, the seller must obtain insurance coverage at 110% of the contract value with Institute Cargo Clauses (A) — the broadest cover available. This matters when a container of panels valued at $85,000 gets dropped during unloading at a transshipment hub.

Field Note: Always specify Institute Cargo Clauses (A) by name in the letter of credit or purchase order. Never accept "standard marine insurance" as a description. Standard can mean Clauses (C), which covers total loss only. A crate of panels with corner damage but no total loss would be excluded. The premium difference between Clauses (C) and (A) is roughly 0.15% of cargo value.

Documentation Chain: What Customs and Inspectors Actually Check

A complete shipping documentation package for A2 fire rated aluminum panel exports includes more than a commercial invoice and packing list. The fire rating is a customs-relevant characteristic. Many jurisdictions require evidence of compliance before goods clear the port.

The documentation package should include: the EN 13501-1 classification report for the specific panel product, a mill test certificate for the aluminum alloy (typically EN AW-3105 or 3003 for solid cladding panels), a PVDF coating warranty certificate naming the project if applicable, a fumigation certificate for the wooden crates (ISPM 15 compliance), and a detailed packing list that maps each crate number to specific panel dimensions, quantities, and the facade zone they serve.

This last document — the crate-to-facade-zone mapping — is often overlooked but saves weeks of chaos on site. When the installer opens container 3 of 5 looking for the 17 panels that go on the northeast elevation, a well-prepared packing list tells them exactly which crate to open first. Without it, every crate gets opened, panels get shuffled, and the risk of handling damage multiplies.

Surface Protection: Beyond the Factory Film

The standard factory-applied PE protective film with a thickness of 50-60 microns is adequate for domestic truck transport within China. It is not adequate for ocean freight. For international shipments, a minimum 80-micron film with UV-stabilized adhesive is required. The UV stabilization matters because containers sit on docks for days or weeks, and standard film adhesive degrades under UV exposure, leaving residue on the PVDF surface that requires solvent cleaning to remove.

Adhesive residue is more than a nuisance. Aggressive solvents can etch the PVDF clear coat, altering the gloss level in patches. A panel that leaves the factory at 30±5 GU (gloss units) can arrive at the job site with spots measuring 22 GU where solvent was applied. The architect will notice. The specification will not be met.

For projects in the Middle East, where summer container interior temperatures can exceed 70°C, the protective film specification should be upgraded to 100 microns with a high-temperature acrylic adhesive rated to 90°C. This film costs approximately $0.45 more per square meter than standard film. On a 5,000 square meter project, that is $2,250. Compare that to the cost of re-coating or replacing 50 panels with adhesive damage.

Port Handling and the Transshipment Risk

Direct shipping routes are faster and safer. A container traveling from Shanghai to Rotterdam on a direct service is handled at origin and destination only. A container transshipping through Singapore or Port Klang is handled four times: origin, transshipment port discharge, transshipment port reload, and destination. Each handling event carries a statistical damage probability.

When transshipment is unavoidable due to the destination port's service limitations, the crate specification should be upgraded. Steel edge protectors on all crate corners, double-layer plywood on the crate base, and additional internal bracing are prudent. The incremental cost is roughly $35-45 per crate. The alternative is a damage claim that stalls the project.

Futeng® has refined its export packaging protocols over years of supplying solid aluminum cladding to projects across Europe, Southeast Asia, and Oceania. The approach is methodical rather than magical: crate engineering based on route analysis, film specifications matched to climate, and documentation packages that anticipate customs requirements before they become problems.

Quality Inspection at Receiving: A Structured Protocol

The receiving inspection at the job site or contractor's warehouse is the last line of defense. A structured protocol should be agreed between supplier and buyer before shipment. The protocol should specify: sample size per crate (typically 10% of panels, with all panels inspected if any defect is found in the sample), acceptance criteria for surface scratches (no scratch penetrating the PVDF topcoat is acceptable), and the timeline for raising a claim (usually 7 working days from delivery).

Digital tools make this manageable. Each crate should carry a QR code linking to a digital packing list with panel-level photos taken at the factory after final inspection. The site team scans the code, compares the arriving panels to the factory photos, and logs any discrepancies directly into a shared platform. This creates an audit trail that supports insurance claims if damage occurred in transit.

The inspection should also verify that the protective film is intact and that no edge crush is visible on the crate exterior. Edge crush on a crate almost always means internal panel damage. Photograph the crate before opening. The crate exterior condition is the first piece of evidence in any freight claim.

Cost Allocation: Logistics as a Percentage of Project Value

For a typical international A2 fire rated aluminum panel order of 2,000 to 5,000 square meters, logistics costs break down as follows: factory-to-port trucking accounts for roughly 3-5% of total logistics cost, ocean freight for 15-25% depending on route and market conditions, packaging materials for 8-12%, insurance for 1-2%, and destination port handling and final-mile delivery for the remaining 55-70%. The destination-side costs dominate because they include customs clearance, port storage, crane unloading, and trucking to the job site.

Attempting to save money on packaging to offset high destination costs is a false economy. A $1,500 saving on crate materials that results in a $12,000 panel replacement order is not a saving. It is a loss dressed up as procurement efficiency.

Regulatory References That Shape Shipping Requirements

Several international standards indirectly govern how A2 fire rated aluminum panel shipments should be handled. ISO 28000:2022 on supply chain security management provides a framework for securing cargo from origin to destination. The IPPC ISPM 15 standard mandates heat treatment or fumigation of all wood packaging materials used in international trade. ASTM D3951 covers standard practice for commercial packaging, including requirements for weather protection and containerization.

For the panels themselves, the fire classification under EN 13501-1 must be documented and traceable to the specific production batch. Customs authorities in the EU, UK, Australia, and the Gulf states increasingly require this documentation as part of the import clearance process for building materials destined for high-rise construction.

The AAMA 2605 specification for PVDF coatings on aluminum also plays a role. The coating's resistance to humidity, salt spray, and chemical exposure — all tested under AAMA 2605 protocols — determines whether the panel surface will survive a 45-day sea voyage without degradation. A PVDF coating meeting AAMA 2605 standards with a minimum 70% Kynar 500® resin content has a proven track record in marine transit conditions.

Practical Recommendations for Procurement Teams

First, write the packaging specification into the purchase order. Do not rely on "standard export packaging" as a description. Specify crate construction, foam interleaving type and thickness, protective film grade, and whether VCI film is required. Second, engage a third-party inspection company to witness the loading of the first container and verify that the packaging matches the specification. Third, agree on the claims process before the panels ship. Know who to contact, what evidence to collect, and what the timeline is.

Fourth, budget realistically for logistics. A rule of thumb: total logistics cost for A2 fire rated aluminum panel shipments from Asia to Europe or North America runs between 8% and 14% of the ex-works panel value, depending on order volume, panel dimensions, and destination port efficiency. Treating logistics as an afterthought is the fastest way to turn a well-manufactured product into a project problem.

The panels that arrive undamaged, on time, with complete documentation, and ready for immediate installation are not the result of luck. They are the result of packaging decisions made weeks before the panels left the factory, crate designs that anticipated every handling event between origin and destination, and a supply chain team that understood the difference between shipping boxes and shipping architectural finishes.
