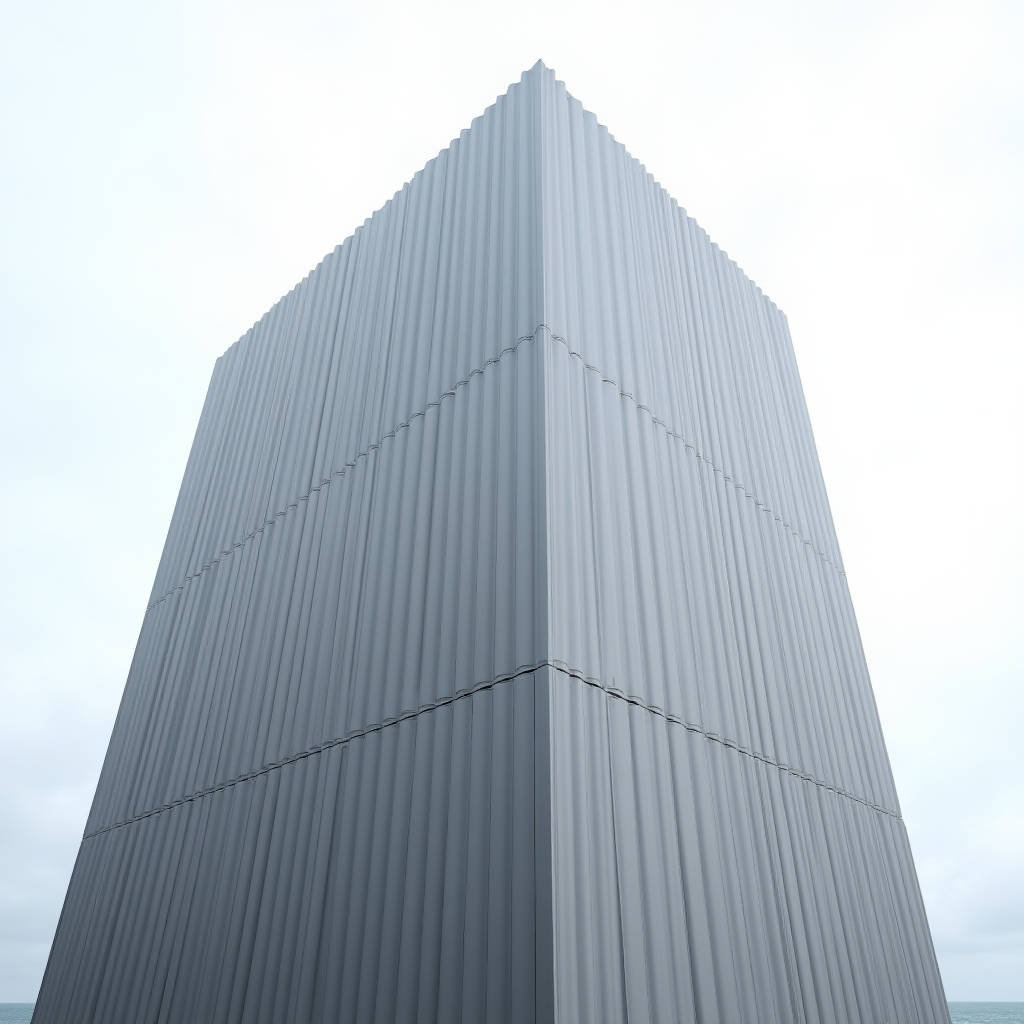

How Wind Load Drives Panel Gauge Selection with Vertex Aluminum Facade Corp

Specifying solid aluminium cladding panels for a ventilated facade is rarely a single-material decision. It is a chain of choices about alloy, temper, panel gauge, coating chemistry, and the way the panel is fixed back to the substructure. When a contractor asks vertex aluminum facade corp to quote a rainscreen package, the first question that separates a workable bid from a liability is not price but wind load. A 3.0mm panel behaves differently from a 2.0mm panel under the same suction, and no coating system can rescue a panel that has been under-specified for deflection. This article works through the wind-load arithmetic that should drive panel thickness selection on high-rise and exposed coastal projects, using standard calculation methods and real fabrication tolerances so that procurement teams can compare quotations on equal technical footing.

Why wind load controls panel gauge before anything else

A rainscreen panel is a thin plate supported at discrete points or edges. The governing failure modes under wind are excessive deflection, permanent set, and fatigue at the fixing holes. Of these, deflection is the one most often written into specifications, because a visibly oil-canning facade fails an architect's acceptance test even when the panel has not structurally failed. The standard approach is to treat the panel as a flat plate with edge conditions matching the fixing system, then solve for the maximum deflection under a design wind pressure derived from the project's location, building height, and exposure category.

The starting point is the design wind pressure, not the basic wind speed alone. ASCE 7 and the equivalent regional codes convert a basic wind speed into a velocity pressure, then apply gust factors, pressure coefficients, and internal pressure adjustments. For a typical mid-rise curtain wall at 40 metres above grade in an urban exposure, a design pressure in the range of 1.2 to 2.4 kPa is common. On an exposed coastal tower, corner zones can reach 3.0 kPa or more. These are the numbers that must sit underneath any gauge recommendation from vertex aluminum facade corp or any other fabricator.

The deflection limit that quietly drives cost

Most rainscreen specifications cap panel deflection at span divided by 90 or span divided by 120, measured between fixing points. A tighter limit reduces visible waviness but pushes the required panel thickness upward. For a 600mm fixing span, the difference between L/90 and L/120 is the difference between a panel that can be satisfied by 2.0mm material and one that realistically needs 2.5mm or 3.0mm. This is why two quotations for the same facade can differ by 20 to 30 percent on material alone: one supplier has assumed a looser deflection criterion, the other a tighter one.

The flexural rigidity of a solid aluminium panel scales with the cube of its thickness. Moving from 2.0mm to 3.0mm does not add 50 percent stiffness; it roughly triples it, because stiffness is proportional to thickness cubed. A procurement team that understands this will immediately see why a 3.0mm panel is not simply a heavier 2.0mm panel. It is a different structural element. The practical consequence is that large-format panels, panels with long unsupported edges, and panels in high-suction corner zones frequently step up to 2.5mm or 3.0mm not because the fabricator wants to sell more aluminium, but because the deflection arithmetic leaves no other choice.

A worked estimate for a 1200mm by 800mm panel

Take a solid aluminium panel measuring 1200mm tall by 800mm wide, fixed with perimeter returns and intermediate stiffeners. Using a simplified plate formula for a simply supported edge condition and a design pressure of 2.0 kPa, a 2.0mm panel in 3003-H14 alloy will deflect beyond an L/90 limit on the 800mm span. Stepping to 2.5mm brings the deflection inside the limit for most of the panel, and 3.0mm provides comfortable margin for corner-zone pressures of 3.0 kPa or more. These are indicative figures; the exact result depends on stiffener layout, return depth, and whether the panel is riveted or welded to its frame.

Alloy choice matters here as much as gauge. 3003 and 5052 are the two workhorse alloys for solid cladding. 3003 offers good formability and a lower raw cost, while 5052 delivers higher tensile and yield strength, which translates into a higher allowable stress and better resistance to permanent set under repeated gusts. On tall coastal buildings where salt-laden wind cycles thousands of times over the facade's life, the fatigue and corrosion arguments favour 5052 despite the modest cost premium. A fabricator such as Futeng® routinely stocks both alloys precisely because the correct specification changes from one project zone to the next.

How fixing layout changes the whole calculation

The deflection result is dominated by the unsupported span, not the overall panel size. A 2400mm by 1200mm panel is not automatically a 3.0mm job if the fabricator welds intermediate stiffeners that cut the effective span down to 600mm. Conversely, a small 800mm by 600mm panel with a single central fixing point can behave worse than a larger panel with a proper perimeter rail system. This is why the panel gauge conversation must always run in parallel with the fixing system conversation.

Cassette systems, where the panel has folded returns on all four edges and hooks onto a carrier rail, distribute load more evenly and allow thinner gauges for a given span. Tray panels with exposed fixings concentrate stress around the fastener holes, which drives the need for thicker material or reinforcement plates around the fixing points. The choice between cassette and tray is therefore not just an aesthetic or cost decision; it directly feeds back into the wind-load calculation and the gauge that vertex aluminum facade corp will specify in the shop drawings.

Coating performance under wind-driven exposure

Once the structural gauge is settled, the coating system determines how the panel ages under the same wind that was used for the structural check. PVDF coatings, applied to AAMA 2605 standards, are the default for architectural facades because they hold colour and gloss through years of UV and salt exposure. The film thickness specification is precise: a 70 percent PVDF resin system is typically applied as a two- or three-coat finish with a minimum total dry film thickness of 25 to 35 microns for a two-coat system, and 40 microns or more for a three-coat metallic finish that includes a clear topcoat.

These numbers are not negotiable marketing figures. They are written into the AAMA 2605 specification and are verified by laboratory testing for chalk rating, colour retention, and gloss retention after accelerated weathering. A procurement team comparing quotations should ask for the coating specification sheet, not just the colour swatch, because two suppliers can quote the same RAL number with very different film builds underneath it.

Why coating adhesion matters on high-suction panels

A panel under repeated negative pressure flexes slightly with every gust. If the coating is poorly bonded to the aluminium substrate, micro-cracking at the fold lines and fixing points appears within a few years. The correct pre-treatment, typically a chromate or chrome-free conversion coating applied before the primer, is what keeps the PVDF system attached to the metal during thousands of flex cycles. This is a fabrication detail that never appears on a rendered elevation but determines whether the facade still looks clean after five years of coastal wind.

Tolerances that separate a workable bid from a field problem

Wind load is the headline number, but fabrication tolerance is where site problems are born. A solid aluminium panel that is cut, folded, and welded within tight dimensional tolerance will install flat and stay flat, because the panel is not fighting the substructure from day one. The relevant standard for sheet and plate is the ASTM B209 specification, which sets thickness, width, and length tolerances for aluminium sheet and plate. A fabricator working to these tolerances produces panels that are consistent enough for the deflection calculation to hold true across the whole elevation.

Flatness is a separate issue from dimensional tolerance. Aluminium sheet arrives from the mill with some inherent flatness variation, and the folding, welding, and stiffening operations can introduce more. A panel that is slightly crowned when it leaves the factory will read as a defect once it is fixed to a dead-flat substructure and hit by raking light. This is why reputable fabricators flatten panels after fabrication and why the gauge conversation cannot be separated from the flatness conversation.

Putting the numbers into a procurement comparison

The practical way to compare quotations is to force every bidder to state the same three things: the design wind pressure used, the deflection limit assumed, and the alloy and gauge proposed for each panel zone. When vertex aluminum facade corp submits a quotation that states these figures explicitly, a buyer can verify whether the price difference against another bid comes from a thinner gauge, a looser deflection limit, or a lower-spec coating. Most of the time, the cheapest bid is cheap because it has quietly assumed a more forgiving set of inputs.

A useful rule of thumb for budgeting is that material cost rises roughly in proportion to gauge for the raw sheet, but the fabricated cost rises faster because thicker material is slower to cut, fold, and weld. The total installed cost difference between a 2.0mm and a 3.0mm package is therefore larger than the raw aluminium price alone suggests. This is the number that should sit in the cost plan, and it is only meaningful once the wind-load inputs are fixed.

A facade specification that names a panel gauge without naming the design wind pressure and deflection limit is not a specification. It is a guess with a material cost attached to it.

Standards worth citing in the specification

Several documents should anchor a solid aluminium cladding specification. The AAMA 2605 standard governs the PVDF coating performance, while ASTM B209 sets the sheet and plate tolerances that keep fabrication consistent. For wind loading, the ASCE 7 provisions define how design pressures are derived from basic wind speed and exposure. The Aluminum Association publishes the alloy and temper designations that should appear on every mill certificate. Together these four references let a buyer verify a quotation instead of trusting it.

Coastal and high-rise cases where the margin shrinks

Two project types push the wind-load calculation to its limit. The first is the exposed coastal tower, where the basic wind speed is high, the exposure category is open, and the salt environment demands 5052 alloy and a full three-coat PVDF system. The second is the tall urban tower with large-format panels, where the architect wants minimal joint lines and the resulting long unsupported spans force a step up in gauge even though the basic wind speed is moderate. In both cases, the correct answer is usually 3.0mm 5052-H32 with a cassette fixing system and three-coat PVDF, and the cost of that answer is set by the deflection arithmetic, not by preference.

For procurement teams working on these buildings, the sequence should be fixed before any quotation is opened: confirm the design wind pressure from the structural engineer, agree the deflection limit with the architect, then ask every fabricator to price the same alloy and gauge against those inputs. Only then does the comparison between vertex aluminum facade corp and any other supplier become meaningful.

Closing the loop between engineering and procurement

The gauge of a solid aluminium cladding panel is an engineering output, not a sales input. It follows from the design wind pressure, the deflection limit, the fixing layout, and the alloy. When those four inputs are stated openly, the thickness recommendation becomes verifiable, and the price difference between suppliers becomes a matter of fabrication quality and coating spec rather than hidden assumptions. Procurement teams that insist on these figures before awarding a package will consistently buy the right panel for the right zone, and will rarely be surprised by oil-canning, coating failure, or a facade that looks wrong under raking light. The discipline is simple: fix the wind load first, and let the gauge follow.
