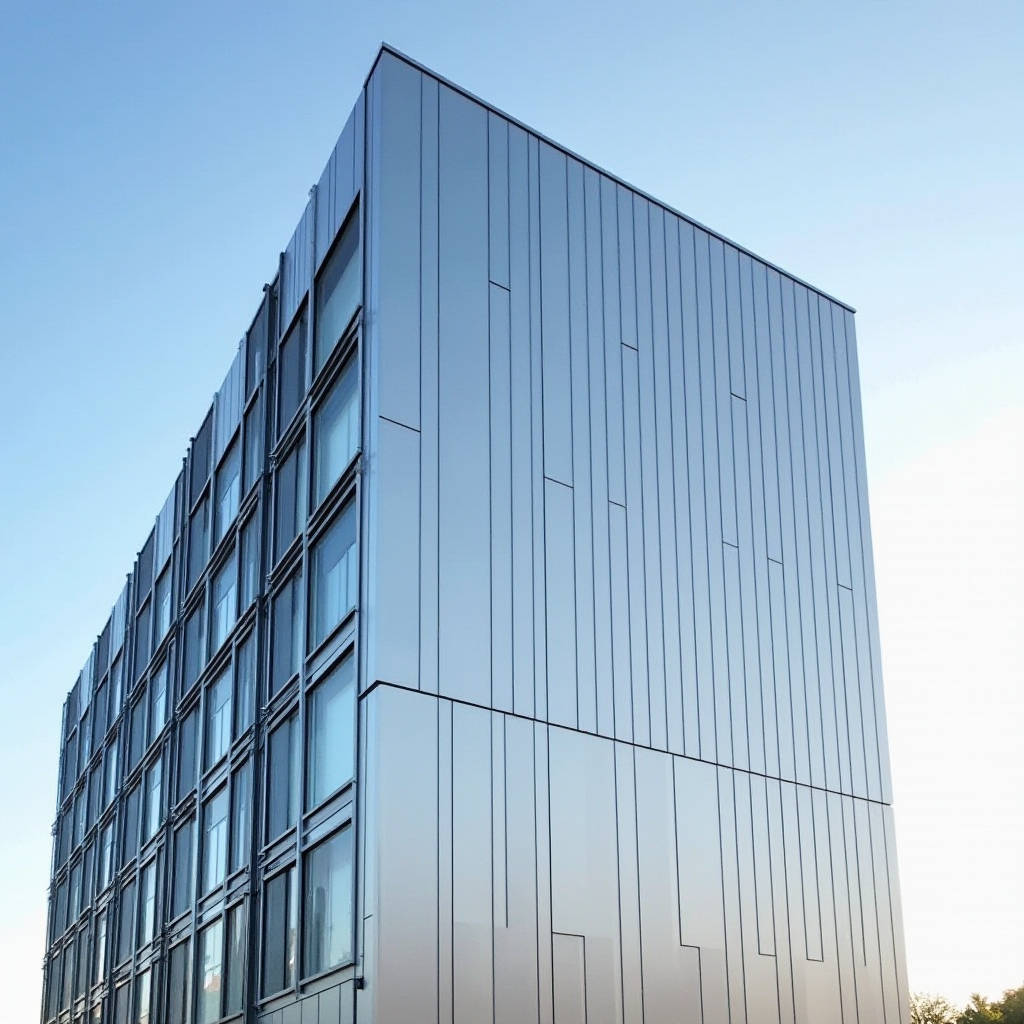

Fireproof Aluminum Panel Fire Testing Standards EN 13501-1 NFPA 285 GB 8624 Compared

When a project specification lands on a procurement manager's desk with "fireproof aluminum panel" in the performance requirements, the first question is rarely about chemistry. It is about jurisdiction. Which fire code governs the building? What test standard does the local authority having jurisdiction (AHJ) actually recognize? A panel that passes one country's fire test may be completely meaningless in another. This disconnect trips up international projects more often than any material defect ever could. Getting the specification right means understanding the test frameworks before comparing product data sheets. This article maps the three dominant fire testing regimes that govern solid aluminum cladding panels globally, explains what each test actually measures, and provides the practical data needed to avoid a costly mismatch between the panel you buy and the certification the AHJ demands.

The Specification Trap: Why "Fireproof" Has No Universal Definition

The term "fireproof aluminum panel" is widely used in procurement briefs but carries no standardized meaning across borders. A panel marketed as fireproof in one market may rely on a test method that another jurisdiction does not recognize. This creates a specification gap that can delay project approvals, force costly re-submissions, or worse, result in non-compliant cladding being installed before the discrepancy is caught.

Three major frameworks dominate the global landscape. The European system operates under EN 13501-1, which classifies construction products into seven reaction-to-fire classes: A1, A2, B, C, D, E, and F. A solid aluminum panel, being non-combustible in its core material, typically achieves A2-s1,d0 when tested as a standalone product. The "s1" designation means minimal smoke production, and "d0" means zero flaming droplets. This is the highest achievable classification for a metallic product that contains any organic coating at all.

The North American system follows a different logic. Instead of a single material classification, the U.S. relies on NFPA 285, which is a full-scale wall assembly test. A panel is not tested in isolation. It is tested as part of a complete exterior wall system that includes the cladding, air barrier, insulation, and interior finish. Passing NFPA 285 means the entire assembly limits flame spread vertically and horizontally. This is fundamentally different from EN 13501-1, and the two cannot be equated.

China operates under GB 8624, which draws from both European and Chinese testing traditions. A solid aluminum panel achieving GB 8624 Class A is considered non-combustible. However, some Chinese projects also reference EN 13501-1 or ASTM E84, depending on whether the project involves a foreign architect or international funding.

Field Note: On a mixed-use tower in Dubai, the consultant specified EN 13501-1 Class A2 for the aluminum panels, but the local civil defense authority only recognized UAE Fire Code, which references ASTM E84 and NFPA 285. The contractor had to run both test suites. The EN test cost approximately €3,000 and took two weeks. The NFPA 285 assembly test cost over $40,000 and required eight weeks. This was not budgeted at tender stage. Always verify which test standard the AHJ accepts before finalizing the panel specification.

NFPA 285: What the Assembly Test Actually Demands from the Panel

NFPA 285 is the gatekeeper for exterior wall assemblies on buildings over 40 feet in the United States, and it is increasingly referenced in the Middle East and Southeast Asia. The test simulates a room fire that vents out a window and impinges on the exterior wall. The assembly must prevent flame propagation up the wall face and through the wall cavity for a 30-minute duration.

For a solid aluminum panel used as exterior cladding, the critical variable is the panel's contribution to the overall assembly performance. Since solid aluminum sheets (2.0mm, 2.5mm, or 3.0mm thickness) have no combustible core, they do not introduce fuel load into the cavity. This is a decisive advantage. The fire engineer's concern shifts to the insulation layer behind the panel, the weather barrier, and the detailing at floor lines.

That said, the panel coating matters. PVDF coatings based on Kynar 500® resin with 70% resin content (per AAMA 2605) have a higher ignition resistance than polyester coatings. The organic content in a PVDF topcoat is approximately 0.02 kg/m² for a 3-coat system at 35-40 microns dry film thickness. This is negligible in the overall assembly fire load, but it is documented in the engineering judgment submitted to the AHJ.

Key data points for NFPA 285 compliance with solid aluminum panels:

• Panel thickness: 2.0mm, 2.5mm, or 3.0mm solid aluminum (no core material)
• Coating: PVDF (Kynar 500® or Hylar 5000®) with minimum 70% PVDF resin
• Dry film thickness: 35-40 microns (3-coat) or 25-30 microns (2-coat) per AAMA 2605
• Aluminum alloy: 3003-H14 or 5052-H32, both classified as non-combustible
• Assembly components: Each layer (air barrier, insulation, WRB) must be included in the NFPA 285 engineering judgment

Futeng® supplies solid aluminum panels that have been incorporated into NFPA 285-compliant wall assemblies across multiple U.S. and Middle Eastern projects. The key is not the panel alone but the documented engineering judgment that ties the specific panel to the tested assembly configuration.

EN 13501-1 Class A2: Material-Level Testing for the European and Asian Markets

EN 13501-1 evaluates the reaction-to-fire performance of the product itself, not the wall assembly. The test suite includes the EN ISO 1182 non-combustibility test, the EN ISO 1716 calorific value test, and the EN 13823 single burning item (SBI) test. For a solid aluminum panel to achieve A2-s1,d0, it must pass all three.

The EN ISO 1716 test measures the gross calorific potential (PCS) of the material. The threshold for A2 classification is a PCS of ≤ 3.0 MJ/kg. Solid aluminum itself has a PCS of essentially zero. The only combustible component is the coating. A PVDF coating applied at 35-40 microns contributes approximately 0.5-0.8 MJ/kg to the total PCS of the coated panel, well within the A2 limit. Polyester powder coatings, which can be applied at 60-80 microns with higher organic content, may push the PCS closer to the threshold and require verification.

The SBI test (EN 13823) measures flame spread, heat release rate, and smoke production when the panel is exposed to a 30 kW burner flame. Solid aluminum panels consistently achieve s1 (lowest smoke class) and d0 (no flaming droplets) because the aluminum substrate acts as a heat sink, dissipating thermal energy and preventing sustained combustion of the coating.

The following table summarizes the critical differences between the three major fire testing frameworks as they apply to solid aluminum panels:

PVDF Coating and Fire: What the Specifier Needs to Know

The fire performance of a fireproof aluminum panel is not solely a function of the aluminum substrate. The coating system contributes to the overall reaction-to-fire classification, and the choice between PVDF and polyester has measurable consequences.

PVDF coatings based on Kynar 500® resin (Arkema) or Hylar 5000® resin contain a minimum of 70% polyvinylidene fluoride by weight in the resin solids. The remaining 30% is acrylic resin, which improves pigment dispersion and adhesion. At a dry film thickness of 35-40 microns for a 3-coat system, the total organic content per square meter is approximately 18-22 grams. This is the only combustible material on the panel.

Polyester powder coatings, by contrast, are typically applied at 60-80 microns and contain 100% organic resin. The organic content per square meter can be 3-4 times higher than PVDF. While this may still fall within A2 limits under EN 13501-1, the margin is narrower, and the smoke classification (s1, s2, or s3) becomes more variable. For projects requiring s1 (the strictest smoke class), PVDF is the safer specification.

Beyond fire performance, PVDF offers documented advantages in weathering resistance. Per AAMA 2605, a PVDF coating must show a color change (Delta E) of no more than 5.0 after 10 years of South Florida exposure at 45° south-facing. Polyester coatings under AAMA 2603 typically show Delta E values of 8-12 over the same period. For a fireproof aluminum panel that must also perform aesthetically over decades, PVDF is the dominant specification in commercial facades.

International Procurement: The Documentation Gap

When a fireproof aluminum panel is sourced internationally, the documentation chain is as important as the physical product. A test report from a Chinese laboratory may not be accepted by a European AHJ unless the laboratory holds ISO/IEC 17025 accreditation and the test follows the EN standard exactly. Similarly, a European EN 13501-1 report may not satisfy a U.S. building official who requires NFPA 285 documentation.

The procurement team should request the following documents before placing an order:

1. Test reports from an ISO/IEC 17025-accredited laboratory, with the test standard clearly identified
2. Classification report that translates test results into the regulatory classification (e.g., A2-s1,d0 per EN 13501-1)
3. Certificate of constancy of performance under the relevant system of assessment (e.g., AVCP System 1 for A2 products under the EU Construction Products Regulation)
4. Factory production control (FPC) certificate issued by a notified body
5. Engineering judgment for NFPA 285, if the project is in a jurisdiction that requires it
6. Coating certification from the paint manufacturer (e.g., PPG, AkzoNobel, Sherwin-Williams) confirming Kynar 500® or Hylar 5000® resin content

Pro Tip: On a recent project in Singapore, the consultant requested EN 13501-1 Class A2 documentation for solid aluminum panels sourced from a Chinese manufacturer. The factory's test report was from a CNAS-accredited lab (China's national accreditation body) but was not recognized by the Singapore Civil Defence Force because the lab was not ILAC MRA signatory. The panels had to be re-tested at a Singapore-accredited lab at a cost of SGD 8,000 and a four-week delay. Always verify that the testing laboratory is recognized by the specific AHJ, not just that it holds general accreditation.

Fireproof Aluminum Panel in High-Rise: The Cavity and Detailing Factor

The panel itself is only one element in a fire-safe facade. The detailing at floor lines, the cavity width, and the placement of fire stops determine whether the entire system performs as intended. A solid aluminum panel with an A2 classification can still be part of a failing assembly if the cavity behind it acts as a chimney.

Key detailing considerations for fireproof aluminum panel installations in high-rise buildings:

• Cavity fire barriers: Horizontal fire stops must be installed at every floor level, and vertical cavity barriers at specified intervals (typically every 10 meters or as required by local code). The barrier material must be tested to the same standard as the panel.
• Ventilation gap: The cavity behind a solid aluminum panel serves as a drainage and ventilation space. The gap width (typically 25-50mm) must be balanced against fire performance. Wider cavities increase ventilation and drying but also increase the chimney effect if a fire enters the cavity.
• Bracket and subframe material: Aluminum brackets and subframes are non-combustible. If steel components are used, they must be galvanized or stainless steel. Thermal breaks at bracket connections, if made of nylon or PVC, must be evaluated for their contribution to fire load.
• Perimeter fire stopping: At the junction between the cladding and the floor slab, a perimeter fire barrier system must be installed. This is typically a mineral wool with intumescent coating, tested to the same fire resistance rating as the floor slab.

The NFPA 285 standard explicitly requires that the entire assembly, including joints, cavity barriers, and attachment systems, be tested as a single system. A panel manufacturer's test report that only covers the panel itself is insufficient for NFPA 285 compliance. The engineering judgment must reference the specific assembly configuration.

Cost and Lead Time Implications of Fire Testing

Specifying a fireproof aluminum panel with full documentation has cost and schedule implications that procurement teams should factor into the tender stage. A panel that costs $35/m² FOB without fire certification may cost $42/m² with the full documentation package, simply because the manufacturer has amortized testing costs across fewer projects.

The cost breakdown for fire testing documentation is approximately:

• EN 13501-1 full test suite (EN ISO 1182, EN ISO 1716, EN 13823): €3,000-€5,000
• NFPA 285 assembly test: $40,000-$60,000 (shared across multiple projects using the same assembly)
• GB 8624 Class A testing: ¥15,000-¥30,000
• Factory production control certification (annual audit): €2,000-€4,000 per year
• Engineering judgment letter from a qualified fire engineer: $5,000-$10,000

For a manufacturer producing 200,000 m² of fireproof aluminum panel annually, the per-square-meter cost of maintaining fire certifications is approximately $0.15-$0.30. This is a small fraction of the panel cost but a significant barrier to entry for smaller manufacturers. When evaluating suppliers, ask how many projects they have supplied with the specific fire certification required. A manufacturer that has supplied 50 projects with EN 13501-1 A2 documentation is a safer bet than one that obtained the certificate last month and has not yet applied it at scale.

For further reading on the relationship between aluminum cladding and fire safety, the American Architectural Manufacturers Association (AAMA) publishes technical information reports on coating performance and fire considerations. The ISO 1182:2020 standard defines the non-combustibility test procedure used in EN 13501-1 classification.

Making the Specification Decision: A Practical Framework

When a project specification calls for a fireproof aluminum panel, the procurement and specification team should work through a structured decision process rather than accepting the first product data sheet that includes the word "fireproof."

The decision framework should address these questions in order:

1. Which jurisdiction's fire code applies? This determines the test standard. Do not assume; ask the AHJ in writing.
2. Is the test a material test or an assembly test? EN 13501-1 and GB 8624 test the panel. NFPA 285 tests the wall. The documentation requirements are completely different.
3. Does the coating affect the fire classification? PVDF with 70% resin is the safest choice for maintaining the highest fire classification. Polyester coatings may reduce the classification margin.
4. Is the testing laboratory recognized by the AHJ? Accreditation under ISO/IEC 17025 is necessary but not sufficient. The lab must be recognized by the specific jurisdiction.
5. Has the panel been used in a comparable project? A manufacturer with a track record of supplying the same fire certification to similar projects reduces the risk of documentation rejection.

The global regulatory landscape for fireproof aluminum panel specifications is fragmented, and it is not moving toward harmonization. The EU's Construction Products Regulation, the U.S. International Building Code, and China's GB standards each have their own evolution path. For the foreseeable future, the project team's job is to navigate this fragmentation accurately, not to wish it away. A solid aluminum panel with PVDF coating, properly documented and tested to the relevant standard, remains one of the most straightforward paths to a compliant facade specification. The complexity is not in the product. It is in the paperwork. Get the paperwork right, and the panel will perform.
