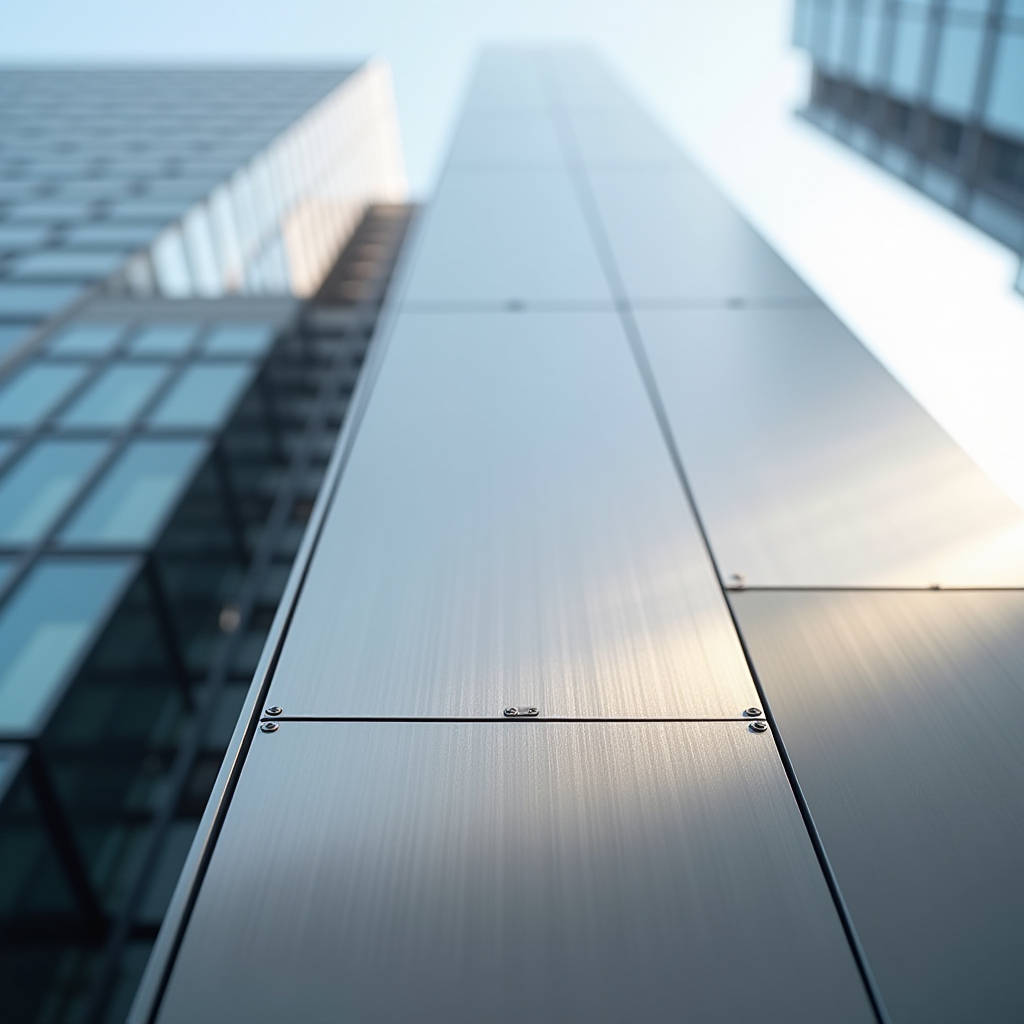

Engineering Rainscreen Attachment Systems for Aluminum Composite Material in Commercial Façades

When a project specification lands on the desk of a façade engineer or procurement manager, the term "aluminum composite material" often triggers an immediate set of assumptions about installation methodology. But here is the disconnect: many teams default to generic wet-seal or exposed-fastener systems without first interrogating what the panel substrate actually demands. The real question is not whether the material performs—it is whether the installation system is engineered to match the thermal movement, wind load, and long-term weathering profile of the specific aluminum composite material specified. Getting this wrong means callbacks. Leaks. Panel creep. Coating stress fractures that nobody catches until the second year of exposure.

This article drills into one narrow but high-stakes decision point: the engineering logic behind selecting a rainscreen attachment system for aluminum composite material panels in mid-rise to high-rise commercial façades. We are not talking about generic cladding here. The focus is on solid aluminium panels—2.0mm, 2.5mm, and 3.0mm thicknesses—finished with PVDF fluoropolymer coatings, installed over ventilated cavities. The discussion covers differential movement accommodation, fastener substrate compatibility, thermal bridging penalties, and the cost-performance calculus that separates a 15-year façade from a 35-year one.

Why the Rainscreen Attachment Method Is the First Engineering Decision, Not an Afterthought

Most specification writers treat the attachment system as a sub-section buried in Division 08 40 00. In practice, the attachment method dictates the panel's allowable deflection, its ability to shed water, and whether the cavity behind it actually ventilates. A rainscreen is not a rain barrier. The distinction matters because an aluminum composite material panel installed on a drained-and-ventilated rainscreen behaves fundamentally differently from one fixed tight to the sheathing.

Three mechanical realities govern the selection:

• Thermal expansion range: A 3.0mm solid aluminium panel spanning 1,200mm will expand approximately 2.8mm across a 70°C temperature swing (coefficient of linear thermal expansion for aluminium: ~23.1 × 10⁻⁶ /°C). If the attachment system does not allow independent panel movement at each fixing point, stress concentrates at fastener locations. Over 5–7 years, PVDF coating micro-cracks propagate from those points.
• Wind load deflection limits: ASTM E330 and EN 13830 set deflection limits at L/60 for cladding components. But for aluminum composite material on a rainscreen, the more relevant standard is often the project-specific performance specification—some clients require L/90 or tighter to avoid visible oil-canning under negative wind pressure.
• Cavity depth and drainage: A 25mm cavity is common. A 38mm cavity is better. The difference is not just air movement; it is the ability to accommodate installation tolerances in the sub-frame without forcing the panel into compression.

Field Note: On a 22-storey mixed-use tower in Kuala Lumpur, the original shop drawings specified a 20mm cavity with fixed-point aluminium brackets. After reviewing the thermal expansion calculations for 2.5mm aluminum composite material panels spanning 1,500mm, the engineering team increased the cavity to 35mm and switched to slotted clip fixings. The change added approximately USD 4.20/m² to the façade package. The alternative was replacing stressed panels at year 6—quoted at USD 180/m² for access, removal, and reinstallation. This is the kind of math that separates experienced façade contractors from the rest.

Attachment System Taxonomy: Four Routes, One Engineering Logic

Not all systems are interchangeable. The choice depends on substrate type (concrete, steel stud, aluminium sub-frame), panel dimensions, wind zone, and whether the project requires a pressure-equalized or drained-only rainscreen. Below is a breakdown of the four dominant attachment routes for aluminum composite material panels, with their engineering trade-offs.

Exposed fastener systems are still widely used in industrial and low-rise commercial projects. The cost advantage is real. But for any building above four storeys, or any project within 5km of a marine environment, the concealed clip or cassette route becomes the baseline recommendation. The reason is not aesthetics—it is corrosion management. Every exposed fastener is a potential moisture pathway and a galvanic corrosion risk point when the fastener material is not correctly matched to the aluminium substrate.

Fastener Material Compatibility: The Galvanic Corrosion Trap

Aluminium sits at approximately -0.85V on the galvanic series in seawater. Stainless steel (304 or 316 grade) sits around -0.30V to -0.45V. The potential difference is roughly 0.40–0.55V—enough to drive galvanic corrosion if moisture bridges the two metals. The industry fix is straightforward: specify 316 stainless steel fasteners with a nylon or EPDM isolation washer for all aluminum composite material panel fixings. 304 stainless is acceptable for inland projects with low humidity, but the cost difference between 304 and 316 is approximately USD 0.08–0.15 per fastener. On a 10,000m² façade with 4 fixings per m², that is a USD 3,200–6,000 premium. Against the cost of one post-installation corrosion remediation, the math is trivial.

For projects in the Middle East, Southeast Asia, or coastal Australia, the specification should also call for PVDF coatings with a minimum 70% Kynar 500® resin content (per AAMA 2605). The coating is not just about color retention—it provides the primary dielectric barrier between the aluminium substrate and the external environment. A sub-spec coating with 50% resin content will show chalking within 5–7 years in high-UV exposure zones.

Thermal Bridging and the Sub-Frame Penalty

Rainscreen attachment systems introduce point thermal bridges. Every aluminium bracket that penetrates the insulation layer creates a thermal short circuit. The question is how much energy penalty the project can absorb before the mechanical system sizing is affected.

Research published by the U.S. Department of Energy Building Technologies Office indicates that point thermal bridges in commercial curtain wall systems can reduce the effective R-value of a wall assembly by 15–25%, depending on bracket material, spacing, and insulation continuity. For aluminum composite material rainscreens, the primary mitigation strategies are:

• Thermal break pads: PVC or polyamide isolators placed between the aluminium bracket and the structural substrate. These add approximately USD 1.50–3.00 per bracket but can recover 40–60% of the thermal bridging loss.
• Staggered bracket spacing: Reducing bracket density from every 600mm to every 900mm (where wind load calculations permit) reduces the number of thermal bridges by one-third.
• Continuous insulation layer: Placing mineral wool or rigid foam insulation outboard of the structural wall, with brackets penetrating through it, rather than placing insulation between studs where thermal bridging is already significant.

The ISO 10211:2017 standard provides the calculation methodology for thermal bridges in building construction. Façade consultants should request psi-value calculations from attachment system suppliers for their specific bracket configurations. Generic values from product catalogs are not sufficient for energy code compliance in jurisdictions that have adopted ASHRAE 90.1 or equivalent standards.

Shop Drawings, Tolerance Stacking, and the Pre-Installation Engineering Review

The gap between a clean architectural elevation and a finished façade is measured in millimetres. Aluminum composite material panels are fabricated to tight tolerances—typically ±1.0mm on length and width, ±0.5mm on diagonal. But the supporting sub-frame is rarely that precise. Steel stud framing tolerances of ±3mm per floor are common. Concrete slab edge deviations of ±5mm are not unusual.

This is where the attachment system either absorbs the discrepancy or transmits it to the panel face. Slotted connections, adjustable brackets, and shim space are not optional extras—they are the primary mechanism for reconciling structural reality with architectural intent. A well-designed attachment system for aluminum composite material panels should provide at least ±5mm of adjustability in all three axes at each fixing point.

Futeng® has observed across multiple international projects that the single most common cause of panel rejection during installation is not fabrication error but sub-frame misalignment that the attachment system cannot accommodate. The fix is a pre-installation survey of the substrate, laser-scanned or string-line verified, with the results fed back into the shop drawing review before panel fabrication begins. This step adds 3–5 working days to the pre-construction schedule. It prevents 10–15 working days of rework later.

Wind Load Testing and Project-Specific Mock-Ups

ASTM E330 and its European counterpart EN 12179 govern structural performance of curtain wall systems under wind load. But a passing test report from a system supplier is not a substitute for a project-specific mock-up. The mock-up should replicate the actual substrate, bracket spacing, panel dimensions, and joint configuration that will be used on the building. It should be tested to 1.5× the design wind pressure for the specific project location, with deflection measurements taken at mid-span and at joint locations.

The ASTM E330 standard specifies a 10-second sustained load at design pressure. But for aluminum composite material panels on high-rise façades, many consultants now specify a cyclic loading protocol that simulates gust effects—typically 50 cycles at 0–100% of design pressure. This is not a code requirement in most jurisdictions. It is a risk management decision that reveals whether the attachment system will loosen over time under repeated loading.

Cost Allocation Across the Attachment System Lifecycle

Procurement teams often evaluate attachment systems on a per-square-metre supply cost. That number is misleading. The more useful metric is the total installed cost including substrate preparation, bracket installation, panel hanging, and the inevitable adjustment and remediation work. A concealed clip system that costs USD 90/m² in supply may install faster than an exposed fastener system at USD 60/m², because the clip system requires fewer man-hours for alignment and does not need fastener head touch-up painting.

Beyond installation, the lifecycle cost includes:

• Re-coating or replacement of fasteners in exposed systems at year 12–18 (marine environments may require earlier intervention).
• Joint sealant replacement in wet-seal systems at year 10–15. Open-joint rainscreens eliminate this cost entirely.
• Energy penalty from thermal bridging, which compounds annually over the building's service life. A 15% reduction in effective wall R-value on a 15,000m² façade in a heating-dominated climate can represent USD 8,000–15,000 per year in additional HVAC energy consumption.

The National Institute of Standards and Technology (NIST) has published lifecycle cost analysis methodologies for building envelope components that provide a framework for comparing attachment system alternatives on a 30-year net present value basis. Façade consultants should apply these methods rather than defaulting to lowest initial cost.

Procurement and Logistics: What the Attachment System Choice Means for Delivery

The attachment system decision has downstream consequences for packaging, shipping, and site handling. Concealed clip and cassette systems typically ship with the clips pre-attached or separately packed in clearly labeled boxes. Exposed fastener systems ship with fasteners in bulk, which creates an on-site sorting and quality control burden.

For international projects shipped FOB or CIF, the packaging specification should account for the attachment hardware. Clips and brackets made from 316 stainless steel are corrosion-resistant but can still suffer surface scratching during transit if packed loosely. The recommendation is to specify VCI (volatile corrosion inhibitor) packaging for all ferrous attachment components, and to pack aluminium clips in foam-lined cartons separated by panel type and size. On a recent 8,000m² project shipped from China to Melbourne, the packaging cost for attachment hardware was approximately USD 0.85/m² of façade area. The cost of replacing 200 scratched clips on site was approximately USD 3,200 in labour and material—plus a two-week delay while replacements were air-freighted.

Pro Tip: When reviewing supplier quotations for aluminum composite material panel packages, ask for a separate line item for attachment hardware. If the supplier bundles it into the panel square-metre rate, request a breakdown. You need to know the bracket material grade, the fastener specification, and the thermal break inclusion before you can compare quotes on equal terms. Two quotations that are USD 5/m² apart may actually be USD 25/m² apart once you normalize for attachment system quality.

Making the Engineering Call: A Decision Framework

There is no single correct attachment system for all aluminum composite material panel projects. But there is a correct decision process. It starts with the following sequence, not with the cost estimate:

1. Define the performance specification: Wind load (design pressure and cyclic), seismic drift accommodation (if applicable), thermal movement range, and cavity ventilation requirements. Write these numbers down before evaluating any system.
2. Survey the substrate: Concrete, steel frame, or light-gauge stud? The substrate determines bracket anchorage method and the available adjustment range.
3. Run the thermal bridge calculation: If the project is targeting LEED, BREEAM, or local energy code compliance, the attachment system's thermal performance must be quantified, not assumed.
4. Specify the mock-up scope: A project-specific mock-up tested to 1.5× design pressure, including at least one corner condition and one window interface.
5. Evaluate total installed cost, not supply cost: Include substrate preparation, adjustment labour, and the cost of the mock-up in the comparison.

The attachment system is not the most expensive component of a rainscreen façade, but it is the component that determines whether the aluminum composite material panels perform as specified over the building's service life. An under-engineered attachment system will transmit its cost back to the project many times over—through water ingress, coating failure, thermal inefficiency, and the professional liability of the team that signed off on it.

For procurement managers and façade engineers evaluating supplier capabilities, the key differentiator is not whether a supplier can provide panels that meet the thickness and coating specification. Most can. The differentiator is whether the supplier's technical team can provide attachment system engineering support—thermal calculations, bracket design review, and installation sequence guidance—that closes the gap between the panel specification and the building's actual performance requirements. That is the conversation worth having before the purchase order is issued.
