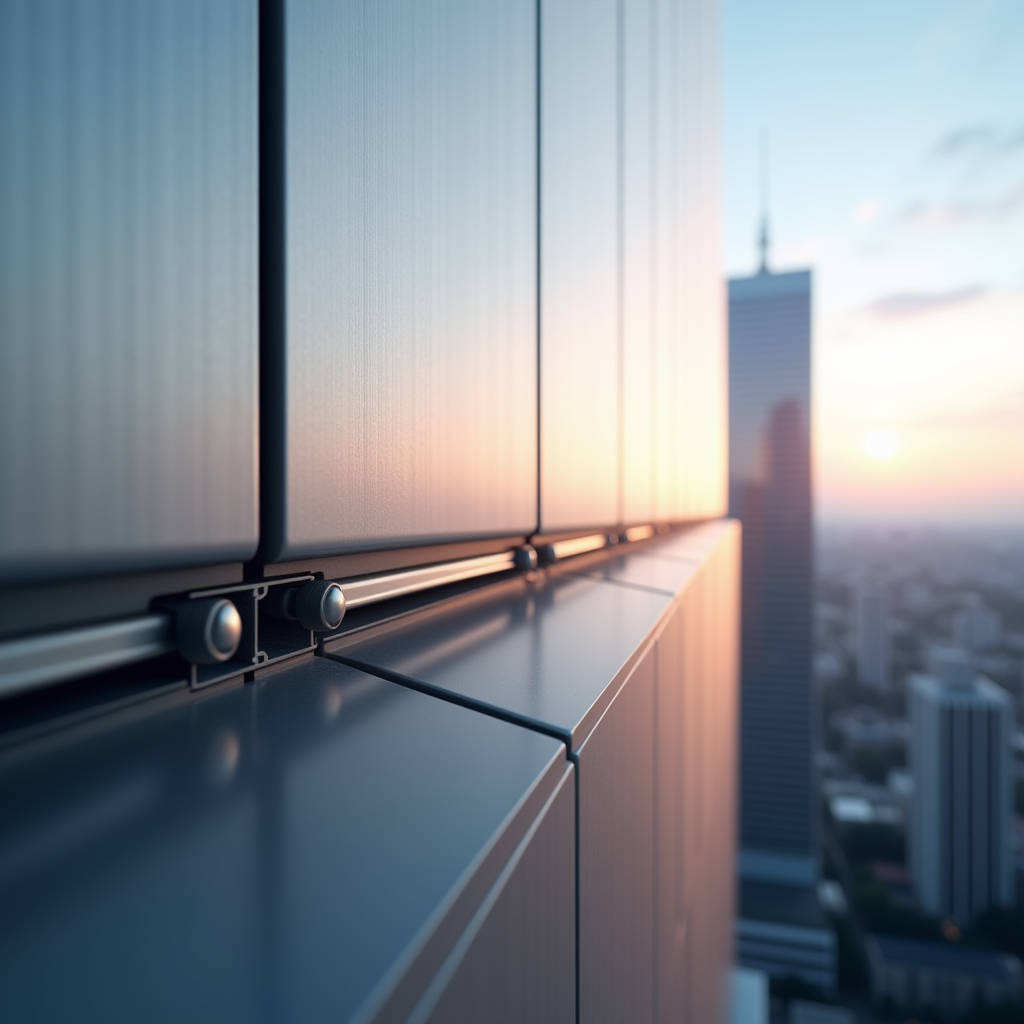

Concealed Fastener Aluminum Panels Structural Load Paths Clip Fatigue and Thermal Movement Engineering

When a façade contractor specifies concealed fastener aluminum panels, the conversation rarely stops at aesthetics. The real engineering challenge sits behind the visible surface: how the panel system handles thermal movement across a 40-meter elevation, what happens to the concealed clip assembly after 10,000 wind cycles, and whether the joint tolerance holds at ±2mm under full negative pressure. This article drills into the structural mechanics of concealed fastener systems — specifically, the interplay between aluminum panel gauge, clip geometry, wind load transfer paths, and long-term fatigue behavior — drawing from ASTM E330/E1592 testing protocols and real-world curtain wall installations on projects exceeding 30 stories.

Why the Fastener Stays Hidden — and Why That Changes Everything

An exposed fastener system is structurally straightforward. The screw head carries tension directly into the substrate, and the load path is visible, inspectable, and predictable. Concealed fastener aluminum panels invert this logic. The mechanical connection is buried behind the panel face, typically using extruded aluminum clips, perimeter carrier rails, or interlocking tongue-and-groove profiles. The panel floats. The clip flexes. The entire assembly relies on engineered elastic deformation to accommodate wind suction, thermal expansion, and seismic drift — all without the panel buckling, rattling, or disengaging.

This is not a cosmetic upgrade. It is a fundamentally different structural system. The absence of face screws means the panel edge is the load-bearing interface. A 2.5mm solid aluminum panel (alloy 3003-H14 or 5052-H32, depending on formability requirements) must transfer negative wind loads through its folded return leg into the clip, which then transfers the load into the subframe. Every millimeter of return leg depth, every degree of clip spring angle, and every millimeter of engagement overlap matters.

Field Note: On a 35-story mixed-use tower in Southeast Asia, we observed that panels with return leg depths below 20mm exhibited clip disengagement at corner zones during monsoon-season wind gusts exceeding 2.8 kPa. The fix was not thicker panels — it was a revised clip profile with 6mm deeper engagement and a 3° steeper locking angle. Panel gauge stayed at 2.5mm. Cost impact was under 4% of the cladding package.

Wind Load Performance: Reading the Test Data Correctly

ASTM E330 is the standard test method for structural performance of exterior windows, curtain walls, and cladding under uniform static air pressure. For concealed fastener aluminum panels, the critical data point is not the ultimate failure load. It is the load at which the panel or clip assembly exhibits permanent deformation exceeding 0.2% of span — because that is the threshold where joint alignment begins to degrade, and with it, the visual flatness of the façade.

A properly engineered concealed fastener system using 3.0mm solid aluminum panels with 6063-T6 extruded clips typically achieves a design wind load capacity of 3.5–4.8 kPa, depending on panel dimensions and clip spacing. But the number on the test report means nothing without understanding the boundary conditions: panel aspect ratio, clip quantity per panel, return leg geometry, and whether the test was conducted on a single panel or a multi-panel assembly.

Multi-panel testing (ASTM E1592) is far more revealing. It exposes inter-panel load sharing, sealant joint behavior, and cascading failure modes that single-panel tests miss. For procurement managers evaluating supplier technical submissions, a multi-panel test report with video documentation of the failure sequence is worth more than ten single-panel ultimate load certificates.

Thermal Expansion: The Silent Load Case

Aluminum expands at approximately 0.024mm per meter per degree Celsius. On a 4-meter panel subjected to a 60°C surface temperature swing (from pre-dawn cold to midday solar radiation on a dark PVDF coating), the panel grows by roughly 5.8mm. If the concealed fastener system does not accommodate this movement, the panel will buckle. The buckling is not just an aesthetic problem — it changes the local wind pressure distribution and can overload adjacent clips.

The most reliable concealed fastener designs incorporate slotted clip connections that permit longitudinal slip while restraining out-of-plane movement. The slot length is calculated based on the panel dimension, the expected temperature range for the project location (ASHRAE climate data is the reference), and the coefficient of thermal expansion for the specific aluminum alloy. A 3003 alloy panel and a 6063-T6 clip have slightly different expansion rates — this differential must be accounted for in the slot tolerance.

For projects in the Middle East, where surface temperatures can swing from 15°C to 75°C in a single day, we recommend a minimum slot length of 12mm for panels up to 3.5m. For panels exceeding 3.5m, the slot length should be verified by finite element analysis, not by rule-of-thumb calculation. Several suppliers, including Futeng®, provide project-specific thermal movement calculations as part of their shop drawing package — this is not a standard deliverable across the industry, so procurement teams should request it explicitly in the technical specification.

Clip Material and Fatigue: The 25-Year Problem

The concealed clip is the most stressed component in the entire assembly. It undergoes thousands of load cycles from wind gusts, thermal expansion, and building movement over the cladding's service life. If the clip is fabricated from bent sheet aluminum (typically 5052-H32, 2.0–3.0mm thick) rather than extruded 6063-T6, its fatigue life is significantly shorter — and the failure mode is sudden, not gradual.

Extruded clips offer a consistent cross-section with controlled grain structure, which translates to predictable fatigue behavior. A well-designed extruded clip for concealed fastener aluminum panels should demonstrate no visible cracking after 10,000 cycles at 1.5× design load, per AAMA 501.4 recommendations. Bent sheet clips, by contrast, introduce residual stresses at the bend radii that act as crack initiation points. For high-rise applications above 20 stories, extruded clips are the baseline specification — not an upgrade option.

The clip-to-panel interface also deserves attention. Some systems use a simple friction fit; others incorporate a positive mechanical lock with an audible click during installation. The latter is strongly preferred for overhead and soffit applications, where gravity works against the installer and a friction-fit panel can disengage before the adjacent panel locks it in place.

Pro Tip: During factory inspection, request a clip engagement test on a random sample of 10 panels from the production batch. Measure the pull-out force required to disengage the clip from the panel return leg. Values below 0.5 kN per clip (for 2.5mm panels) warrant investigation of the extrusion die wear or the panel folding tolerance.

PVDF Coating Integrity at the Fold Lines

Concealed fastener aluminum panels require the panel edges to be folded — typically a 90° return leg with a hem or a simple fold. The folding process stretches the aluminum and the PVDF coating simultaneously. If the coating is applied pre-fold (post-painted), the fold line is a stress concentration zone where micro-cracks can initiate. If the coating is applied post-fold (pre-painted blank then folded), the fold line may have reduced film thickness.

The industry standard for PVDF coating on solid aluminum panels is a minimum 25μm total dry film thickness for a two-coat system and 35μm for a three-coat system, per AAMA 2605. At the fold line, the film thickness can drop by 10–20% depending on the bend radius. A bend radius of 1.5× the panel thickness (e.g., 3.75mm radius for a 2.5mm panel) is the practical minimum to maintain coating integrity. Tighter radii require post-fold touch-up, which introduces color match risk and a potential weak point for corrosion initiation.

For coastal or high-humidity environments, the fold line should be sealed with a continuous bead of neutral-cure silicone after folding, before the panel is packed for shipment. This is a small step that adds maybe 2–3 minutes per panel in the factory but eliminates the most common corrosion entry point on concealed fastener systems.

Installation Tolerance Stack-Up: Where Theory Meets the Site

The structural calculations assume a perfectly planar substrate. The construction site delivers something else. Steel subframe tolerance on a typical commercial project is ±5mm over a 3-meter span, per AISC Code of Standard Practice. The concealed fastener system must absorb this deviation without visible panel misalignment.

The most effective approach is a three-axis adjustable clip system. The clip base allows ±3mm adjustment perpendicular to the substrate (Z-axis), the clip body allows ±5mm in the vertical direction (Y-axis), and slotted connections allow ±3mm horizontally (X-axis). This adjustment range is not a luxury — it is the minimum required to achieve a ±2mm joint alignment tolerance on the finished façade, which is the threshold for a Class A visual finish as defined by the AAMA 609 voluntary specification for architectural aluminum cladding.

Installers need to understand that the adjustment sequence matters. Z-axis adjustment comes first (setting the plane), then Y-axis (setting the horizontal joint line), then X-axis (setting the vertical joint). Reversing this sequence leads to cumulative errors that cannot be corrected without loosening and re-tightening multiple panels — a costly rework that erodes the installation margin.

Supply Chain Considerations: From Mill Certificate to Site

The structural performance of concealed fastener aluminum panels begins at the aluminum mill. The alloy temper, the gauge tolerance, and the flatness specification all affect how the panel behaves under load. Mill certificates should be reviewed for every coil or sheet batch. For 3003-H14, the tensile strength should fall between 140–180 MPa with elongation of 4–6%. For 5052-H32, expect 210–260 MPa tensile with 7–10% elongation. Deviations outside these ranges suggest the material may have been sourced from a secondary smelter with inconsistent alloying — a risk that no amount of clip engineering can compensate for.

Packaging for concealed fastener systems requires more care than for exposed fastener panels. The folded return legs are vulnerable to impact damage during transit. Each panel should be interleaved with polyethylene foam or kraft paper, and the pallet should be designed so that the return legs of one panel do not bear against the face of the adjacent panel. For FOB shipments, specifying a plywood crate with internal bracing rather than a simple pallet wrap adds approximately $1.50–$2.00 per square meter to the logistics cost but reduces transit damage claims by an estimated 70%, based on claims data from multiple international cladding projects.

Specifying the Right System: A Decision Framework

Choosing a concealed fastener system for a specific project requires aligning three variables: the building's structural behavior, the architectural performance requirements, and the installation crew's capability. A system that performs flawlessly on a low-rise office building in a temperate climate may be completely inadequate for a 40-story tower in a typhoon zone.

The decision framework should start with the wind load — not the design wind speed, but the peak negative pressure at building corners and edges, which can be 2–3 times higher than the zone-average pressure. This data comes from the wind tunnel report or the project-specific structural calculations. The panel gauge, clip type, and clip spacing are then back-calculated from this pressure, with a safety factor of 1.5 on the tested capacity.

Next, the thermal movement range is calculated from the project's climate data. The clip slot length and the joint sealant type (low-modulus silicone for high-movement joints) are specified accordingly. Finally, the installation tolerance is overlaid — and if the specified steel subframe tolerance exceeds the clip adjustment range, either the subframe specification or the clip design must be revised before procurement begins.

This is not a product selection exercise. It is an engineering workflow. The panel is the last thing you specify — the loads, the movements, and the tolerances come first. Suppliers like Futeng® that offer in-house engineering support for this workflow can shorten the design development phase by 2–3 weeks compared to suppliers who only provide a catalog and a price list. For project managers, that time saving translates directly into construction schedule certainty.

FAQ: Structural Engineering of Concealed Fastener Systems

What is the minimum panel thickness for a concealed fastener aluminum panel on a high-rise?

For buildings above 30 meters, 2.5mm is the practical minimum for solid aluminum panels with concealed fasteners. Below this gauge, the return leg stiffness is insufficient to maintain clip engagement under design wind loads, particularly at corner zones. Some projects use 2.0mm panels on low-rise portions and 3.0mm panels on upper floors where wind pressures are higher — a value-engineered approach that optimizes material cost without compromising safety.

How do I verify that a concealed fastener system meets ASTM E330 requirements?

Request the full test report, not just the pass/fail certificate. Check the test specimen description: panel dimensions, clip type and quantity, substrate representation, and whether the test included a multi-panel assembly. The report should include deflection data at each load increment, not just the ultimate load. Permanent deformation after unloading should be less than 0.2% of span at 1.5× design load.

Can concealed fastener aluminum panels be used on curved façades?

Yes, but the clip geometry must be adapted for the curvature. For single-curved façades with a radius above 15 meters, standard clip systems can be used with shim-adjusted angles. For tighter radii or double-curved surfaces, custom clips with variable stand-off heights are required, and each panel's return leg must be individually profiled. This increases the engineering and fabrication cost by 30–50% compared to flat panel systems.

What causes oil-canning in concealed fastener systems, and how is it prevented?

Oil-canning — the visible waviness on flat panel surfaces — is caused by residual stresses in the aluminum sheet, inadequate panel stiffening, or thermal restraint from the clip system. Prevention starts at the material specification: specify stretcher-leveled sheet with a flatness tolerance of 0.5% of the panel diagonal. The panel should be designed with sufficient stiffener ribs on the rear face, and the clip attachment should permit thermal slip. AAMA 609 provides visual acceptance criteria for oil-canning under specified lighting conditions.

What is the expected service life of a concealed fastener aluminum panel system?

A properly engineered system using 2.5–3.0mm solid aluminum panels with extruded 6063-T6 clips, PVDF coating conforming to AAMA 2605, and stainless steel fasteners (grade 304 or 316 for coastal environments) has a design service life of 30–40 years before major refurbishment. The limiting factor is typically the PVDF coating's gloss retention and color stability, not the structural integrity of the concealed fastener assembly. Regular cleaning and inspection of sealant joints at 5–7 year intervals is recommended to maintain weathertightness.

The structural engineering of concealed fastener aluminum panels is a discipline that sits at the intersection of façade design, mechanical engineering, and materials science. The system that performs best is not the one with the highest ultimate load on a test report — it is the one where the panel, the clip, the coating, and the installation tolerance have been designed as an integrated system, with each component's behavior understood in the context of the whole. For the procurement manager, this means evaluating suppliers on their engineering capability, not just their price per square meter. For the contractor, it means investing in installer training on the adjustment sequence and tolerance management. The panel face is the last thing anyone sees. The engineering behind it is what keeps it there.
