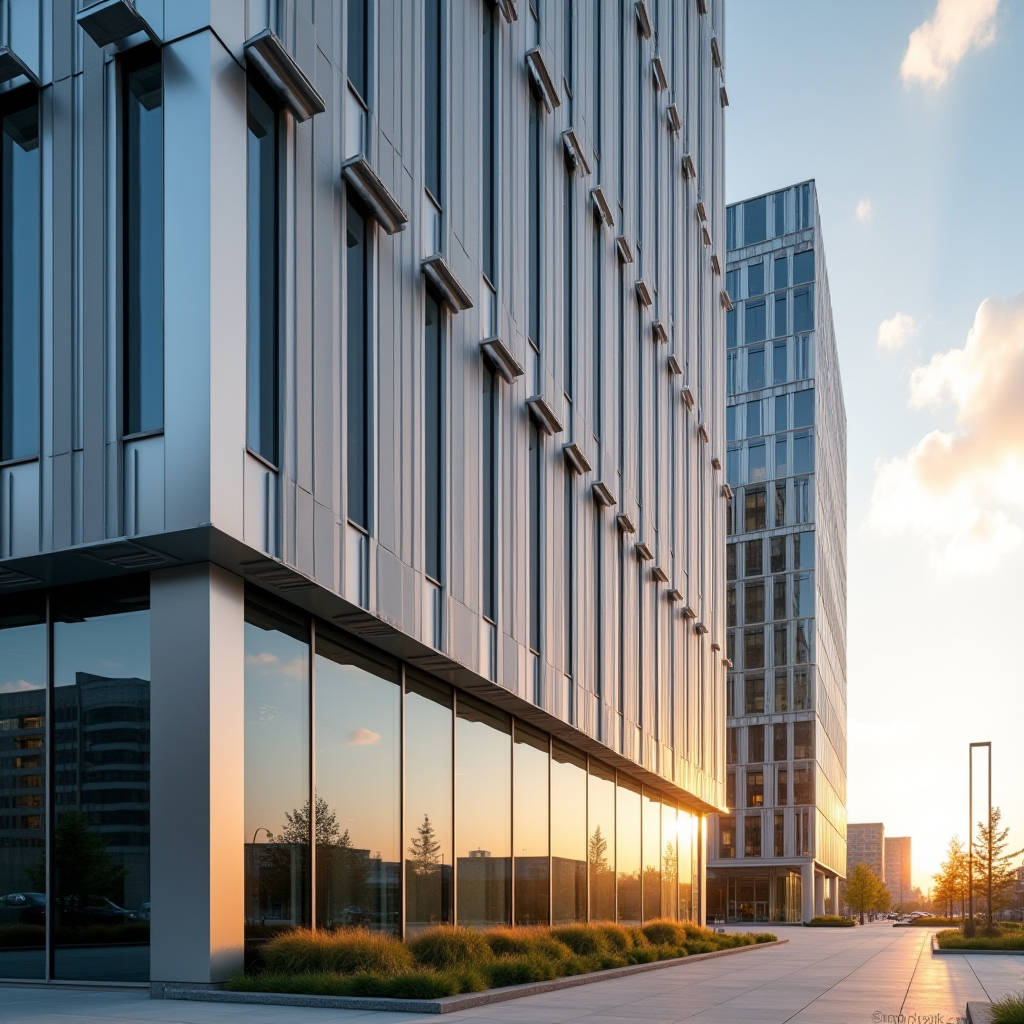

Interlocking Aluminum Panels Cut Envelope Schedules Through Factory Engineered Joint Geometry

When a façade contractor faces a 40-story tower with a unitized curtain wall schedule measured in hours per floor, the last thing anyone wants is a cladding system that demands field modification. Interlocking aluminum panels solve a specific problem that has little to do with aesthetics and everything to do with installation velocity: they eliminate the measuring, shimming, and edge-aligning that turns panel installation into a bottleneck. The real value proposition is not the interlock itself. It is the downstream effect on crane time, scaffolding rental, and the number of skilled installers needed on site. A properly engineered interlocking system shifts alignment tolerance from the installer's judgment to the extrusion geometry, and that shift is what separates a 12-week envelope cycle from a 16-week one.

What "Interlocking" Actually Means in Solid Aluminum Panel Engineering

The term gets thrown around loosely. In practice, interlocking aluminum panels fall into two distinct mechanical categories: hook-and-groove systems that rely on gravity and panel weight to seat the joint, and clip-and-rail systems where a continuous aluminum extrusion locks adjacent panels under spring tension. The difference matters enormously for wind load performance.

Hook-and-groove systems work well on low-rise structures where negative wind pressure stays below 1.5 kPa. The panel's top edge hooks over a continuous rail, and the bottom edge of the panel above captures the top return leg. Installation is fast — a two-man crew can hang 30 to 40 m² per hour once the starter track is set. But the system has a known failure mode: under cyclic wind loading, panels can lift and disengage if the return leg depth is insufficient. ASTM E283 and E331 air-and-water tests become critical here. You want a minimum 12 mm return leg engagement for panels above 2.5 m².

Clip-and-rail systems are the standard for mid-rise and high-rise work. Each panel has factory-riveted or crimped clips on the rear face that snap into a continuous aluminum rail mounted to the subframe. The interlock is mechanical, not gravitational. Panel-to-panel joints maintain a consistent 10–12 mm shadow gap without installer adjustment. The trade-off: the rail system itself must be installed to a tolerance of ±2 mm over any 3-meter run, or the clips will not engage. That means the subframe contractor and the panel fabricator need to agree on datum lines before the first bracket is drilled.

Field Note: On a recent 28-story mixed-use tower in Southeast Asia, the contractor saved 11 days on the envelope schedule by switching from a face-fastened cassette system to a clip-and-rail interlocking panel system. The savings came from eliminating the need to scaffold each floor for blind-fastener access — interlocking panels were installed entirely from the slab edge or BMU. The panel cost was 8% higher, but the total envelope installed cost dropped by 14%.

Thermal Movement: The Hidden Engineering Constraint

Solid aluminum expands at roughly 0.024 mm per meter per degree Celsius. A 3.0-meter panel subjected to a 60°C surface temperature swing (winter night to summer solar gain) will grow by about 4.3 mm. If the interlocking joint does not accommodate that movement, the panels will buckle. Not might buckle — will.

This is where interlocking panel design gets genuinely technical. The joint must provide enough clearance to absorb thermal expansion without opening a visible gap, and without transferring stress to the fasteners or the subframe. Two strategies dominate:

Sliding clip systems fix the panel at one point (usually the center of the top edge) and allow all other clips to float. The panel expands outward from the fixed point, and the interlocking edges slide relative to each other within the joint. This requires a minimum joint depth of 18–20 mm to maintain engagement through the full movement range.

Expansion joints at module boundaries break the façade into independent thermal zones. Every 15–20 linear meters, a wider 20 mm joint with a silicone gasket absorbs accumulated movement. This approach is simpler to engineer but adds visual rhythm to the façade that the architect must accept early in design development.

For a typical 3.0 mm thick solid aluminum panel (alloy 3003-H14 or 5052-H32), the interlocking return legs should be fabricated with a minimum 1.5 mm radius on internal corners to avoid stress cracking during thermal cycling. Sharp 90° internal corners on the return leg are a fatigue failure waiting to happen, especially on dark-colored PVDF finishes where surface temperatures regularly exceed 80°C.

PVDF Coating Integrity at Interlocking Edges

Interlocking panels introduce a coating challenge that face-fastened systems avoid: the return legs and clip attachment points are formed after the flat sheet is coated. The bending process stresses the cured PVDF film. If the coating is too brittle — a common problem with high-solids formulations baked too aggressively — micro-cracks form at the bend radius and become corrosion initiation sites within the first 12–18 months of exposure.

The specification to watch is ASTM D4145, which measures coating flexibility by T-bend testing. For interlocking panels, the fabricator should achieve a 2T bend (coating survives bending around a mandrel twice the sheet thickness) with no visible cracking under 10× magnification. A 1T result is better but not always achievable with 70% PVDF formulations at 35–40 microns dry film thickness.

There is also a practical quality-control step that separates serious fabricators from sheet-metal shops: the return leg should be formed with the coated surface on the outside of the bend. This puts the coating in compression rather than tension, reducing crack risk. It sounds obvious, but you would be surprised how many shops get this wrong on the first production run.

Futeng® and other established fabricators typically run a first-article bend test on every coil batch before committing to panel production. The test involves bending a coated coupon to the exact return-leg geometry, then subjecting it to 1,000 hours of ASTM B117 salt spray. Any blistering or creep beyond 1 mm from the scribe line fails the batch.

Wind Load Performance: When Interlocking Joints Become the Weak Link

A solid 3.0 mm aluminum panel spanning 1,200 mm between stiffeners can easily handle 3.0 kPa design wind pressure. The panel itself is rarely the limiting factor. The interlocking joint is.

Under negative wind pressure (suction), the joint must resist pull-through and disengagement. Under positive pressure, it must transfer load to the subframe without rattling or deforming. The joint's capacity depends on three variables: clip spacing, clip gauge, and return leg geometry.

Typical engineering values for a clip-and-rail interlocking system using 1.5 mm thick 6063-T6 aluminum clips at 400 mm centers:

The values above assume the subframe has been independently designed to meet the same load criteria. A common coordination failure: the panel engineer designs the interlocking joint for 3.0 kPa, but the subframe contractor supplies a system rated for 2.0 kPa. The weakest link governs. Always request a unified structural calculation that covers the complete load path from panel face to primary structure.

For projects in hurricane-prone regions, ASCE 7-22 wind maps should be used to determine the design pressure, and the interlocking joint should be tested to 1.5× the design pressure under cyclic loading per ASTM E1592. Static testing alone does not capture the fatigue behavior of clip-and-rail connections under repeated wind gusts.

Supply Chain and Logistics: Protecting Interlocking Geometry in Transit

Interlocking panels are more vulnerable to shipping damage than flat cassette panels. A bent return leg or a deformed clip rail means the panel cannot engage with its neighbor, and on-site repair of extruded aluminum geometry is rarely successful. The panel becomes scrap.

The standard packaging approach for export shipments uses A-frame stillages with individual panel separation via foam spacers at 600 mm intervals. Each stillage holds 20–25 panels depending on size. The critical detail: the interlocking edges must face inward toward the stillage frame, not outward where they can be struck by forklift tines or adjacent stillages during container loading.

For FOB and CIF shipments, the following packaging specification has proven effective across multiple international projects:

• Panels individually wrapped in 30-micron PE film with VCI (volatile corrosion inhibitor) for ocean freight
• Interlocking edges protected by U-shaped 2 mm PVC edge guards, taped in place
• Stillage base: 100×100 mm steel RHS with fork pockets, hot-dip galvanized
• Maximum stillage gross weight: 1,200 kg for standard 20-foot container handling
• Each stillage tagged with QR code linking to panel schedule and installation sequence

Damage rates on interlocking panels shipped without edge protection typically run 3–5%. With the specification above, rates drop below 0.5%. The edge guards cost roughly $0.80 per linear meter. On a 10,000 m² façade, that is a negligible line item compared to the cost of replacing 50 damaged panels and delaying the installation crew.

Installation Sequencing and Tolerance Stack-Up

Interlocking systems are unforgiving of cumulative error. Unlike face-fastened panels where each panel is independently positioned, an interlocking run transfers alignment errors from one panel to the next. A 1 mm error at panel 1 becomes a 10 mm error by panel 10 if the joint does not self-correct.

The fix is a disciplined installation sequence that starts from a fixed reference point and works outward in both directions. The starter track or datum rail must be set with a laser level — not a spirit level, not a chalk line. The tolerance on the starter track is ±1 mm over any 10-meter length. Once the first row of panels is locked in, subsequent rows are constrained by the interlocking geometry, and errors in the subframe become visible as panel misalignment within two or three rows.

Experienced contractors build in a "correction course" every 8–10 rows. This is a horizontal joint with a slightly wider shadow gap (15 mm instead of 10 mm) that absorbs accumulated vertical error. The wider gap is visually imperceptible from ground level but provides crucial adjustment capacity.

Pro Tip: Before signing off on the subframe, walk the entire façade with the panel fabricator's installation supervisor. Measure the subframe plane at every clip location using a total station. Any point more than 3 mm out of plane must be shimmed or adjusted. Interlocking panels will not "pull in" a subframe that is out of tolerance — they will simply not engage, or they will engage under stress and fail later.

When Interlocking Panels Are the Wrong Choice

No system suits every project. Interlocking aluminum panels carry a fabrication premium over face-fastened cassettes — typically 10–18% depending on panel complexity and clip design. That premium buys installation speed and joint consistency. If the project has a loose envelope schedule and access is straightforward (full scaffolding, no crane constraints), the premium may not be justified.

Interlocking systems also demand more from the design coordination process. The panel shop drawings must account for the interlocking geometry at every interface: window perimeters, louver openings, expansion joints, and transitions to other cladding materials. A face-fastened panel can be trimmed on site to fit an unexpected condition. An interlocking panel cannot, because trimming removes the interlocking edge. Every interface must be resolved before fabrication begins.

For small projects under 500 m², the engineering and setup costs of an interlocking system often outweigh the installation savings. The breakeven point varies by region and labor cost, but as a rough guide: if the façade area is below 800 m² and the building is under four stories, a face-fastened or cassette system is usually the more economical choice.

Specifying Interlocking Panels: Key Contract Clauses

Procurement managers and specifiers should include several clauses that are often overlooked in standard aluminum panel specifications:

First-article assembly test: Require the fabricator to assemble a minimum 3×3 panel mockup using the actual subframe, clips, and panels from production tooling. The mockup must demonstrate that all panels engage and disengage without force, and that joint gaps are consistent within ±1.5 mm of the specified dimension. This test catches tolerance mismatches between the panel extrusion and the clip profile before mass production.

Interlock engagement guarantee: Specify that the panel system must maintain full interlock engagement under the design wind load with a safety factor of 1.5. Require a letter from the system engineer confirming this, backed by either physical testing per ASTM E1592 or validated finite element analysis.

Coating warranty at formed edges: Standard PVDF coating warranties (typically 20–25 years for color retention and chalk resistance per AAMA 2605) often exclude formed edges from coverage. Negotiate an explicit inclusion for the interlocking return legs, or require the fabricator to demonstrate T-bend performance per ASTM D4145 as a condition of warranty acceptance.

Replacement panel compatibility: Interlocking panels from different production batches may not fit together if tooling wear or process drift changes the return leg geometry. Require the fabricator to retain tooling and process parameters for a minimum of five years, and to guarantee that replacement panels will interlock with the original installation within the specified joint tolerance.

The global market for architectural metal cladding continues to grow, driven by commercial construction activity across Southeast Asia, the Middle East, and North America. Industry data from Statista indicates steady demand for high-performance façade systems in these regions. For procurement teams evaluating suppliers, fabricators like Futeng® with dedicated interlocking panel production lines and in-house PVDF coating capability can offer tighter control over the critical variables: extrusion tolerance, coating flexibility, and delivery sequencing.

FAQ: Interlocking Aluminum Panels

What is the minimum panel thickness for an interlocking system?

2.0 mm solid aluminum (alloy 3003-H14) is the practical minimum. Below this, the return leg lacks sufficient stiffness to maintain engagement under wind load. For panels exceeding 2.5 m² or projects in high-wind zones, 2.5 mm or 3.0 mm is recommended.

Can interlocking panels be removed and replaced individually?

Yes, but it requires working from the nearest free edge or expansion joint. Mid-field panel replacement involves disengaging panels sequentially from the nearest edge until the target panel is reached. This is why replacement panel compatibility clauses matter.

Do interlocking panels require sealant at the joints?

Typically no — the interlocking geometry provides a rainscreen joint that drains and ventilates. However, in climates with driving rain exposure (wind-driven rain index above 0.5), a secondary weather seal behind the joint may be specified.

What fire rating applies to solid aluminum interlocking panels?

Solid aluminum is non-combustible (Euroclass A1 per EN 13501-1). The fire performance of the complete system depends on the subframe, insulation, and fire barriers behind the panels. The panel itself does not contribute to fire load.

How are interlocking panels fixed at corners and parapets?

Edge conditions require purpose-designed closure pieces — typically brake-pressed aluminum profiles that match the interlocking geometry on one side and provide a clean termination on the other. These are fabricated from the same coil batch as the panels to ensure color consistency.

Interlocking aluminum panels represent a genuine engineering trade-off: higher upfront fabrication cost in exchange for faster, more predictable installation and tighter joint consistency. The decision to specify them should be driven by the project's envelope schedule, access constraints, and tolerance requirements — not by aesthetics alone. When the subframe is accurate, the engineering is thorough, and the logistics protect the interlocking geometry, the system delivers exactly what it promises: a façade that goes up fast and stays aligned for decades.
