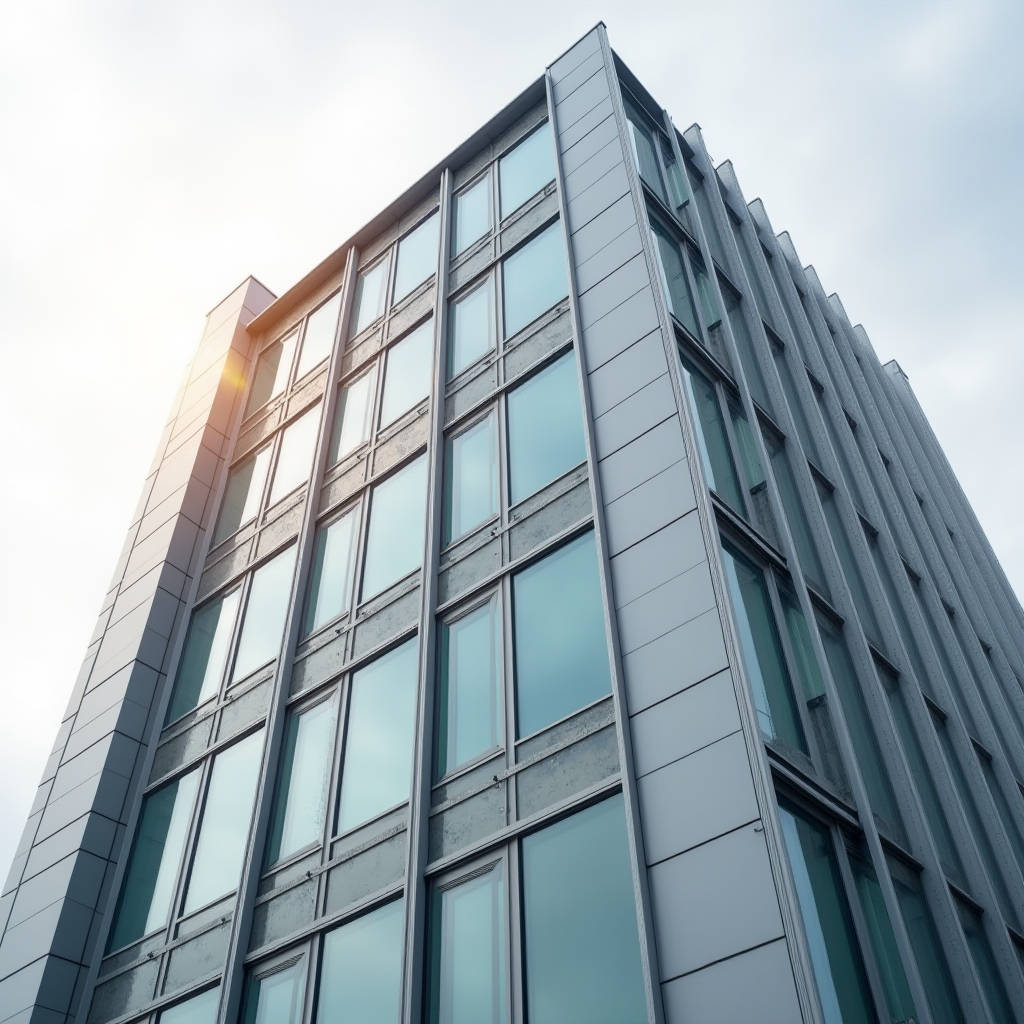

How to Prevent Oil-Canning in Aluminum Spandrel Panels with Alloy Temper and Flatness Specs

When a 40-story tower in downtown Chicago underwent façade remediation in 2022, the project team encountered a problem that no specification sheet had anticipated: the original aluminum spandrel panels, installed just 14 years earlier, had begun to exhibit visible oil-canning across nearly 30% of the south-facing elevation. The issue wasn't material failure in the traditional sense — no perforation, no structural compromise — but the optical distortion was severe enough to trigger a tenant complaint cascade and an eventual insurance claim. For building envelope contractors and façade engineers, this scenario underscores a reality that rarely gets sufficient attention during the submittal phase: oil-canning in aluminum spandrel panels is not a binary pass/fail condition. It is a probabilistic outcome governed by alloy temper, panel aspect ratio, fixing methodology, and thermal cycling. This article examines the root causes, quantifiable thresholds, and practical mitigation strategies that procurement managers and cladding specialists need before signing off on shop drawings.

What Oil-Canning Actually Means in Solid Aluminum Spandrel Panels

Oil-canning describes a visible waviness or buckling across the flat surface of a metal panel, typically appearing as ripples under oblique lighting conditions. The phenomenon has nothing to do with lubricants — the name originates from the audible "pop" that old oil cans made when their thin metal bottoms deformed under thumb pressure. In the context of aluminum spandrel panels, the mechanism is elastic buckling caused by residual stresses introduced during manufacturing, compounded by thermal expansion and contraction in service.

Unlike composite panels (ACP), which rely on a polyethylene or mineral core to maintain flatness, solid aluminum panels — typically 2.0mm, 2.5mm, or 3.0mm thick — depend entirely on the base metal's inherent stiffness and the restraint system. A 2.5mm-thick 5052-H32 panel spanning 1,200mm between stiffeners will behave differently from a 3.0mm 3003-H14 panel under identical thermal loads. The distinction matters because procurement specifications often reference ASTM B209 for plate material but remain silent on oil-canning acceptance criteria. That silence becomes expensive during installation.

Field Note: On a 2021 multi-use project in Singapore, we observed oil-canning on 2.0mm panels with aspect ratios exceeding 4:1 (width-to-stiffener-spacing). Switching to 2.5mm material and reducing stiffener spacing from 600mm to 450mm eliminated visible distortion across 95% of the affected area. The cost delta was approximately 12% on material, but the alternative — full replacement — would have exceeded $180,000 in labor and crane time alone.

Alloy Temper and Residual Stress: The Manufacturing Root Cause

The journey toward oil-canning begins at the rolling mill. Aluminum coil and sheet products carry residual stress profiles that depend on the rolling process, thermal treatment, and leveling method. Non-heat-treatable alloys like 5052 (commonly specified for aluminum spandrel panels due to corrosion resistance) arrive in H32 or H34 temper — strain-hardened and partially annealed. Heat-treatable 6061-T6, while stiffer, introduces cost and forming limitations that make it less common for spandrel applications.

The critical variable is how the metal is flattened after rolling. Roller leveling, which repeatedly bends the sheet through a series of offset rollers, can reduce residual stress but may not eliminate it entirely. Stretcher leveling — where the sheet is physically stretched beyond its yield point — produces a far more stable stress state. According to the Aluminum Association, stretcher-leveled sheet demonstrates significantly lower susceptibility to oil-canning, yet many fabricators default to roller-leveled material because of equipment availability and cost.

For procurement managers writing specifications, this means the difference between a panel that stays flat for 20 years and one that develops visible distortion within the first seasonal cycle can be decided by a single line item: "Material shall be stretcher-leveled to meet flatness tolerance of 0.4% of panel dimension, measured per ASTM E290."

Why PVDF Coating Cure Cycles Can Amplify the Problem

Solid aluminum spandrel panels typically receive a factory-applied PVDF (polyvinylidene fluoride) coating system — often a 3-coat or 4-coat process with a total dry film thickness of 35–45 microns. The coating is cured at temperatures between 230°C and 250°C. Here's the catch: that cure temperature is high enough to partially relieve some residual stresses in the aluminum substrate, but the relief is uneven. Areas of the panel that heat and cool at different rates — edges versus center, stiffener-attached zones versus free spans — develop new stress gradients.

Fabricators who understand this dynamic will often specify a controlled cool-down rate after curing, or run test panels through the paint line and re-check flatness before committing to production. Futeng®, for example, maintains a post-coating flatness inspection protocol that rejects panels exceeding 2mm deviation per 1,000mm of diagonal measurement — a threshold tighter than many international project specifications demand.

Thermal Movement: The In-Service Trigger

Even a perfectly flat panel leaving the factory can develop oil-canning once installed, if the attachment system does not accommodate thermal movement. Aluminum expands at approximately 0.024mm per meter per degree Celsius. For a 3-meter-wide spandrel panel on a façade experiencing a 60°C temperature swing between a winter night and direct summer sun, the total movement is roughly 4.3mm. If the panel is restrained rigidly — either through overly tight fasteners or insufficient slot clearance — compressive stress builds until the panel buckles elastically.

The most common failure mode we see in forensic investigations involves panels fixed with exposed fasteners through pre-drilled holes that lack adequate oversizing. A 6mm fastener in a 6.5mm hole provides only 0.25mm of radial clearance per side — insufficient for the thermal movement described above. The industry rule of thumb, validated by the Society of Façade Engineering, recommends a minimum clearance of 1.5× the calculated thermal movement at each fixing point.

Concealed Fix Systems and Their Oil-Canning Tradeoffs

Concealed (rout-and-return) fixing systems, where panels are bent at the edges and hung on aluminum extrusions, offer a cleaner aesthetic but introduce their own oil-canning risks. The return leg — typically 20–25mm deep — creates a stiffened edge that resists buckling, but the center of the panel remains unsupported. The result can be a "pillow" effect where the panel center bows outward under thermal compression while the edges remain flat.

Mitigation strategies include:

• Adhesive-applied stiffeners on the panel rear face, bonded with structural silicone or two-part epoxy
• Reduced stiffener spacing — typically 500mm maximum for 2.5mm panels, 600mm for 3.0mm
• Specifying H32 or H34 temper rather than softer H14, which provides higher yield strength and buckling resistance
• Using a cassette-style panel design where the rear tray provides inherent rigidity

Specification Language That Actually Prevents Oil-Canning

Most project specifications for aluminum spandrel panels reference ASTM B209 for material and AAMA 2605 for coating performance, but are silent on flatness criteria. The result is a contractual gray zone where the contractor is expected to deliver "visually flat" panels — a subjective standard that means different things to different observers under different lighting conditions.

A robust specification should include quantifiable flatness requirements. The following table provides a practical framework based on panel dimensions and installation conditions:

These values are derived from field correlation studies and align with recommendations from the ISO 21207 accelerated weathering framework, which accounts for cyclic thermal stress. Contractors should note that the flatness tolerance applies after coating and after stiffener attachment — not just to the raw blank.

Inspection Protocols: Catching Distortion Before Installation

The most cost-effective moment to detect oil-canning is at the fabricator's facility, before panels are crated and shipped. A practical incoming inspection protocol includes:

1. Lighting conditions: Inspect panels under oblique, diffuse lighting — direct overhead fluorescent or LED strips can mask subtle ripples. A raking light source positioned at 15–30 degrees from the panel plane reveals surface irregularities most effectively.
2. Reference surface: Place the panel on a certified flat inspection table or granite surface plate. A 3-meter straightedge laid diagonally should not reveal gaps exceeding the specified flatness tolerance.
3. Temperature normalization: Allow panels to stabilize at ambient temperature for at least 4 hours before inspection. A panel that appears flat at 10°C may exhibit distortion at 35°C if residual stresses are present.
4. Statistical sampling: Per ANSI/ASQ Z1.4, a normal inspection Level II sampling plan with an AQL of 2.5 is appropriate for most commercial projects. For high-visibility architectural façades, consider tightening to AQL 1.0.

Pro Tip: On a recent Middle Eastern project where summer site temperatures exceeded 48°C, we specified that factory inspection be conducted at 35°C minimum — simulating in-service conditions. Panels that passed flatness at 20°C ambient shop temperature showed 1.5–2.0mm additional deviation when heated. The fabricator installed a temporary heat lamp array to validate compliance. The additional cost was approximately $0.80 per panel.

Material Selection: 5052 vs. 3003 vs. 6061 for Spandrel Applications

Alloy selection directly influences oil-canning resistance. 5052-H32, with a yield strength of approximately 193 MPa, offers roughly 30% higher buckling resistance than 3003-H14 (yield strength ~145 MPa) at the same thickness. This makes 5052 the default choice for aluminum spandrel panels on projects where flatness is a priority. However, 5052 typically carries a 5–8% cost premium over 3003 and may have slightly longer lead times depending on mill availability.

6061-T6 offers even higher yield strength (~276 MPa) but presents two practical obstacles: it is significantly more expensive (15–20% premium over 5052) and its higher hardness makes routing and folding operations slower, increasing fabrication cost. For most spandrel applications, 5052-H32 represents the optimal balance of flatness performance, corrosion resistance, and fabrication economics.

Data from Statista indicates that global aluminum flat-rolled product demand for construction applications grew at approximately 4.2% CAGR from 2018 to 2023, with 5xxx-series alloys capturing an increasing share of the architectural cladding segment due to their superior corrosion performance in coastal and industrial environments.

Packaging, Shipping, and Site Handling: Protecting Flatness Through the Supply Chain

A panel that leaves the factory within tolerance can arrive on site with oil-canning induced by improper handling. The most common shipping-related causes include:

• Panels stacked without adequate interleaving, allowing point loads to create permanent set
• Overtightened strapping that compresses panel edges beyond elastic recovery
• Forklift handling that twists or bends panels during unloading
• On-site storage on uneven ground, particularly in high-temperature conditions

For international shipments — FOB Shanghai or CIF destination ports — the packaging specification should include: individual panel separation using PE foam or corrugated cardboard, edge protection on all four sides, and crating that supports the panel across its full area rather than at discrete points. A well-designed crate for a 1,200mm × 2,400mm panel should include a rigid plywood base with cross-bracing at 400mm centers, preventing flexure during lifting.

Site handling protocols should mandate vertical storage on purpose-built A-frames with padded contact surfaces. Panels stored horizontally on site — even temporarily — are at significantly higher risk of developing oil-canning before installation.

Contractual and Commercial Considerations

Oil-canning disputes are among the most common sources of façade-related claims. The core issue is that many contracts lack objective acceptance criteria. A specification that states "panels shall be free from visible distortion" is unenforceable because "visible" depends on viewing angle, time of day, and observer subjectivity.

Contractors should negotiate the following before signing:

• An agreed flatness tolerance expressed as a percentage of panel dimension, measured per a defined standard (ASTM E290 or equivalent)
• A defined inspection distance and lighting condition (e.g., "viewed from 3 meters under diffuse daylight, perpendicular to the panel plane")
• A statistical acceptance sampling plan rather than 100% inspection, which is impractical for large projects
• Clarity on whether oil-canning observed after installation but attributable to structural movement or substrate irregularity is the contractor's responsibility

The ASTM International Committee E06 on Performance of Buildings continues to develop guidance on façade flatness evaluation, and contractors should monitor forthcoming standards that may provide more precise acceptance frameworks.

Practical Engineering Recommendations

Based on forensic investigations across multiple projects and climate zones, the following engineering measures consistently reduce oil-canning incidence in aluminum spandrel panels:

• Specify 2.5mm minimum thickness for panels exceeding 0.8m² in area; 3.0mm for panels exceeding 2.0m²
• Require stretcher-leveled sheet and request mill certification confirming the leveling method
• Limit stiffener spacing to 500mm or less, with stiffeners oriented parallel to the shorter panel dimension
• Design fixing systems with slotted holes providing at least 1.5× calculated thermal movement clearance
• Include post-coating flatness inspection in the factory quality control plan, with acceptance criteria referenced in the purchase order
• For projects in high-temperature climates (Middle East, Southeast Asia, Northern Australia), consider specifying a thermal soak test at 60°C as part of first-article approval

Material suppliers with established quality systems — such as Futeng®, which operates dedicated architectural aluminum production lines — can typically provide the documentation and process control needed to support these requirements. The key is to make flatness a contractual deliverable, not an afterthought addressed during the defects liability period.

Oil-canning is not a material defect. It is a design and specification outcome. When the alloy, thickness, stiffener layout, fixing detail, and inspection protocol are all aligned, the probability of objectionable distortion drops to near zero. When any one of these elements is neglected, the risk shifts onto the contractor — and the cost of remediation, once panels are installed at height, can exceed the original panel procurement budget by a factor of three or more. The time to address oil-canning is during the shop drawing review, not the snagging walk.
