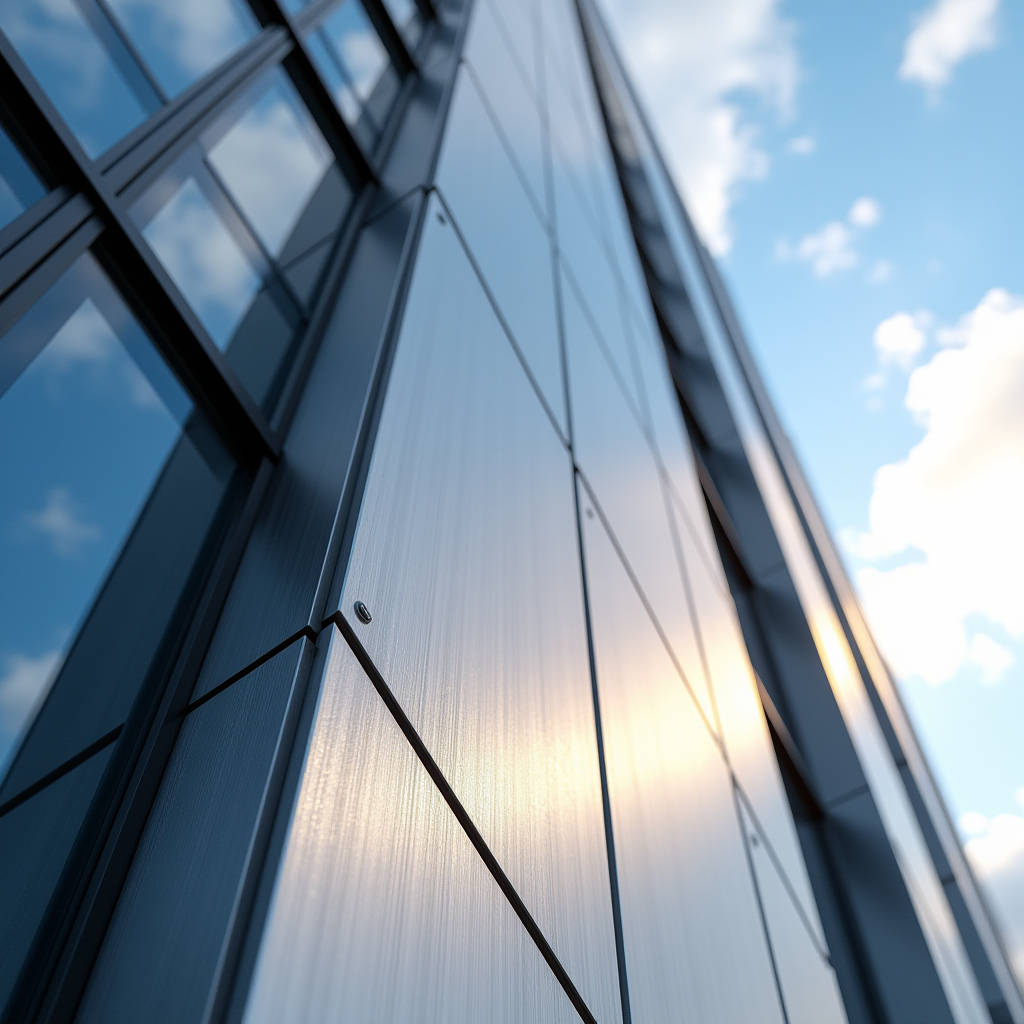

Aluminum Column Covers Under Wind Load How Thickness and Thermal Movement Dictate High Rise Façade Engineering

When a façade contractor orders aluminum column covers for a 40-story commercial tower, the conversation rarely starts with "how much per square meter." It starts with the wind tunnel report. A 3.0mm solid aluminium panel wrapped around a structural column at 120 meters above grade faces a different set of physical demands than the same panel installed at ground level. The difference is not cosmetic. It determines whether the column cover will oil-can under negative wind suction, whether the fixing clips will hold during a 50-year storm, and whether the expansion joints will accommodate thermal movement without buckling. This article examines the structural engineering logic behind aluminum column covers in high-rise applications: how wind loads translate into panel thickness decisions, how thermal expansion dictates joint geometry, and what the submittal package needs to prove before fabrication begins.

Why Column Covers Fail Differently Than Wall Panels

Column covers occupy a distinct aerodynamic position on a building envelope. Unlike flat wall cladding, a column projects outward from the façade plane. Wind accelerates around it. The resulting pressure distribution is not uniform. The windward face experiences positive pressure. The sides experience negative pressure (suction). The leeward face sees turbulent wake zones. A single column cover assembly can experience all three regimes simultaneously across its perimeter.

The practical consequence: the fixing system must resist both push-in and pull-out forces at the same time, on different sides of the same panel. A standard curtain wall panel typically deals with one dominant load direction per zone. Column covers do not have that luxury.

ASTM E1300 and EN 13830 provide the framework for calculating allowable deflection under these combined loads. For aluminum column covers, the industry benchmark for deflection limit is typically L/175 under design wind load, though some specifications tighten this to L/240 for visible column surfaces where oil-canning would be immediately noticeable to pedestrians and tenants.

Field Note: On a project in Singapore's Marina Bay district, wind tunnel testing revealed localized negative pressure coefficients of -3.8 on the side faces of corner columns. The original specification called for 2.5mm solid aluminium cladding panels. After reviewing the test data, the engineering team upgraded to 3.0mm with intermediate stiffener ribs welded to the back face. The additional material cost was approximately 12%, but the alternative was a 20-year liability for oil-canning complaints. When the wind tunnel report lands on your desk, read the corner column data first.

Panel Thickness: Not Just a Number on a Spec Sheet

The choice between 2.0mm, 2.5mm, and 3.0mm solid aluminium for column covers is fundamentally a structural decision, not a cost decision. Each increment changes the panel's bending stiffness by a cubic factor. A 3.0mm panel is approximately 70% stiffer than a 2.5mm panel of the same alloy, not 20% stiffer as the thickness ratio alone might suggest. This is because bending stiffness scales with the cube of thickness.

Here is what each thickness range typically handles in high-rise column cover applications:

These figures assume PVDF-coated solid aluminium cladding panels with a minimum yield strength of 115 MPa for 3003-H14 alloy. If the project specifies 5005-H14 or 5052-H32, the allowable spans increase by roughly 10–15% due to higher yield strength. Always verify the mill certificate against the alloy grade specified in the submittal.

One detail that frequently gets overlooked: the stiffener attachment method. Mechanically fixed aluminum extrusions are standard. But on column covers where the back face is not visible, some fabricators use structural adhesive bonding combined with mechanical fasteners. This hybrid approach reduces the risk of read-through (visible dimpling on the front face at fastener locations), which is a common complaint on high-gloss PVDF finishes under raking light.

Thermal Movement: The Joint Nobody Wants to See

Aluminum expands at approximately 0.024mm per meter per degree Celsius. A 4-meter-tall column cover on a building in Dubai, where the surface temperature can swing from 15°C at night to 75°C under direct afternoon sun, will experience a length change of roughly 5.8mm. That is not a rounding error. It is the difference between a panel that sits flat and one that buckles outward at the mid-span.

The standard approach is to design the joint system to accommodate this movement without transferring stress to the panel itself. There are two primary strategies:

• Sliding clip systems: The panel is fixed at one point (typically the top or center) and allowed to slide at all other attachment points. The sliding clips incorporate elongated holes or slotted brackets. This is the preferred method for tall, continuous column covers where the cumulative movement is significant.
• Segmented panels with open joints: The column cover is divided into shorter segments (typically 1.2m to 1.5m per segment), with open joints of 8–12mm between segments. Each segment is independently fixed. This method is simpler to install but introduces visible joint lines that the architect must accept.

The joint width calculation follows a straightforward formula: Joint Width = (Coefficient of Thermal Expansion × Panel Length × Temperature Range) + Tolerance for Installation. For a 3.5m panel in a temperate climate with a 50°C temperature range, that works out to (0.024 × 3,500 × 50) = 4.2mm of movement, plus 3mm installation tolerance, giving a minimum joint width of 7.2mm. Round up to 8mm.

Pro Tip: When reviewing shop drawings, check whether the thermal movement calculation accounts for the color of the PVDF coating. Dark colors (charcoal, black, dark bronze) can reach surface temperatures 15–20°C higher than light colors (white, silver metallic) under the same solar exposure. The thermal expansion calculation should use the darker color's temperature range if the architect has not finalized the color selection. A silver column cover that later becomes dark grey in a value-engineering exercise can suddenly have a thermal movement problem.

Wind Load Calculation: From Code to Clip Spacing

Most international projects reference ASCE 7 (USA), EN 1991-1-4 (Europe), or AS/NZS 1170.2 (Australia/New Zealand) for wind load determination. The process for column covers follows a specific path:

Step 1: Determine basic wind speed from the project location's meteorological data. A 50-year return period is standard for most commercial buildings. For critical facilities, some specifications require a 100-year or even 500-year return period.

Step 2: Calculate the velocity pressure at the column's height above ground. Wind speed increases with height due to reduced ground friction. A column cover at the 30th floor experiences significantly higher pressure than one at the 3rd floor, even on the same building face.

Step 3: Apply the external pressure coefficient (Cp) for the specific column geometry. This is where wind tunnel testing provides the most reliable data. Generic code coefficients for rectangular projections may underestimate suction on the side faces of wide columns. For column covers with a width-to-depth ratio greater than 2:1, wind tunnel testing is strongly recommended rather than relying solely on code coefficients.

Step 4: Calculate the design wind pressure and compare it against the panel's allowable load capacity. The panel manufacturer or fabricator should provide span tables based on finite element analysis or physical load testing per ASTM E330.

Step 5: Determine clip spacing based on the calculated load per clip. A typical aluminum column cover clip designed for 2.5mm panels might have an allowable load of 0.8–1.2 kN per clip, depending on the extrusion profile and fastener type. Divide the total wind load per panel by the number of clips to verify each clip operates within its safe working load.

For reference, the ASCE 7-22 standard provides the most current wind load provisions used across North America and many international projects. For projects in the Middle East and Asia, the ISO 4354:2009 standard offers a harmonized approach that many consultants accept.

Fabrication Tolerances That Affect Structural Performance

Dimensional accuracy in aluminum column covers is not purely aesthetic. A panel that is 3mm out of square over a 4-meter length will not fit the clip system as designed. The installer will force it. That introduces residual stress into the panel, which reduces its effective load capacity before any wind even touches the building.

The key fabrication tolerances to specify and verify:

• Length and width: ±1.5mm for panels up to 2m, ±2.0mm for panels 2–4m
• Diagonal difference: Maximum 3.0mm for panels up to 2m, maximum 4.0mm for panels 2–4m
• Flatness: Maximum deviation of 2.0mm per 1,000mm of panel length, measured with a straight edge
• Bend angle: ±1.0° for brake-formed edges
• Stiffener position: ±2.0mm from specified location on shop drawings

These tolerances align with the AAMA (American Architectural Manufacturers Association) guidelines for metal wall panels. Fabricators supplying to the North American market should be familiar with AAMA 508 and AAMA 509 standards. For projects in Europe and the Middle East, EN 14782 and EN 14783 provide the equivalent framework for self-supporting metal sheets for roofing and cladding.

Futeng® and other established fabricators serving international markets typically maintain in-house quality control that exceeds these baseline standards. The practical reason: a rejected shipment at the port of destination costs far more than the additional QC hours at the factory. When specifying aluminum column covers for export, the inspection protocol should include a dimensional check on at least 10% of panels, with a focus on the first 20 panels off the production line where setup errors are most likely.

Submittal Review: What the Engineer Actually Checks

The submittal package for aluminum column covers on a high-rise project is not a formality. The structural engineer of record reviews it to confirm that the proposed system meets the specified performance criteria. A complete submittal should include:

• Structural calculations demonstrating panel deflection under design wind load, clip capacity, and fastener pull-out/pull-over values
• Span tables specific to the alloy grade and thickness proposed
• Thermal movement analysis with joint width calculations based on the project's temperature range
• Shop drawings showing panel dimensions, stiffener layout, clip locations, and joint details at every column condition (base, intermediate floors, parapet)
• Material certifications: mill test reports for aluminum coil, PVDF coating certification (Kynar 500® or Hylar 5000® with minimum 70% fluoropolymer resin content), and coating thickness test reports
• Mock-up test results if a performance mock-up was specified in the contract documents

The most common submittal rejection reasons, based on feedback from façade consultants:

1. Span tables that use a different alloy grade than what is listed on the mill certificates
2. Thermal movement calculations that ignore the dark-color temperature adjustment
3. Clip spacing that does not account for the edge distance requirements of the fasteners in the substrate (concrete, steel, or aluminum subframe)
4. Missing attachment details for the top and bottom terminations of the column cover, where wind-driven rain entry must be managed

The National Fenestration Rating Council and local building code authorities may also require documentation related to the overall wall assembly performance, though column covers themselves are typically treated as non-rated architectural features rather than part of the weather barrier.

Installation Sequence and the Critical Path

Column covers sit at an awkward intersection of the construction schedule. The structural frame must be complete. The waterproofing and insulation on the column substrate must be installed. But the adjacent wall panels or curtain wall units may or may not be in place. The installation sequence matters because column covers often serve as the visual termination point where wall cladding meets the column face.

The recommended sequence for high-rise projects:

Phase 1: Subframe installation. Aluminum or galvanized steel subframes are fixed to the structural column, with shims used to correct for any deviation in the column's as-built position. The tolerance for subframe alignment is typically ±3mm in any direction over the full column height. Laser surveying is standard practice at this stage.

Phase 2: Dry-fit check. One panel per column type is offered up to the subframe to verify fit before full production proceeds. This catches dimensional errors early. On a 40-story tower with 8 column types, this might involve 8 panels. The cost of this step is negligible compared to the cost of re-fabricating an entire batch.

Phase 3: Panel installation. Panels are installed from bottom to top or top to bottom, depending on the joint design. Sliding-clip systems typically install from the fixed point outward. The installer must verify that each clip engages fully and that the specified joint width is maintained.

Phase 4: Final alignment and joint inspection. After all panels are in place, the joints are checked for consistent width and alignment. This is the point where thermal movement accommodation is verified: the panels should be able to move freely within the clip system without binding.

Total installation time for a typical column cover on a high-rise floor: 2–4 hours per column per floor, depending on access conditions and panel size. A crew of two installers can typically complete 4–6 columns per shift if the subframe is already in place and the panels are pre-fabricated to exact dimensions.

When Wind Tunnel Data Changes the Design

Not every project requires wind tunnel testing. Low-rise buildings in non-coastal locations can rely on code coefficients with reasonable confidence. But for buildings over 60 meters, or buildings in typhoon/hurricane zones, or buildings with unusual geometries, wind tunnel testing is increasingly standard practice.

The test results can change the column cover design in ways that are not obvious from the code calculation alone. A real example from a project in Manila: the code-based calculation suggested a design wind pressure of 3.2 kPa for the column covers at the building corners. The wind tunnel test measured peak pressures of 5.1 kPa at those same locations. The difference was attributed to channeling effects between adjacent towers that the code coefficients could not capture.

The design response involved three changes: upgrading from 2.5mm to 3.0mm solid aluminium cladding panels on the corner columns only, reducing clip spacing from 600mm to 400mm, and specifying stainless steel fasteners with higher pull-out resistance. The cost impact was concentrated on roughly 15% of the total column cover area. The alternative—applying the same upgrade to all columns—would have been unnecessary and expensive.

This is the kind of optimization that separates a competent submittal from a cost-effective one. The Council on Tall Buildings and Urban Habitat publishes case studies and technical guides that provide useful benchmarks for wind engineering on high-rise façades.

Making the Specification Work: Practical Takeaways

The structural performance of aluminum column covers on a high-rise building depends on a chain of decisions that starts with the wind load calculation and ends with the clip spacing on the shop drawing. Each link in that chain must be verified. The panel thickness is not a standalone variable. It interacts with the stiffener design, the alloy grade, the clip system, and the thermal movement strategy.

For the procurement manager or façade contractor reviewing a specification, the priority items are: confirm that the wind load basis is clearly stated (code, wind tunnel, or both), verify that the specified panel thickness aligns with the span tables for the proposed alloy, check that thermal movement calculations account for the coating color, and ensure the submittal requirements include structural calculations specific to column covers rather than generic wall panel data.

Column covers that are engineered correctly for their specific wind and thermal environment will perform quietly for decades. Those that are treated as generic cladding panels will announce their problems through oil-canning, rattling, and joint deformation. The difference is not in the material. It is in the engineering that happens before the first sheet of aluminum is cut.
