Aluminum Baffle Ceiling Carrier Grid Engineering and Tolerance Control for Large Span Installations

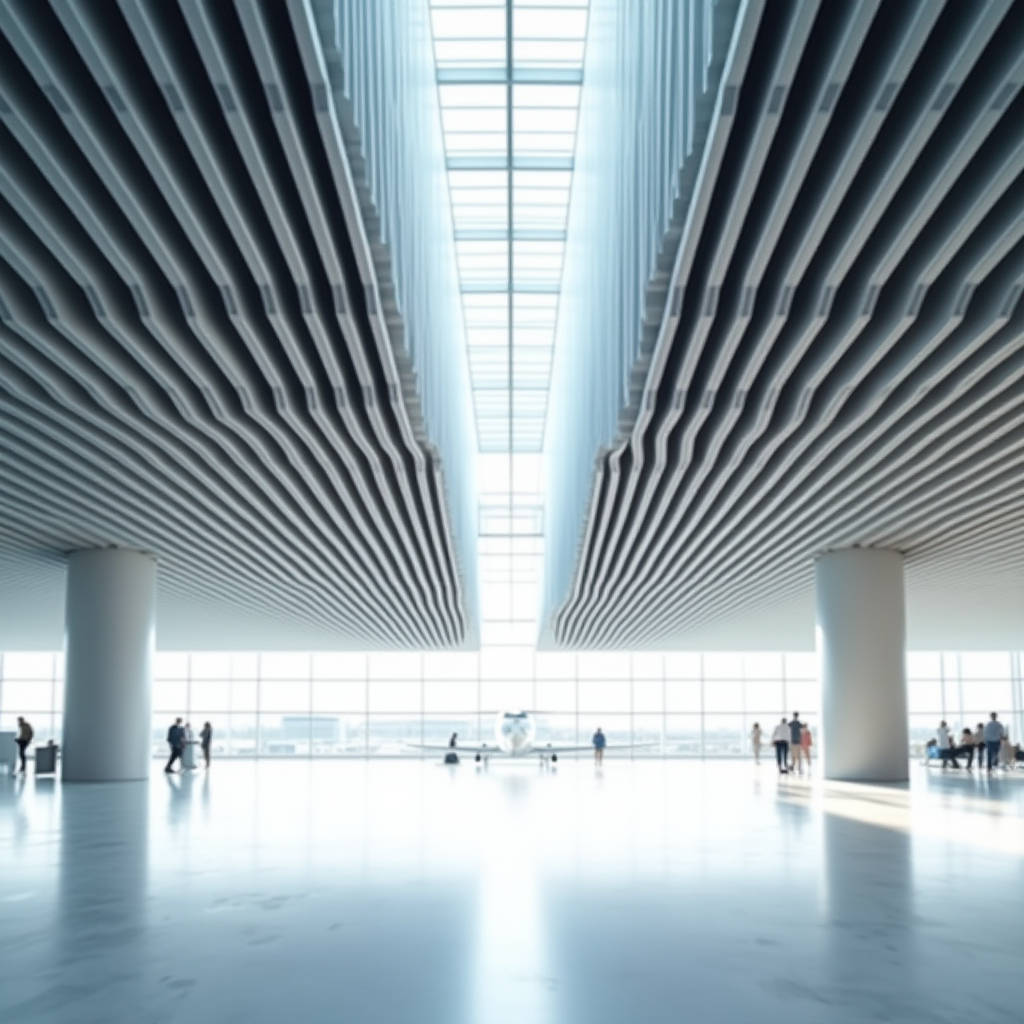

When a ceiling becomes the focal point of a commercial lobby, an airport terminal, or a high-end retail atrium, the specification almost always narrows to one product: the aluminum baffle ceiling. But here is where things get complicated fast. The visual rhythm of parallel blades, the acoustic shadowing, the integration with lighting and HVAC diffusers—none of that happens by accident. It is engineered. And the single most overlooked variable that determines whether the final installation looks like the render or turns into a punch-list nightmare is the suspended grid carrier system and its tolerance stack-up across a 50-meter span.

Most contractors focus on the baffle panel itself: alloy grade, PVDF finish, perforation pattern. Those matter. But a baffle ceiling is only as straight as the grid that holds it. This article breaks down the carrier system engineering behind large-format aluminum baffle ceilings—specifically the structural logic, thermal movement accommodation, and site-level alignment protocols that separate a clean installation from a wavy mess. If you are preparing a bid package or reviewing a shop drawing, this is the layer of detail your submittal needs.

Why the Carrier Grid Dictates Everything

An aluminum baffle ceiling is fundamentally a suspended system. The baffles themselves—typically 50mm to 300mm wide, 1.5mm to 2.5mm thick solid aluminium, spanning 2m to 4m in length—are dead weight hanging from a carrier grid. That grid is anchored to the structural soffit via threaded rods, main tees, and cross tees. The visual outcome hinges on three things: the straightness of the carrier channel, the precision of the baffle-to-carrier connection, and the cumulative deflection under load.

Here is a field reality most spec sheets gloss over: a 3,000mm aluminum baffle manufactured to a straightness tolerance of ±1.5mm per linear meter will still look crooked if the carrier channel it clips into has a 4mm sag between hanger points. The eye reads the ceiling as a whole. When baffles are spaced 100mm apart, a 3mm deviation in one blade creates a visible shadow-line disruption that is noticeable from 20 meters away. The tighter the blade spacing, the more unforgiving the system.

Field Note: On a recent airport concourse project in Southeast Asia, the contractor rejected the first batch of 6m carrier channels because the mill straightness was off by 2.8mm over the full length. The supplier argued it was within "commercial tolerance." The spec called for ≤1.0mm per 2m. The channels were re-rolled. Lesson: write the straightness tolerance into the purchase order for the carrier, not just the baffle.

Breaking Down the Carrier System Components

Primary Suspension: Threaded Rods and Anchor Points

The suspension starts at the structural slab. Threaded rods—typically M8 or M10 in galvanized steel—drop down at intervals specified by the dead load calculation. For a standard aluminum baffle ceiling with 2.0mm thick solid aluminium baffles at 150mm spacing, the system weight runs roughly 8–12 kg/m². That is not heavy by curtain wall standards, but the spacing of the hanger points determines the deflection of the main carrier channel.

ASTM C635 and EN 13964 both provide guidance on suspension system performance, but the practical rule among experienced installers is this: hanger spacing should not exceed 1,200mm for main carriers supporting baffles longer than 2,500mm. Tighter spacing—900mm or even 750mm—is common in seismic zones or where the baffle ceiling integrates with heavy acoustic backing. The cost difference is marginal (a few extra rods and anchors per 100m²), but the visual payoff is significant.

Main Carriers: The Spine of the Ceiling

Main carriers are typically extruded aluminum profiles—6063-T5 or 6063-T6—designed with a continuous slot or clip-in channel along the bottom face. The profile geometry matters. A 40mm x 30mm rectangular hollow section with a 2.5mm wall thickness behaves very differently from a 38mm x 25mm open C-channel under the same span and load. The hollow section resists torsion better, which is critical when baffles are mounted at an angle or when the ceiling incorporates curved layouts.

For projects requiring baffle ceilings that span across large open areas—think convention centers or transit hubs—the main carrier often needs to be spliced. The splice detail is a recurring failure point. A poorly designed splice, using a thin internal sleeve with loose screws, introduces a kink at the joint. The better approach is a machined external splice plate with four fasteners, or a telescoping internal sleeve that engages at least 80mm into each carrier section. The additional fabrication cost is negligible per linear meter but eliminates the visual "stutter" at the joint line.

Baffle-to-Carrier Connection: Clip Design and Locking Mechanism

This is the interface where most installation headaches originate. The baffle clips into (or screws onto) the carrier. The clip mechanism needs to do three things simultaneously: hold the baffle securely, allow for minor field adjustment, and resist vibration-induced loosening over time.

Spring-steel clip systems are common and fast to install. The installer pushes the baffle up until the clip engages with an audible click. Speed is excellent—a two-man crew can hang 80–100 linear meters of baffles per day with a good spring-clip system. But the downside is adjustability. Once clicked in, lateral shift is limited to maybe 1–2mm. If the carrier is slightly out of alignment, the cumulative error shows up at the far end of the run.

Screw-fixed systems are slower but offer more control. Each baffle is secured to the carrier with stainless steel self-tapping screws at predetermined points. The installer can micro-adjust each baffle before final tightening. On high-end commercial projects where the ceiling is the architectural centerpiece, the extra labor is often specified because the result is visibly tighter. A third option—the adjustable cam-lock system—splits the difference, offering tool-free installation with a set-screw for fine-tuning. These systems are gaining traction in the Middle East and European markets.

Thermal Movement: The Invisible Force That Warps Ceilings

Aluminum expands. That is not news. But the specific coefficient—roughly 23.4 × 10⁻⁶ per °C for 6063 alloy—means a 3,000mm baffle experiences about 2.1mm of length change across a 30°C temperature swing. That does not sound like much until you consider the entire ceiling plane: 50 baffles across a 15-meter width, each reacting to thermal changes, with the carrier grid also expanding and contracting.

The standard fix is to leave expansion gaps at the perimeter and at intermediate joints. AISC and EN 1999-1-1 provide calculation methods. But the practical detail that matters is how the carrier system accommodates movement. Fixed-clip systems that rigidly lock the baffle to the carrier at every connection point will transfer thermal stress into the grid. Over time—especially in buildings with large diurnal temperature swings, like airport terminals with expansive glazing—this can cause clip fatigue, audible popping, or visible misalignment.

The smarter approach is a hybrid system: the carrier is fixed at one end and allowed to slide at the other via slotted connections. The baffles themselves are fixed at the midpoint of their span and free to expand outward toward both ends. This requires coordination between the baffle manufacturer and the carrier system supplier. When both components come from the same engineering team—as with suppliers like Futeng® who control the full system design—the expansion logic is baked into the shop drawings from day one, rather than being patched together on site.

Alignment Protocols: Laser Surveying and the Baseline Grid

Pre-Installation Survey: Setting the Datum

Before the first hanger rod is installed, the ceiling team needs a reliable datum line. The old method—a water level or a rotating laser—works for small areas. For anything over 500m², a 3D laser scanner or a total station survey is the only way to guarantee that the finished ceiling plane is within ±3mm of the design elevation across the entire footprint.

The survey should capture the as-built condition of the structural soffit, not the design drawings. Concrete slabs have camber, deflection, and construction tolerances that can easily eat up 10–15mm of the available adjustment range in a standard hanger rod. If the survey reveals a low spot in the slab, the hanger rods in that zone need to be shortened or the carrier needs to be shimmed. Discovering this after the grid is half-installed means rework, schedule delays, and finger-pointing.

Grid Layout and the First Row Principle

The first row of baffles sets the rhythm for the entire ceiling. If the first row is off by 2mm in angle, the 50th row is off by 100mm in position. The standard protocol is to establish a primary baseline—typically parallel to the longest wall or the most visually dominant architectural feature—and then snap chalk lines for every 10th baffle row as a running check.

Experienced installers use a tensioned stainless steel wire stretched across the full room width at the baffle bottom elevation as a visual reference. It is low-tech but brutally effective. Any baffle that deviates from the wire by more than 1mm gets adjusted before the crew moves on. This method catches errors in real time, rather than at the end of the day when 200 baffles are already locked in.

Acoustic Integration Without Compromising the Grid

Many aluminum baffle ceiling specifications include an acoustic requirement—NRC 0.70 or higher, often achieved by laying acoustic fleece or mineral wool over the back of the baffles or inserting it into the cavity above. The added weight is not trivial. A 50mm thick acoustic pad at 48 kg/m³ adds roughly 2.4 kg/m² to the system weight. The carrier grid and hanger spacing must be recalculated to account for this.

Beyond weight, the acoustic material must not interfere with the baffle-to-carrier connection. If the fleece is draped over the carrier before the baffle is clipped in, the clip may not fully engage. The result is a baffle that looks seated but is actually hanging by friction. Vibration from foot traffic above or HVAC operation can cause it to drop. The correct sequence is: install carrier grid, clip in baffles, then lay acoustic material from above. This requires access from the plenum side, which not every project allows.

Perforated baffles with acoustic backing are another common specification. The perforation pattern—hole diameter, spacing, and open area percentage—affects both the acoustic performance and the structural stiffness of the baffle. A 2.0mm solid aluminium baffle with 30% open area from perforation is significantly less stiff than a solid panel of the same gauge. The carrier spacing may need to be reduced from 1,200mm to 900mm to prevent sag. This is the kind of detail that should be caught during the shop drawing review, not discovered during installation.

Supply Chain Considerations: Factory Pre-Assembly vs. Site Assembly

There are two schools of thought on aluminum baffle ceiling logistics. The first is to ship everything loose: baffles, carriers, clips, rods, and fasteners all packed separately, with the installation crew doing full assembly on site. The second is to pre-assemble baffle-and-carrier modules at the factory, ship them in crates, and have the site crew simply hang the modules from the pre-installed hanger rods.

Pre-assembly offers better quality control—the baffle-to-carrier connection is made in a controlled factory environment with jigs and fixtures, not on a scissor lift 4 meters in the air. But it increases shipping volume and cost. A 3,000mm pre-assembled module is bulky and fragile. Crating needs to be robust, with internal bracing to prevent the baffles from vibrating against each other during transit. For export projects, particularly those shipped FOB from Asian manufacturing hubs to North America or Europe, the packaging cost can add 5–8% to the total material budget.

Site assembly is cheaper to ship but riskier on quality. The skill level of the local installation crew becomes the dominant variable. If the project is in a market with experienced ceiling installers—Germany, Singapore, the UAE—site assembly is a reasonable choice. If the project is in a location where the crew has never handled an aluminum baffle ceiling before, pre-assembly starts to look like cheap insurance against a botched installation.

Specification Checklist for the Bid Package

To avoid the common pitfalls described above, the specification section for the aluminum baffle ceiling carrier system should include the following points, stated explicitly:

• Carrier straightness tolerance: ≤1.0mm deviation per 2,000mm length, measured on a granite surface plate per ASTM E290.
• Hanger rod spacing: Calculated for a total system dead load including acoustic materials, with a maximum deflection of L/500 under full load.
• Connection type: Specify spring-clip, screw-fixed, or cam-lock. Do not leave this to the contractor's discretion if the visual standard is high.
• Thermal expansion provision: Expansion joints at ≤10m intervals in both directions, with slotted connections at one end of each carrier run.
• Pre-installation survey: As-built soffit survey required, with a dimensional report submitted before hanger installation begins.
• Mock-up requirement: A minimum 3m x 3m on-site mock-up, including all system components, approved by the architect before full production.
• Material certification: Mill certs for aluminum alloy (6063-T5 or equivalent per EN 755), PVDF coating certification (Kynar 500® or Hylar 5000® resin, minimum 70% resin content), and fastener grade (SS304 or SS316 for coastal environments).

What Experienced Contractors Look For in a Supplier

Beyond the technical data sheets, contractors who have installed multiple aluminum baffle ceiling projects evaluate suppliers on a few practical criteria. First: does the supplier provide a complete system, or just the baffles? A supplier that only manufactures baffles and tells you to source the carrier locally is outsourcing the hardest part of the engineering to someone else. The best outcomes come from suppliers who design and warrant the entire suspended system.

Second: shop drawing quality. A good shop drawing for a baffle ceiling includes a reflected ceiling plan with every baffle numbered, carrier splice locations marked, expansion joint positions dimensioned, and coordination with lighting and MEP clearly shown. Vague shop drawings that leave decisions to the site crew are a red flag.

Third: packaging and logistics. For international projects, the packaging needs to protect the PVDF-coated surfaces from abrasion during container transit. Interleaving with foam or PE film between baffles, edge protectors on all four corners of each bundle, and moisture-barrier wrapping for ocean freight are minimum standards. Some suppliers—Futeng® among them—have developed proprietary crating systems for baffle ceilings that reduce transit damage claims to below 0.3% of total order value, which is a meaningful number when you are shipping 2,000m² of finished ceiling.

The aluminum baffle ceiling is a precision system masquerading as a simple architectural element. The baffles get the attention. But the carrier grid, the connection details, the thermal movement strategy, and the installation protocol determine whether the ceiling delivers on its visual promise. For the contractor, the margin between a successful installation and a dispute lies in how thoroughly these hidden layers are specified, reviewed, and executed.
