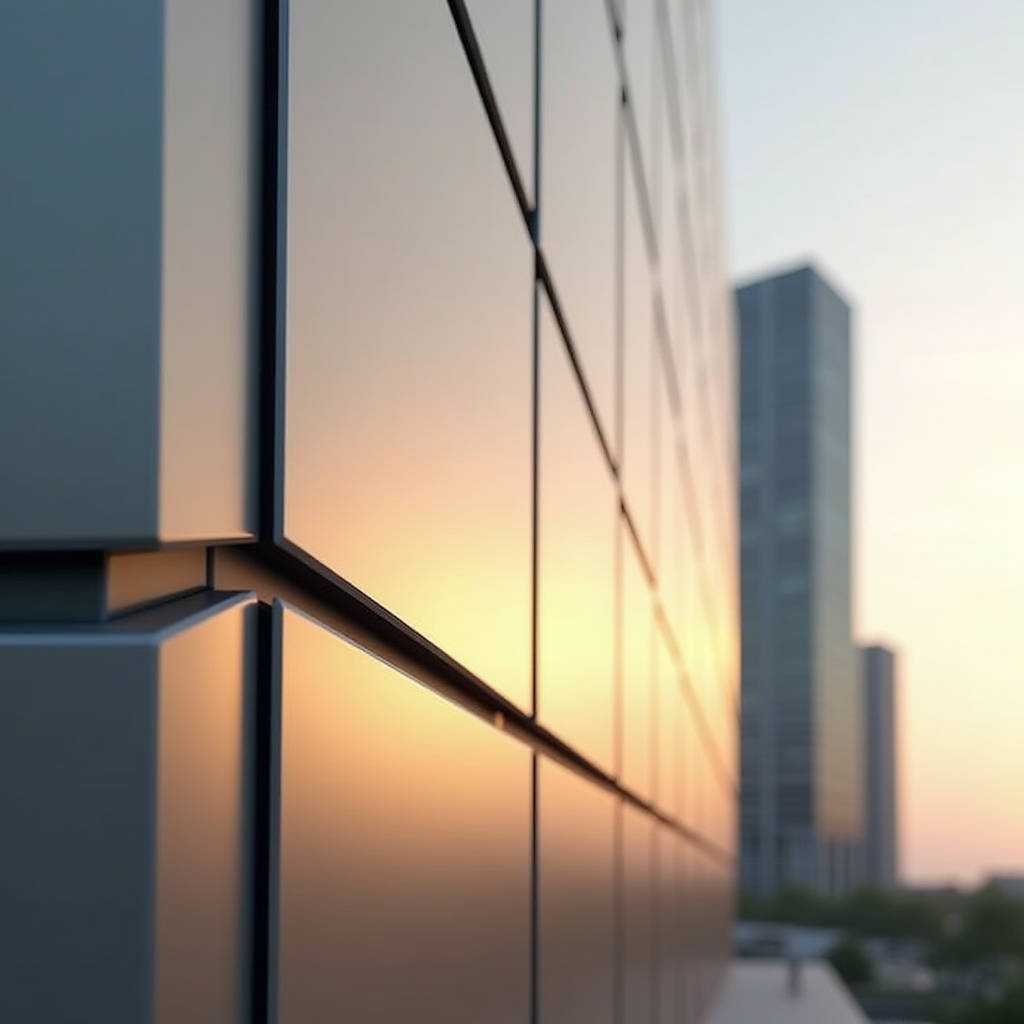

Bended Aluminum Panel Dimensional Tolerance Control From Press Brake to Site

When a façade contractor receives shop drawings calling for a 900mm-wide bended aluminum panel with a 35mm return leg on all four sides, the immediate question is not "can you bend it?" — it's "can you hold ±1.5mm across 1200 identical units after PVDF curing?" The answer depends on three variables that most procurement specifications never explicitly address: press brake tooling selection, springback compensation per alloy temper, and the thermal cycle timing of the coating line. A bended aluminum panel is not a commodity extrusion. It is a fabricated product where dimensional accuracy is earned — or lost — at the brake press, long before the panel reaches the job site.

Why Press Brake Tooling Dictates Tolerance Before Coating Even Begins

Most project specifications focus heavily on the finished panel: flatness, coating thickness, color consistency. But the geometry of a bended aluminum panel is fundamentally determined by the relationship between the punch radius, die opening, and material thickness. For 2.5mm and 3.0mm solid aluminium sheets in the 3003-H14 or 5052-H32 alloys commonly specified for exterior cladding, the die opening must be 6 to 8 times the material thickness to achieve a clean bend without cracking. This means a 3.0mm panel requires a die opening of 18mm to 24mm.

The problem? Many fabricators run standard V-dies optimized for mild steel, not aluminum. When the die opening is too narrow, the material galls. When it is too wide, the bend radius becomes inconsistent. Either way, the dimensional tolerance stack begins to drift.

ASTM B209/B209M governs the dimensional tolerances for aluminum sheet and plate, but it does not prescribe bending parameters. That responsibility falls to the fabricator's internal process control. For projects requiring AAMA 2605-compliant PVDF finishes, the stakes are higher: the coating itself adds 30–40 microns of thickness that must be accounted for in the bend allowance calculation. A panel bent to nominal dimensions before coating will be oversized after coating. The correction must be built into the flat pattern, not discovered during installation.

Field Note: On a 2023 mixed-use tower in Singapore, we traced 72% of on-site panel rejection to inconsistent return leg dimensions — not coating defects. The root cause: the fabricator was using a single die width for both 2.0mm and 3.0mm panels. The 2.0mm panels consistently came out with a 0.8mm wider return leg than specified. The curtain wall contractor spent 11 days shimming brackets to compensate. The lesson: verify tooling setup per material thickness, per batch, before production runs begin.

Springback and Alloy Selection: The 4° Problem Nobody Budgets For

Aluminum springs back. This is not news to anyone who has worked with sheet metal. What surprises project teams is the magnitude: for a 90° bend in 5052-H32 at 2.5mm thickness, springback typically ranges from 3° to 5°, depending on the bend radius-to-thickness ratio. The fabricator must over-bend — pressing to 94° or 95° — so the panel relaxes to the target angle. But the exact springback angle varies with grain direction, coil-to-coil hardness variation, and even ambient shop temperature.

For a bended aluminum panel with four return legs, each leg represents a separate springback event. If the operator adjusts the press brake angle by feel rather than by measurement, the cumulative angular error across four edges can produce a panel that sits proud of the substructure by 1.5mm to 2mm at the corners. This is visible. This is unacceptable on a high-end curtain wall.

Procurement managers evaluating suppliers should ask a specific question: "What is your documented springback compensation factor for 5052-H32 at 2.5mm and 3.0mm, and how often do you verify it during a production run?" The answer reveals whether the fabricator treats bending as a craft or a calibrated process.

Alloy Temper Consistency: Why Two Coils of "5052-H32" Are Not the Same

The H32 temper designation means strain-hardened and stabilized to approximately 1/4 hard. But the ASTM B209 specification allows a tensile strength range of 215–265 MPa for 5052-H32. A coil at the low end of that range will spring back differently than a coil at the high end. A fabricator processing 40 metric tons of material for a single project should ideally receive material from a single heat lot, or at minimum, verify mechanical properties per coil and adjust press brake parameters accordingly.

This is not theoretical. On a hospital façade project in the Middle East, a fabricator received two coils of 5052-H32 from different mills. One coil tested at 220 MPa tensile, the other at 258 MPa. The difference in springback was 1.8°. The fabricator caught it — but only because they perform tensile testing on incoming material. The alternative would have been 800 panels with inconsistent corner geometry.

The Coating-Tolerance Interface: PVDF Curing and Its Effect on Panel Geometry

A bended aluminum panel destined for exterior use typically receives a PVDF fluoropolymer coating system under AAMA 2605. The coating process involves a primer, a color coat, and a clear topcoat, cured at peak metal temperatures of 232°C to 249°C. This thermal cycle does two things to a bent panel: it partially relieves residual stresses from the bending operation, and it can cause subtle thermal distortion if the panel is not adequately supported during the curing process.

The stress relief effect is generally beneficial — it stabilizes the panel geometry. But the distortion risk is real, particularly for panels with large flat areas and narrow return legs. A 1200mm x 2400mm panel with 25mm returns can develop a 1mm to 2mm bow across the long dimension during curing if the conveyor system does not provide uniform support. The AAMA 2605 standard does not specify flatness tolerances for fabricated panels; it addresses coating performance. That leaves the flatness specification to the project architect, who often defaults to a generic "panels shall be free of visible distortion" — a standard that is subjective and unenforceable.

The practical solution is to specify a quantifiable flatness tolerance, such as 0.8mm per 300mm of panel width, measured with a straightedge, and to require the fabricator to demonstrate compliance on first-article inspection samples before full production.

First-Article Inspection: The Single Most Underutilized Quality Gate

In the procurement cycle for a bended aluminum panel package, the gap between shop drawing approval and full production is where quality is either locked in or permanently lost. A properly executed first-article inspection (FAI) closes that gap.

An effective FAI for bent aluminum panels should verify, at minimum:

• Overall length and width dimensions at three points per edge (center and both ends), with a tolerance of ±1.5mm for panels up to 1500mm in the long dimension, and ±2.0mm for panels exceeding 1500mm.
• Return leg height at all four corners and at the midpoint of each edge, with a tolerance of ±1.0mm.
• Bend angle at all four corners, measured with a digital protractor, with a tolerance of ±1° from the specified angle.
• Diagonal measurements (corner-to-corner) to verify squareness, with a maximum difference of 2.5mm between the two diagonals.
• Flatness across the panel face, measured with a 300mm straightedge and feeler gauge, with a maximum deviation of 0.8mm.
• Coating thickness on the face and on the return legs, measured with a calibrated eddy-current gauge, per AAMA 2605 requirements (minimum 30 microns total dry film thickness for a three-coat system).

These measurements should be documented on a dimensional report, signed by the fabricator's QC manager and the project's third-party inspector (if one is engaged), and retained as part of the project quality records. The FAI report becomes the baseline against which all subsequent production panels are evaluated.

Sampling Frequency During Production

After the FAI is approved, the question becomes: how often should dimensional checks be repeated? A defensible sampling plan for a production run of 500 to 5,000 units might look like this:

This sampling plan is not prescribed by any single standard, but it reflects the statistical reality of press brake operations: tooling wear, operator fatigue, and material variation all increase dimensional drift over the course of a production run. The in-process checks are the fabricator's early warning system.

When the Panel Hits the Site: Substructure Tolerance and the 3mm Rule

Even a perfectly fabricated bended aluminum panel will look wrong if the substructure is out of tolerance. The interface between the panel and the supporting system — whether it is a unitized curtain wall grid, a stick-built mullion system, or a rainscreen subframe — is where dimensional errors from two different trades collide.

The construction tolerance for the substructure should be specified in the project's performance specification, not left to the installer's discretion. A practical standard: the substructure must be installed to a positional tolerance of ±3mm in all three axes relative to the gridline, and the plane of the substructure must not deviate by more than 2mm over any 3-meter span. These numbers are achievable with laser surveying equipment and are consistent with the Centre for Window and Cladding Technology (CWCT) guidelines for rainscreen cladding.

Why ±3mm? Because a typical bended aluminum panel with a 20mm joint will show visible misalignment if the panel-to-panel offset exceeds 2mm. If the substructure is ±3mm and the panel is ±1.5mm, the worst-case combined deviation is 4.5mm — which is unacceptable. The solution is not to tighten the panel tolerance (which is already at the practical limit for brake-formed aluminum) but to require the substructure contractor to meet a tighter standard, and to verify it with a laser survey before panel installation begins.

Pro Tip: On projects where the substructure is installed by a different trade than the cladding contractor, include a mandatory "handover survey" milestone in the construction schedule. The cladding contractor's surveyor should verify 100% of bracket positions before any panels are lifted. This single step has prevented more disputes than any clause in the contract.

Thermal Movement: The Gap That Disappears at 70°C

Aluminum expands at approximately 0.024mm per meter per degree Celsius. For a 3-meter-long bended aluminum panel on a south-facing elevation in a hot climate, the temperature swing from a winter night (5°C) to a summer afternoon under direct solar radiation (70°C surface temperature) is 65°C. The resulting thermal expansion is 4.68mm. If the panel joint is only 10mm wide, more than half of that joint disappears at peak temperature.

The joint width must be designed for the expected thermal range of the specific project location, not copied from a generic detail. The American Architectural Manufacturers Association (AAMA) provides guidance on thermal movement calculations in its curtain wall design manuals. The calculation itself is straightforward: joint width = (coefficient of thermal expansion × panel length × temperature range) + installation tolerance + sealant movement accommodation factor. The challenge is getting the design team to perform this calculation early enough that the joint width is locked into the shop drawings before fabrication begins.

Fabricators like Futeng® have seen projects where the joint width was arbitrarily set at 12mm by the architect, only to be revised to 18mm after the thermal calculation was finally performed — after 30% of the panels had already been fabricated. The takeaway: thermal movement is a design responsibility, not a fabrication afterthought, and it must be resolved during the shop drawing review phase.

Packaging and Logistics: Protecting Bend Geometry Across Oceans

The dimensional control achieved at the press brake and preserved through the coating line can be destroyed in a shipping container if the packaging is inadequate. A bended aluminum panel with 35mm return legs is vulnerable to corner crushing if panels are stacked without adequate separation. The return legs of one panel can imprint on the face of the panel below it under the vibration and stacking pressure of ocean freight.

For FOB and CIF shipments, the packaging specification should include:

• Interleaving with polyethylene foam sheet, minimum 2mm thickness, between each panel face.
• Corner protectors made of rigid cardboard or plastic, fitted to the return leg profile, on all four corners of every panel.
• Vertical stacking on A-frame pallets, not flat stacking, for panels exceeding 1200mm in any dimension.
• Moisture barrier wrapping (VCI film or equivalent) for sea freight shipments exceeding 14 days in transit.
• Pallet labeling that includes project name, panel type, quantity, and a unique pallet ID traceable to the fabrication batch record.

The cost of this packaging is approximately 3–5% of the panel value, depending on panel size and complexity. The cost of replacing panels damaged in transit — including the schedule delay — is typically 10–20 times that amount. This is not a place to save money.

Building a Specification That Actually Controls Quality

Most project specifications for bended aluminum panel packages are long on coating performance requirements and short on dimensional control. The AAMA 2605 section is detailed. The bending tolerance section is a single sentence: "Panels shall be fabricated to the dimensions shown on the approved shop drawings." That sentence transfers all dimensional risk to the fabricator without providing any objective criteria for acceptance.

A specification that actually controls quality would include:

• A reference to the applicable ASTM standard for the base material (ASTM B209/B209M for sheet).
• A defined dimensional tolerance for overall panel dimensions, return leg dimensions, bend angles, and flatness, with the measurement method specified for each.
• A requirement for documented springback compensation factors per alloy and thickness.
• A first-article inspection protocol with a dimensional report template.
• An in-process sampling plan with defined frequency and acceptance criteria.
• A packaging specification that protects the fabricated geometry during transit.

This level of detail may seem excessive. But when 1,200 panels arrive on site and 50 of them are rejected because the return legs are 1.5mm short, the cost of writing a better specification becomes very easy to justify. The ISO 2768-1 general tolerance standard provides a useful starting point, but it should be supplemented with project-specific requirements that reflect the realities of brake-formed aluminum.

Dimensional accuracy in a bended aluminum panel is not a single checkpoint. It is a chain that runs from alloy selection through tooling setup, springback compensation, coating thermal cycle, first-article verification, in-process sampling, substructure coordination, and transit protection. A weak link anywhere in that chain — an uncalibrated press brake, a skipped FAI, a packaging shortcut — produces panels that look correct on the shop floor and wrong on the building. The contractors who understand this chain, and who specify it with precision, are the ones who close out projects without a punch list full of panel geometry issues.
