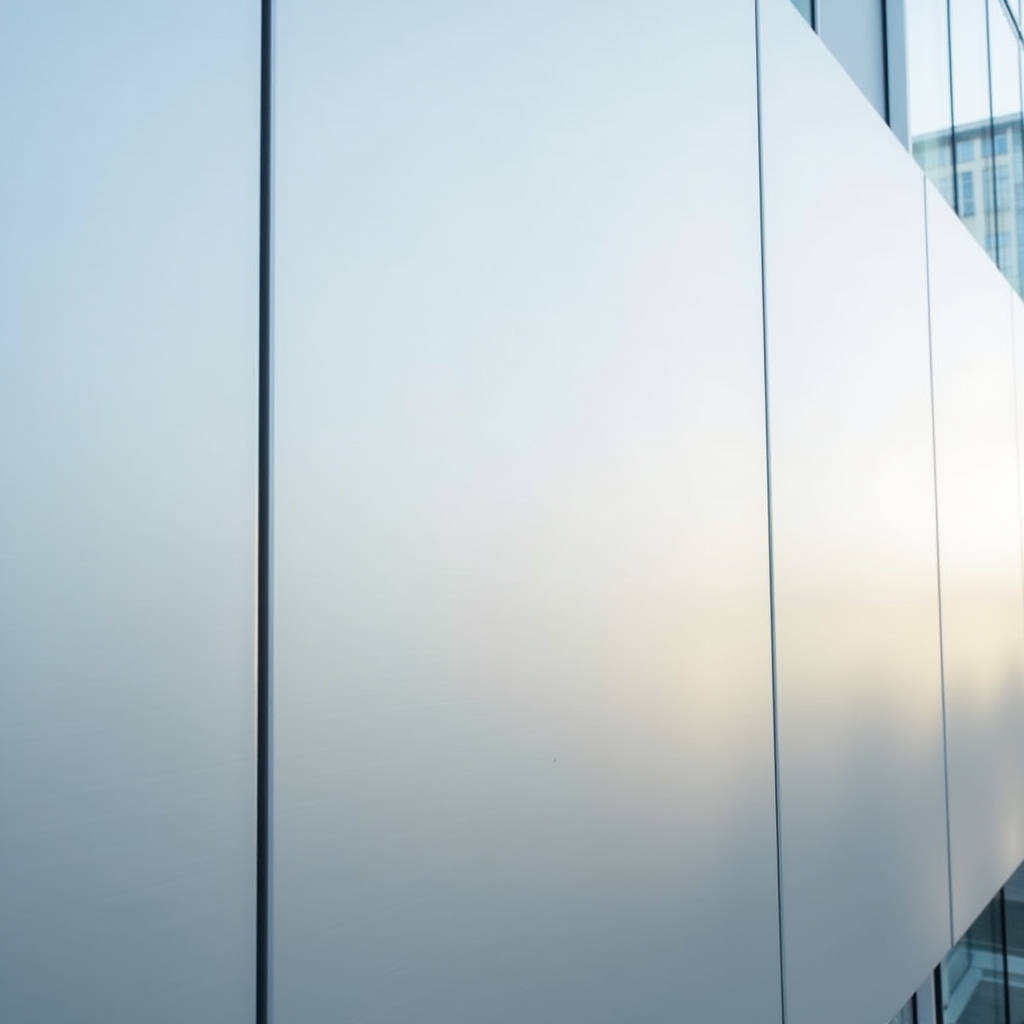

How Aluminum Sheet Metal Rolling Parameters Shape Solid Aluminium Cladding Performance

The relationship between Aluminum Sheet Metal Rolling and the final performance of solid aluminium cladding panels runs deeper than most project specifications acknowledge. When a 3.0mm PVDF-coated panel arrives on site, its flatness, grain structure, residual stress profile, and even its long-term coating adhesion were largely determined back at the rolling mill. Architects tend to focus on visible finishes; contractors track lead times and dimensional tolerances. But the engineer who understands what happened inside that rolling line—the reduction ratios, the thermal gradients, the work-hardening decisions—can anticipate problems before they materialize on the facade. This article examines how rolling parameters directly shape the mechanical and aesthetic outcomes of architectural aluminium sheet, with particular attention to the tension between flatness and strength that haunts every large-scale cladding project.

Why Rolling Mill Practice Matters for Facade Engineering

Aluminium sheet destined for architectural cladding follows a fundamentally different path through the rolling mill than sheet produced for automotive stamping or packaging. The difference is not merely in final gauge. It lies in the entire thermomechanical history encoded into the metal.

Hot rolling begins with a slab preheated to roughly 450–530°C, depending on the alloy family. For 3xxx-series alloys like 3003 and 3105—the workhorses of the cladding industry—this temperature window is critical. Too low and the rolling force spikes, driving up energy costs and introducing uneven deformation patterns. Too high and grain boundary liquation becomes a risk, particularly in alloys with higher magnesium content. The slab passes through a reversing breakdown mill, where thickness drops from roughly 600mm to 25–35mm in a series of carefully sequenced passes. Each pass reduces thickness by 10–25%, and the total reduction ratio across the hot-rolling campaign can exceed 95%.

What happens next diverges sharply depending on whether the mill is producing coil for subsequent cold rolling or plate for direct fabrication. For cladding-grade sheet—typically 2.0mm, 2.5mm, or 3.0mm final thickness—the hot band is coiled, allowed to cool, and then fed into a cold-rolling tandem mill. Here the reduction per pass drops to 5–15%, but the cumulative effect is profound. Cold work drives up tensile strength while reducing ductility. A 3003-H14 sheet, the most common temper for architectural applications, achieves its mechanical properties through precisely this controlled cold-reduction sequence followed by partial annealing.

The implication for specifiers: two sheets of identical alloy and thickness can behave completely differently on a curtain wall if their rolling and thermal histories differ. One may lie dead flat after routing and folding; the other may develop oil-canning the moment it is fixed to the substructure. The difference is not visible on a mill test certificate, but it is absolutely real.

The Flatness Paradox: Strength Versus Stability

Flatness is the single most contentious quality metric in architectural aluminium sheet. Everyone demands it. Few understand the metallurgical trade-offs required to achieve it.

Cold-rolled aluminium sheet emerges from the mill with a complex internal stress field. The surface layers, which experienced more direct contact with the work rolls, are typically in compression. The mid-thickness region is in tension. This stress gradient is not inherently problematic—until someone cuts, routs, or folds the sheet. The moment material is removed or the cross-section is altered, those locked-in stresses redistribute, and the panel distorts. This is the mechanism behind the oil-canning that plagues facades, particularly on large-format panels with minimal stiffening.

Mills combat residual stress through several routes. Tension leveling, where the strip is stretched beyond its yield point while passing through a series of small-diameter rolls, can reduce shape defects dramatically. For cladding-grade material, a flatness tolerance of I-unit 4 or better (per ASTM B209) is generally expected, though some premium architectural specifications demand I-unit 2. Achieving this requires not just good leveling equipment but also disciplined upstream process control—uniform temperature during hot rolling, consistent reduction ratios across the strip width, and symmetrical cooling after coiling.

There is a catch. The same cold work that produces higher strength (and thus allows thinner gauges for a given wind load) also increases residual stress. The specifier who demands both maximum yield strength and perfect flatness is asking for contradictory things. A 3003-H18 sheet will be stronger than H14 but far more prone to distortion after fabrication. In practice, most cladding projects settle on H14 temper as a workable compromise—strong enough for structural spans up to roughly 600mm between stiffeners at 3.0mm thickness, yet stable enough to remain flat after routing and folding.

Futeng® technical teams have observed that panels fabricated from coils produced on modern continuous tandem mills with in-line tension leveling consistently outperform those from older single-stand reversing mills, even when both meet the same ASTM B209 flatness classification. The difference is not captured by the standard but is immediately apparent during installation.

Alloy Selection Through the Rolling Lens

Not all aluminium alloys roll the same way, and the differences matter enormously for cladding performance. The table below summarizes the key rolling characteristics and resulting properties for the alloys most commonly specified in architectural sheet.

1050 (commercially pure aluminium, 99.5% minimum) rolls beautifully. Its low flow stress means mills can achieve high reduction ratios with minimal roll force, and the resulting sheet exhibits excellent flatness stability. The trade-off is strength: at H14 temper, 1050 yields around 85–110 MPa, which limits its use to interior cladding or low-wind-load exterior applications with reduced stiffener spacing.

3003 and 3105, both Al-Mn alloys, represent the sweet spot for exterior architectural sheet. The manganese addition (1.0–1.5% for 3003, 0.3–0.8% for 3105) provides solid solution strengthening without severely compromising rollability. Mills can cold-reduce these alloys by 40–55% to achieve H14 temper, yielding tensile properties that satisfy most curtain wall structural requirements. The grain structure after partial annealing is typically fine and equiaxed, which contributes to uniform deformation during bending and folding.

5005 and 5052, both Al-Mg alloys, offer higher strength but present rolling challenges. Magnesium increases work-hardening rate, which means roll forces climb rapidly as reduction increases. Edge cracking becomes a concern, particularly on wider strip. For 5052-H32, the cold-rolling reduction must be carefully limited, and intermediate annealing may be required to complete the reduction schedule. These alloys are typically reserved for high-stress cladding applications—coastal buildings with extreme wind loads, or panels spanning unusually long distances between supports.

Grain Structure: The Hidden Variable in Bending Performance

When a cladding panel is folded on a press brake, the outer surface of the bend stretches while the inner surface compresses. The aluminium's ability to accommodate this strain without cracking depends heavily on grain size and grain morphology—both products of the rolling and annealing sequence.

Hot rolling breaks down the coarse, as-cast grain structure into a finer, more uniform distribution. But the real control over final grain size happens during cold rolling and subsequent annealing. A higher cold-rolling reduction stores more deformation energy in the lattice, which drives recrystallization during annealing and produces a finer grain size. For 3003 alloy, a cold reduction of 50% followed by partial annealing at 260–300°C typically yields a grain size in the 20–40 μm range—ideal for bending.

Problems arise when annealing is uneven. Temperature gradients across the coil during batch annealing can produce a mixed grain structure: fine grains near the coil surface where heating was faster, coarser grains in the core. This mixed structure leads to inconsistent bending behavior. A panel that bends cleanly at one end may show orange-peel texture or even micro-cracking at the other. Continuous annealing lines, which pass the strip through a furnace at controlled speed, produce far more uniform results and are strongly preferred for architectural-grade material.

The specifier has limited visibility into grain structure. Mill test certificates report mechanical properties, not grain size. But a simple bend test—folding a sample 180° over a radius equal to the sheet thickness—can reveal problems. Any cracking or severe orange-peel texture warrants rejection, regardless of what the tensile numbers say.

Strip Casting and Its Architectural Limitations

Twin-roll continuous casting (TRC) has transformed the economics of aluminium sheet production. Instead of casting a thick slab, reheating it, and hot-rolling it down to strip thickness, TRC feeds molten metal directly into a converging cavity formed by two water-cooled rolls. The metal solidifies and emerges as a thin strip—typically 6–10mm—ready for cold rolling. The energy savings are enormous, and the capital cost of a TRC line is a fraction of a conventional hot-rolling complex.

For architectural cladding, however, TRC material carries caveats. The rapid solidification inherent to TRC produces a cast structure that differs from conventionally hot-rolled material. Intermetallic particles are finer and more uniformly distributed, which is generally positive for formability. But the absence of hot-rolling reduction means the cast structure is not mechanically broken down to the same degree. The result can be a more pronounced anisotropy—directional variation in mechanical properties—which may manifest as uneven springback during folding or inconsistent flatness after routing.

This is not to say TRC material is unsuitable for cladding. Much of the 3003 and 3105 sheet used in architectural applications worldwide originates from TRC lines. But specifiers should be aware that TRC sheet may require tighter incoming inspection, particularly for large-format panels where flatness is critical. Some premium architectural specifications explicitly require conventionally hot-rolled and cold-rolled material, though this comes at a cost premium of 10–20%.

Coating Compatibility and Rolled Surface Quality

The surface of a rolled aluminium sheet is not simply a substrate for coating—it is an active participant in coating adhesion and long-term durability. The rolling process determines surface topography, oxide layer characteristics, and the presence or absence of residual rolling lubricants, all of which influence how a PVDF or powder coating system performs over a 20–30 year facade life.

Cold rolling requires lubricants to reduce friction between the strip and the work rolls. These lubricants—typically oil-in-water emulsions—must be completely removed before coating. Modern mills use multi-stage cleaning lines with alkaline degreasing followed by rinsing and drying. Residual oil levels below 5 mg/m² per side are achievable and necessary for reliable coating adhesion. Higher residuals lead to delamination, particularly at panel edges where moisture ingress is concentrated.

The as-rolled surface also carries a thin oxide layer, typically 2–5 nm thick, that forms spontaneously when fresh aluminium is exposed to air. This oxide is not a problem for coating—in fact, it provides a degree of passivation. But the oxide must be uniform. Rolled surfaces that have been stored in humid conditions may develop thicker, less uniform oxide patches that interfere with pretreatment chemical conversion. Chromate conversion coating, still widely used in architectural applications despite environmental concerns, reacts with the aluminium surface to form a mixed Cr-Al oxide that dramatically improves paint adhesion. The uniformity of this conversion layer depends on the uniformity of the underlying rolled surface.

For PVDF coatings—the dominant specification for high-end architectural cladding—the pretreatment sequence is typically: degreasing, rinsing, chromate conversion (or chrome-free alternative per AAMA 2605), rinsing, drying, primer application, PVDF color coat, and PVDF clear coat. Total dry film thickness ranges from 25–35 μm for standard architectural applications, with 70% PVDF resin content per AAMA 2605 specification. The rolled substrate must be free of roll marks, scratches, and embedded particles that could telegraph through the coating.

Rolling Tolerances and Their Impact on Fabrication

Thickness tolerance is the most obvious rolling-related specification, but it is far from the only one that matters. Width tolerance, camber (edge curvature), and coil set (longitudinal curvature) all affect how efficiently a sheet can be processed into cladding panels.

ASTM B209 specifies thickness tolerances that vary with nominal gauge and width. For 2.5mm sheet in widths up to 1500mm, the tolerance is ±0.15mm. For 3.0mm, it is ±0.18mm. These numbers sound tight, but a 0.3mm variation across a 1500mm-wide sheet means the panel is 10% thicker at one edge than the other. When that panel is folded, the thicker edge will spring back differently from the thinner edge, producing a fold line that is not perfectly straight. On a facade with hundreds of panels, these small deviations accumulate.

Camber—the tendency of the strip to curve laterally—is specified as a maximum deviation from a straight edge over a given length. Typical architectural tolerances allow 5mm of camber per 3000mm of length. Excessive camber makes it difficult to align panels on the fabrication table and can lead to cumulative alignment errors during installation.

Coil set, the longitudinal curvature induced by coiling, is particularly troublesome. Cold-rolled sheet that has been coiled at small diameters retains a memory of that curvature. Leveling can reduce coil set, but complete elimination is difficult. Fabricators often specify a maximum coil set of 3mm per 1000mm of length, measured as the gap between the sheet and a flat surface. Material exceeding this limit requires additional leveling before fabrication, adding cost and lead time.

Procurement Implications: What to Ask the Mill

Most cladding specifications focus on the finished panel: alloy, temper, thickness, coating system, color. The rolling process that produced the substrate is rarely mentioned. This is a missed opportunity for quality control.

Specifiers should consider adding the following to their aluminium sheet procurement documents:

• Flatness classification: Specify I-unit 4 maximum per ASTM B209, with I-unit 2 preferred for large-format panels exceeding 1.2m in any dimension.
• Production route: Request disclosure of whether the material is conventionally hot-rolled and cold-rolled or produced via twin-roll strip casting. Both can be acceptable, but the specifier should know which they are getting.
• Annealing method: Continuous annealing is preferred over batch annealing for architectural applications due to superior grain structure uniformity.
• Residual oil: Maximum 5 mg/m² per side, verified by mill certification.
• Edge condition: Slit edges should be free of burrs exceeding 0.05mm, which can interfere with folding and create corrosion initiation sites.
• Coil set: Maximum 3mm per 1000mm for material supplied in coil form.

These requirements add little to material cost but significantly reduce the risk of fabrication problems and field failures. Mills that serve the architectural market are accustomed to such requests, and those that resist them may not be the right supply partners for demanding cladding projects.

Rolling Direction and Its Influence on Panel Design

Every rolled aluminium sheet has a grain direction—the direction parallel to rolling. Mechanical properties differ between the longitudinal (rolling) direction and the transverse direction. Yield strength is typically 5–10% higher in the transverse direction. Elongation is lower transversely. These differences are small but consequential when panels are folded.

The rule of thumb for press brake folding: bend lines should be oriented perpendicular to the rolling direction whenever possible. A fold parallel to the rolling direction places the outer bend fibers in the transverse direction, where ductility is lower, increasing the risk of cracking. For 3003-H14, the minimum recommended bend radius is 1t (one times thickness) for bends perpendicular to rolling direction and 1.5t for bends parallel to rolling direction. For 5052-H32, the corresponding radii are 1.5t and 2.5t.

This grain-direction effect also influences flatness. A panel routed parallel to the rolling direction will release residual stresses differently than one routed perpendicular. The practical consequence: large panels with complex cutout patterns should be prototyped and tested before committing to full production, even when the base material meets all standard specifications.

The Aluminum Sheet Metal Rolling process, in its entirety, is a chain of interdependent decisions—from slab casting temperature to final leveling pass—that collectively determine whether a cladding panel performs or fails. The specifier who understands this chain is better equipped to write specifications that actually deliver the flat, durable, dimensionally stable facade the architect envisioned. The specifier who treats aluminium sheet as a commodity defined only by alloy and thickness is leaving performance to chance.

Per AAMA 2605-20, high-performance architectural coatings on rolled aluminium substrate must demonstrate minimum 70% PVDF resin content, pass 4000 hours of salt spray resistance, and retain 50% minimum gloss after 10 years of South Florida exposure. These requirements are only meaningful if the underlying rolled sheet meets the flatness and surface quality standards described above.

For project teams evaluating aluminium cladding suppliers, the conversation should go beyond price per square meter. Ask about the mill source. Ask about the rolling route. Ask for flatness data, not just thickness certificates. The answers will reveal whether the supplier understands the difference between aluminium sheet that merely meets the standard and aluminium sheet that performs on the wall.
