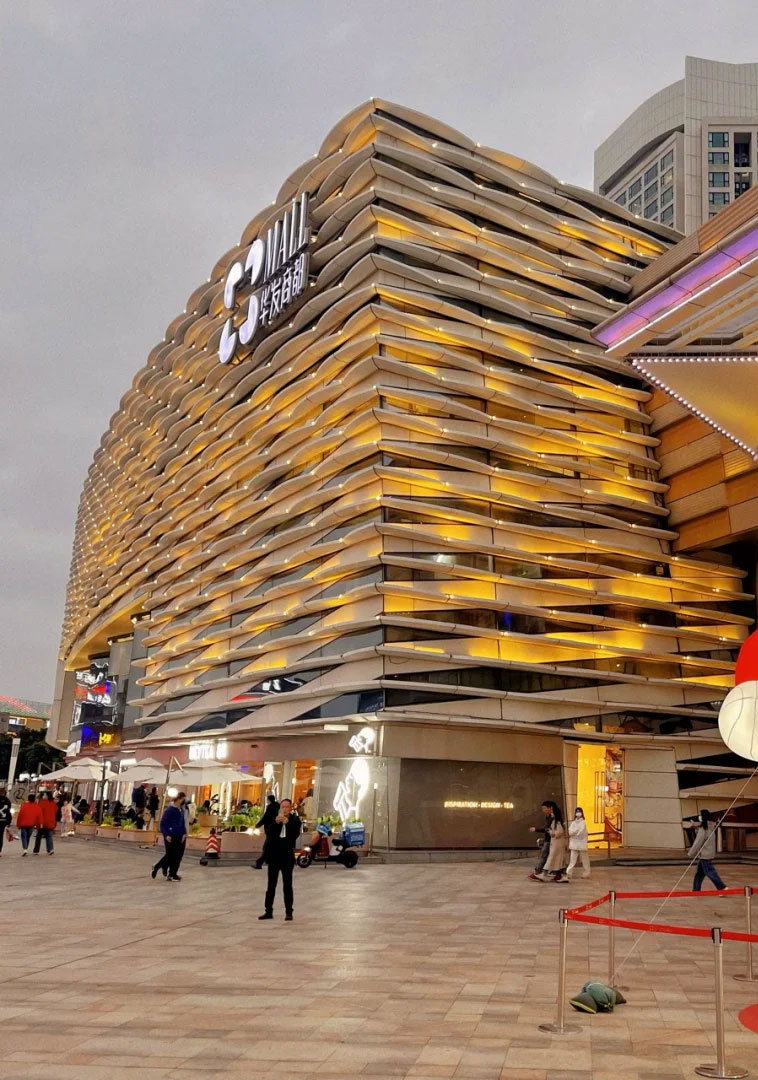

Huafa Mall, Zhuhai, Guangdong, China

Zhuhai Huafa Mall is an important commercial complex in Zhuhai. It was developed and constructed by Zhuhai Huafa Industrial Co., Ltd.. With a total construction area of approximately 180,000 square meters and an investment of about 2 billion RMB, it is one of the largest, highest-end, and most well-equipped shopping centers in Zhuhai. The mall officially opened in May 2014 and is located in the core commercial area of Zhuhai Avenue. It integrates shopping, leisure, entertainment, and dining, providing a one-stop consumption experience for both residents and visitors. Its design emphasizes a spacious and transparent layout with a modern commercial image, making it a landmark of urban commerce in Zhuhai.

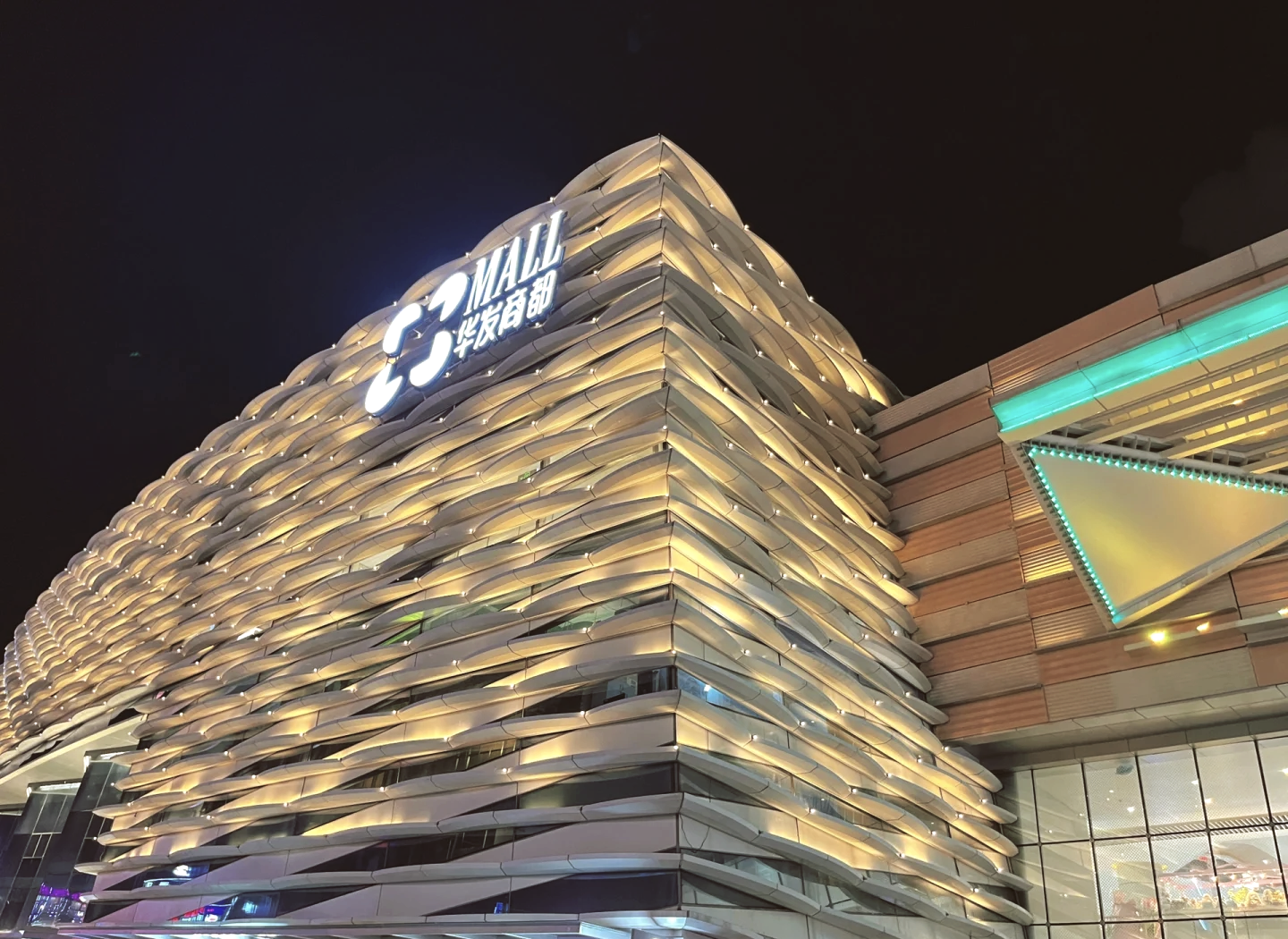

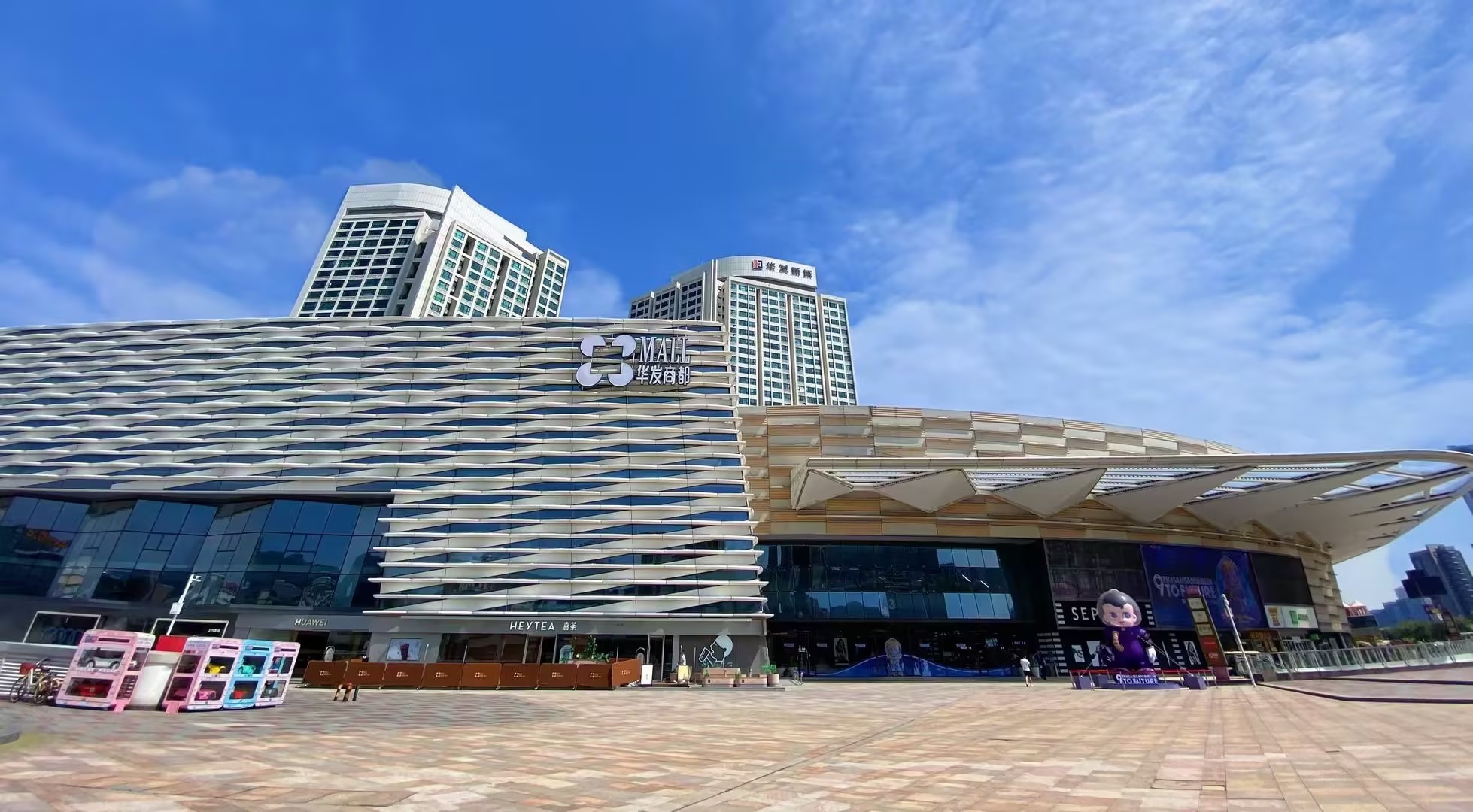

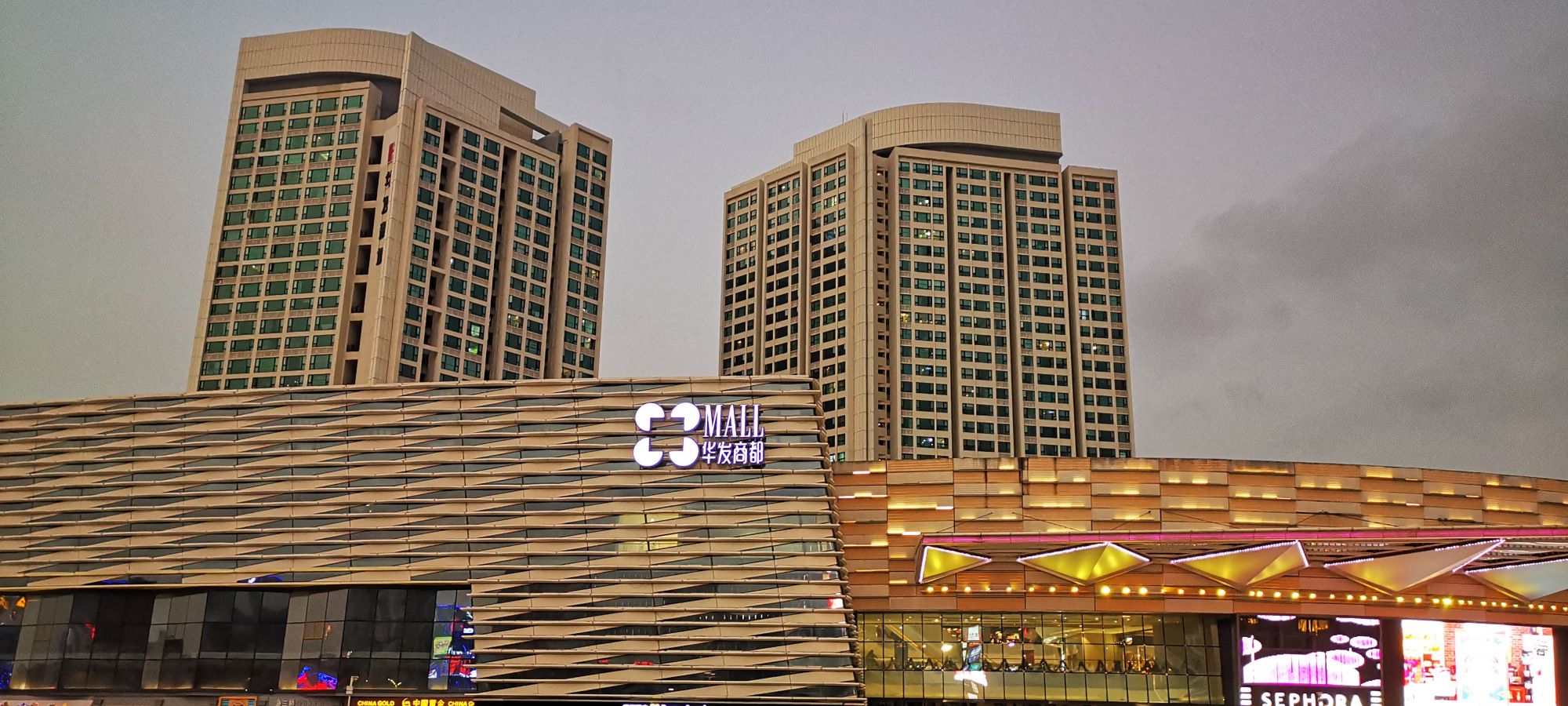

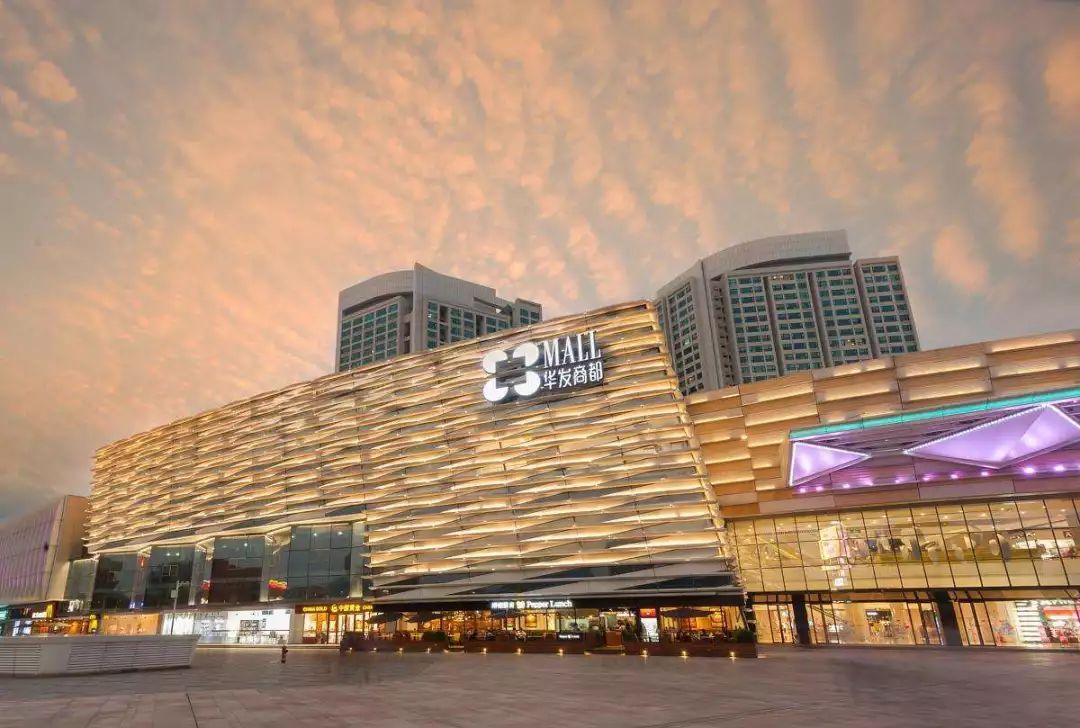

The exterior façade of Zhuhai Huafa Mall features a modern and layered design. It combines glass curtain walls with metal decorative panels, and incorporates uniquely shaped Aluminium panels to create a distinctive and visually striking façade effect.

1. Overall façade form

1. The façade combines large areas of glass curtain walls with metal decorative panels, creating a contrast between transparency and solidity.

2. In certain sections, corrugated or folded-shaped irregular Aluminium panels are used in combination with glass curtain walls, enhancing the visual rhythm.

3. The exterior design emphasizes horizontal extension and rhythmic variation, giving the building a more dynamic and modern appearance.



2. Application of irregular Aluminium panels

•  Irregular Aluminium panels refer to Aluminium sheets that are processed through bending or curving into non-rectangular forms for façade decoration.

• -In Zhuhai Huafa Mall, these panels form wave-like or slanted arrangements, contrasting with other materials and adding depth and dynamism to the façade.

• -Aluminium panels are often combined with glass curtain walls and metal trims to create a rich material palette.



3. Surface treatment and visual effects

• -The surface of the Aluminium panels is typically treated with processes such as fluorocarbon coating to ensure weather resistance and color stability.

• -Under natural lighting, the folded surfaces of the irregular panels create light and shadow variations, enhancing the visual expressiveness of the façade.



4. Performance and construction advantages

• Aluminium panels are lightweight and high in strength, making them suitable for irregular shaping and large-scale façade applications.

• The coating is corrosion-resistant and easy to clean, well-suited to Zhuhai’s coastal humid climate.

• Construction usually combines factory prefabrication with on-site dry-hanging installation, improving both precision and efficiency.
