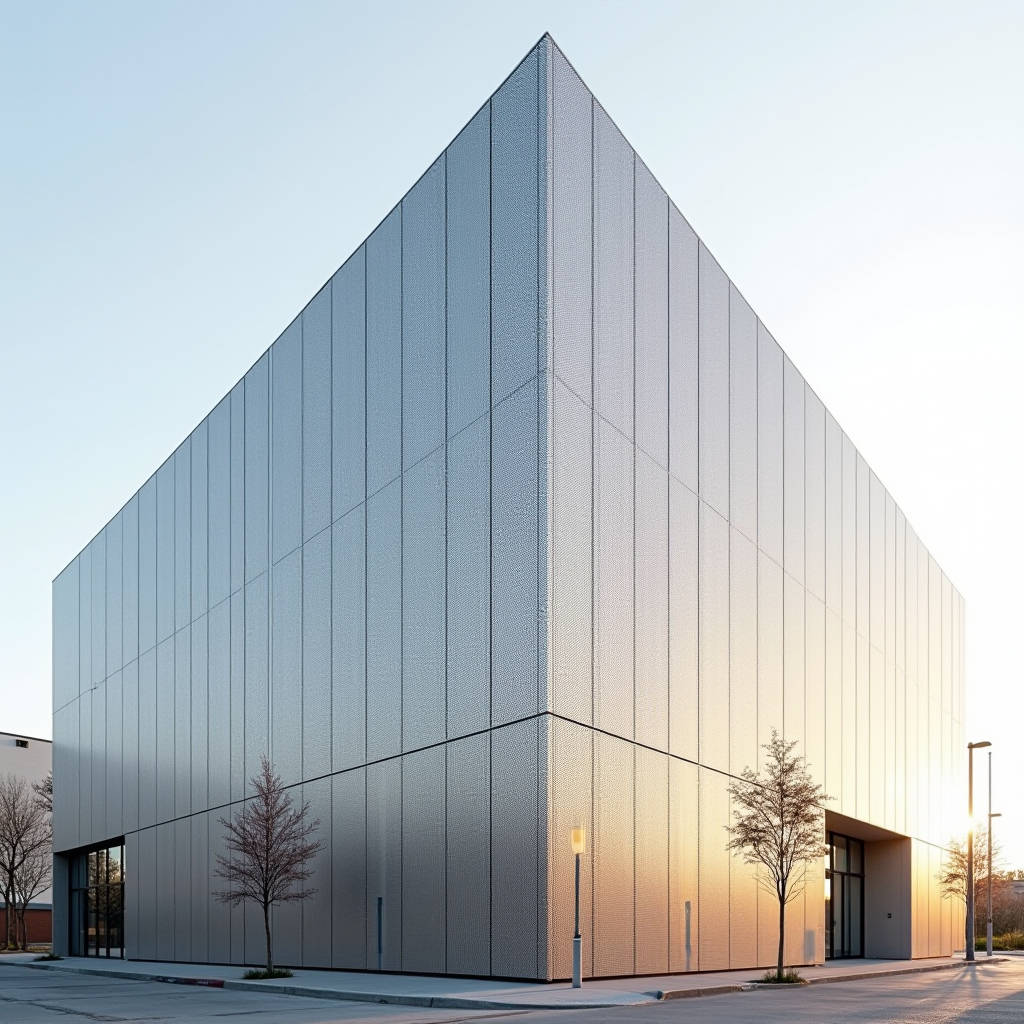

Micro Perforated Aluminum Sheet Facade Engineering for Stiffness Acoustic and Coating Performance
When a curtain wall spec calls for a micro perforated aluminum sheet, most contractors picture a purely decorative rainscreen. That assumption gets expensive on site. A micro perforated aluminum sheet behaves differently from a solid panel in three ways that matter to the people paying for the job: structural stiffness drops with open area, acoustic performance depends on backing cavity depth, and wind load transfer changes at the fastener line. This article walks through the engineering that happens before the first panel is cut, with practical numbers for hole diameter, open area, deflection, and acoustic absorption. The goal is to help general contractors, facade engineers, and procurement teams specify a micro perforated aluminum sheet that performs as designed, not one that merely looks right in a render.
What Defines a Micro Perforated Aluminum Sheet
Industry convention treats micro perforation as hole diameters from roughly 0.5 mm up to 3.0 mm, with open areas typically between 15% and 40%. Below 0.5 mm, you move into filtration territory where laser or CNC punching becomes the only practical method. Above 3.0 mm, the product starts behaving like standard perforated sheet and loses the visual fine-grain texture that architects often specify for facade screens.
The defining constraint is the relationship between hole diameter and sheet thickness. For a micro perforated aluminum sheet, the hole diameter should not exceed the material thickness by more than a practical ratio, otherwise the burr and edge quality degrade and the sheet loses stiffness. Most fabricators hold a hole-to-thickness ratio between 1:1 and 2:1 for clean punching. A 2.0 mm solid aluminum sheet with 2.0 mm holes is a realistic, repeatable specification. A 1.5 mm sheet with 3.0 mm holes is possible but requires tighter tooling control and higher unit cost.
Alloy and Temper Selection
For exterior facades, 3003-H14 and 5052-H32 dominate. 3003 offers good formability and corrosion resistance at lower cost, while 5052 delivers higher strength for larger unsupported spans. The temper matters because punching a micro perforated aluminum sheet work-hardens the material around each hole. H14 material punches cleanly with minimal edge distortion; softer H22 or O temper can produce inconsistent hole geometry and raised burrs.
Coil-fed CNC punching lines hold the tightest tolerances for micro work. A rotary punch with matched die sets keeps hole position within ±0.05 mm across a 1500 mm sheet width. Laser cutting becomes necessary below 0.8 mm holes, but laser edges on aluminum require de-burring and can leave a heat-affected zone that reduces fatigue life in wind-loaded panels.
Structural Behavior of Perforated Panels
The single biggest engineering mistake is treating a micro perforated aluminum sheet as a solid panel with the same section modulus. Perforation reduces both the effective thickness and the elastic modulus of the plate. The standard correction is to apply an open-area reduction factor to the bending stiffness calculation.
For a panel with 25% open area, the effective stiffness drops to roughly 60% of the solid panel value. Deflection under wind load increases by a factor of about 1.6 compared to an identical solid panel. This is not a small effect. A 3.0 mm solid panel that spans 1200 mm and deflects 4 mm under a 1.5 kPa wind load will deflect roughly 6.4 mm when perforated to 25% open area. If the facade spec allows L/180 deflection, that 6.4 mm exceeds the 6.7 mm limit only marginally, but any increase in open area or span pushes the panel into non-compliance.
Designers should treat the perforated panel as a diaphragm that carries wind load to the framing system, not as a load-bearing element. The framing, sub-girts, and connections must be sized for the full wind load, with the perforated panel contributing only its reduced stiffness.
Fastener and Connection Strategy
Because a micro perforated aluminum sheet loses stiffness at the hole field, fastener spacing must be tighter than for solid panels. A common rule is to reduce fastener spacing by 20% to 25% compared to solid panel practice. For a 2.0 mm panel, solid-panel practice might use fasteners at 300 mm centers; the perforated version should drop to 225 to 240 mm centers to prevent edge flutter and local buckling between fasteners.
Edge stiffening matters more here than on solid panels. A brake-formed return flange on all four edges restores a significant portion of the lost stiffness. A 20 mm return on a 2.0 mm sheet can recover roughly 30% of the stiffness lost to perforation, at modest added cost. Specifying the return flange should be standard practice for any micro perforated aluminum sheet used in an exterior rainscreen.
Acoustic Performance and the Backing Cavity
Micro perforation is frequently specified for acoustic control, but the panel alone does almost nothing. The acoustic mechanism is a Helmholtz resonator: the micro holes act as the neck of the resonator, and the air cavity behind the panel acts as the volume. Without a sealed backing cavity, a micro perforated aluminum sheet provides negligible sound absorption.
Cavity depth is the dominant variable. A 100 mm cavity with 2.0 mm holes at 20% open area gives a peak absorption coefficient around 0.75 to 0.85 in the 500 to 1000 Hz band. Reducing the cavity to 50 mm shifts the absorption peak upward to roughly 1000 to 2000 Hz and lowers the coefficient to about 0.6. Increasing open area to 30% broadens the absorption bandwidth but lowers the peak coefficient.
For facade applications, the practical takeaway is that acoustic performance must be designed in concert with the cavity and the backing. A micro perforated aluminum sheet over a solid insulated wall with a ventilated cavity behaves differently from the same sheet over a sealed plenum. The acoustic consultant should specify hole diameter, open area, and cavity depth as a matched set, not as independent choices.
Coating and Durability for Exterior Use
Exterior micro perforated panels carry the same coating requirements as solid aluminum panels. The perforation exposes cut edges that are more vulnerable to corrosion than the flat face, so coating quality matters more, not less. A 70% PVDF (polyvinylidene fluoride) coating system with a 25 micron total dry film thickness is the industry baseline for exterior facades, per AAMA 2605 for high-performance coatings.
The cut edges of the holes are a weak point. Because the punch shears the aluminum, the edge grain is exposed and can wick moisture. Two strategies mitigate this: specify a coating applied after punching so the hole edges are covered, or specify a thicker primer that floods the edge. Coating after punching is the more reliable method but adds cost because the fabricator must handle the delicate perforated sheet through the coating line.
For coastal or industrial environments, consider 5052 alloy with a sacrificial anodized layer or a PVDF system with a chromate-free primer. The corrosion resistance of the alloy itself becomes the second line of defense behind the coating. A 3003 alloy with a thin coating will fail faster at the hole edges in a salt-laden environment than a 5052 panel with the same coating.
Coating Comparison Table
| Coating System | Typical DFT (microns) | Edge Coverage | Coastal Suitability | Relative Cost | Reference Standard |
|---|---|---|---|---|---|
| Anodized (Class I, 20 micron) | 20 | Poor at cut edges | Moderate | Low | AAMA 611 |
| Polyester powder (60/40) | 60-80 | Good if post-punched | Low | Low | AAMA 2603 |
| 70% PVDF (post-punch) | 25 | Good | High | Medium | AAMA 2605 |
| Fluoropolymer + primer (post-punch) | 30-35 | Excellent | Very high | High | AAMA 2605 |
Post-punch coating is the single most important durability decision for an exterior micro perforated aluminum sheet. It adds roughly 8% to 12% to panel cost but extends service life by years in aggressive environments.
Open Area, Airflow, and Solar Shading
Beyond acoustics, open area controls airflow and solar performance. A micro perforated aluminum sheet used as a solar screen relies on open area to reduce heat gain while preserving outward visibility. At 30% open area, a panel can reduce direct solar transmittance by roughly 60% while maintaining acceptable view-through. At 15% open area, the screen becomes nearly opaque and behaves more like a solid shading element.
Wind-driven rain is a separate concern. Perforated panels do not stop wind-driven rain; they redirect it. The hole pattern and the backing cavity must be designed so that water that passes through the holes drains out rather than pooling in the cavity. A ventilated rainscreen with a drained cavity and a weather barrier behind the panel is the correct assembly. Sealing the cavity behind a perforated panel traps water and accelerates corrosion.
For procurement teams, the practical specification is to state open area as a range with a tolerance, not as a single number. A 25% ± 2% open area spec gives the fabricator room to optimize hole spacing while protecting the structural and acoustic assumptions in the design.
Cost and Lead Time Considerations
Micro perforation is more expensive per square meter than standard perforation because tooling wears faster and production speed drops. A CNC punch line producing standard 5 mm holes can run at roughly twice the speed of a line producing 1.5 mm holes at the same open area. Expect a cost premium of 15% to 30% for micro hole diameters below 2.0 mm.
Tooling cost is a fixed component that matters for smaller orders. A dedicated die set for a specific hole diameter and pattern can cost several thousand dollars. For projects under 500 square meters, the tooling amortization can add 10% or more to the unit price. Consolidating the hole pattern across the project reduces this burden.
Lead times for micro perforated aluminum sheet run 3 to 6 weeks for standard alloys and patterns, longer for custom patterns or post-punch coating. Ordering the coating and the perforation from a single supplier, such as Futeng®, who controls both the punching line and the PVDF coating line, shortens the schedule and reduces the risk of coating defects at the hole edges.
Installation and Site Handling
Perforated panels are more fragile on site than solid panels. The hole field reduces the effective cross-section, so panels bend and crease more easily during lifting and handling. Site teams should handle panels vertically, use spreader bars for large panels, and avoid stacking them with heavy loads on top.
Field cutting of a micro perforated aluminum sheet is strongly discouraged. The hole pattern makes clean field cuts difficult, and exposed cut edges without coating become corrosion sites. All cutting should happen in the factory where the punched edges are coated. If a field cut is unavoidable, the cut edge must be re-coated with a touch-up primer that matches the PVDF system.
For exterior facades, the reliable sequence is: punch the holes, coat the panel, then install. Any field modification that exposes uncoated aluminum at a hole edge defeats the corrosion protection and voids the coating warranty.
Procurement Checklist for Facade Teams
Before ordering, confirm five numbers with the fabricator: hole diameter, open area with tolerance, sheet thickness, alloy and temper, and coating system with post-punch coverage. Ask for a deflection calculation at the design wind load for the actual span, not a generic table value. Confirm the cavity depth and backing assembly with the acoustic consultant before the panel geometry is locked.
Request a sample panel that has been punched, coated, and finished exactly as the production panels will be. Check the hole edge quality under magnification and confirm the coating covers the cut edges. A sample that looks good in the showroom but has bare edges at the holes will fail in the field.
Verify the fabricator's tolerance documentation. Hole position tolerance of ±0.05 mm and open area tolerance of ±2% are achievable on modern CNC lines. Anything looser than that will compromise both the structural and acoustic assumptions in the design.
For larger projects, require a mock-up panel tested for both wind load deflection and acoustic absorption. The mock-up should include the actual backing cavity and insulation, not a simplified version. A micro perforated aluminum sheet that performs in a lab mock-up will perform in the field only if the cavity and backing are built to match.
The engineering reality is that a micro perforated aluminum sheet is a precision component, not a decorative afterthought. When hole diameter, open area, cavity, coating, and fastener spacing are specified as a matched system, the panel delivers the acoustic, solar, and visual performance the design intends. When any one of those variables is left to chance, the facade underperforms and the contractor carries the cost of rework. Specify the system, not just the sheet, and the project stays on budget and on schedule.
