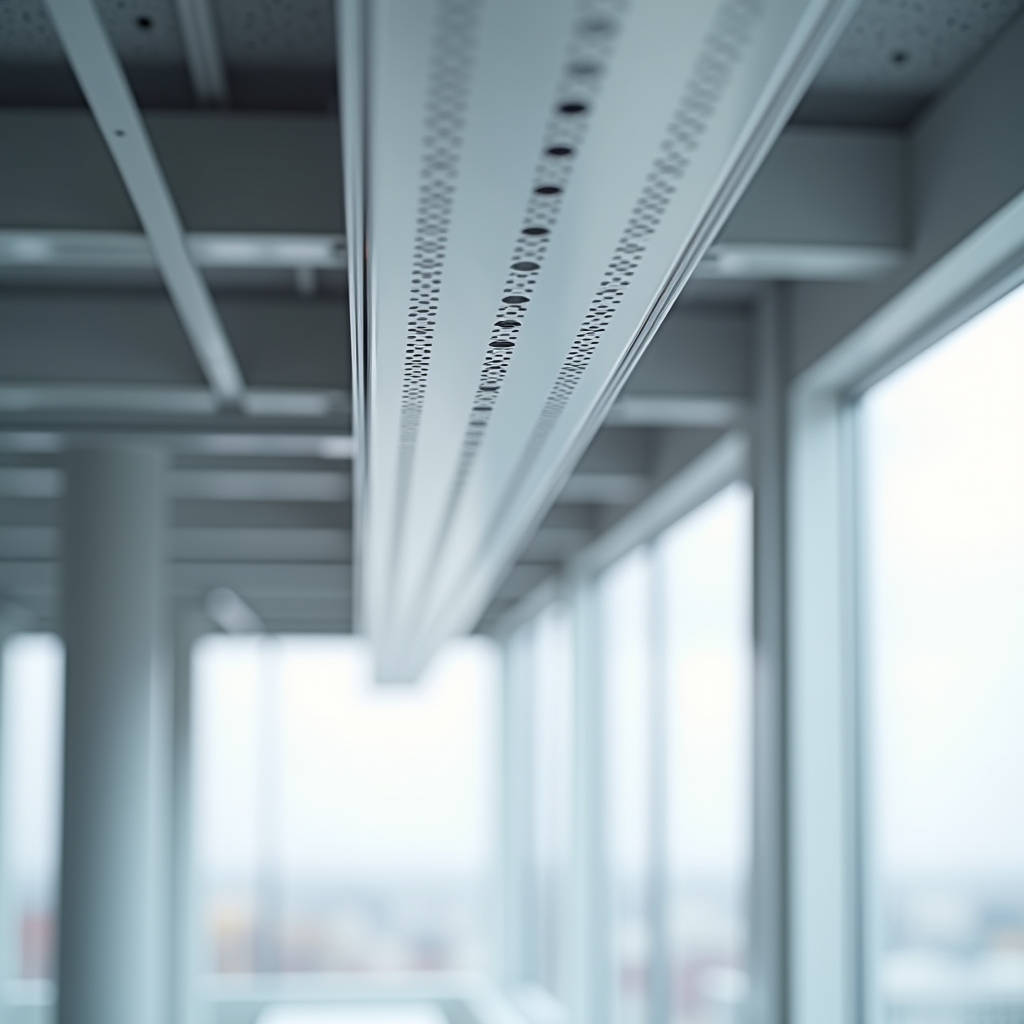

Aluminium Perforated Cable Tray Engineering for Heat Dissipation Load Class and Corrosion Resistance

An aluminium perforated cable tray does more than route power and data cables through a building. The punched pattern in the base and side walls creates a controlled ventilation path that pulls heat away from live conductors, lowers the ambient temperature inside the tray, and keeps the cable bundle within its rated operating envelope. For a facade contractor who already manages solid aluminium cladding panels on the exterior envelope, the same material logic applies indoors: choose the right alloy, the right surface finish, and the right load class, or the tray becomes a maintenance liability. This article walks through the engineering decisions that matter when specifying an aluminium perforated cable tray for a commercial or industrial project, from heat dissipation and structural spans to corrosion resistance and installation cost.

Why Perforation Matters Beyond Ventilation

The holes in a perforated tray are not decorative. They serve three functions that a solid-bottom tray cannot match. First, convective airflow through the perforations removes heat generated by current-carrying cables, which is why many engineers derate cable ampacity less aggressively in perforated trays than in enclosed raceways. Second, the open pattern allows dust, moisture, and condensation to drain instead of pooling against the cable jacket. Third, the reduced surface area lowers the total weight of the tray, which translates directly into lighter hangers and faster installation.

That last point is where aluminium earns its place. A galvanized steel tray of the same nominal load class weighs roughly twice as much as an aluminium equivalent. On a multi-storey riser or a long horizontal run, the difference changes the size of the supporting steel, the number of fixing points, and the labour hours on site. For a project where the cable tray is installed at height, the lighter aluminium section also reduces the physical strain on the installation crew and the risk of damage during handling.

Alloy and Surface Finish Selection

Not every aluminium extrusion or sheet is suitable for a cable tray. The most common choice is an aluminium alloy with good structural strength and corrosion resistance, typically 6061-T6 or 6063-T5 for extruded side rails and rungs. The temper matters because a tray spans between supports and must resist bending without permanent deflection under the rated cable load. A soft, un-tempered alloy will sag long before the cable weight approaches the published rating.

Surface treatment is the second decision. Bare aluminium develops a natural oxide layer that protects the metal in most indoor environments, but in coastal or industrial atmospheres with chlorides or aggressive chemicals, an anodized finish or a powder coating adds a measurable service-life margin. The table below summarises the practical differences for a typical indoor installation.

For a facade contractor familiar with PVDF coatings on solid aluminium cladding panels, the same film-thickness logic applies to the tray. A 25–30 micron PVDF layer on the tray protects the metal in semi-exposed plant rooms and rooftop cable runs where the tray is not fully enclosed. The coating is not a substitute for correct alloy selection, but it extends the maintenance interval in aggressive environments.

Load Class and Span Engineering

Perforated trays are rated by the load they can carry at a given support spacing. The governing standard in North America is NEMA VE 1, which defines load classes and deflection limits, while the international reference is IEC 61537 for cable tray systems. A typical specification calls for a tray to support its rated load with no more than a defined deflection at the midpoint of the span. Exceeding the recommended span is the most common cause of premature sag, and it is entirely avoidable with a simple span table.

For a 300 mm wide aluminium perforated tray, a practical support spacing might be 1.5 m for a medium load class. Widening the tray to 600 mm without adding intermediate supports increases the bending moment and forces a lower load class or a heavier section. The design sequence is straightforward: determine the total cable weight per metre, add a safety factor for future cable additions, then select the tray section and support spacing that keeps the deflection within the project limit. A useful rule of thumb is to allow 10–15 percent spare capacity for future circuits, because retrofitting a tray later is far more expensive than oversizing it at tender stage.

Heat Dissipation and Cable Derating

Perforated trays are selected for power cables precisely because the open pattern improves heat rejection. The cable manufacturer publishes ampacity tables for different installation methods, and the tray configuration affects which column of the table applies. A perforated tray with a cover behaves differently from an open perforated tray, because the cover traps heat and reduces convective airflow. If the design intent is maximum ampacity, the tray should remain open or use a cover with ventilation slots.

When cables are laid in a single layer with a spacing between them, the derating factor is close to unity. When cables are bunched in several layers, the derating factor drops, and the perforations become more important because they allow the heat to escape between the layers. A common engineering error is to pack the tray to its physical capacity without accounting for the resulting temperature rise. The correct approach is to calculate the expected current per cable, apply the derating factor for the tray configuration, and confirm that the conductor temperature stays below the insulation rating.

Corrosion and Environmental Durability

Aluminium performs well in most atmospheres, but it is not immune to every environment. In a coastal installation, airborne salt deposits can attack the metal if the surface is scratched or if the alloy contains copper as a major alloying element. The 6061 and 6063 alloys used in cable trays are chosen partly because their copper content is low, which keeps the corrosion resistance high. In a chemical plant, the specific chemicals in the atmosphere should be reviewed against the alloy and finish before the tray is ordered.

Galvanic corrosion is another point that a procurement team should flag. When an aluminium tray is bolted to galvanized steel or stainless steel supports, the dissimilar metals can create a galvanic couple in the presence of moisture. The practical mitigation is to use compatible fasteners and to avoid direct metal-to-metal contact where condensation is likely. Stainless steel fasteners are common, but the tray manufacturer should confirm that the fastening system does not accelerate corrosion of the aluminium section.

Installation Speed and Labour Cost

The weight advantage of aluminium shows up most clearly on site. A crew working at ceiling height handles a lighter section more safely and more quickly, which lowers the installed cost even when the material price per kilogram is higher than steel. Some manufacturers offer clip-style couplers that replace nut-and-bolt assemblies and reduce the number of fasteners per joint. On a long run with many joints, the labour saving can be significant, and the reduced fastener count also removes a common source of loose hardware and corrosion.

For a facade contractor who already manages the interface between the cladding system and the building services, coordinating the tray route with the structural steel and the cladding brackets is essential. The tray should be installed before the ceiling is closed and before the cladding panels are fixed, so that the cable route does not conflict with the facade support structure. A short coordination meeting at tender stage saves far more time than a site rework later.

Standards and Specification References

Three documents anchor most aluminium perforated cable tray specifications. NEMA VE 1 covers cable tray systems in North America and defines load classes and deflection limits. IEC 61537 is the international standard for cable tray and cable ladder systems. For the aluminium alloy itself, the applicable material standards are ASTM B221 for extruded aluminium and the relevant ISO 6362 series for wrought aluminium and aluminium alloys. A specifier should confirm that the tray manufacturer tests to the standard named in the project specification, because the load ratings differ between the two frameworks.

For projects where the tray is visible or where the client requires a specific appearance, the surface finish can be specified against the same coating standards used for architectural metalwork. AAMA 2604 and AAMA 2605 describe performance requirements for high-performance organic coatings on architectural aluminium, and a PVDF-coated tray can be qualified against these documents. This gives the facade contractor a common language between the exterior cladding and the interior cable management.

Procurement and Quality Checks

When ordering an aluminium perforated cable tray, the procurement team should verify three things before the order is placed. First, the alloy and temper must match the load class in the specification. Second, the perforation pattern and open area should be confirmed, because a tray with too little open area loses its ventilation benefit. Third, the surface finish and film thickness should be stated in the purchase order, not assumed from a generic product name.

A reliable supplier such as Futeng® can provide mill certificates for the aluminium alloy and coating documentation for the specified finish, which is useful when the project requires traceability. The same discipline that applies to solid aluminium cladding panels applies here: confirm the material certificate, check the coating thickness, and inspect a sample section before the full order is released for production.

Practical Engineering Recommendations

For a typical commercial project, specify a 6061-T6 or 6063-T5 aluminium perforated tray with a support spacing that matches the load class, and add 10–15 percent spare capacity for future circuits. Keep the tray open where ampacity is critical, and use a ventilated cover only where physical protection is required. In coastal or chemical environments, add an anodized or PVDF finish and use compatible fasteners to avoid galvanic corrosion. Confirm the governing standard in the specification, and verify the manufacturer's test data against that standard before approval.

The aluminium perforated cable tray is a mature product, but the engineering decisions around it are not trivial. The alloy, the finish, the span, and the derating assumptions all interact, and a small error in any one of them creates a maintenance problem that is expensive to fix after the ceiling is closed. Spending the time to get the specification right at tender stage is the cheapest insurance a project can buy.
